TESSERACT WH

Simple and Uncompromising Cooling Performance

Description

TESSERACT series computer case comes with multiple features. The case offers great compatibility, minimalist designs, and uncompromising cooling performance, making it a popular choice for many DIY enthusiasts and gamers. Accommodates up to 6 fans, 310 mm-long graphic card, and various DIY features. What more can you ask for?

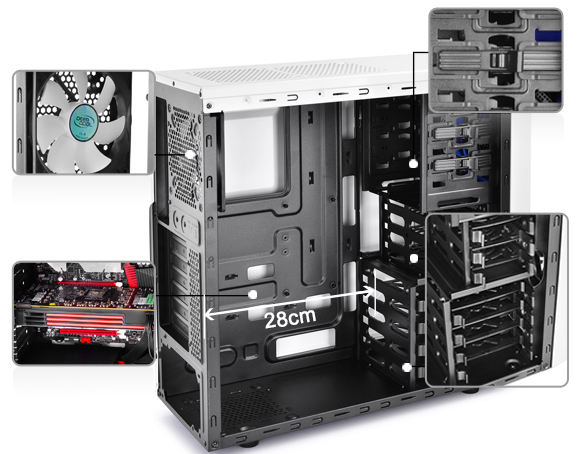

Great Installation Compatibility

Innovative DIY-friendly Design

Tool-free mounting for ODD.

Tool-free mounting for a 2.5-inch HDD/SDD and 3.5-inch HDD.

1x pre-installed DC fan (rear).

Great compatibility with VGA card and CPU cooler.

Ultimate Heat Ventilation Performance

Enhanced top panel

Integral dust filter.

USB ports, plugholes, and switches furnished at the top-panel for easy operations.

Fully-integrated dust filter in the inner panel.

Patented air intake channel furnished along the front panel perimeter.

Maximum Space Capacity Management

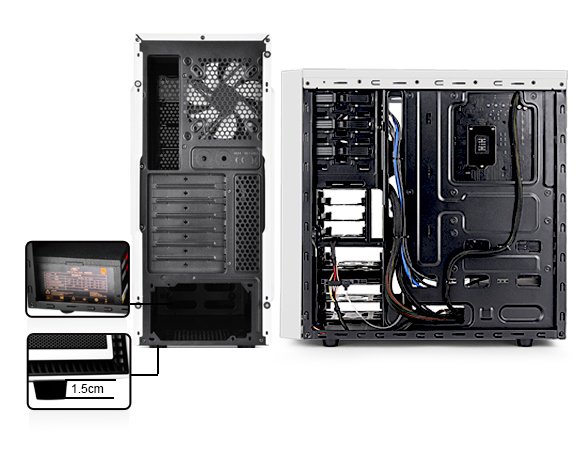

PSU Protection

Floor-mounted PSU for improved space management.

Elevated floor designs enhance intake airflow dynamics and cooling performance of the PSU fan.

120 mm and 80 mm mounting holes on rear panel.

Backplate Cable Installation

Multiple channels for superb cable management.

Technical Spec

Motherboards	ATX/MICRO ATX/MINI-ITX
Materials	SPCC+PLASTIC(Panel thickness: 0.7mm)
Dimension (L×W×H)	472210454mm
Net Weight	5.1kg
5.25" Drive Bays	2 (all tool-free installation)
3.5" Drive Bays	4 (all tool-free installation)
2.5" Drive Bays	3 (all tool-free installation)
I/O Panel	1×USB3.0/1×USB2.0/Audio×1/Mic×1
Expansion Slots	7
Cooling Fans	Included: Rear: 1×120mm DC fan; Optional: Front: 1×120mm; Top: 2×120mm; Side: 2×80/90/120mm.
Power Supply Type	ATX PS2
CPU Cooler Compatibility	169mm height /Liquid Cooler: 120mm at rear
VGA Compatibility	310mm
EAN	6933412712282
P/N	DP-CCATX-TSRWHBF
