MATREXX 55 V3 ADD-RGB WH

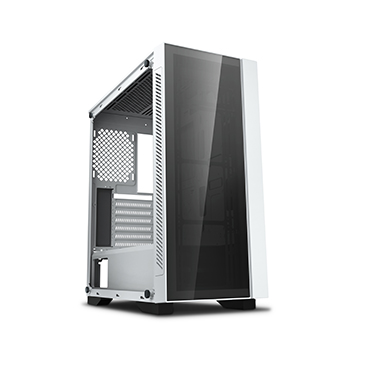

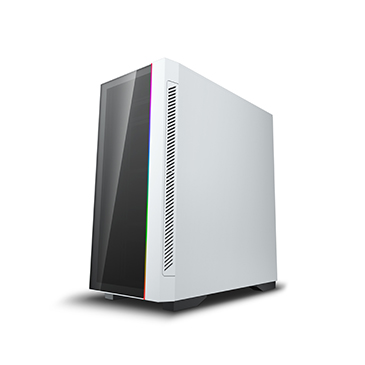

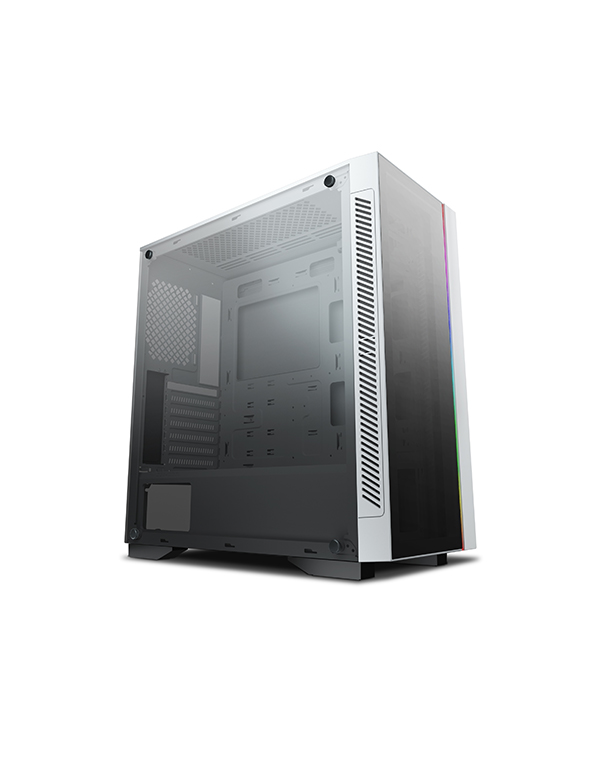

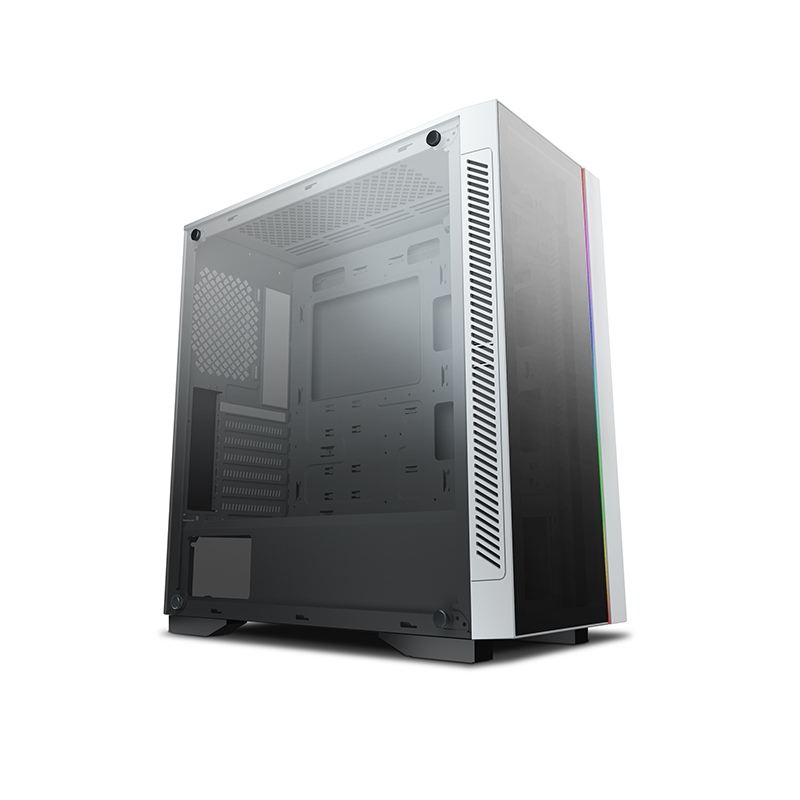

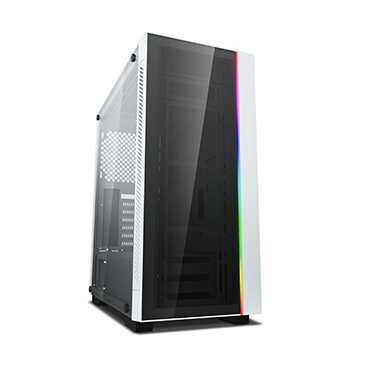

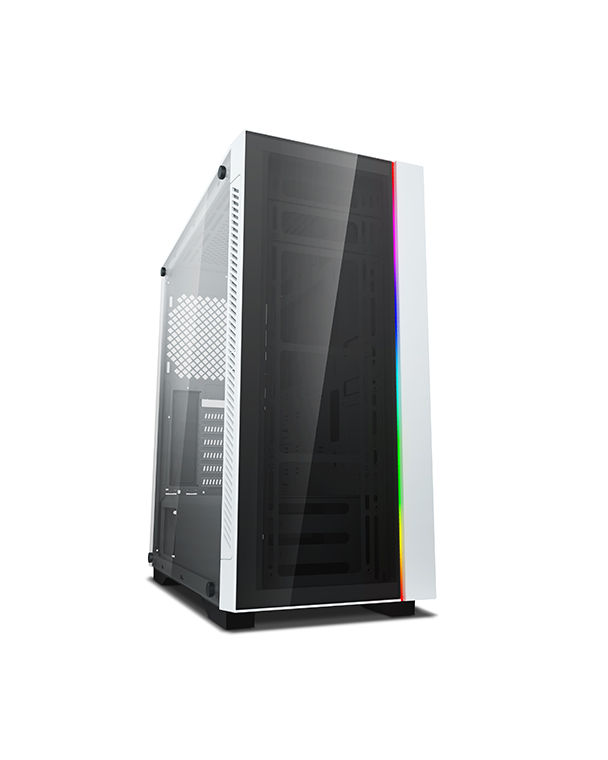

The MATREXX 55 V3 ADD-RGB WH is a performance mid-tower ATX case with dual 4mm tempered glass side and front panel to showcase your build in spectacular form featuring an A-RGB LED strip.
Colour
white
MODEL
MATREXX 55 V3 ADD-RGB WH
The clear choice
ADD RGB Syncing Open to All Brands
Comes with expandable RGB lighting system and includes a pre-installed Addressable RGB strip in the front, which is easily controlled by manual button or via the motherboard; Additionally the case also enables you to add on more RGB devices by including two RGB connectors -- one for DeepCool ecosystem and one for universal 5V 3-pin headers. Now 5V ADD RGB devices of any brand can be brought into this system!

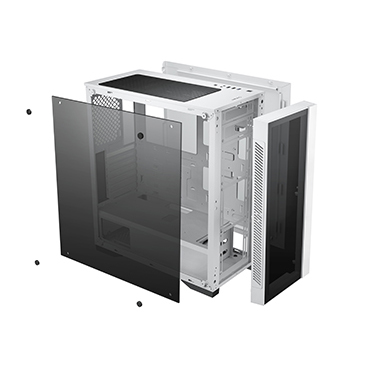

Dual 4mm Tempered Glass

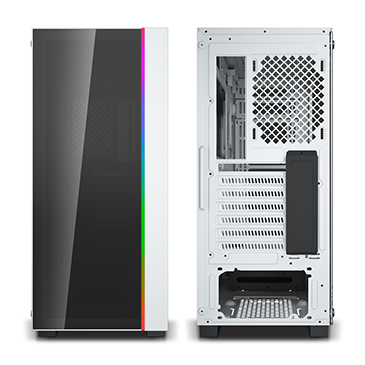

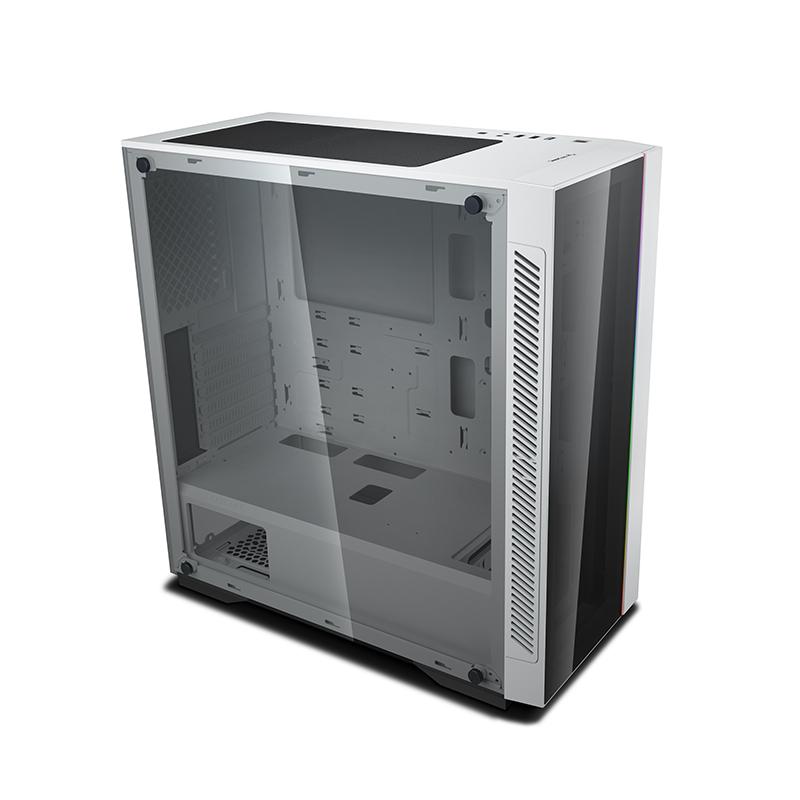

Full sized 4mm thickness tempered glass side panel and a front panel give the case a unique look to perfectly show off your configuration
Massive Cooling Compatibility
Optimized airflow is guaranteed with large air intakes on two sides of the front panel and an air exhaust in the back and on top, to keep your components cool
Cooling Compatibility :
Supports the installation of Liquid Cooler :
1
120/140/240mm radiator liquid cooling system on the top
2
120mm radiator liquid cooling system in the rear
3
120/140/240/280/360mm radiator liquid cooling system in the front
Supports the installation of Cooling Fans :
1
2×120/2×140mm fan on the top
2
1×120mm fan in the rear
3
3×120mm or 3×140mm fan in the front
PSU Shroud Added

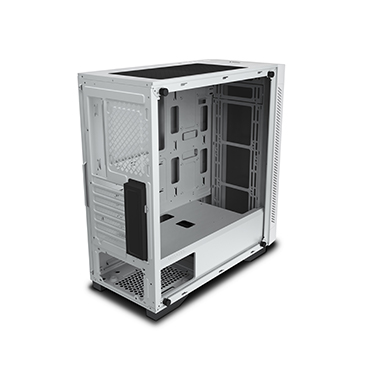

The ADD-RGB version is equipped with a PSU Shroud to hide the cables and to keep the system neat and tidy
PSU Shroud Added
The ADD-RGB version is equipped with a PSU Shroud to hide the cables and to keep the system neat and tidy

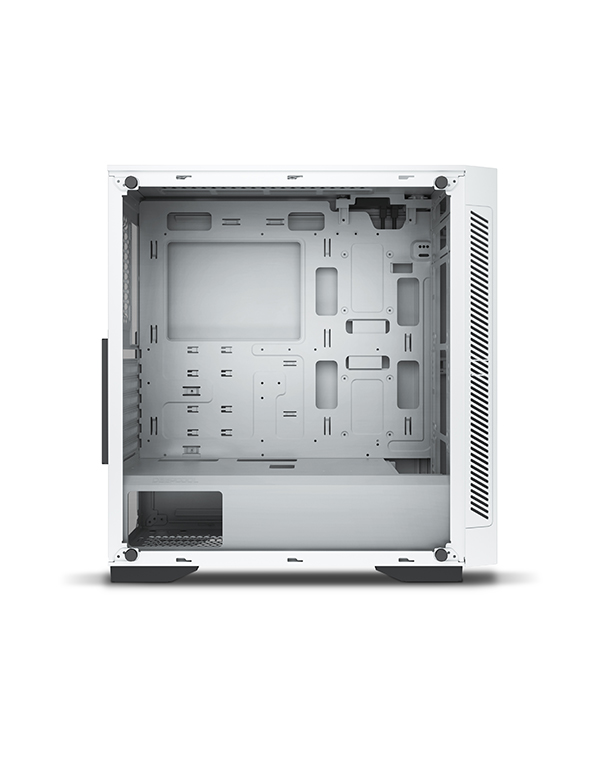

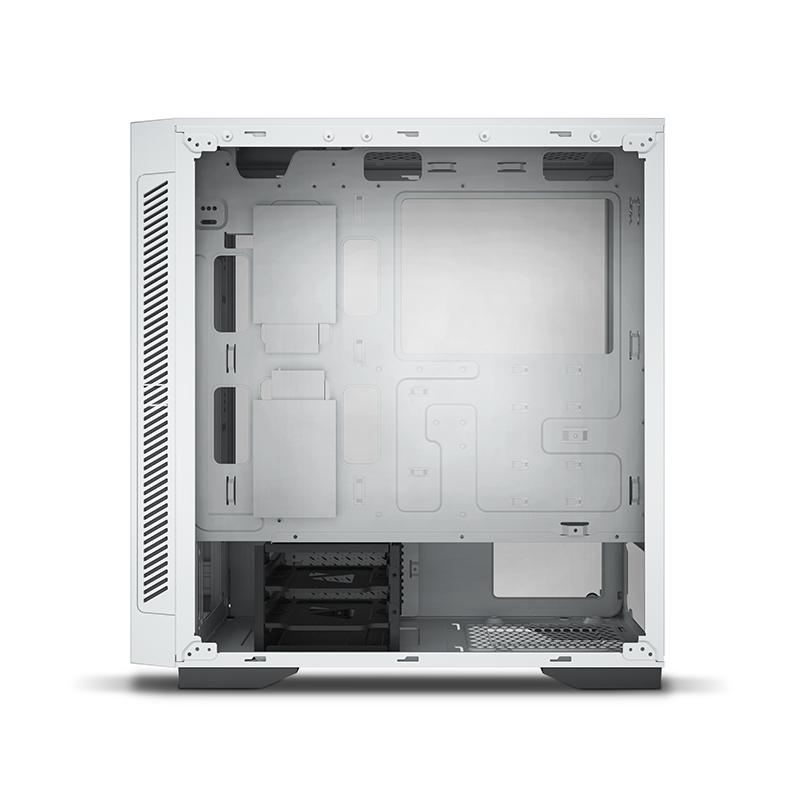

Easy Cable Management
Cable managing is now easy with a 210mm wide tower compartment (23mm clearance)

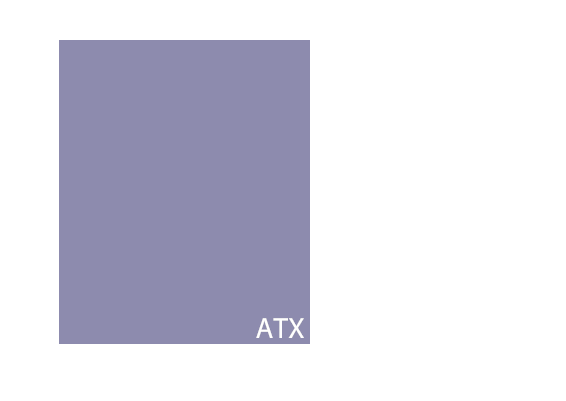

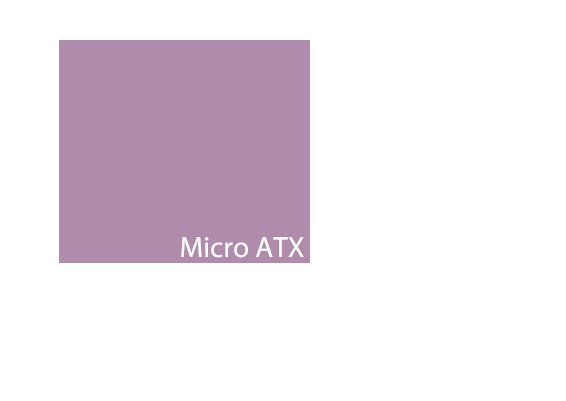

Supports Motherboards up to E-ATX
Power Supply: ATX PS2 (Length less than 170mm)

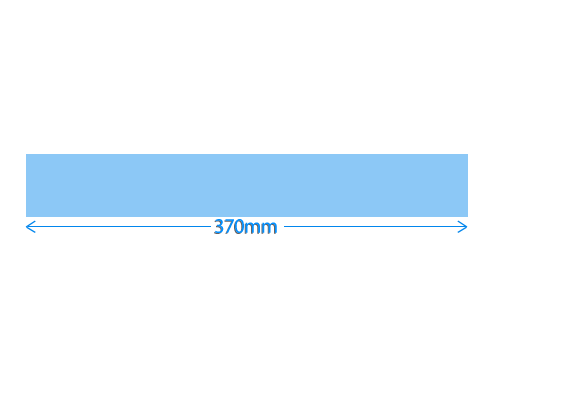

Supports 370mm (max) Graphic card installation
The large area of air-intake at two sides of the front panel ensures sufficient airflow for the systems

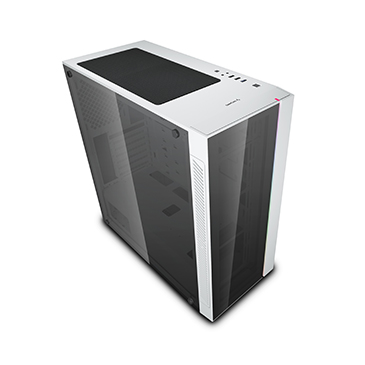

The magnet-mounted dust filter provided at the top panel, offers users easy removal and cleaning

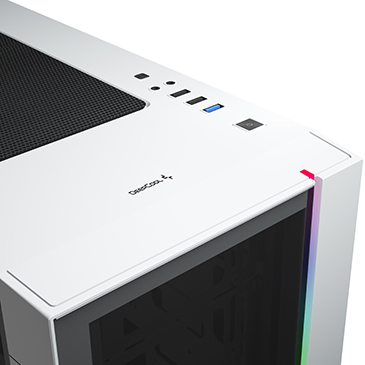

1×USB3.0/2×USB2.0/Audio/Mic/RGB Button/Power

Technical Spec

Motherboards E-ATX/ATX/Micro-ATX/Mini-ITX
Case Type Middle Tower
Materials ABS+SPCC+Tempered Glass
Product Dimensions (L×W×H) 446×210×479mm
Net Weight 7.4 kg
Gross Weight 8.5 kg
5.25" Drive Bays 0
3.5"/2.5" Drive Bays 2
2.5" Drive Bays 2+2
I/O Ports 1×USB3.0/2×USB2.0/1×Audio/1×Mic
Expansion Slots 7
Power Supply Type ATX PS2 (maximum length: 170mm)
Cable Management 23mm Clearance
CPU Cooler Height Limit 160mm
VGA Length Limit 370mm Horizontal, 340mm Vertical
Cooling Fans Support

Optional: Rear: 1×120mm;

Front: 3×120mm / 3×140mm; Top: 2×120/ 2×140mm

Liquid Cooler Support Front: 120/140/240/280/360mm radiator; Top: 120/140/240mm radiator; Rear: 120mm radiator
Carton Dimension (L×W×H) 515×275×510mm
EAN6933412714095
P/N DP-ATX-MATREXX55V3-AR-WH
Product Dimension
Download
MATREXX 55 V3 ADD-RGB WH Manual.pdf
