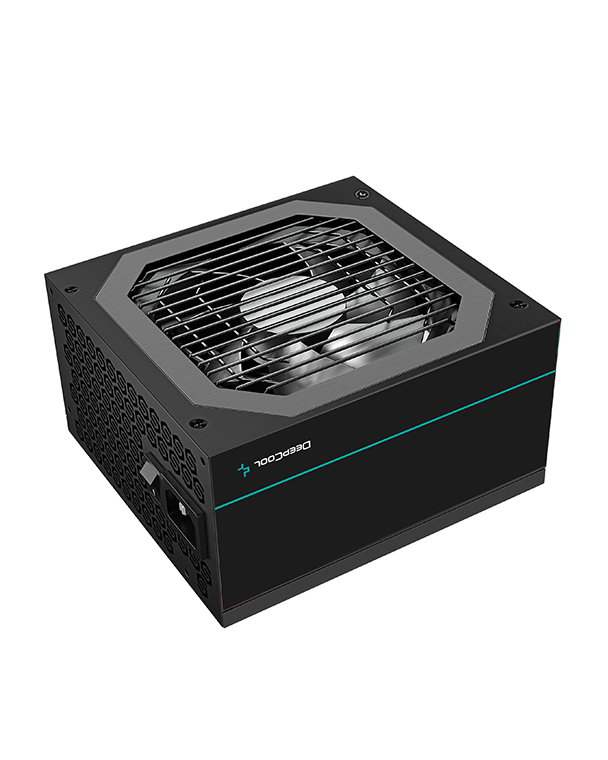

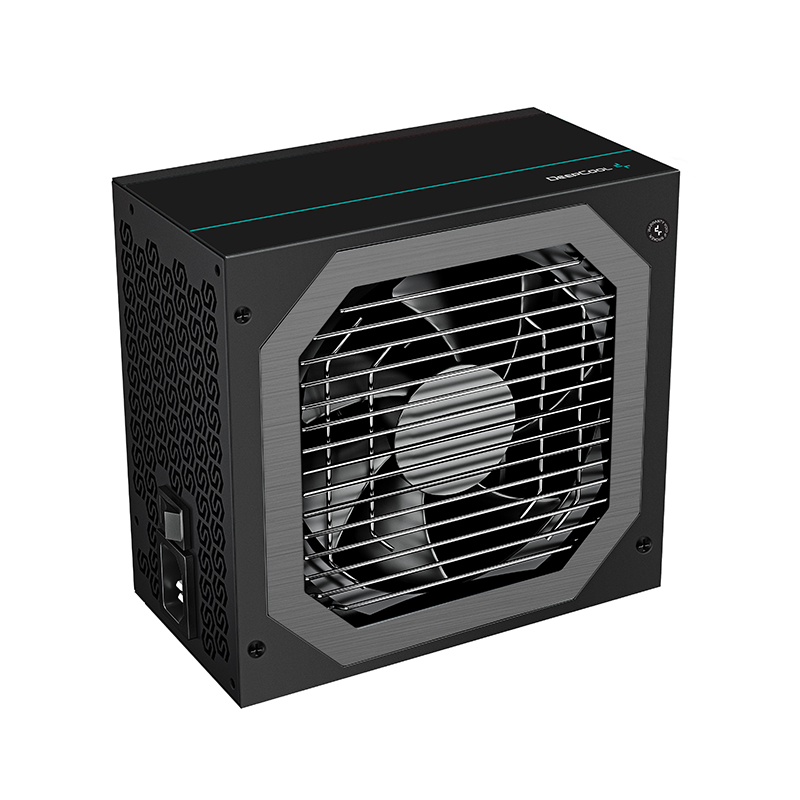

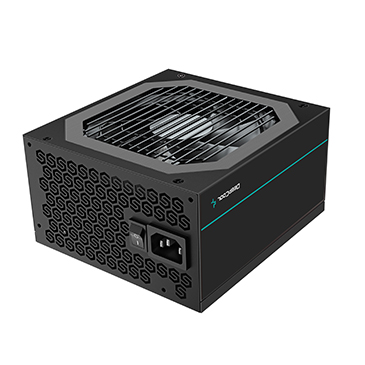

The DQ750M-V2L fully modular 750W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ750-M-V2L offers better reliability for your PC system.
COLOR
black
MODEL
DQ750-M-V2L
Reliable 80 PLUS Gold Efficiency
The DQ750M-V2L fully modular 750W 80 PLUS Gold power supply features 100% Japanese capacitors and high
quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the
DQ750-M-V2L offers better reliability for your PC system.
80 PLUS® Gold Certified
Get all the power you need with a maximum 91.2% efficiency to reduce excess energy consumption and waste
heat.
Top-notch Design
Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous
rectification DC-DC design, the DQ750-M-V2L delivers improved performance with lower power dissipation,
increased quality, and better thermals to meet your needs.
80 PLUS® Gold
80 PLUS® Gold certified - Up to 87~90% efficient (20~100% Loading)

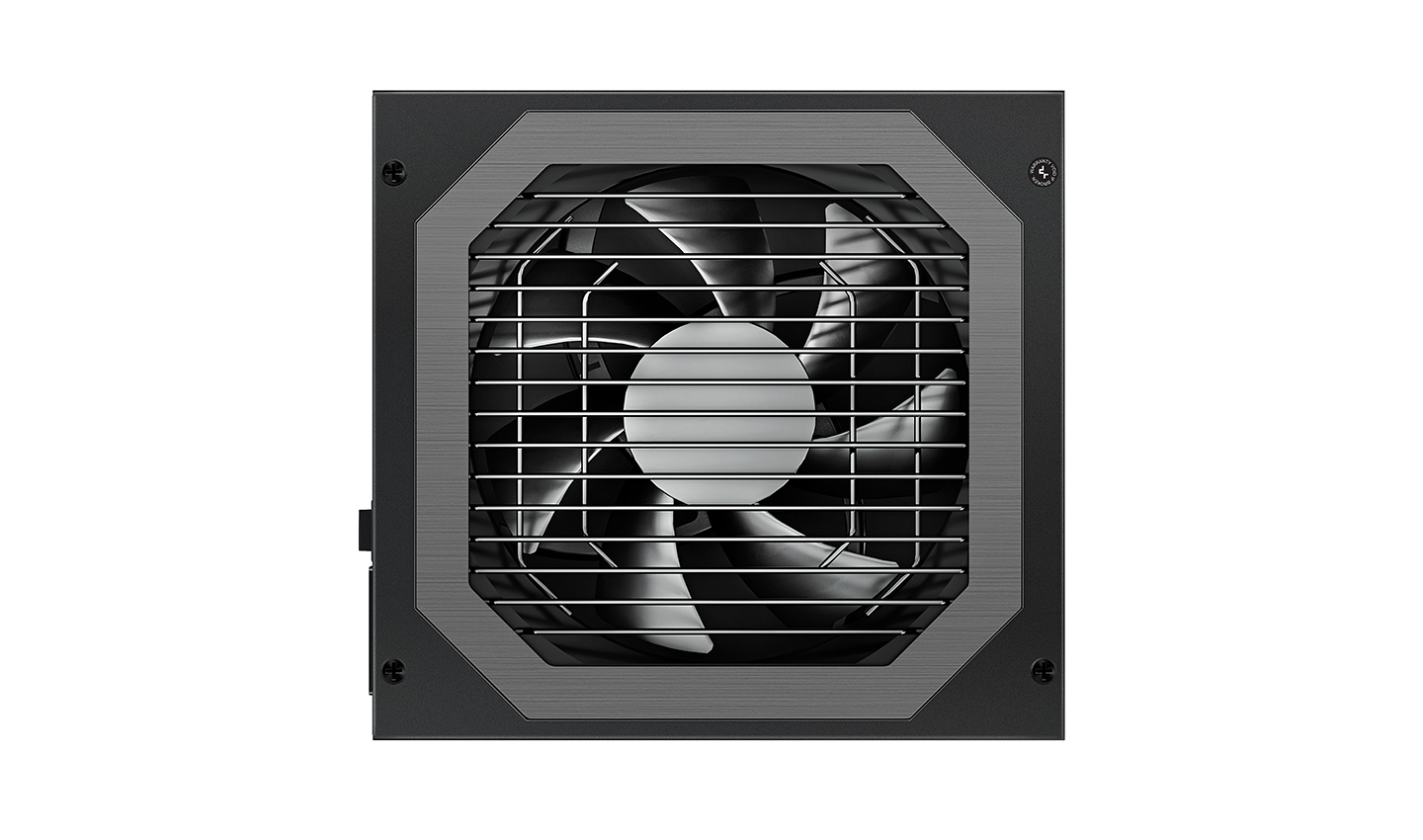

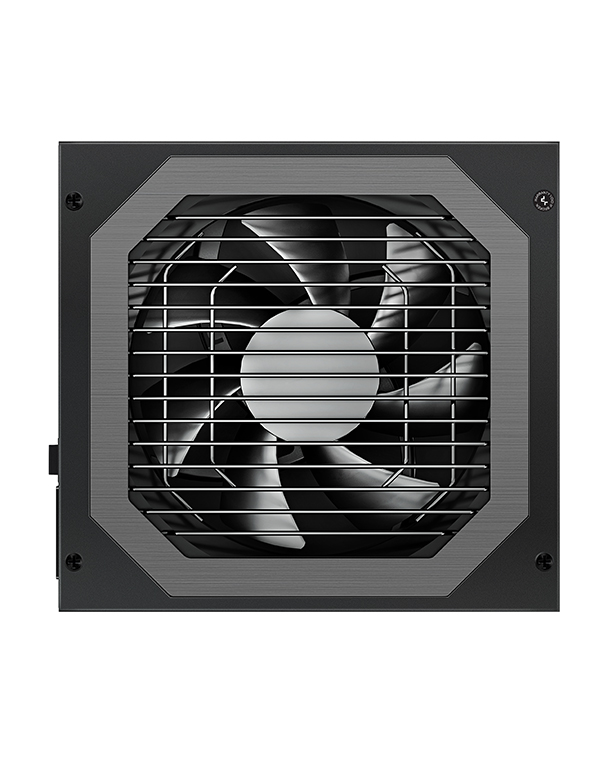

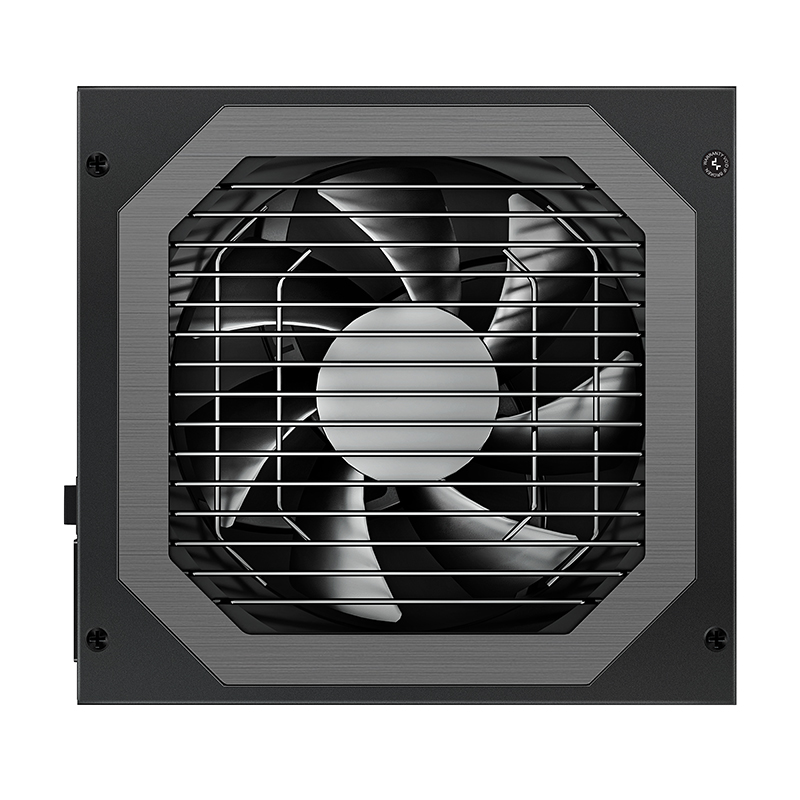

Silent and High Performance Fan
120mm silent fan has temperature control function to keep low noise
Details Discovered
High grade Japanese 105℃ PFC Boost Capacitor
100% Japanese Capacitors
Excellent 1 and 2-stage EMI filter circuit
Highly efficient Active PFC
Excellent manufacturing process
Highly reliable supervisor IC for protections

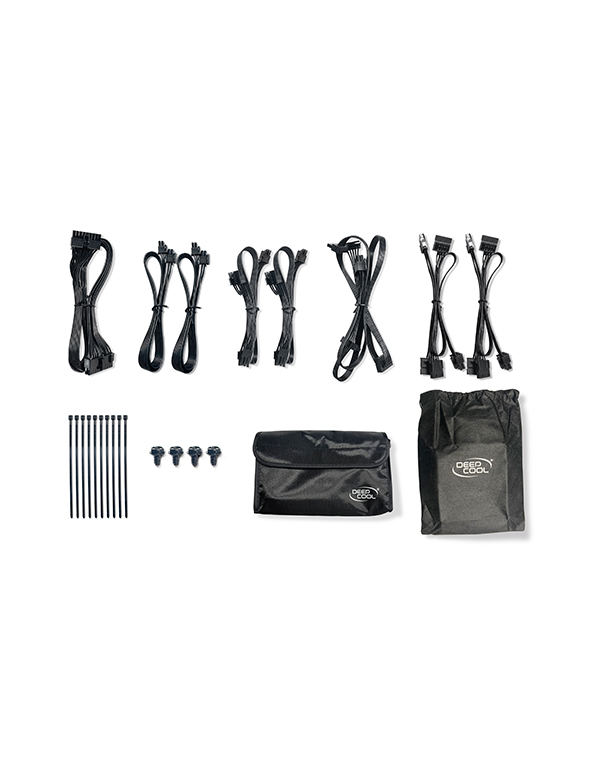

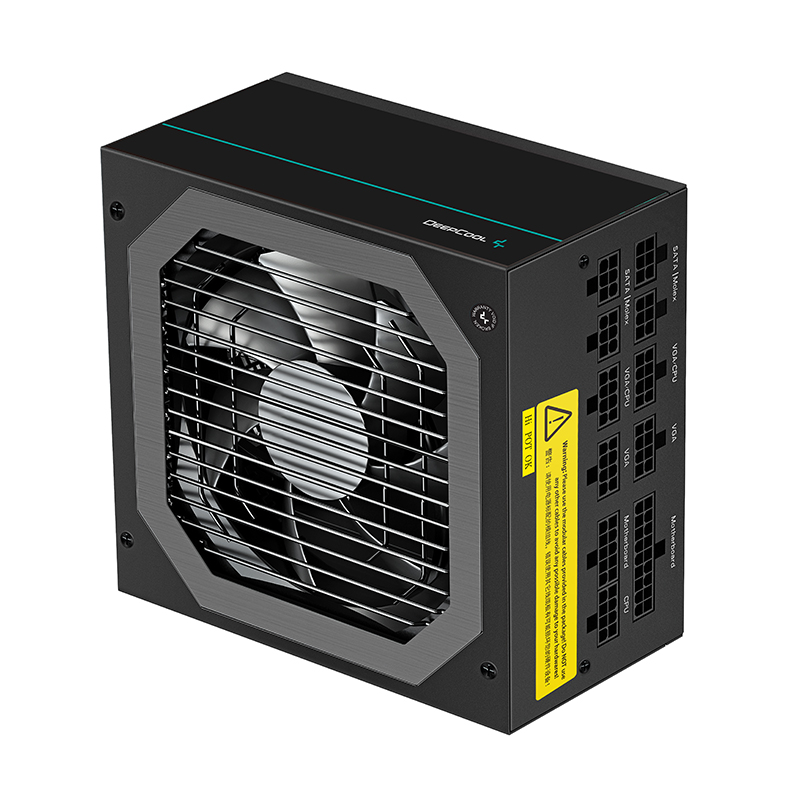

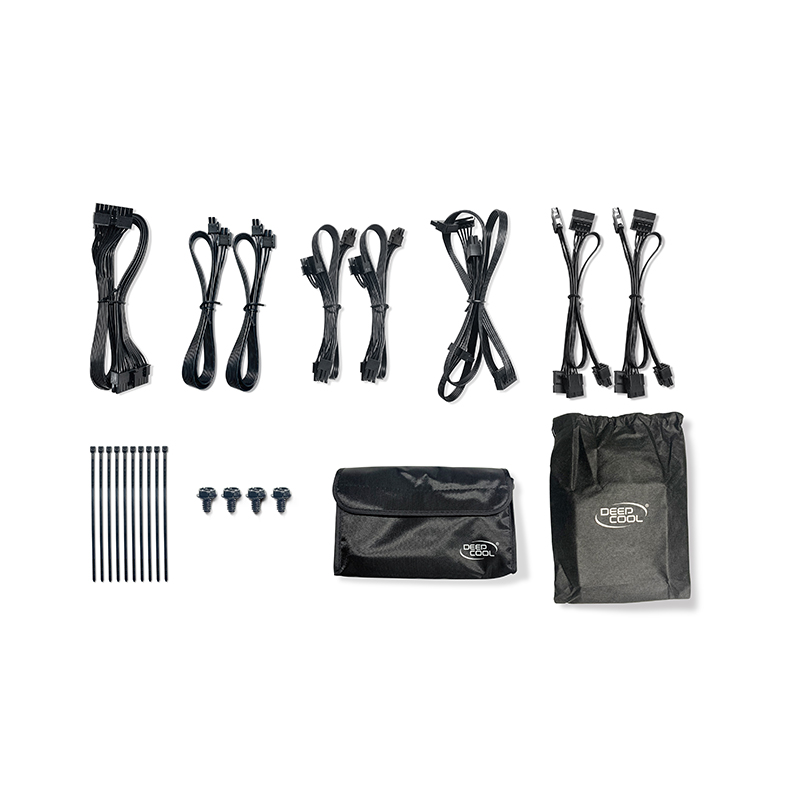

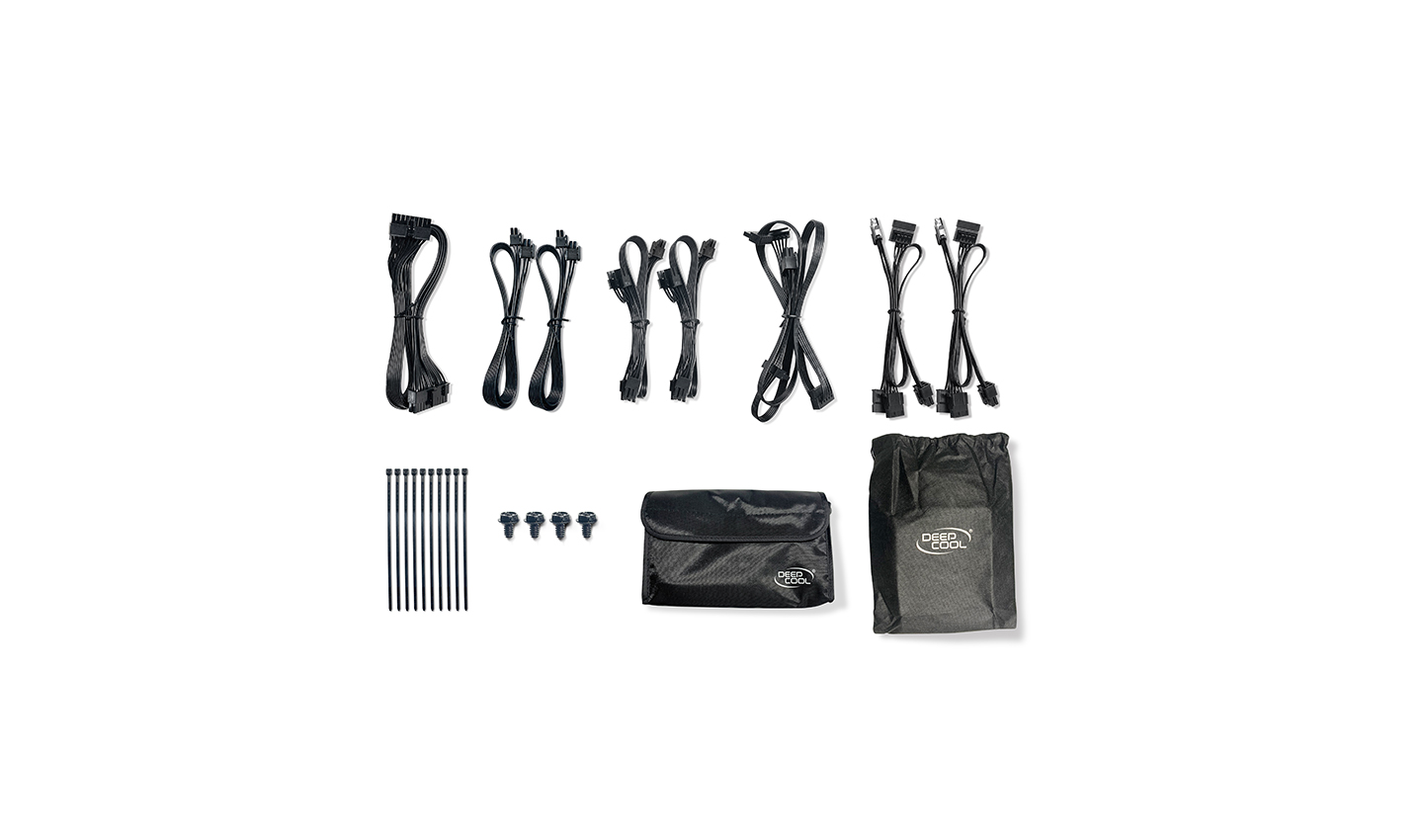

Fully Modular
Easy cable management with flat cables keep your system clean and tidy. The 100% Japanese capacitors
enhanced ripple filtering, improved reliability and product life.
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.

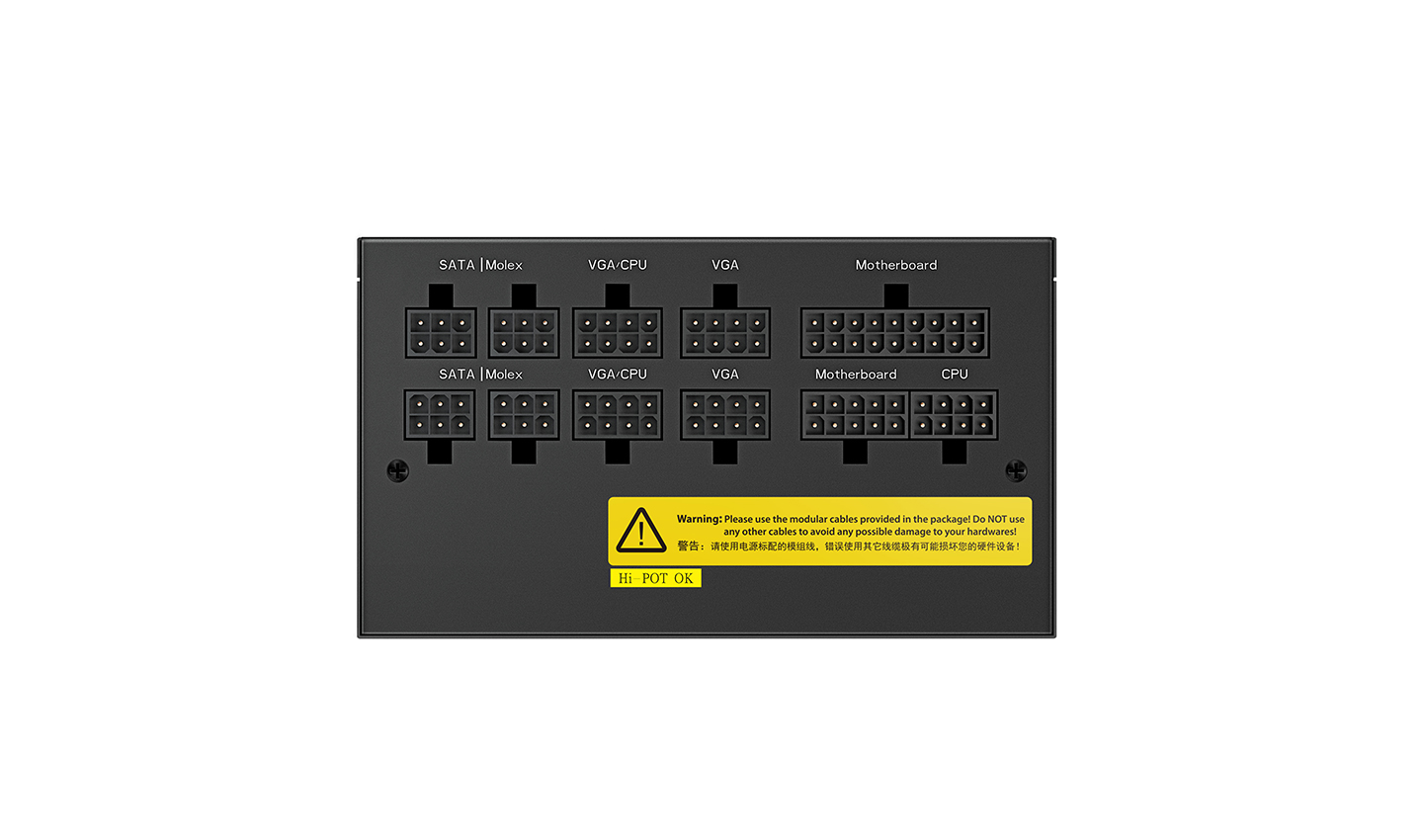

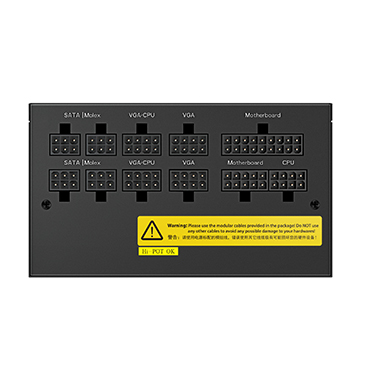

Main Power
Connector (20+4)Pin x 1
X1
CPU(4+4)Pin
x 1
X2
PCI-E(6+2)Pin x 2
X2
SATA x 4
X1
4Pin
Peripheral x 2+SATA x 2
X2
Technical Spec
Model
DQ750-M-V2L
Type
ATX 12V V2.31
Certifications
80PLUS GOLD
Dimension
150×160×86mm (W × L × H)
Output Capacity
750W
Input Voltage
100-240V
Input Current
10.0A
Input Frequency Range
47-63Hz
Fan Size
120mm
PFC
Active
Power Good Signal
100-500ms
Hold Up Time
>16ms (80% Loading)
Efficiency
>90% Under Typical Load (50% Loading)
Standby Efficiency
ErP Lot 3 2014
Protection
OVP/UVP/OCP/SCP/OPP/OTP
Operation Temperature
0-40°C
Regulatory
CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs/UKCA
MTBF
100,000 Hours
EAN
6933412798927
P/N
DP-GD-DQ750-M-V2L
