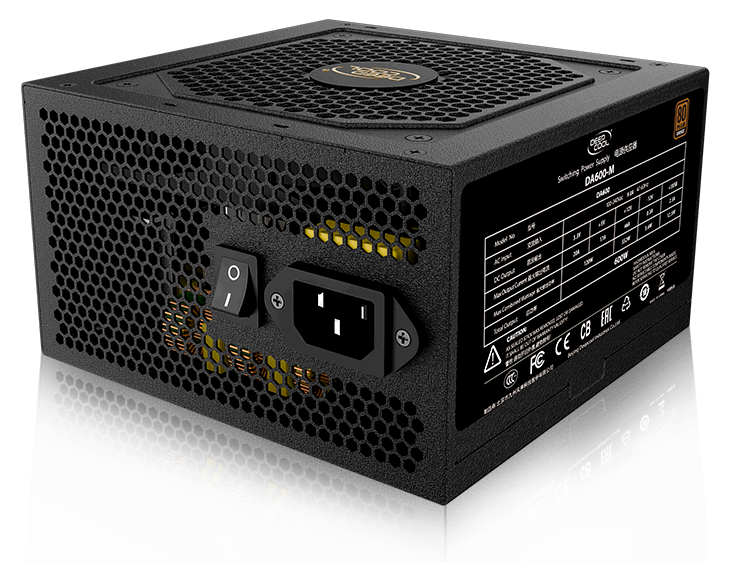

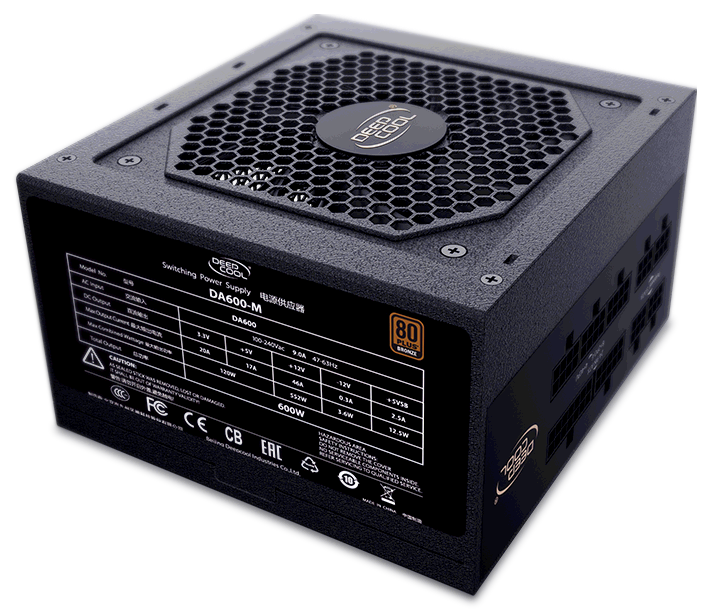

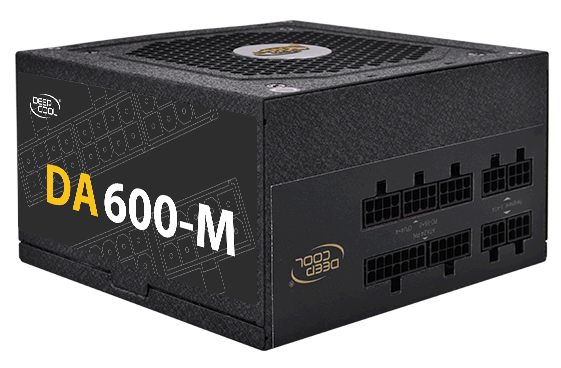

DA600-M
80PLUS Bronze up to 85% Efficient PSU with 100% Full Modular

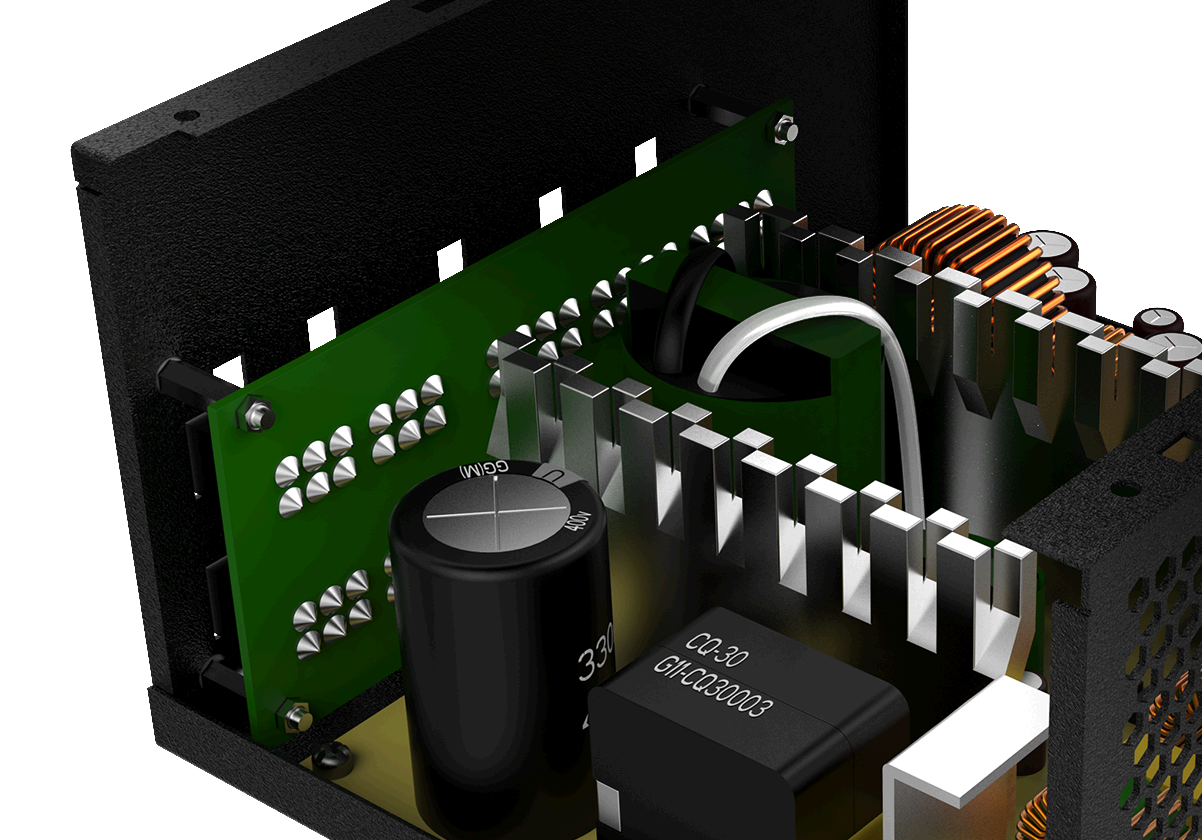

Japanese 105℃ Capacitors

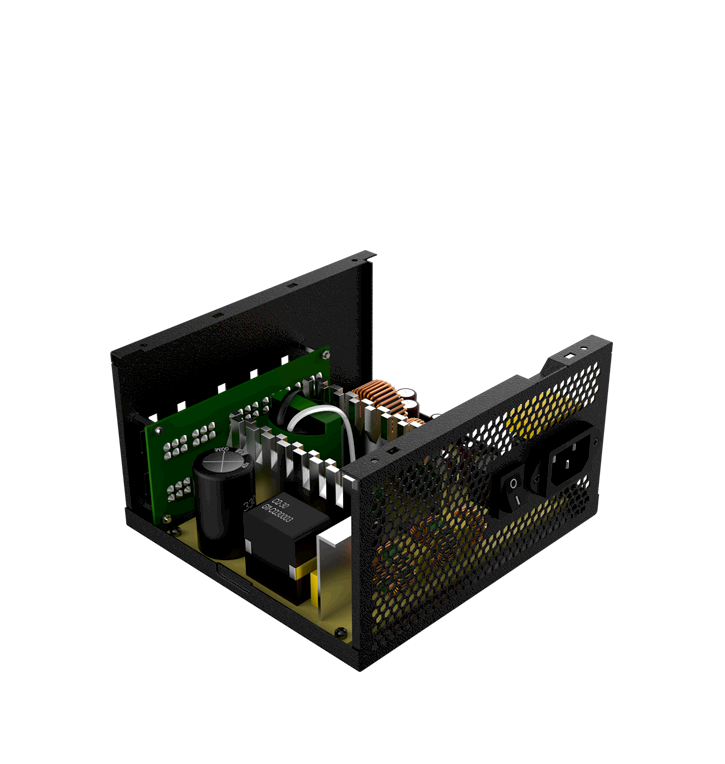

DA600-M built with Japanese 105℃ capacitors, featured low impedance, low voltage and long life, the
outstanding and stable performance makes it one of the ideal choices for multi-purpose usage.
Powerful Single+12V Rail Design
Powerful single+12V rail for superior load balancing and VGA compatibility.

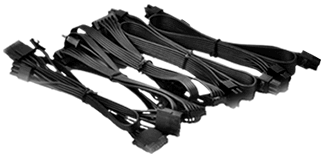

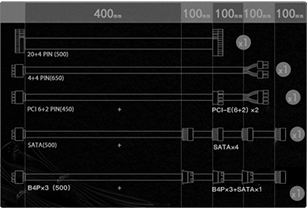

Full Modular Cable System
With full modular cable system, you can connect only the cables you
need to ensure a tidy and nice-looking case.

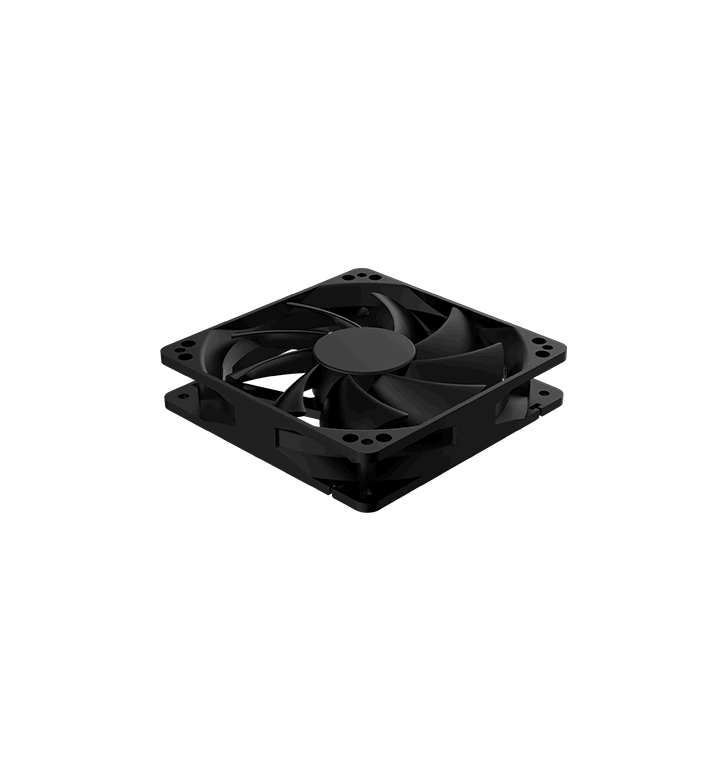

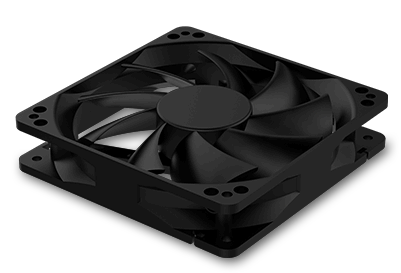

Silent and High Performance Fan
120mm silent fan with temperature function to provide incredible performance-noise
ratio.

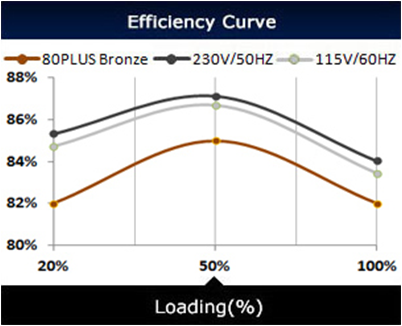

High Efficient Active PFC
Certified with 80 plus bronze with up to 82%-85% electrical efficiency enabling lower
heat generation and lower operation cost.
Certification and Support
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply warranty regulations.
Technical Spec
|
Model |
DA600-M (Model No. DA600) |
|
Type |
ATX 12V V2.4 |
|
Certifications |
80PLUS Bronze |
|
Dimension |
150×140×86mm (W x L x H) |
|
Output Capacity |
600W |
|
Input Voltage |
100~240V |
|
Input Current |
9.0A |
|
Input Frequency Range |
47~63Hz |
|
Fan Size |
120mm Black Fan |
|
PFC |
Active PFC |
|
Power Good Signal |
100-500ms |
|
Hold Up Time |
>16ms |
|
Efficiency |
85% Under Typical Load |
|
Protection |
OVP / UVP / SCP / OPP |
|
Operation Temperature |
0~40°C |
|
Regulatory |
CE / FCC / CCC / CB / EAC |
|
MTBF |
100,000 Hours |
|
EAN |
6933412798583 |
|
P/N |
DP-BZ-DA600-MFM |
