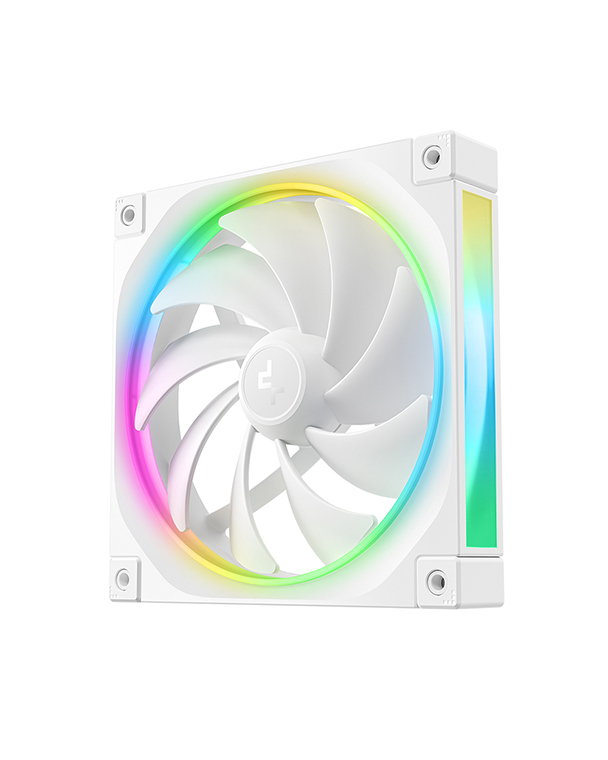

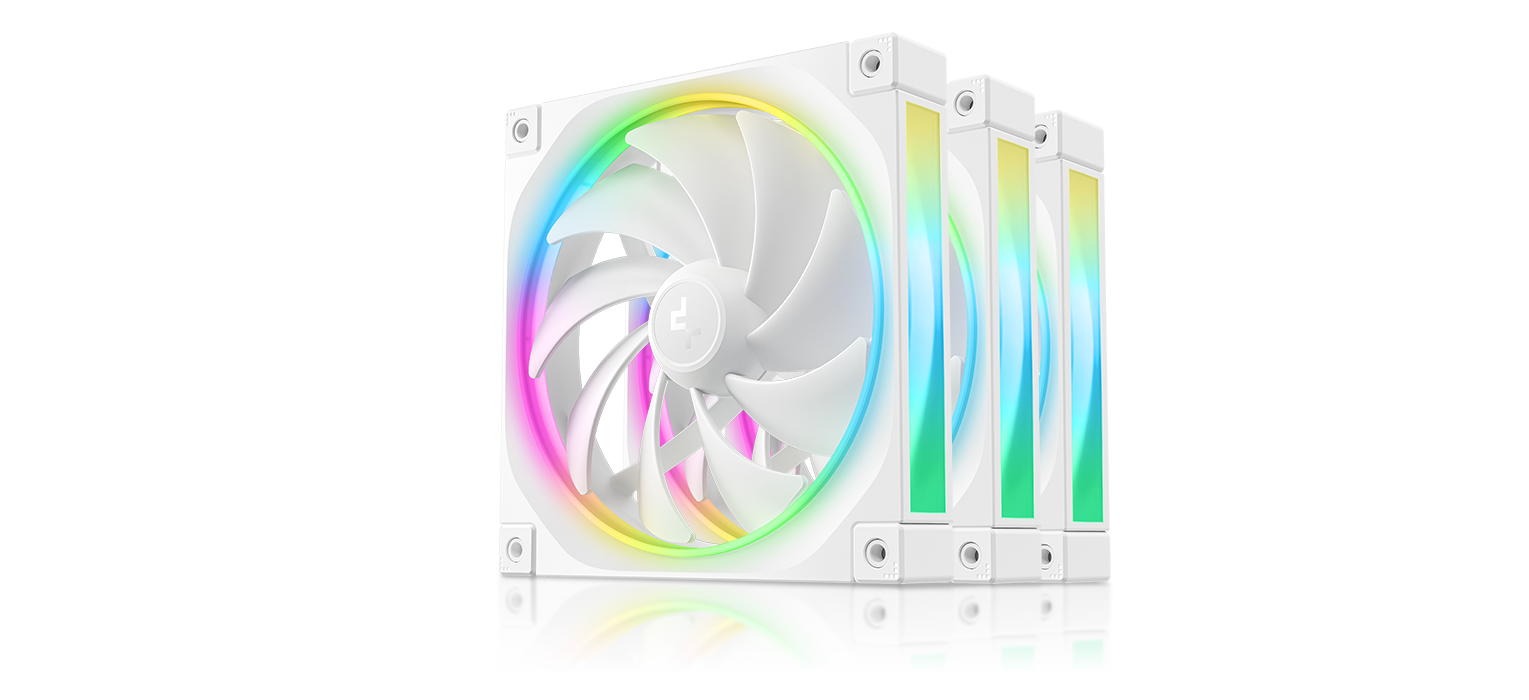

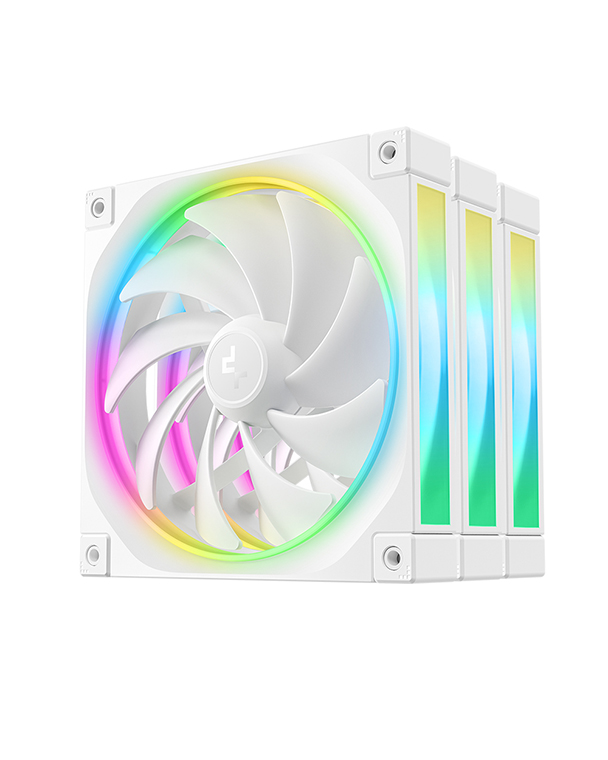

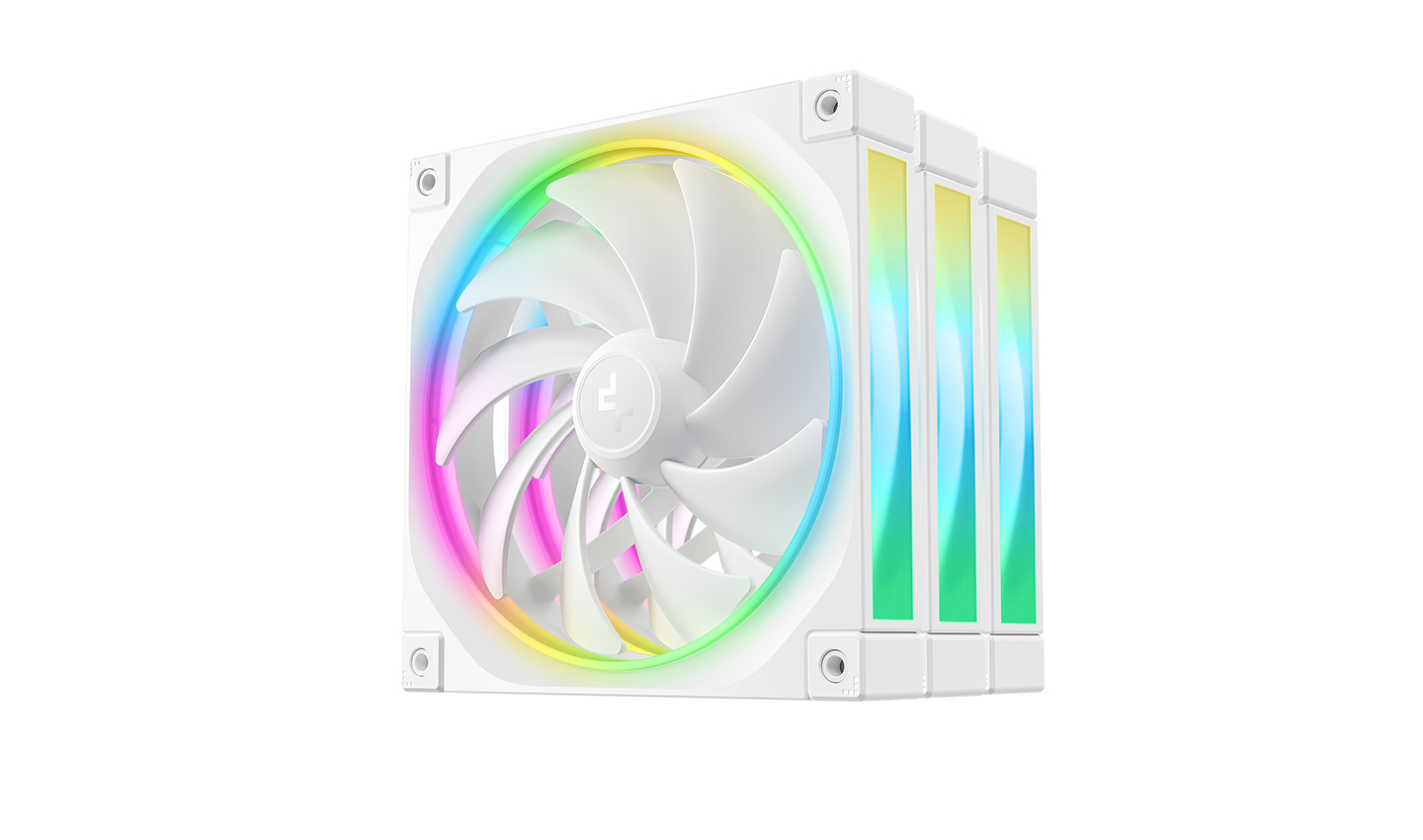

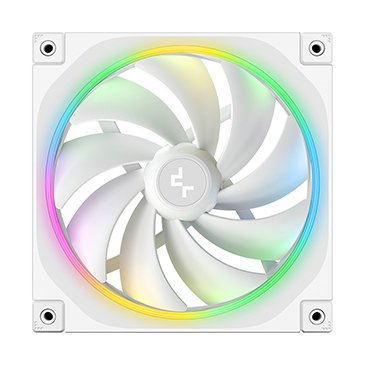

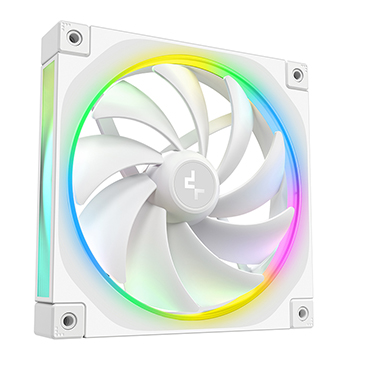

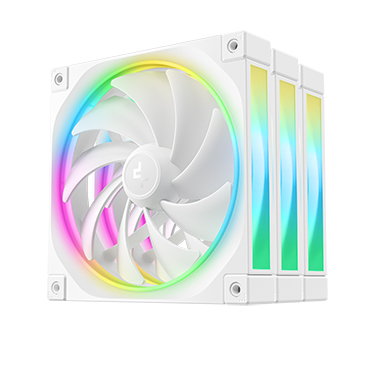

FL14 WH 3 IN 1

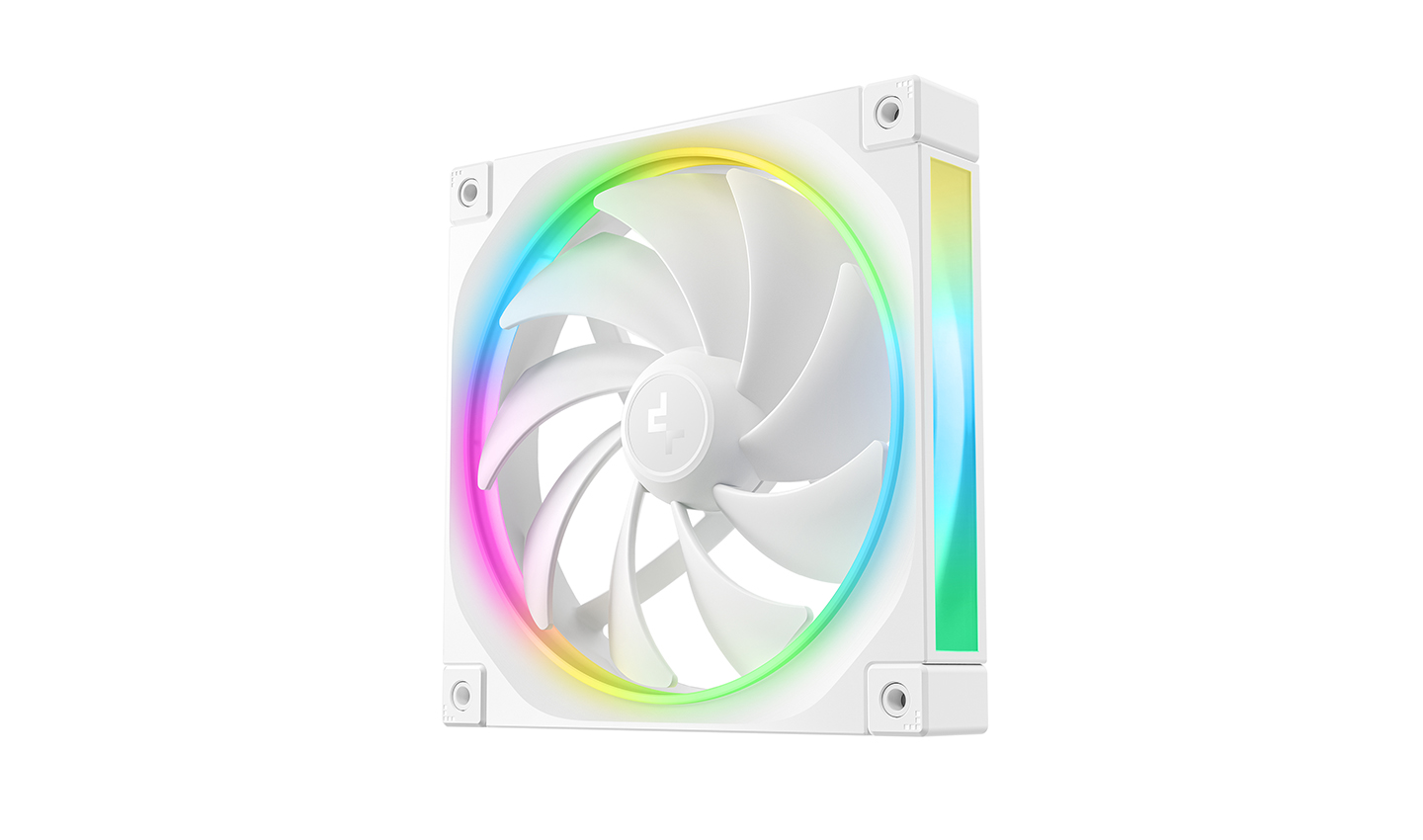

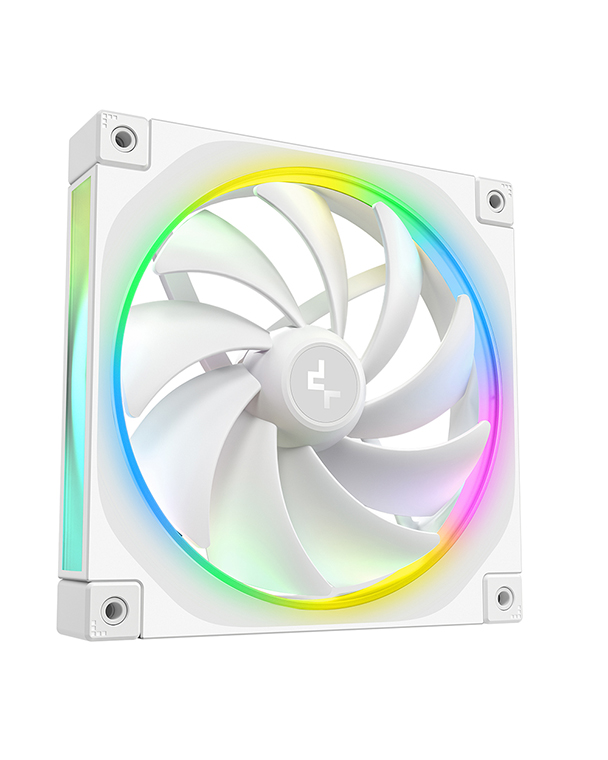

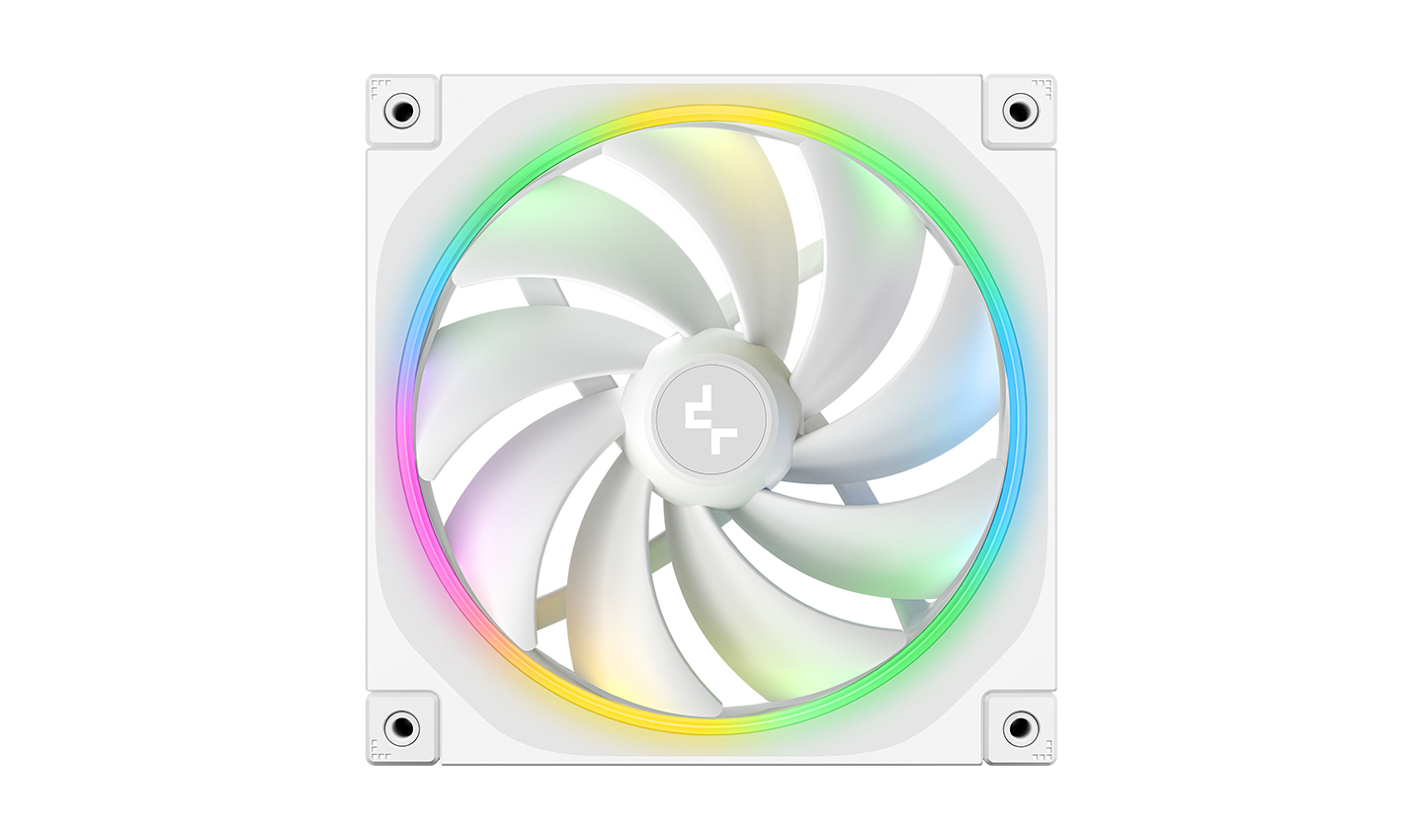

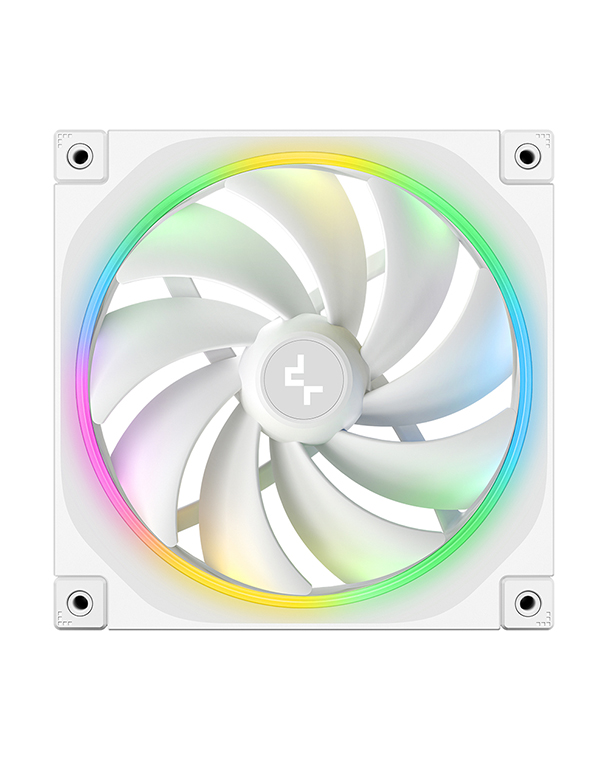

A LUMINOUS HALO

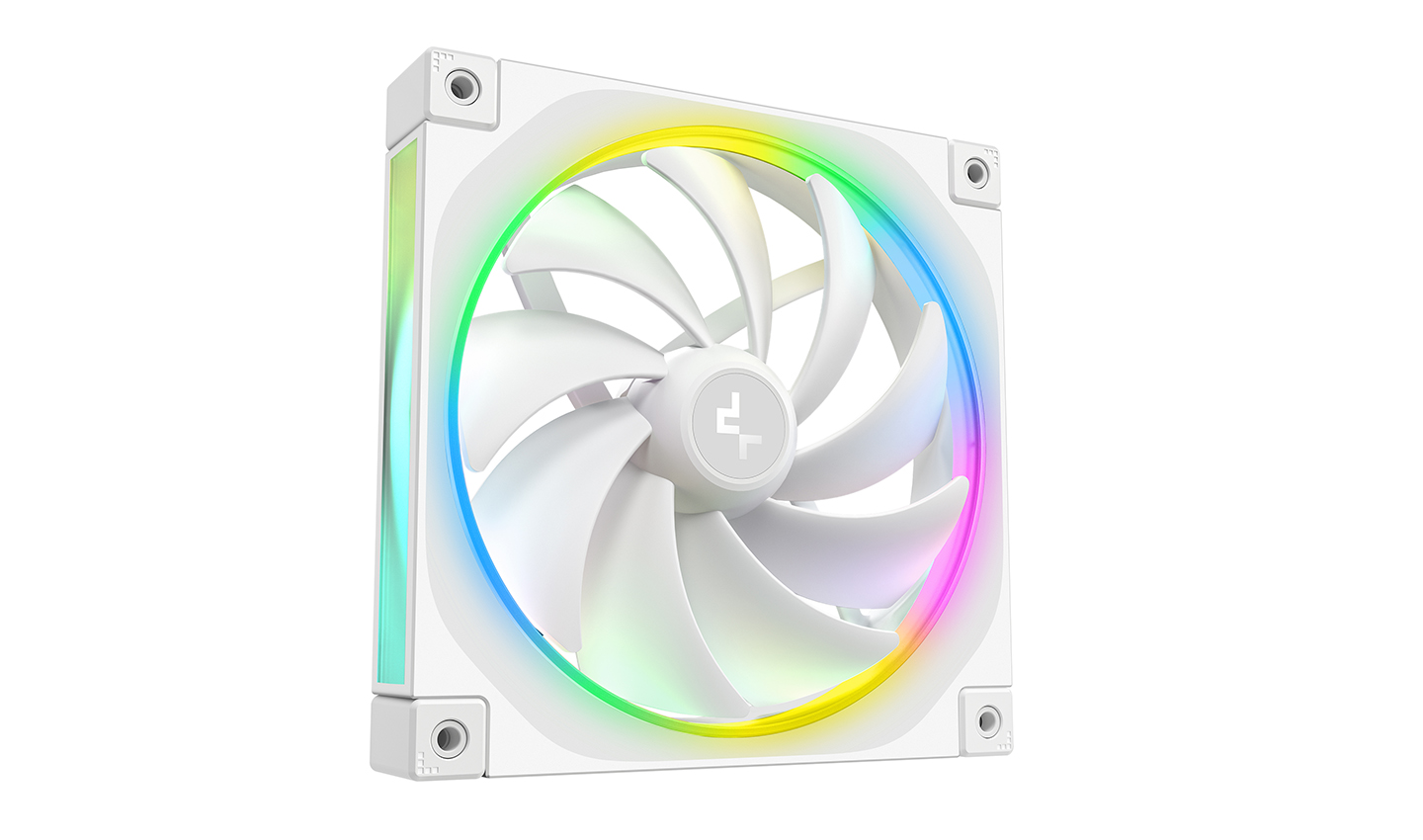

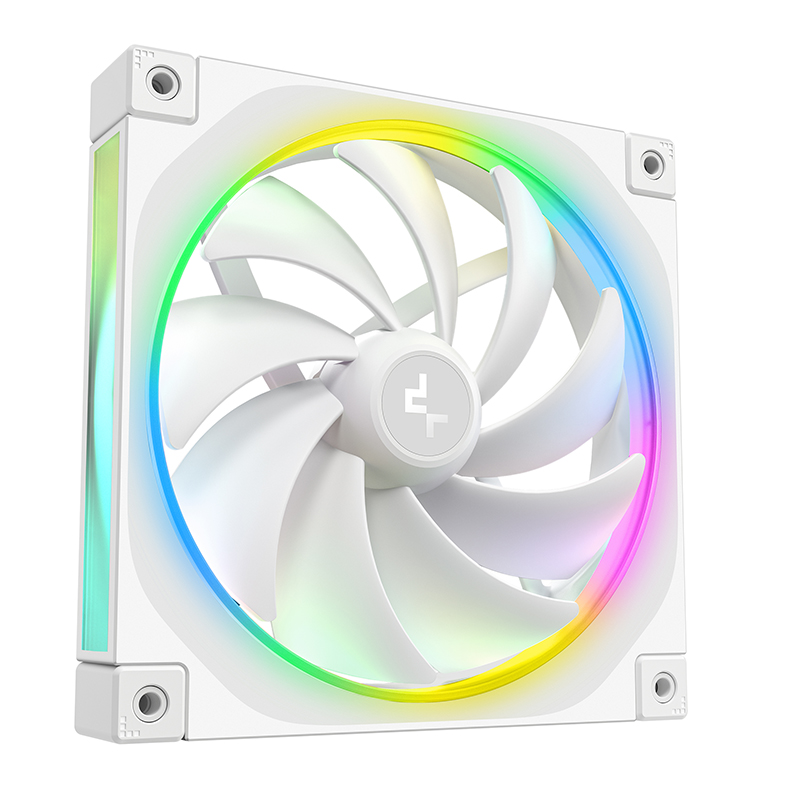

LUMINOUS HALO

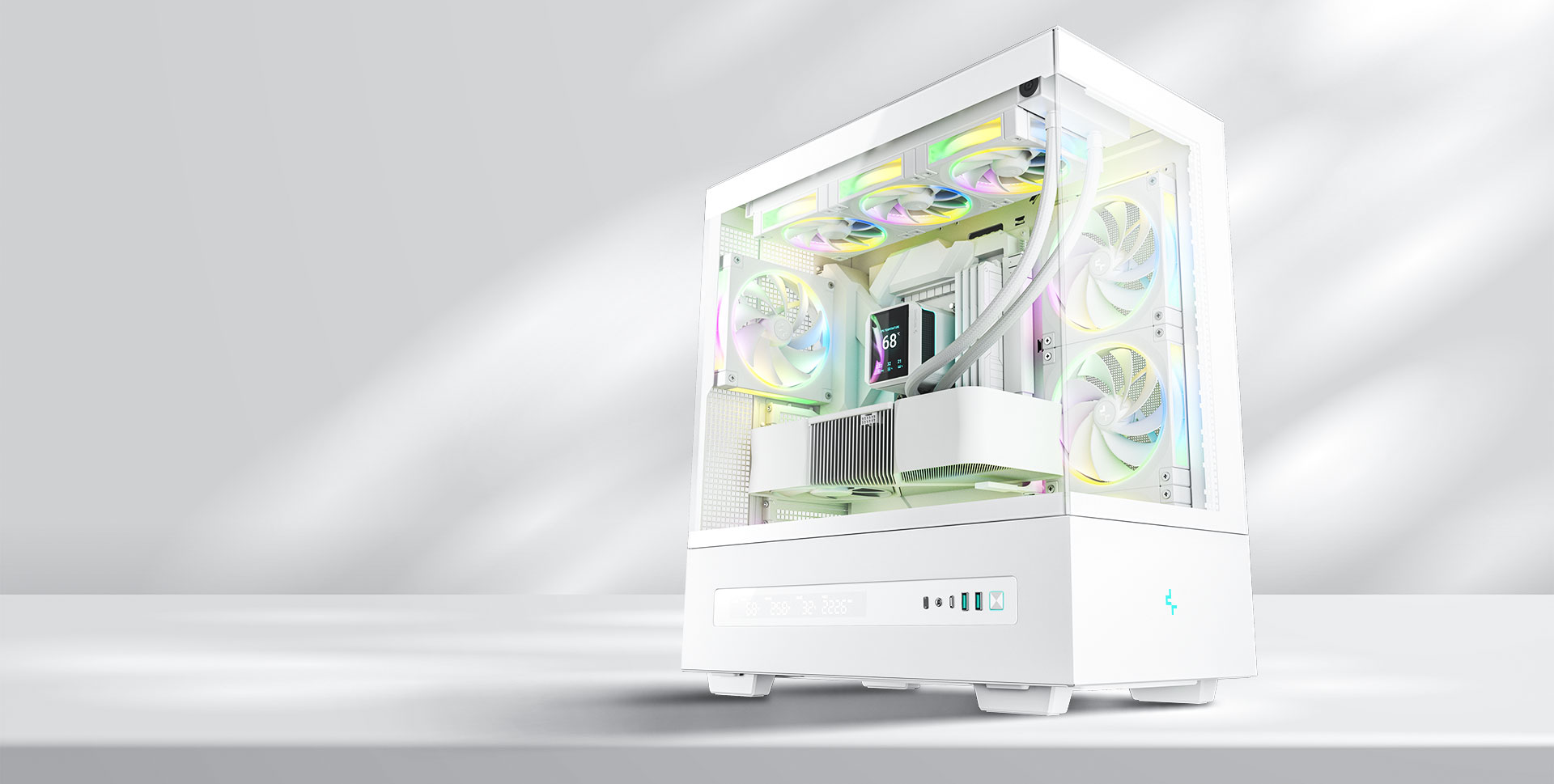

Light-optimized design using 42 pcs ARGB Gen2 lamps surround the frame to create a vivid light brightening your PC.

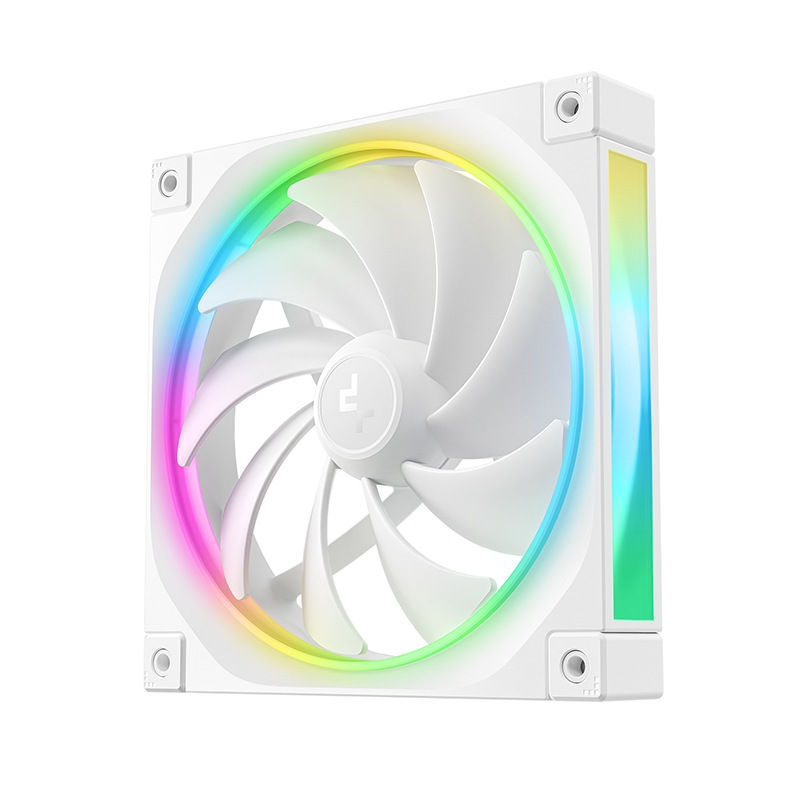

PERFORMANCE-ORIENTED

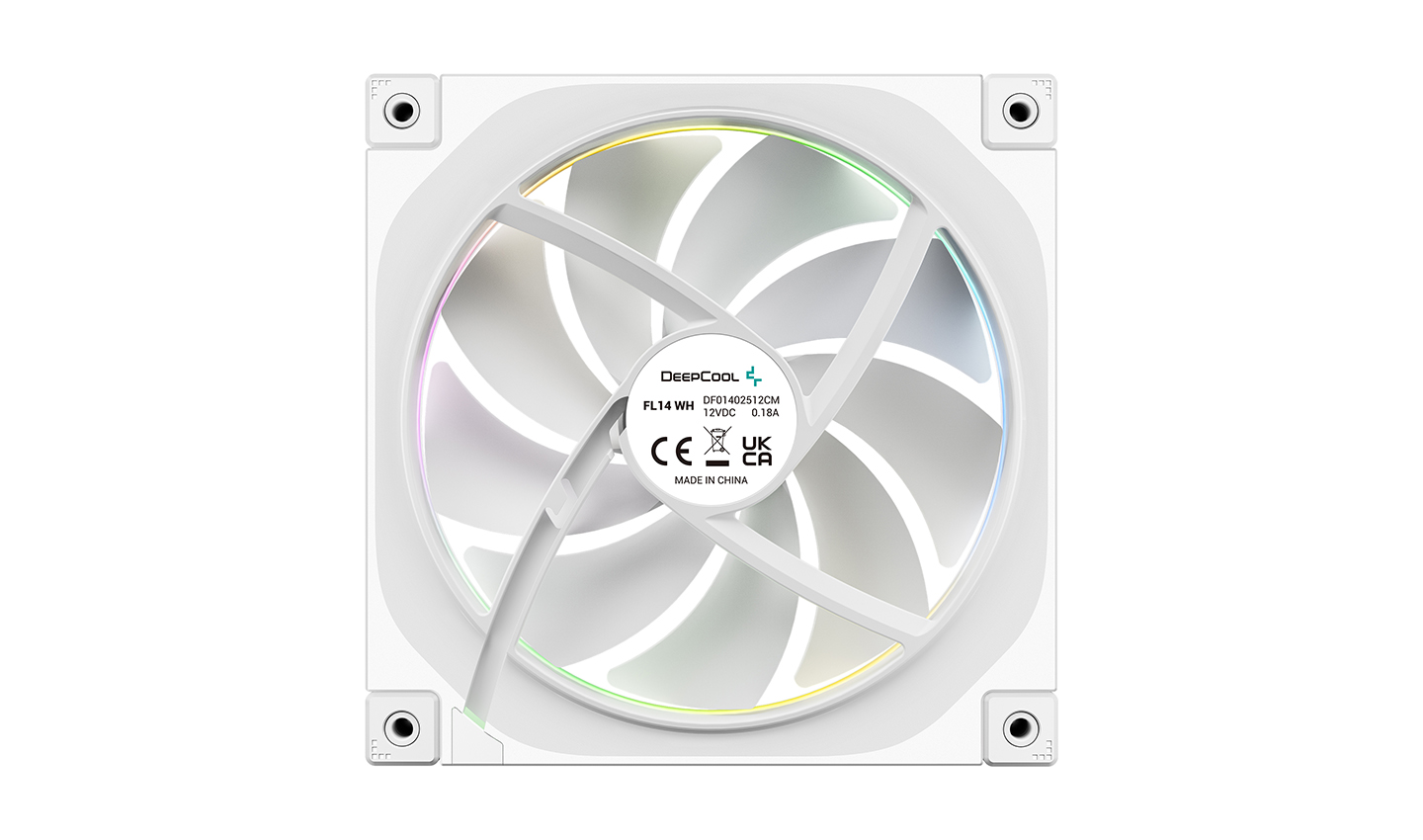

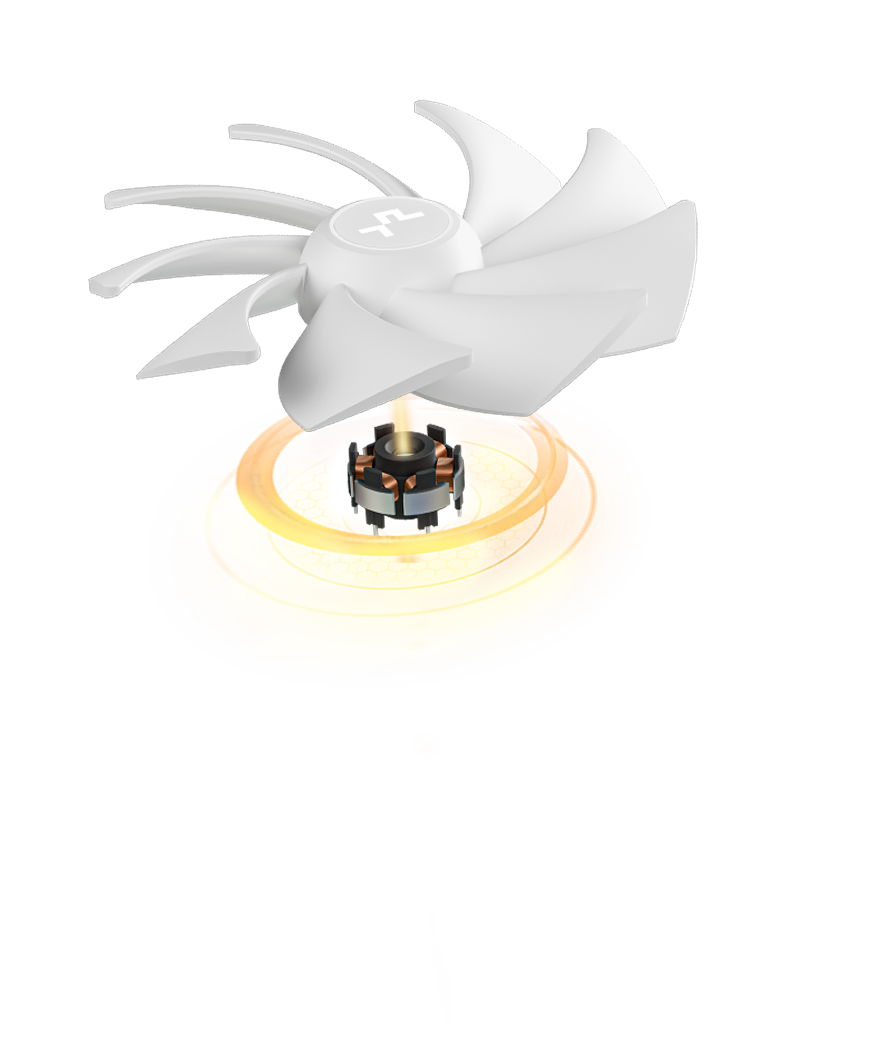

Each fan is equipped with a 3-Phase, 4-Pole, and 6-Slot motor. The FL14 WH PWM fans boast exceptional cooling specs while remaining relatively quiet.

500~1700 RPM±10%

66.59 CFM

2.37 mmAq

≤31.46 dB(A)

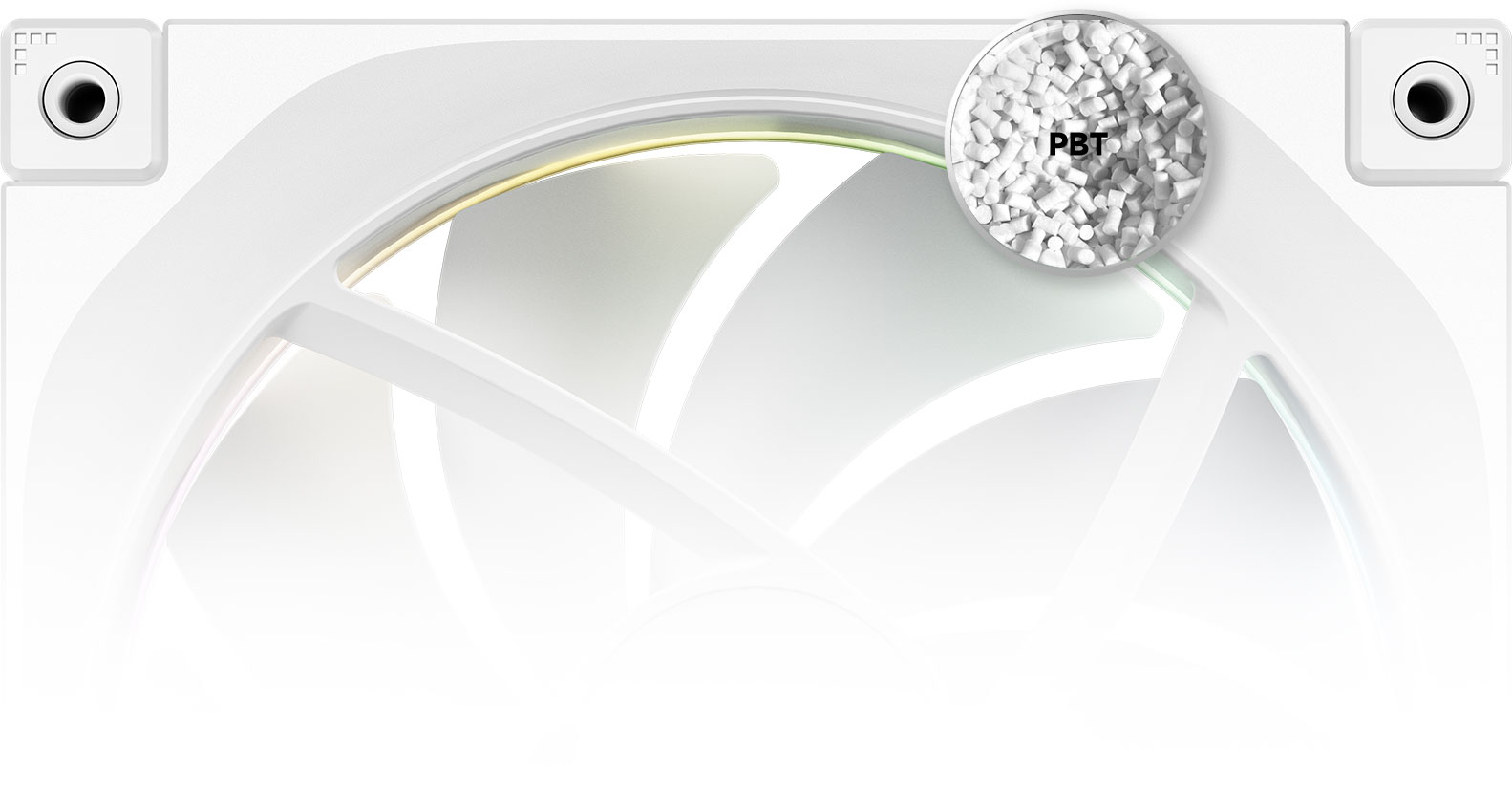

DURABLE MATERIALS

The entire structure and dynamic balance are further strengthened by using an enhanced composite material based on PBT for the fan blades and frames.

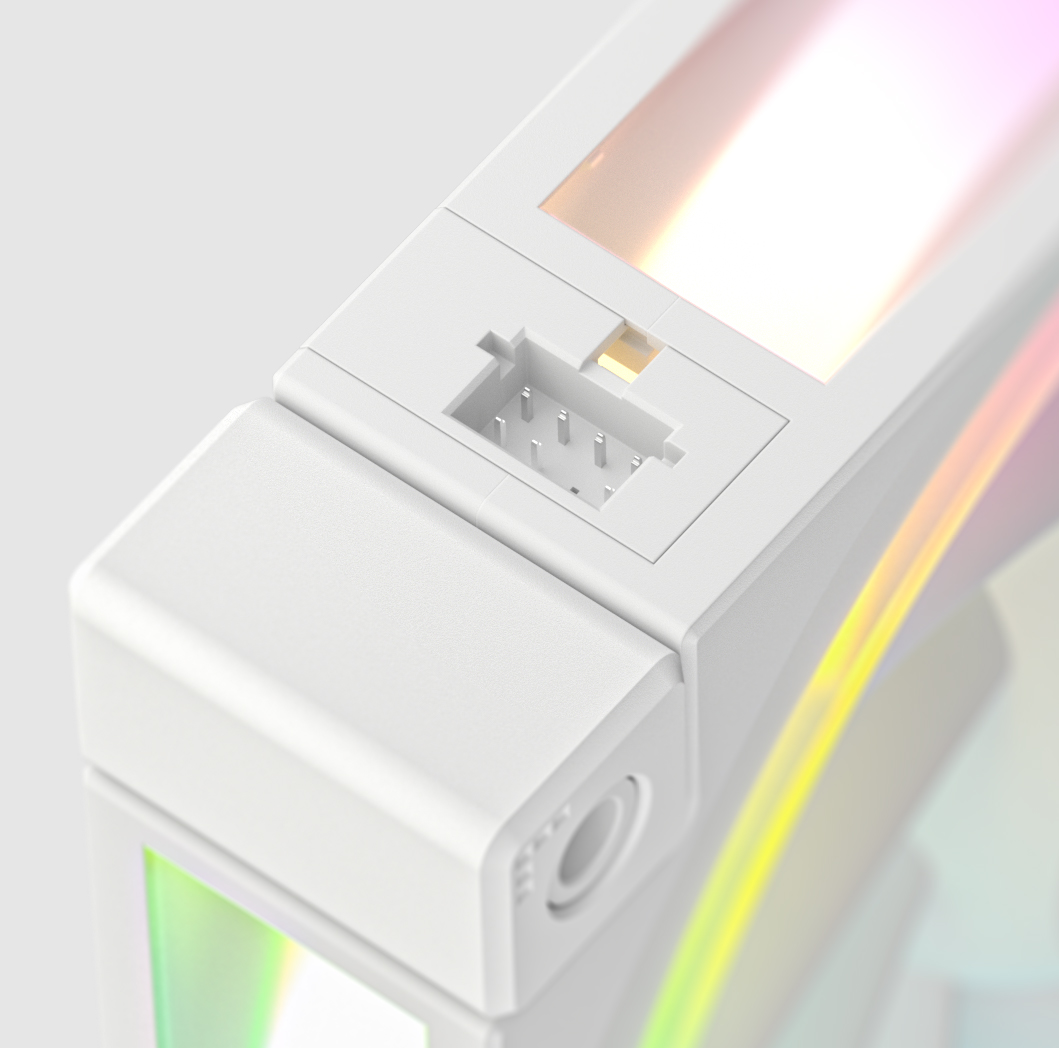

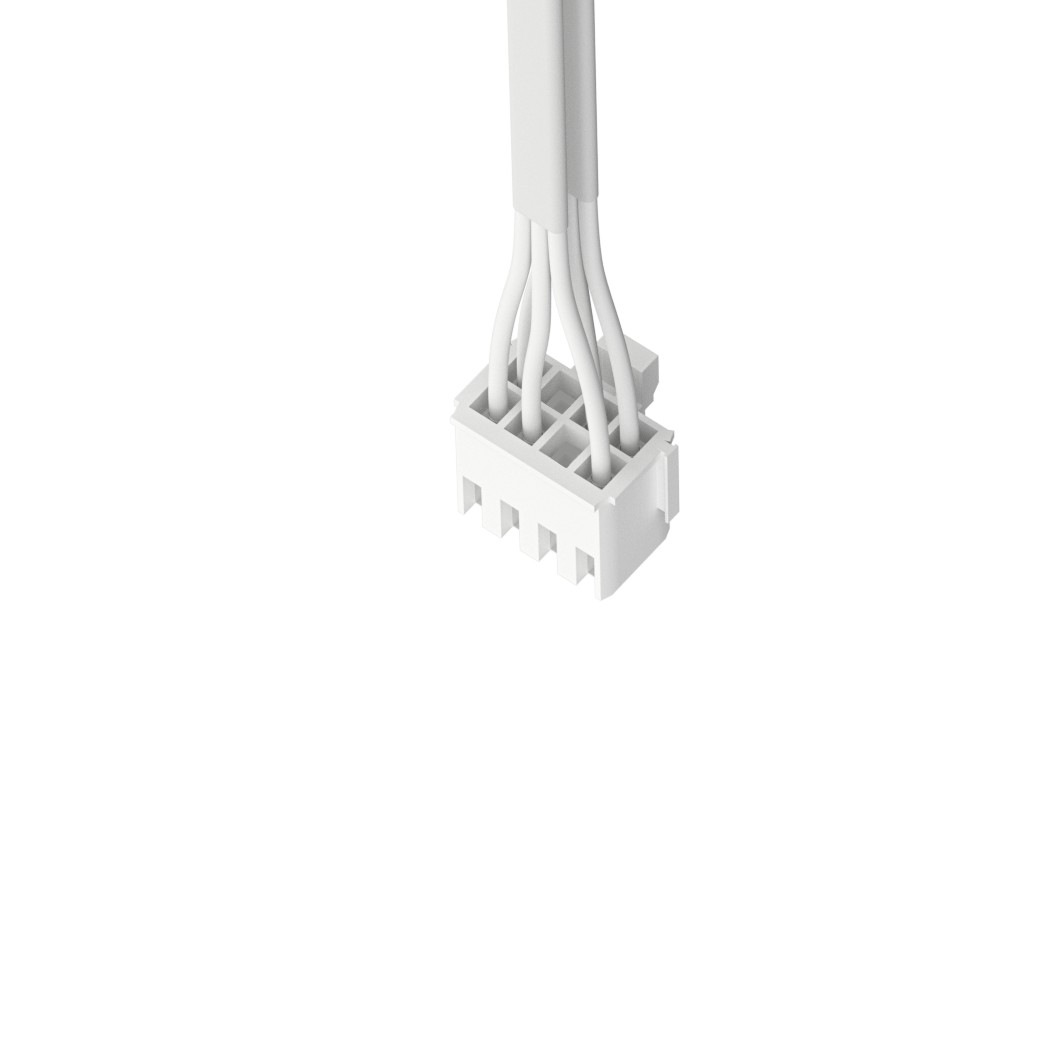

SECURE CONNECTION

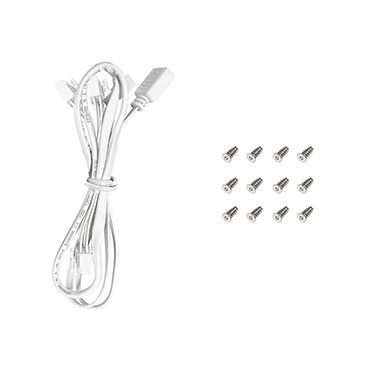

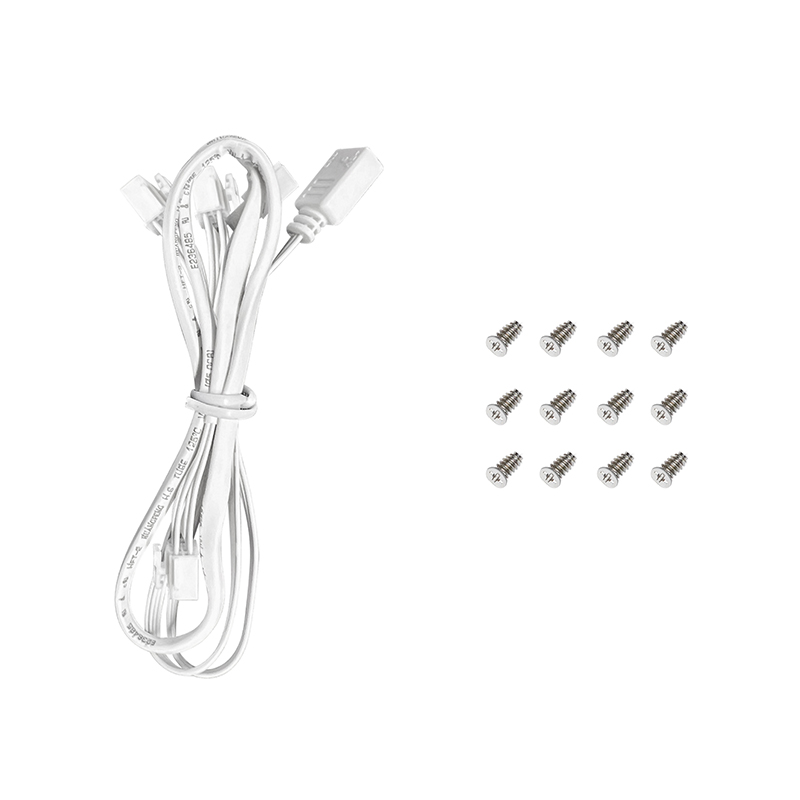

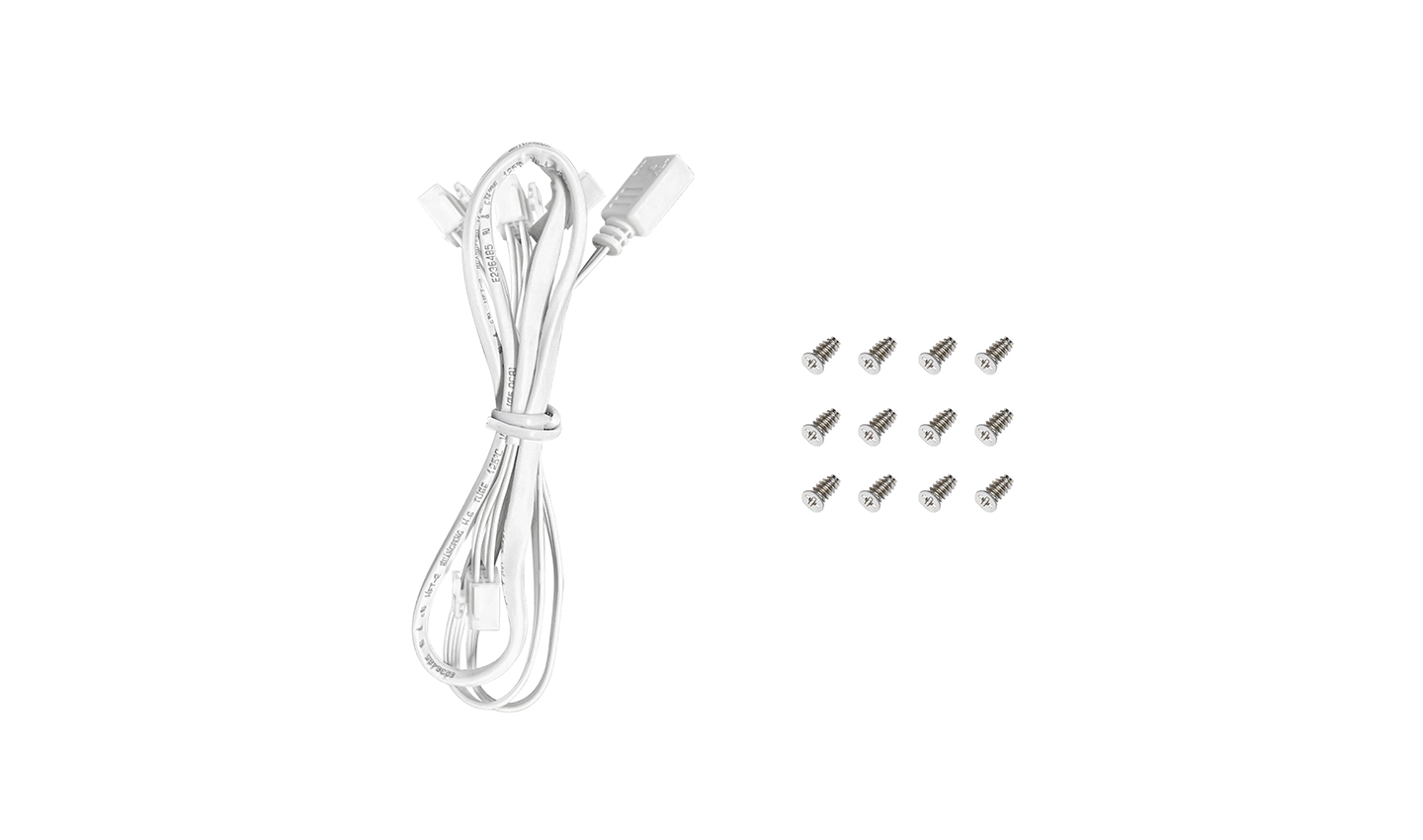

The 8-pin connectors, integrated with PWM and ARGB SYNC, provide a more accessible and safer user installation experience.

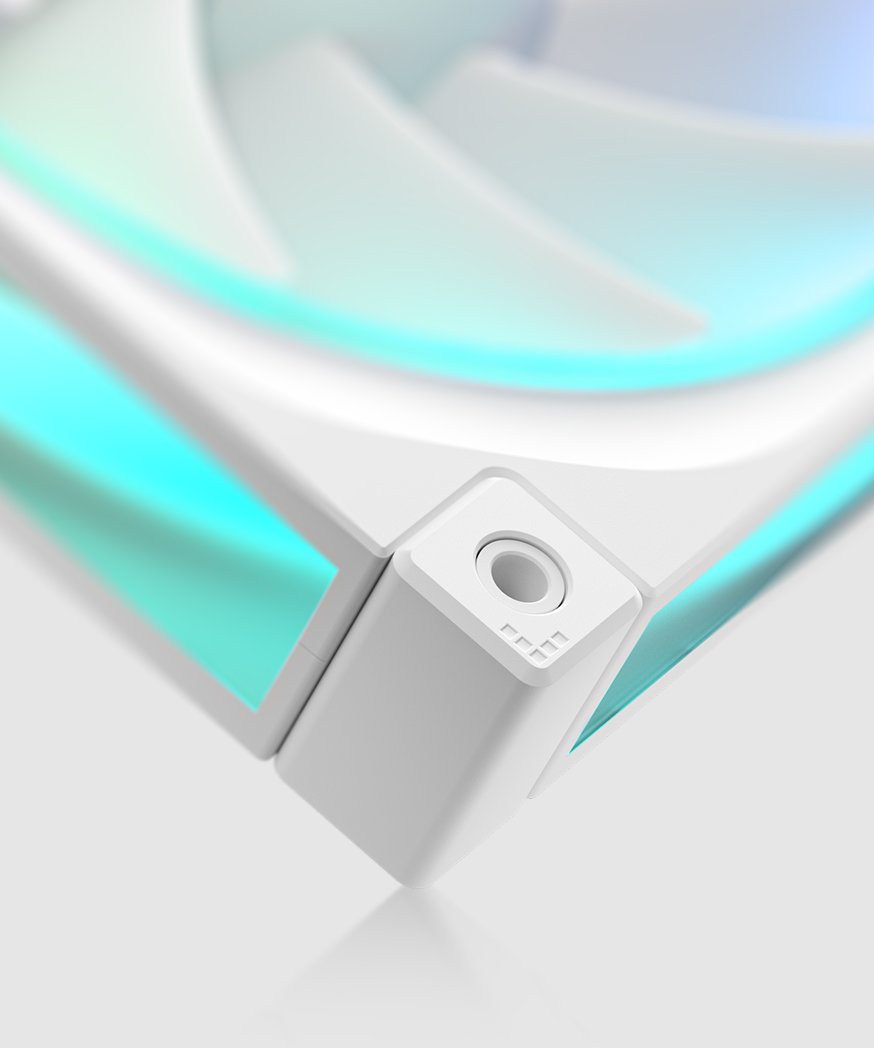

REDUCED VIBRATIONS

Full-coverage rubber pads at each corner guarantee minimal fan vibration and ensure that noises resulting from uneven mounting pressure are minimized.

Technical Spec

Fan Dimensions	140×140×25 mm(L×W×H)
Net Weight	630 g
Fan Speed	500~1700 RPM±10%
Fan Airflow	66.59 CFM
Fan Air Pressure	2.37 mmAq
Fan Noise	≤31.46 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Fluid Dynamic Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.18 A
Fan Power Consumption	2.16 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	3.25 W
EAN	6933412785231
P/N	R-FL14-WHAPN3-G
