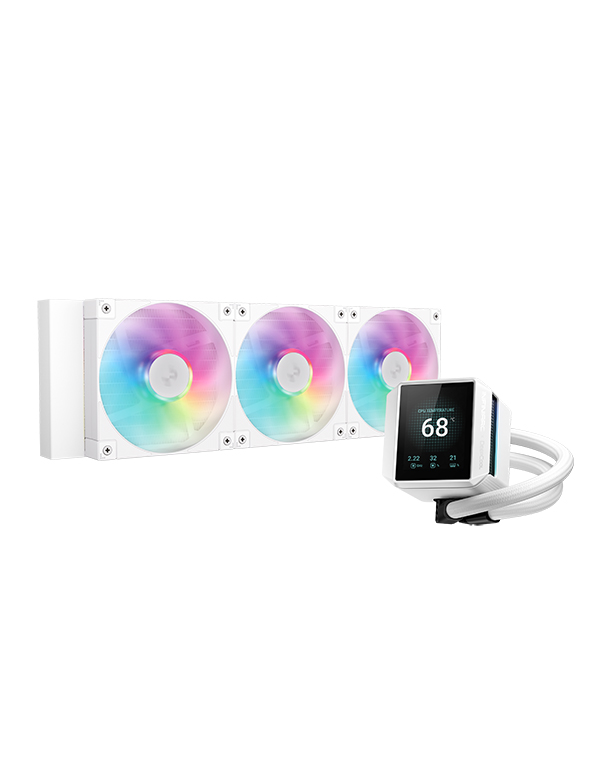

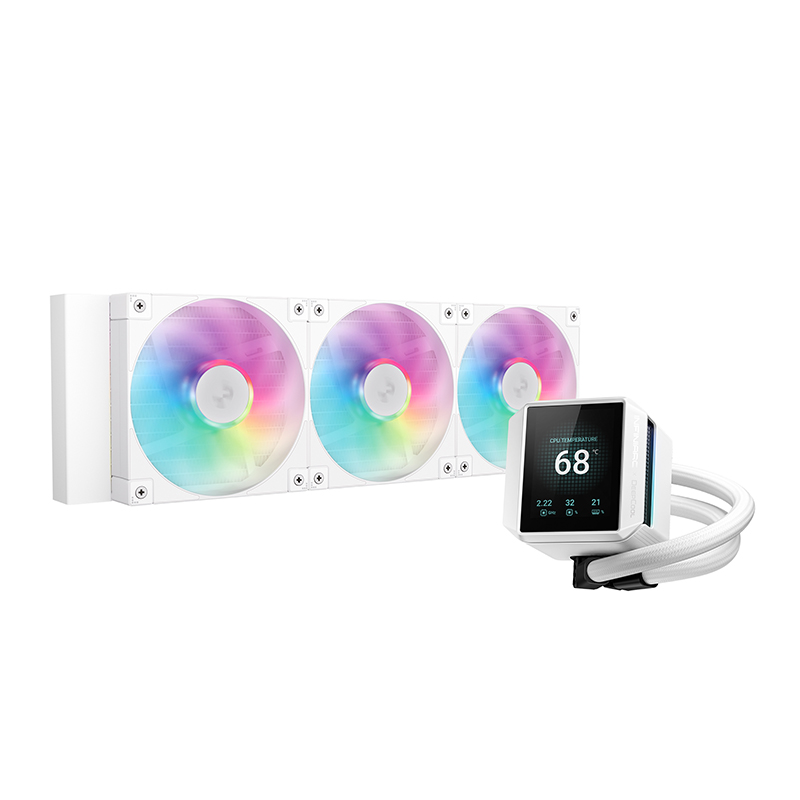

MYSTIQUE 360 ARGB WH IF
The MYSTIQUE 360 ARGB WH IF is DeepCool's latest addition to the flagship line of liquid coolers with highly sought-after customizable LCD screens. Bring your creative style to life with customized images and animated gifs on the brilliant 2.8" TFT LCD screen! The MYSTIQUE ARGB line has been outfitted with a new set of vivid ARGB fans.
COLOR
white
MODEL
MYSTIQUE 360 ARGB WH IF
Visualizing Your Illuminated Imagination

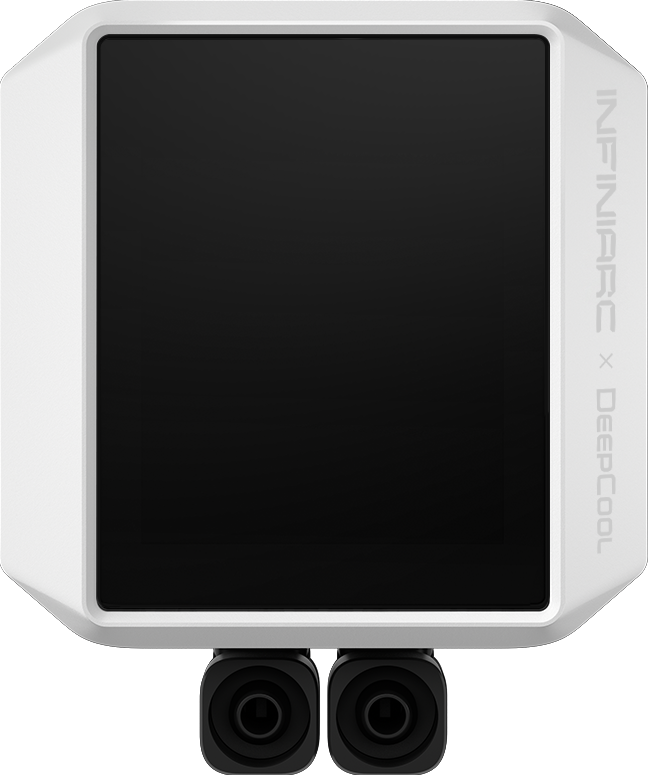

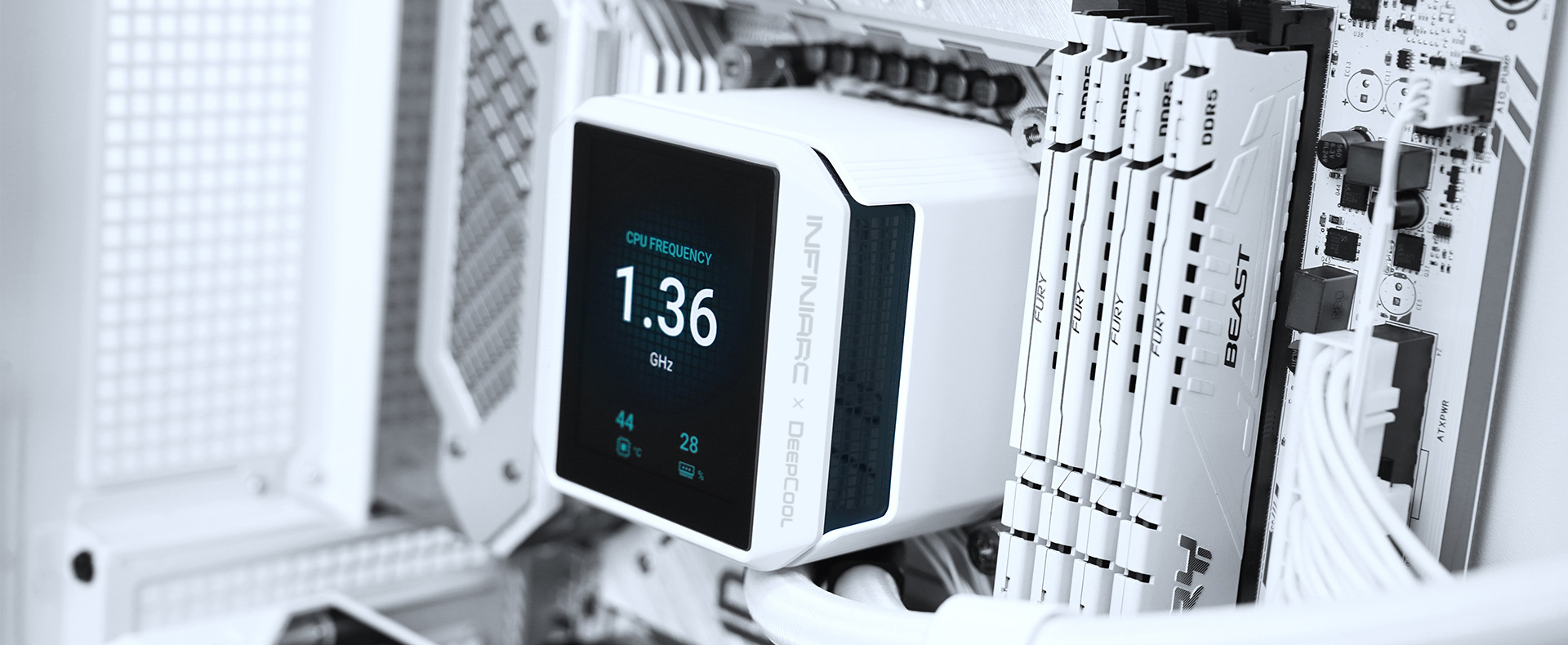

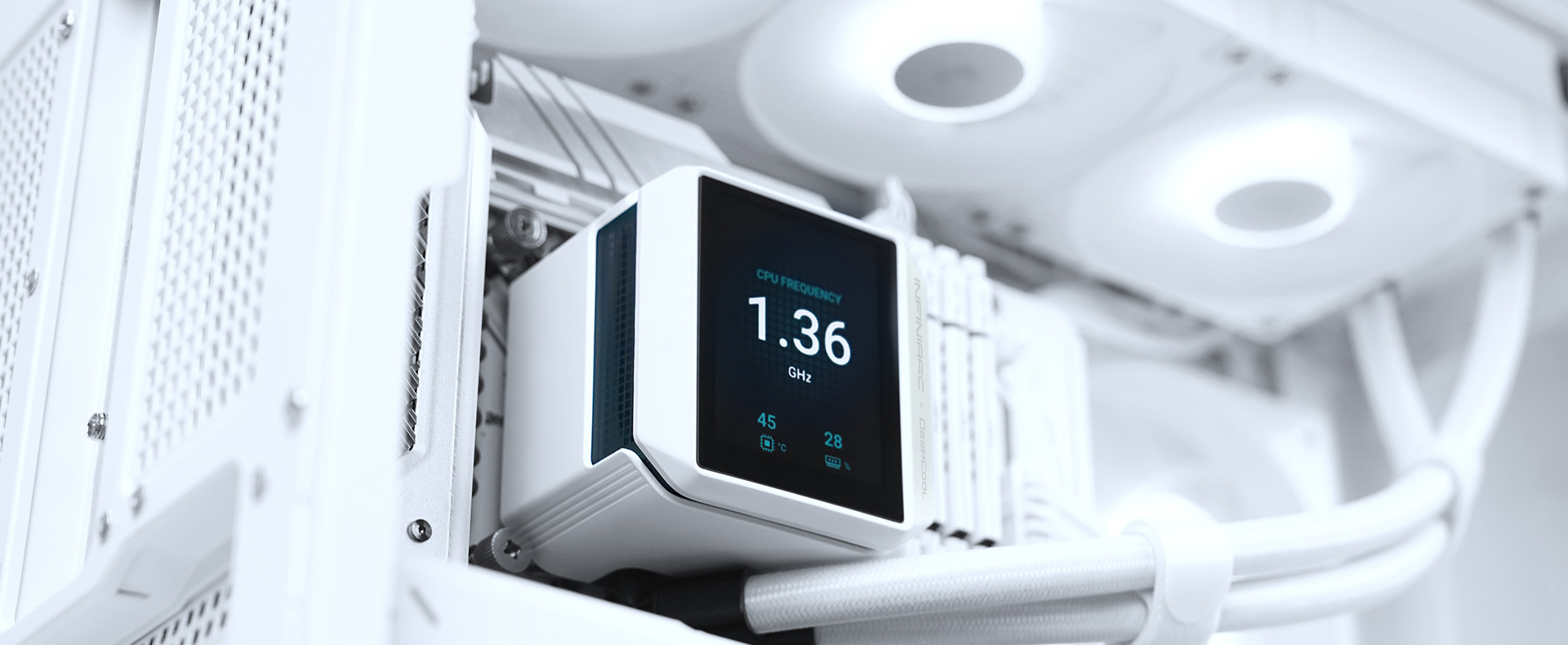

MAGNIFICENTLY SHARP 2.8" LCD
Customize the large 2.8" TFT screen with your personalized content. The screen has a very sharp 640x480 pixel resolution and displays 16.7M colors brilliantly. The orientation of the screen will automatically adjust as the MYSTIQUE 360 ARGB WH IF utilizes built-in gyroscopic sensors.
Screen rotation
Gyroscopes are allowed
DeepCool-MYSTIQUE Setup
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
DeepCreative: THE CONTROL CENTER
Bring all of the great features of the Mystique coolers alive in DeepCreative. Through this comprehensive application, you can view real-time statistics of your system, look up system details, and have full access to compatible devices. It is here that you can choose to have the RGB accents synced to your motherboard's ARGB controller or use the thermal color warning system. The software will get rolling updates, so expect expanding features in the near future.
Display Options:
MONITORING
MEDIA
RECORDING
MONITORING mode is where you can choose specific monitoring options. You can choose between CPU Frequency, Time, Pump Speed, CPU Fan Speed, CPU Fan Speed + Pump Speed, and Temperature. Depending on the main display section, there are a few options for the sub-monitoring area, where you can choose between Voltage, System Monitoring, and Core Data.
MEDIA mode is where custom pictures and animated gifs can be uploaded. You can also set the ARGB accents to sync with the edges of the display in this mode as well.
In RECORDING mode, the CPU Frequency and Temperature will be displayed in two separate line charts and can be recorded for a maximum of 7 minutes.
CPU Frequency
Temperature
Pump RPM
CPU Fan Speed
CPU Fan Speed + Pump RPM
CPU Frequency
CPU Temperature
CPU Frequency + CPU Temperature

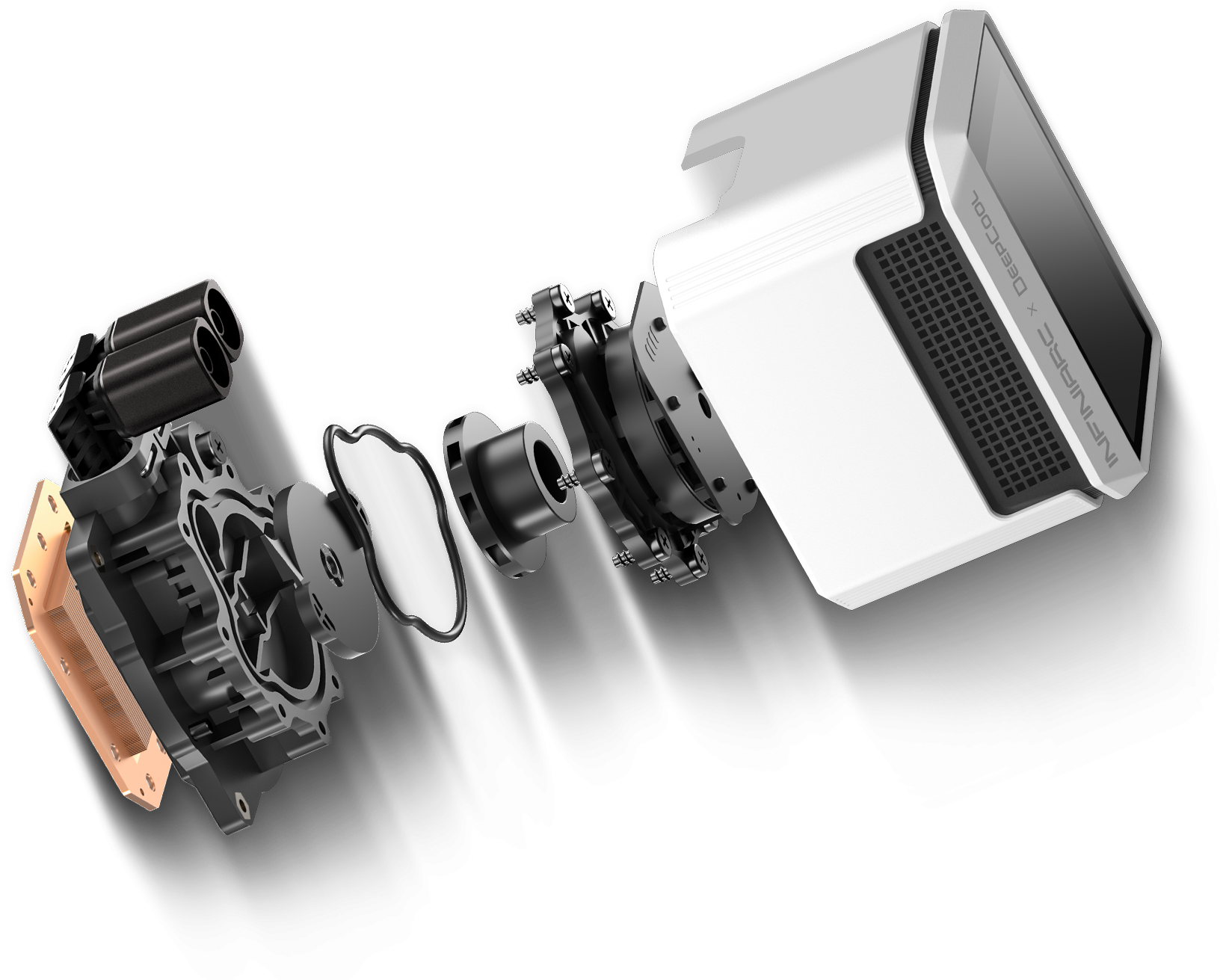

5th GENERATION PUMP
Built on DeepCool's optimized 5th generation high-performance water pump, the MYSTIQUE 360 ARGB WH IF brings cooling modern power-hungry CPUs to a new level.
The optimized pump design features an efficient 3-phase, 6-slot, 4-pole motor that rotates up to an astounding 3400 RPM.

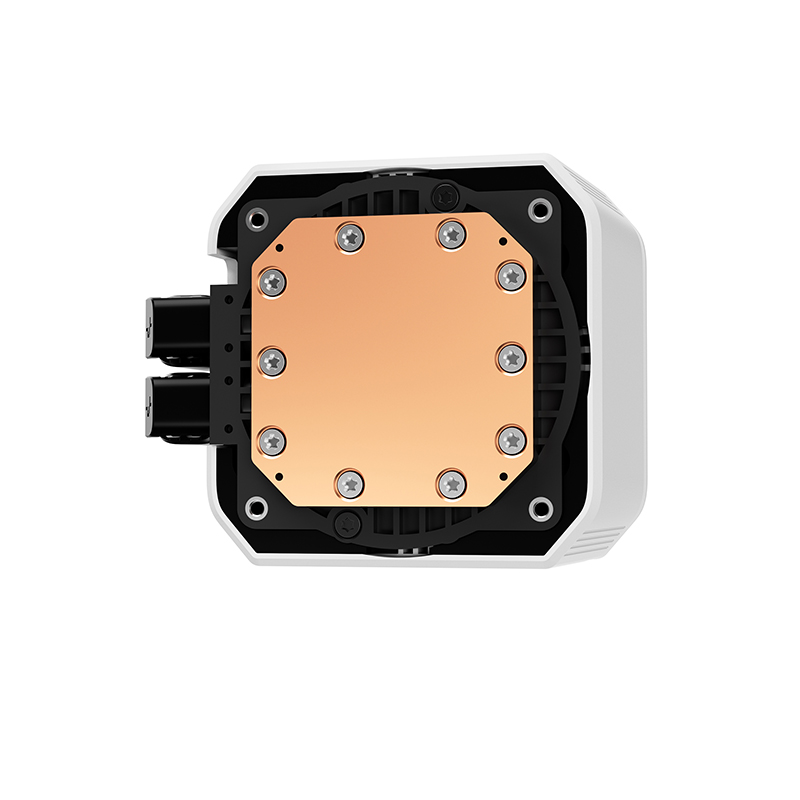

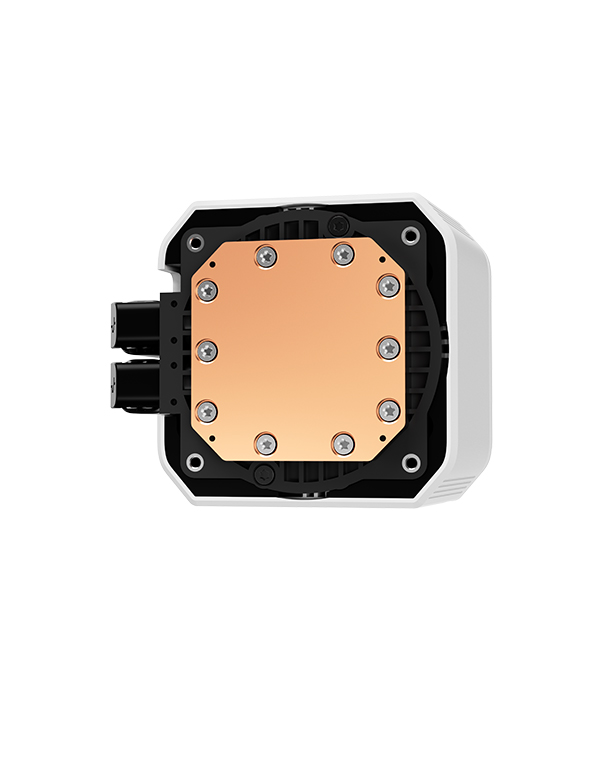

REDESIGNED AND IMPROVED COLDPLATE
The MYSTIQUE 360 ARGB WH IF gets a redesigned coldplate that has been optimized for better heat transfer and 0.1mm intensive flow channels. The layout has been placed over CPU hotspots, and a precise liquid splitter makes sure that everything is flowing efficiently.

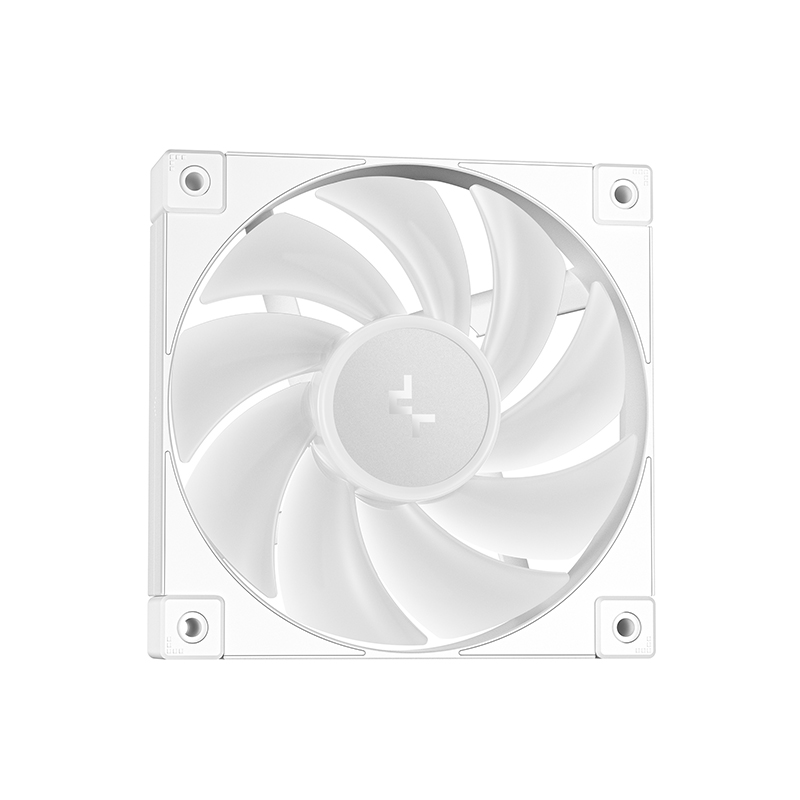

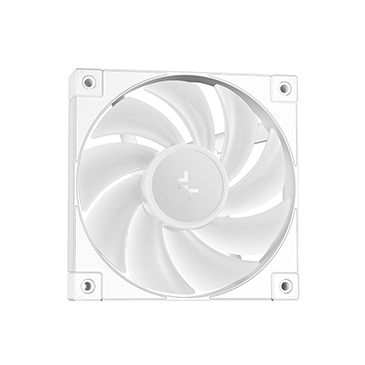

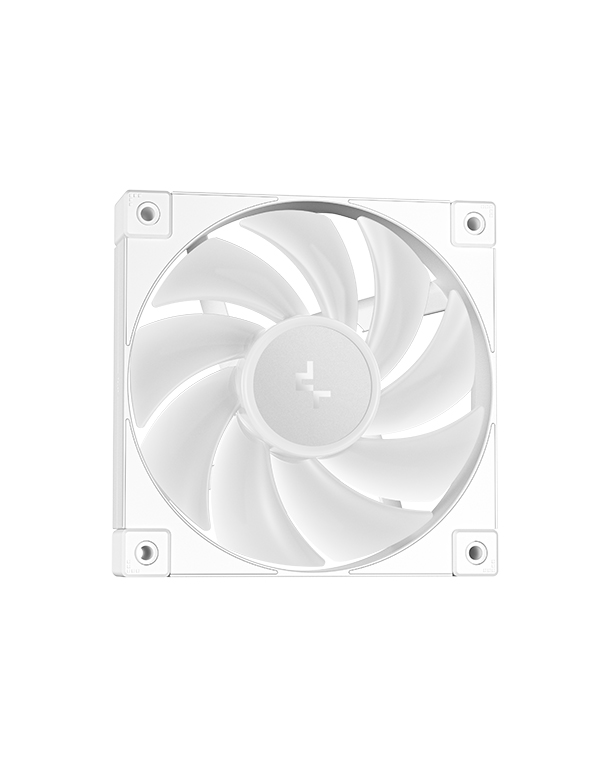

FINE TUNED FD12 ARGB FANS
Optimized white FD12 ARGB WH PWM fans are included with the MYSTIQUE 360 ARGB WH IF and have been fine-tuned to provide excellent cooling performance with a long-life Hydro Bearing. The MYSTIQUE 360 ARGB WH IF includes three of these specialized FD12 fans, which have an easy-to-manage 8-pin cable that can be chained to each of the FD fans.
600-2400 RPM±10%
Fan Speed
72.04 CFM
Air Volume
3.48 mmAq
Static Pressure
≤38.71 dB(A)
Fan Noise
ANTI-LEAK TECHNOLOGY
The MYSTIQUE liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.

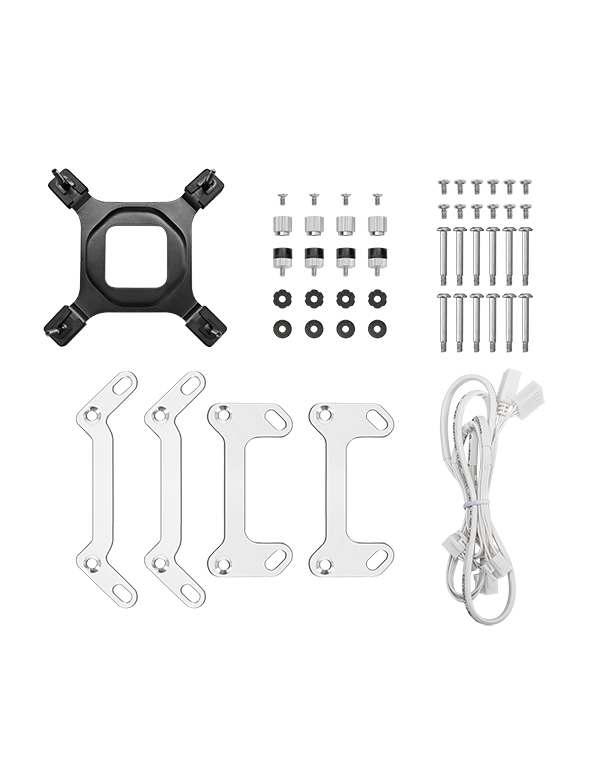

SIMPLIFIED INSTALLATION

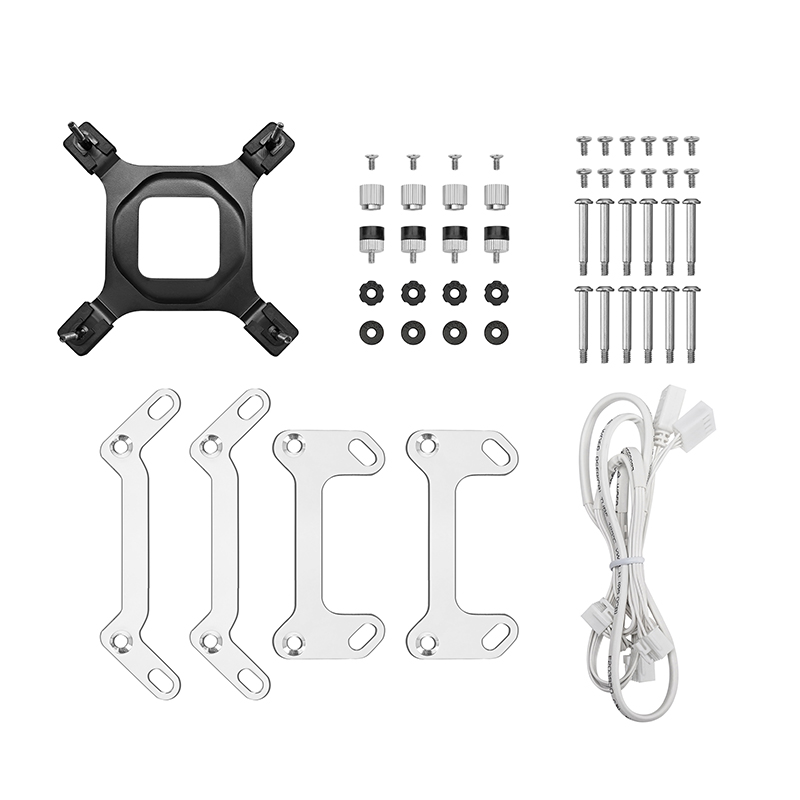

The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the MYSTIQUE 360 ARGB WH IF to the latest mainstream CPUs is included in the box, so you are ready to go.
*High thermal resistance paste is pre-applied
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Net Weight1847 g

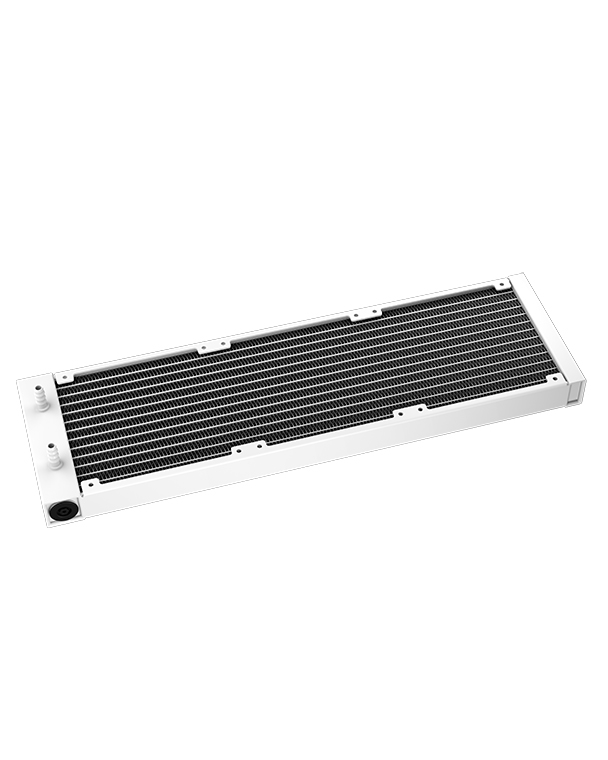

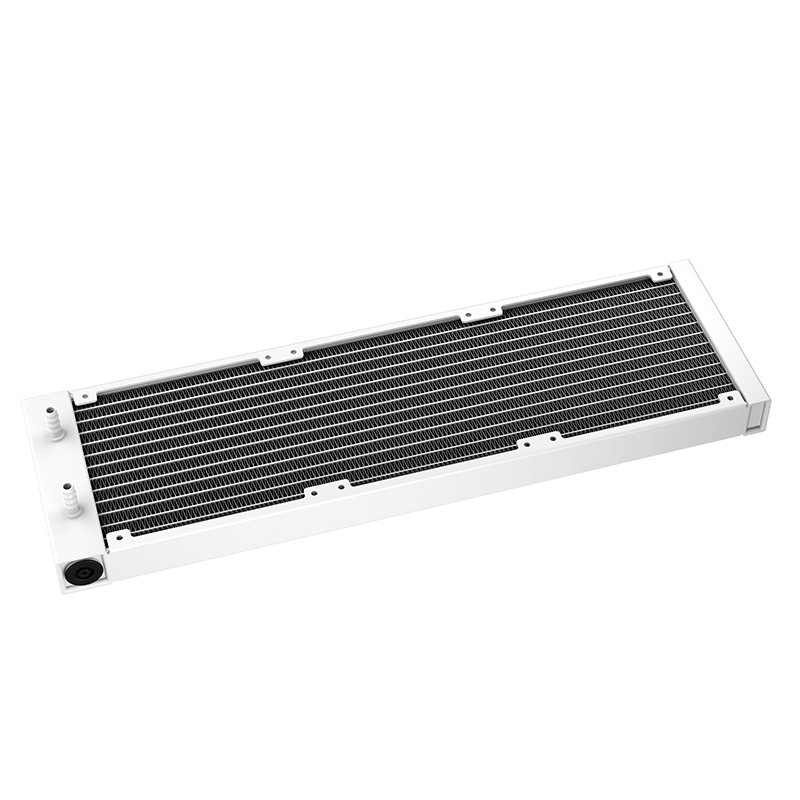

Radiator Dimensions402×120×27 mm(L×W×H)
Radiator MaterialAluminum
Tube length410 mm
Pump Dimensions93×77×66 mm(L×W×H)
Pump Speed3400 RPM±10%
Pump Connector3-pin
Pump Rated Voltage12 VDC
Pump Rated Current0.35 A
Pump Power Consumption4.2 W
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed600~2400 RPM±10%
Fan Airflow72.04 CFM
Fan Air Pressure3.48 mmAq
Fan Noise≤38.71 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.22 A
Fan Power Consumption2.64 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption2.45 W（PUMP）/ 3.15 W（FAN×3）
Display Specifications2.83 inch 480×640 TFT LCD
EAN6933412729204
P/NR-LX360-WHDSNMCP-AJD-IF
