ICE BLADE 200M
ICE BLADE 200M is a cost effective thermal solution for 130W CPUs. A massive heatsink with two Φ8mm heatpipes ensures rapid heat transfer from the processor and two 92mm fans then disperse the heat away from the heatsink quickly. With all necessary mounting kits, this cooler is able to handle all current CPUs in the market, including Intel LGA2011 and AMD FM2/FM1.
MODEL
ICE BLADE 200M
The Reason for Upgrade
Description
ICE BLADE 200M is a cost effective thermal solution for 130W CPUs. A massive heatsink with two Φ8mm heatpipes ensures rapid heat transfer from the processor and two 92mm fans then disperse the heat away from the heatsink quickly. With all necessary mounting kits, this cooler is able to handle all current CPUs in the market, including Intel LGA2011 and AMD FM2/FM1.
FEATURES
Dual Φ8mm Heatpipes & Massive Heatsink
Two Φ8 mm heatpipes in direct contact with the CPU surface rapidly conducts heat away from the CPU core to the massive aluminum heat dissipation fins.

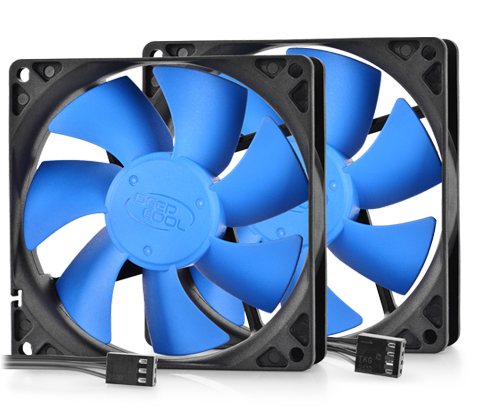

Dual 92mm PWM-capable Fans
Powerful airflow is necessary for dispersing heat from the heatsink ICE BLADE 200M comes with two 92 mm PWM-capable fans generating optimal airflow for enhanced performance.
Universal Socket Compatibility

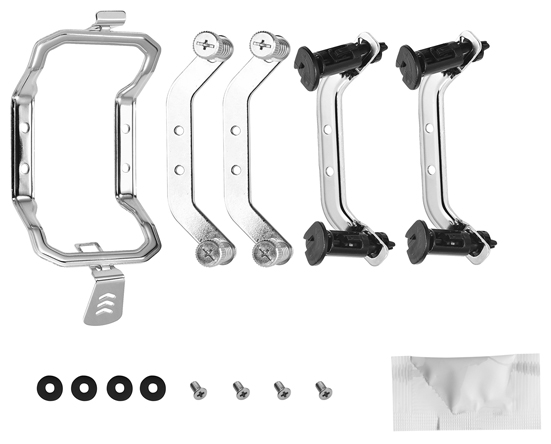

Comes with multiple clips to support: Intel LGA20XX / 1366 / 1156 / 1155 / 1151 / 1150 / 775 and AMD AM4/FM2/FM1/AM3+/AM3/AM2+/AM2.
Application For
Intel
LGA1200/1151/1150/1155
AMD
AM4
Technical Spec
Overall Dimension 103X94X135mm(With 2Fan)
Fan Dimension92X92X25 mm(L×W×H)
Net Weight 417(With 2Fan)
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8~13.2VDC
Started Voltage 7VDC
Rated Current 0.2±10%A 0.19±10%A(MAX)
Power Input 2.4W 2.28W
Fan Speed 2200±10%RPM 900±150~2200±10%RPM
Max. Air Flow 42.95CFM
Noise 17.8~30.1dB(A)
EAN 6933412725466
P/N DP-MC8H2-IB200M
