CL600

ENGINEERED FOR AIRFLOW

BALANCED IN FORM

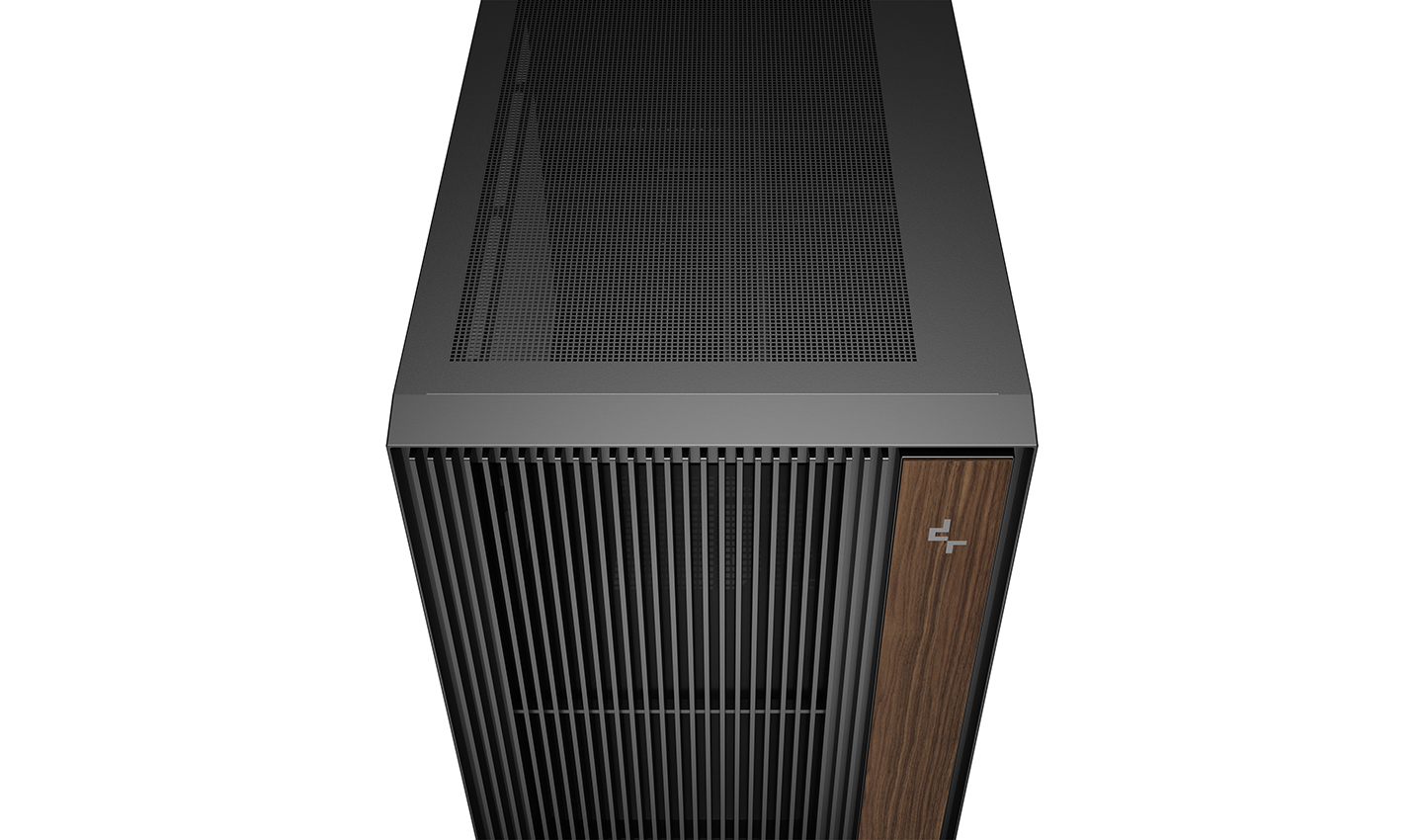

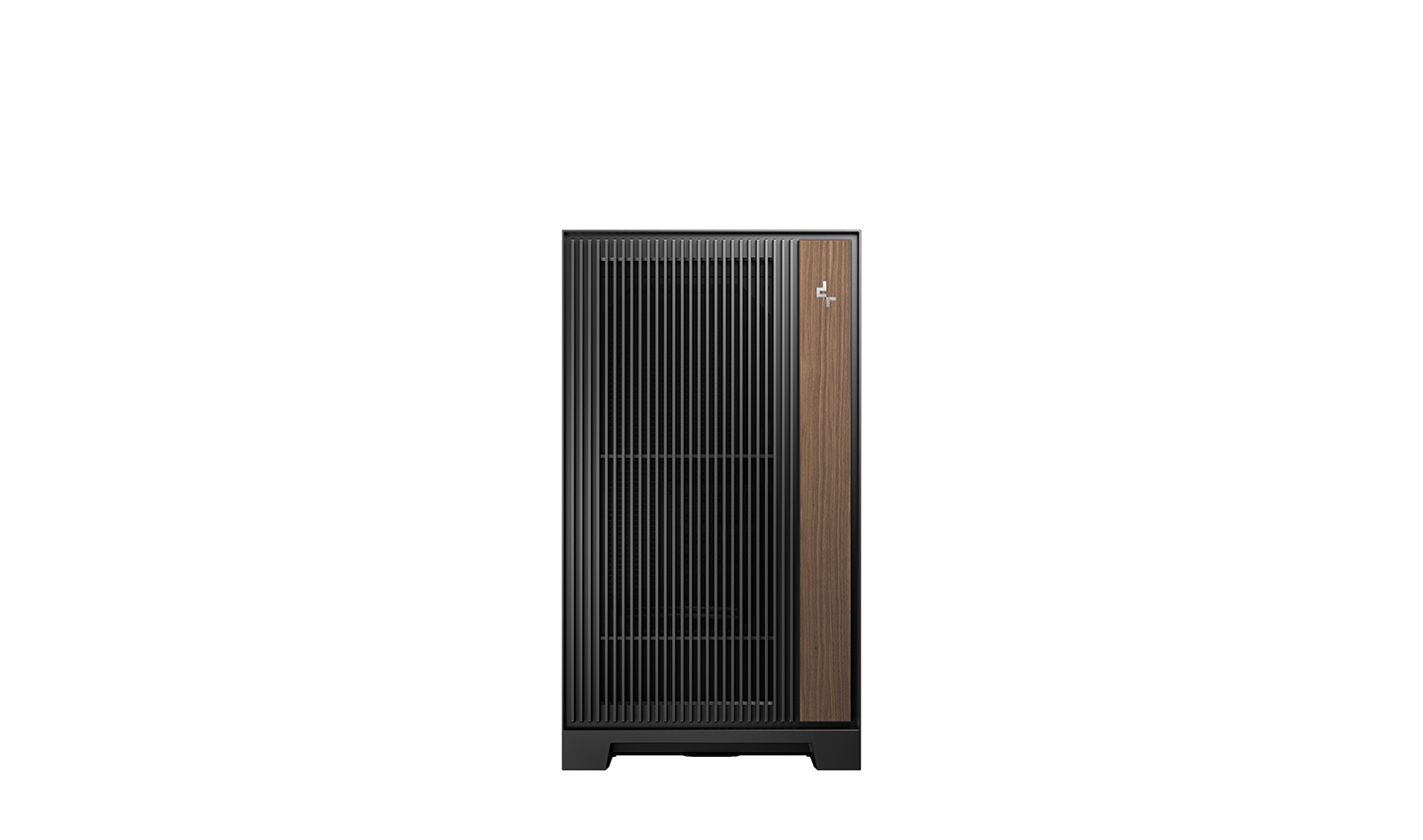

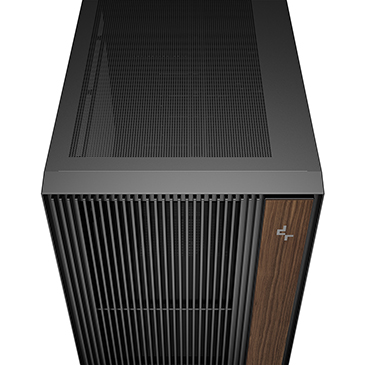

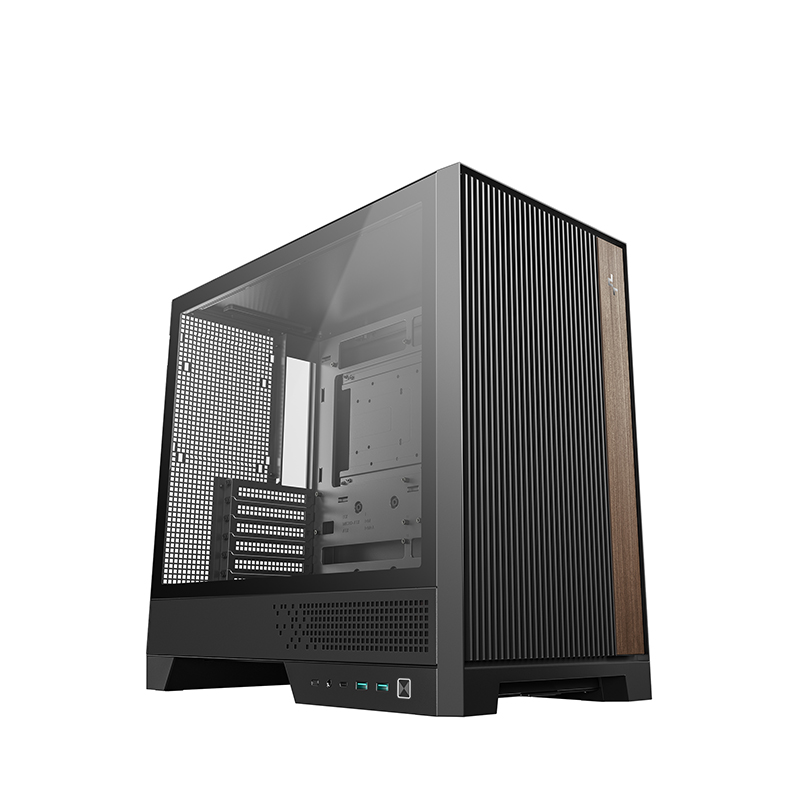

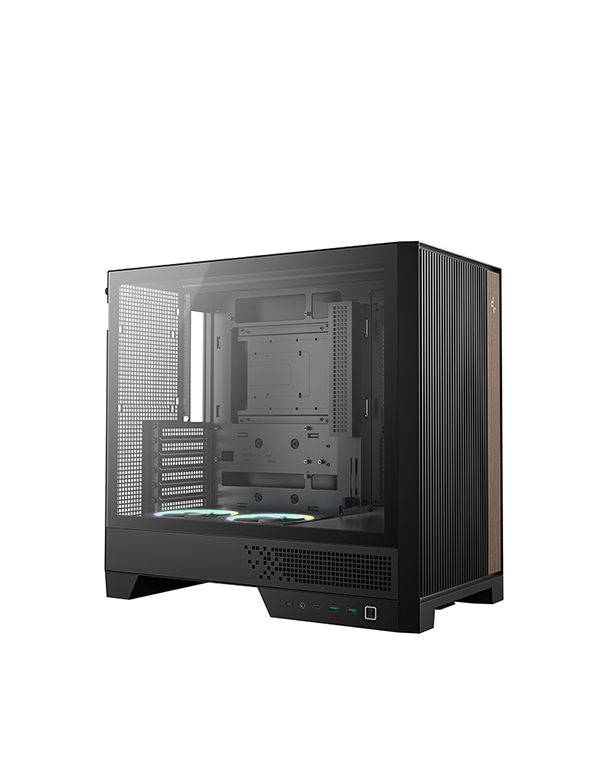

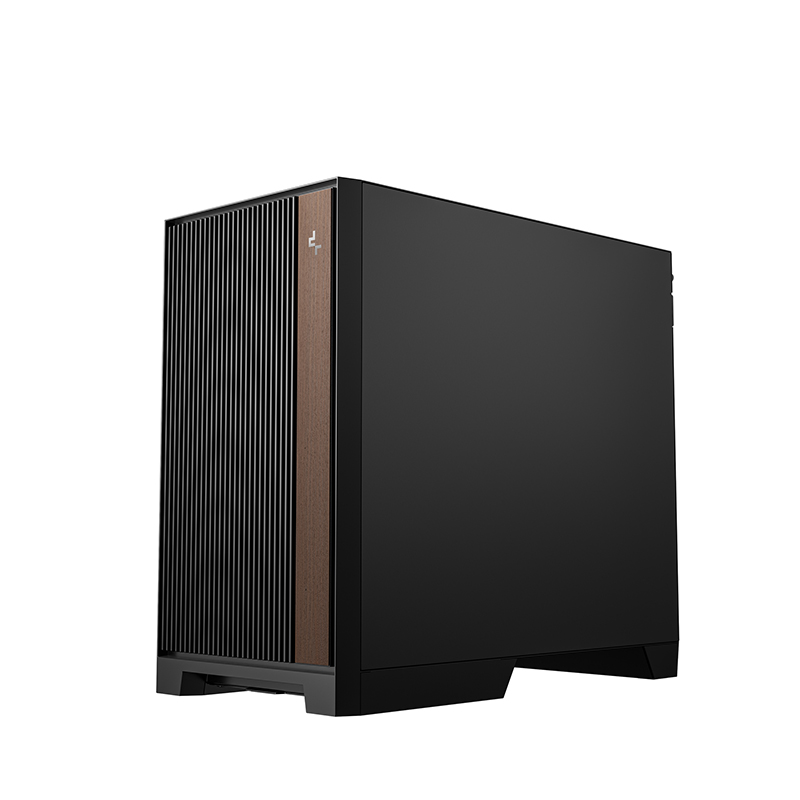

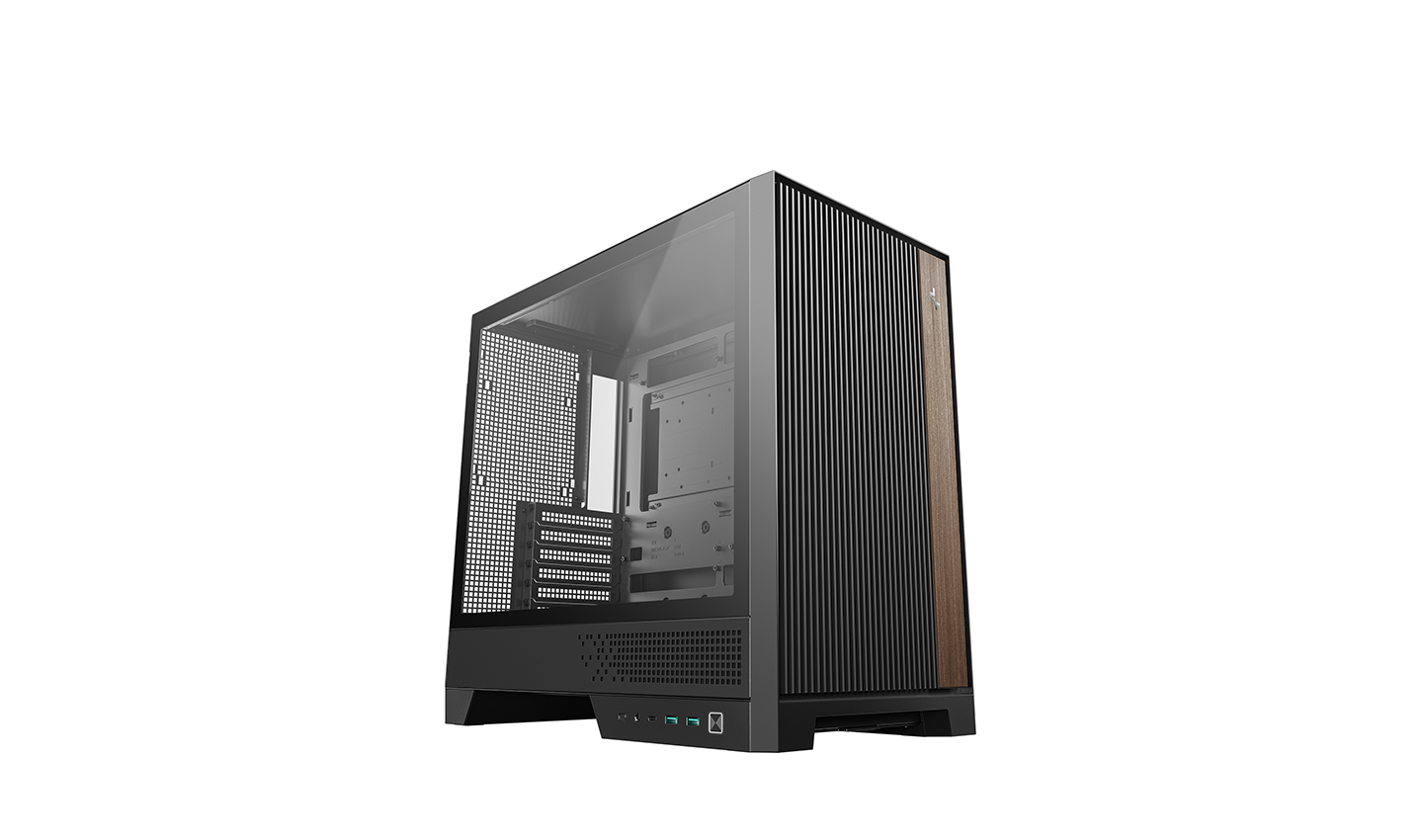

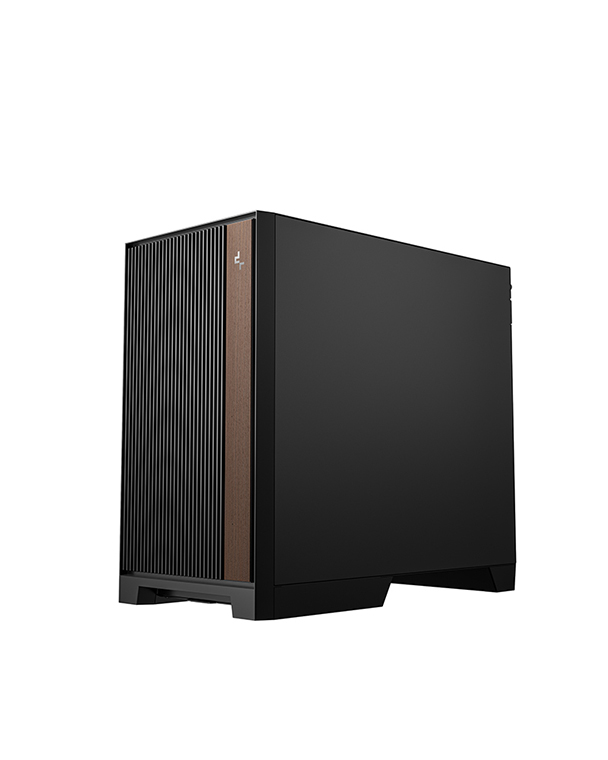

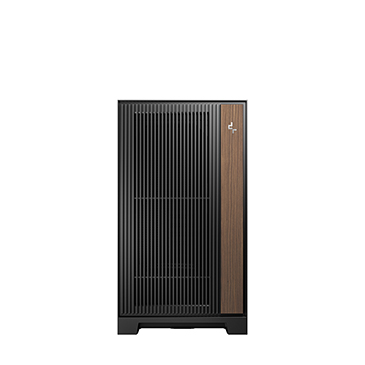

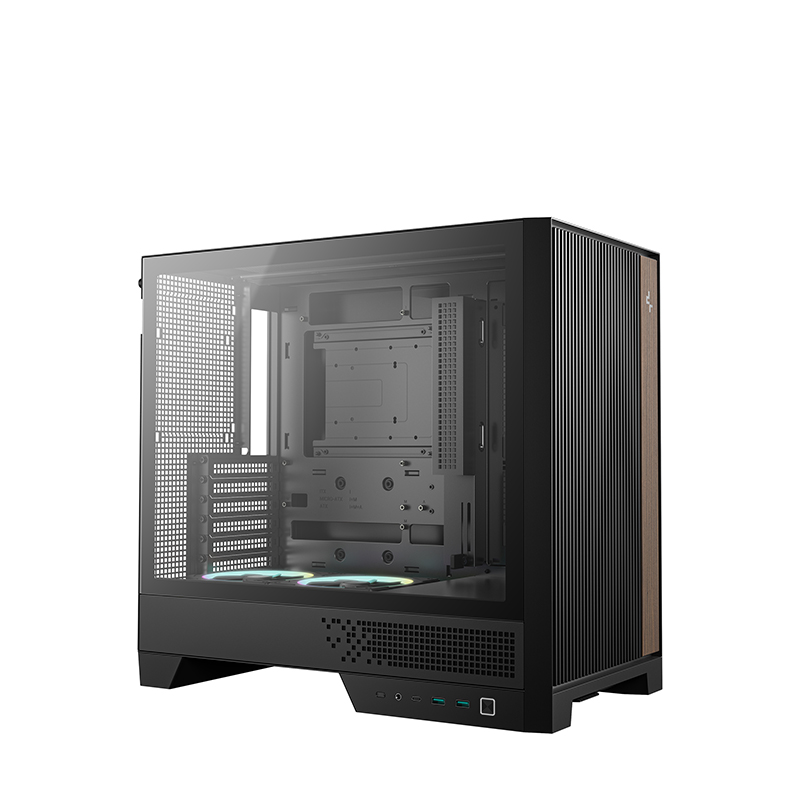

Designed for natural airflow and visual harmony, CL600 blends vertical grille and wood-grain accents into a clean, modern aesthetic.

LET IT BREATHE

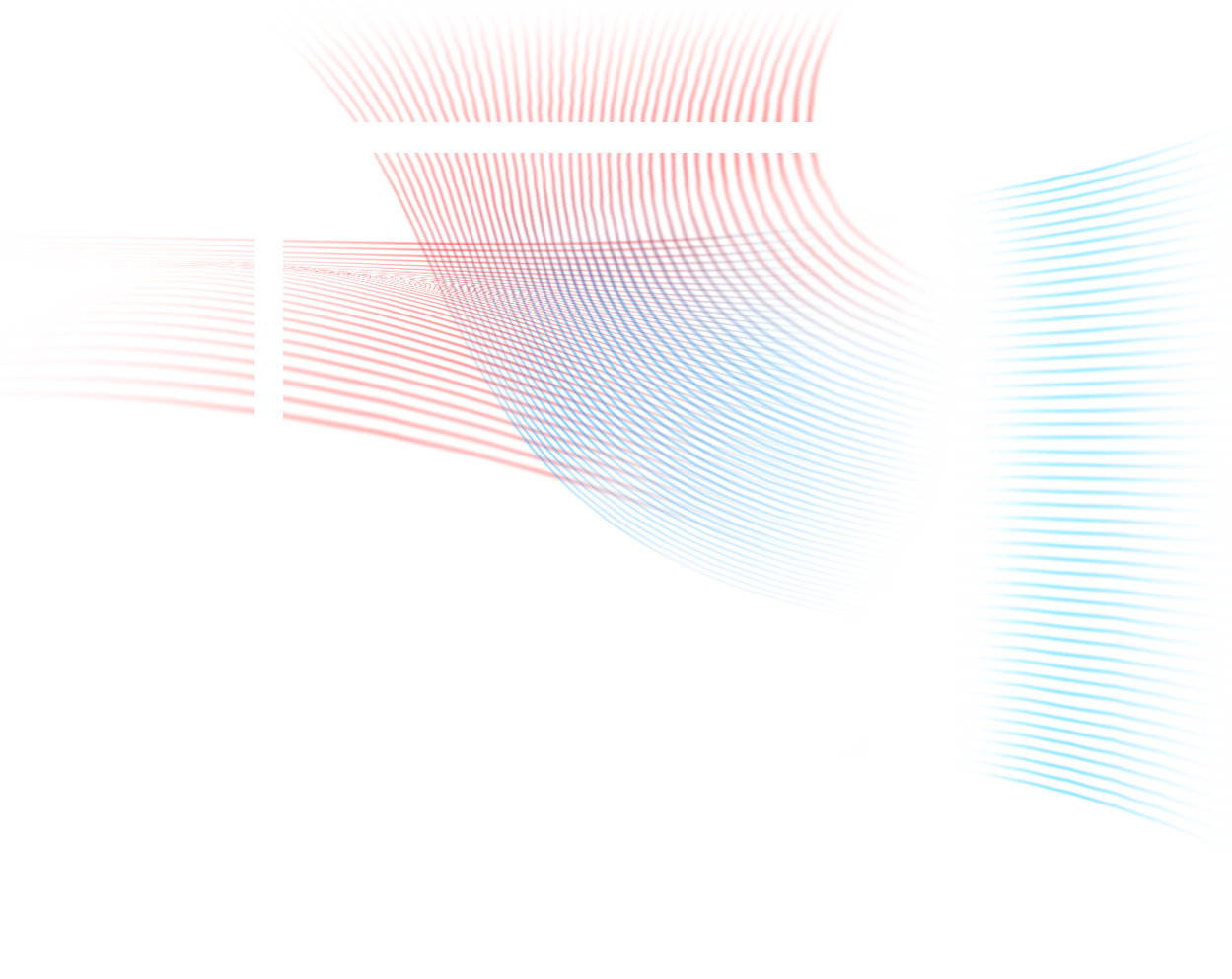

A high-clearance bottom design allows cool air to enter smoothly, boosting overall airflow efficiency throughout the case. Large mesh panels on multiple sides enhance circulation for better ventilation.

BUILT-IN ATMOSPHERE

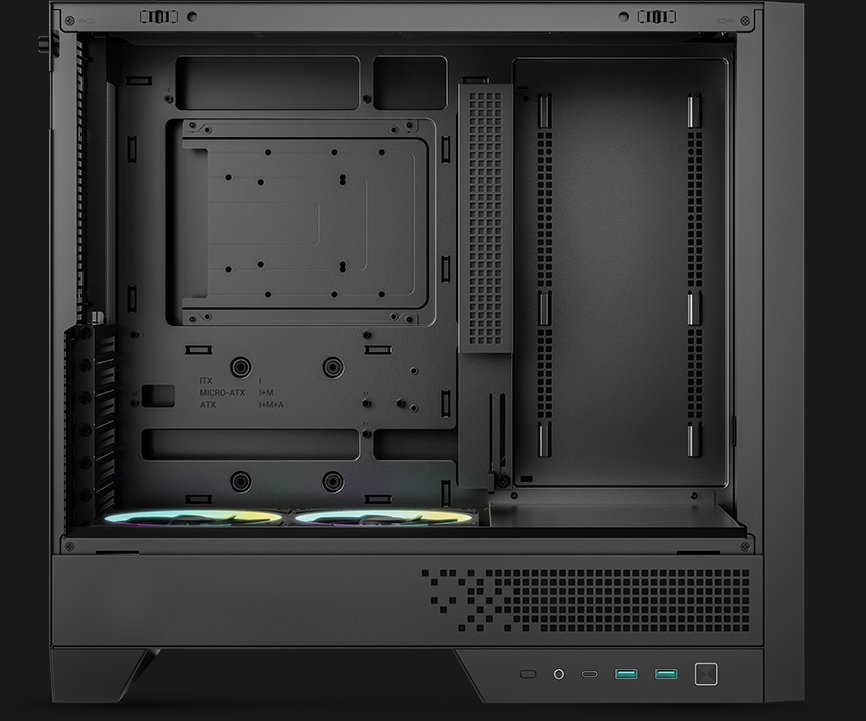

Pre-installed on a slide-out tray and smartly recessed, the dual FL12R SE fans at the bottom pull in fresh air and illuminate your build with a vivid glow—without taking up visual space.

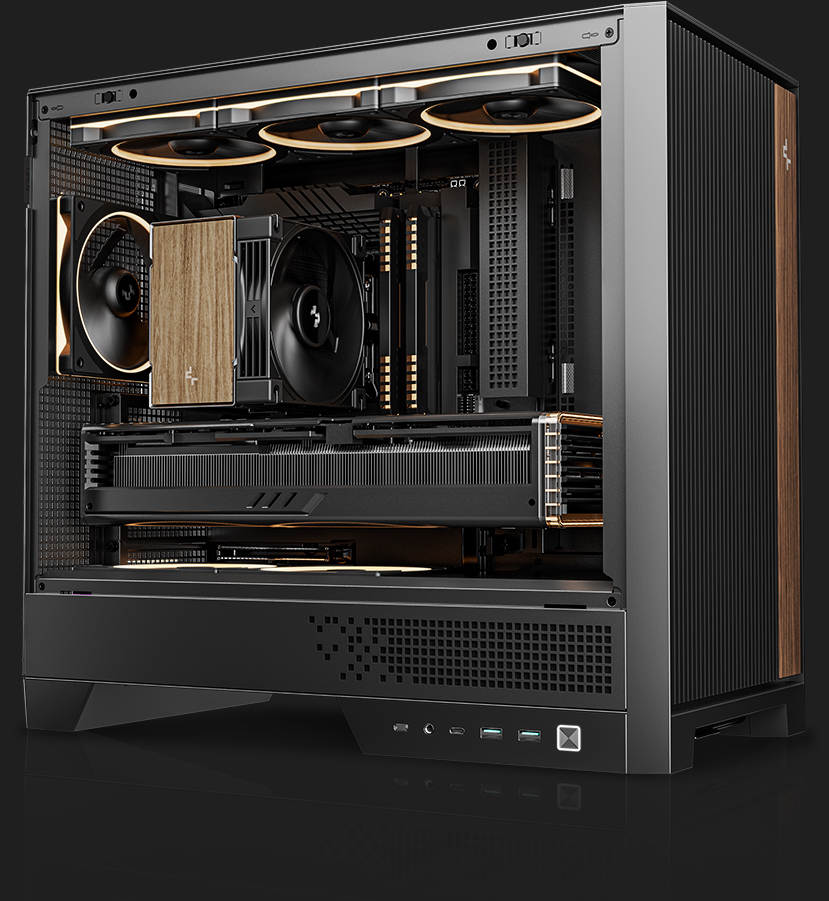

OPTIMIZED FOR AIR COOLING

CL600 supports up to eight fans and giant air coolers up to 175mm, maximizing air-cooling potential for unrestricted airflow performance.

Radiator Support:

Fan Support:

Top: 3×120mm / 2×140mm
Front: 2×140mm
Rear: 1×140mm / 1×120mm
Bottom: 2×120mm

120mm

140mm

CPU Cooler:

175mm

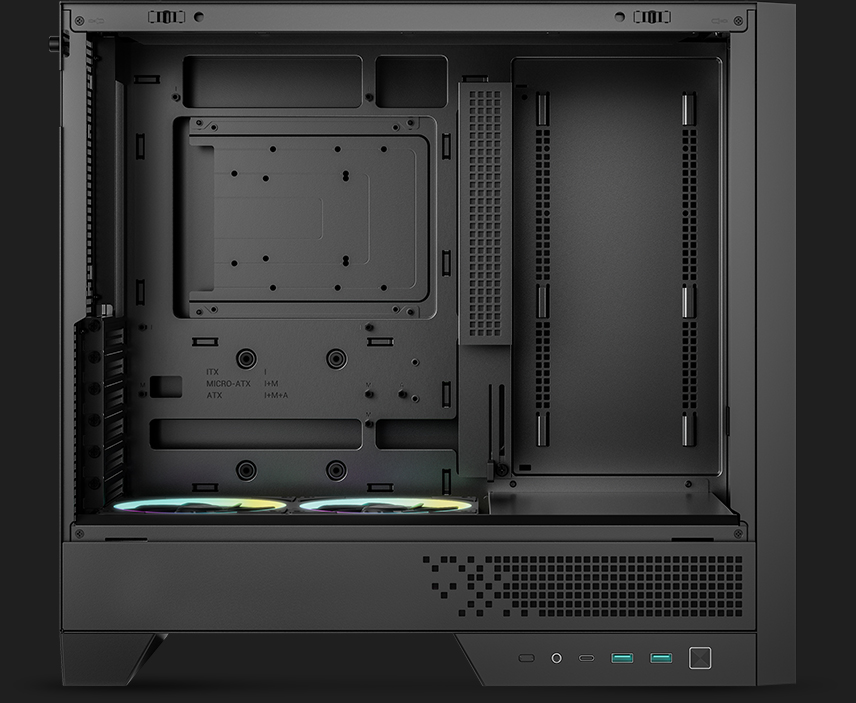

BUILD WITH CONFIDENCE

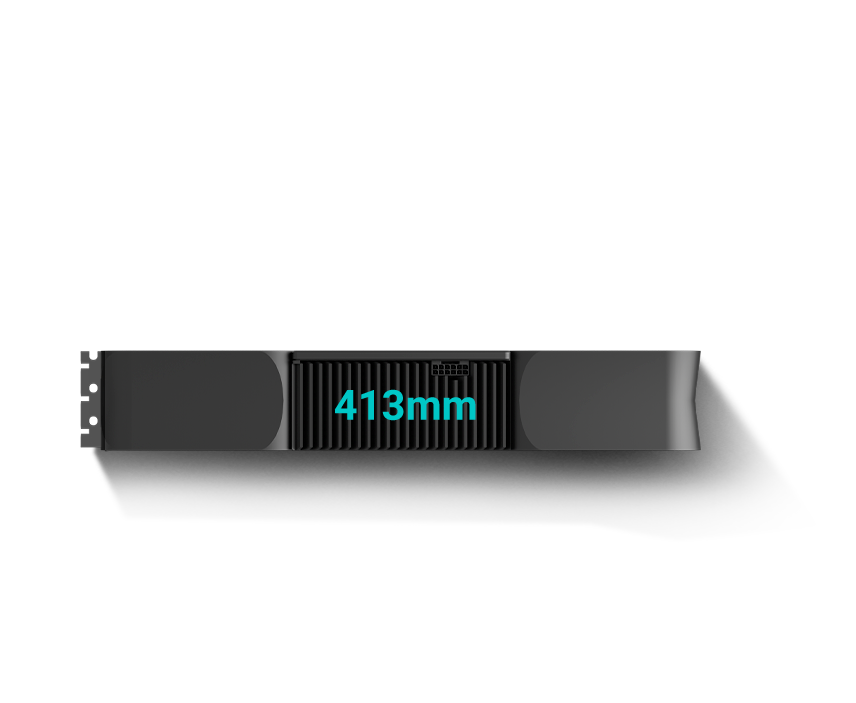

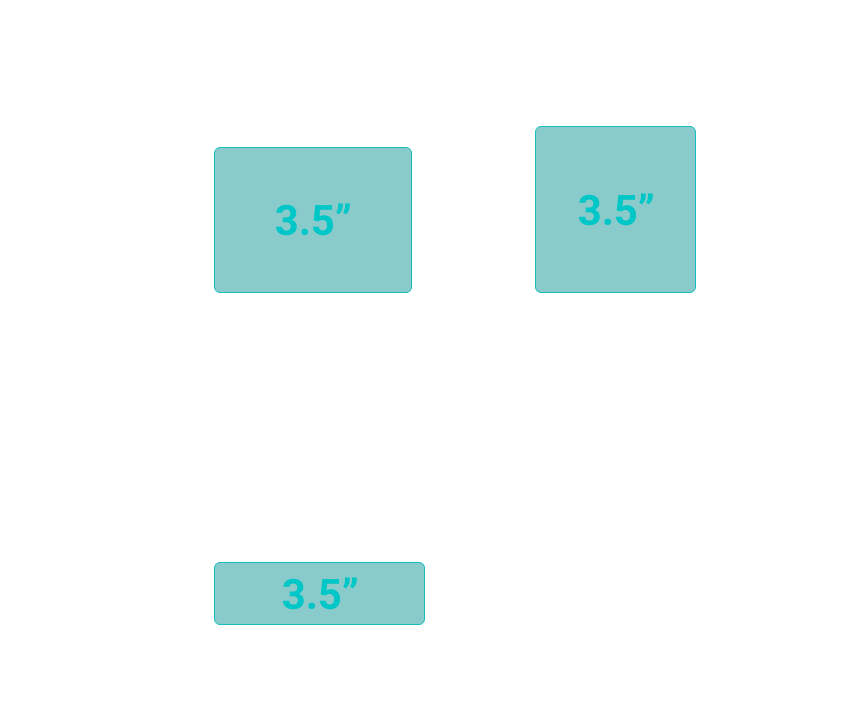

CL600 gives high-end components plenty of room, supporting GPUs up to 413mm (388mm with front fan installed) and ATX PSUs up to 160mm. It also fits up to three 3.5” or two 2.5” drives, with a shared bracket supporting either type, offering flexible storage options. Seven expansion slots allow easy future upgrades.

GPU

PSU

SSD

HDD

COMFORT IN EVERY DETAIL

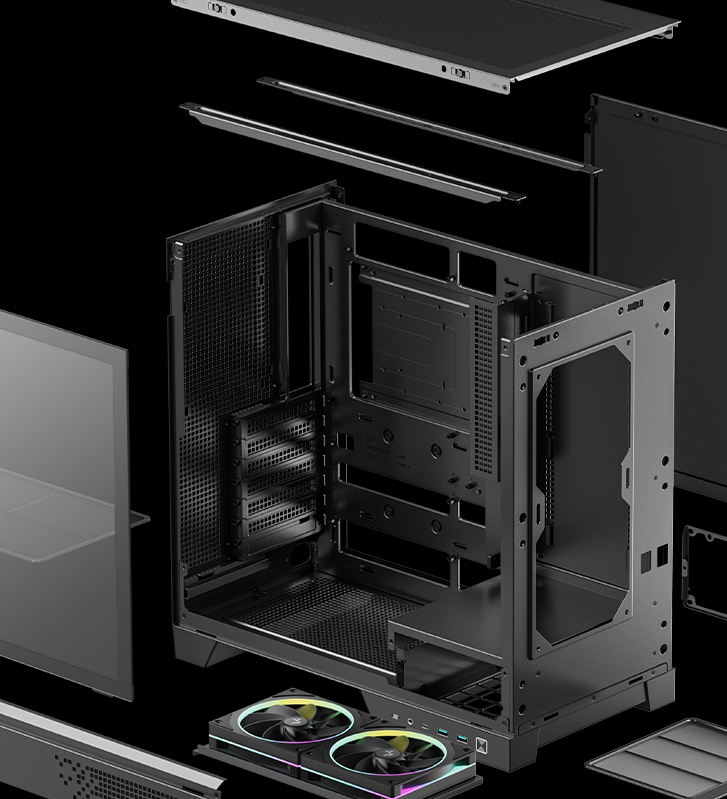

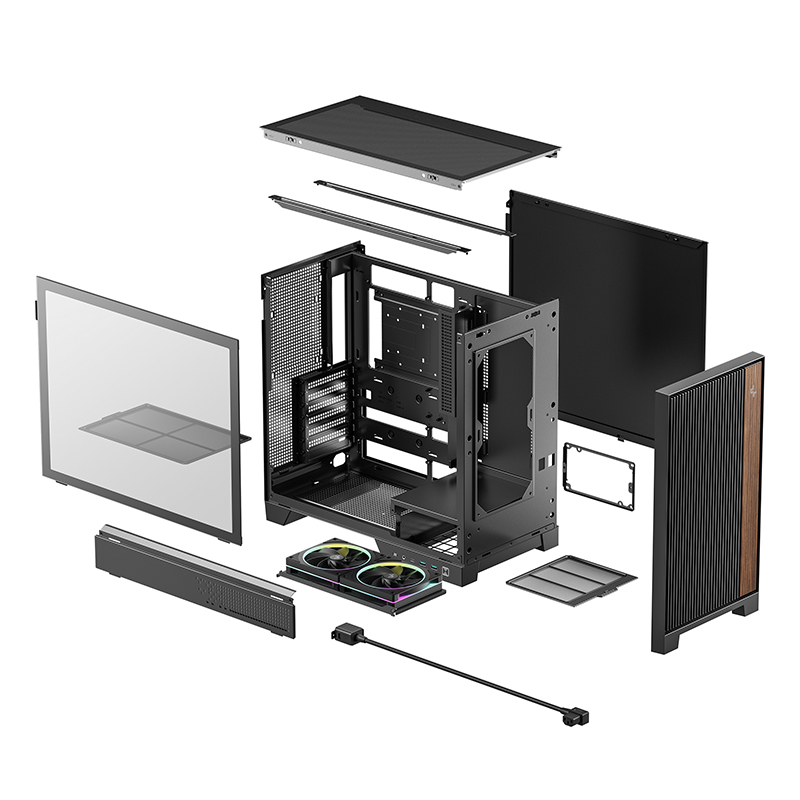

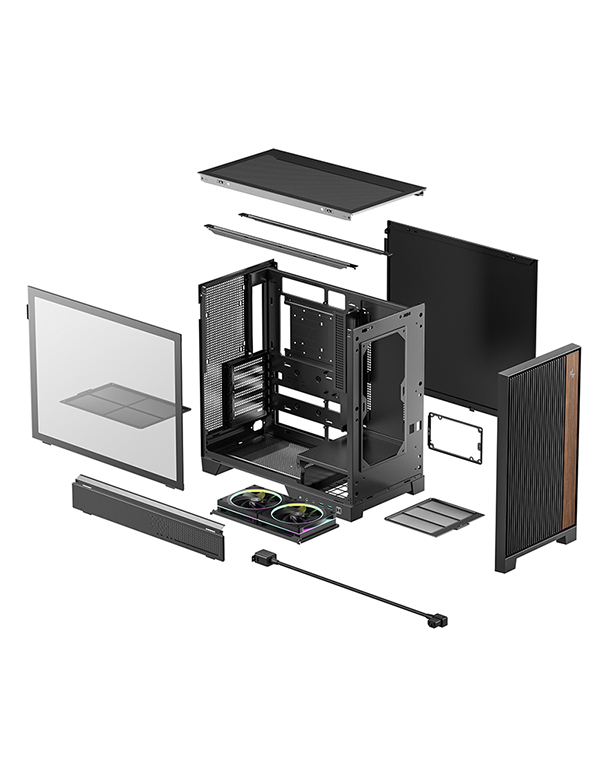

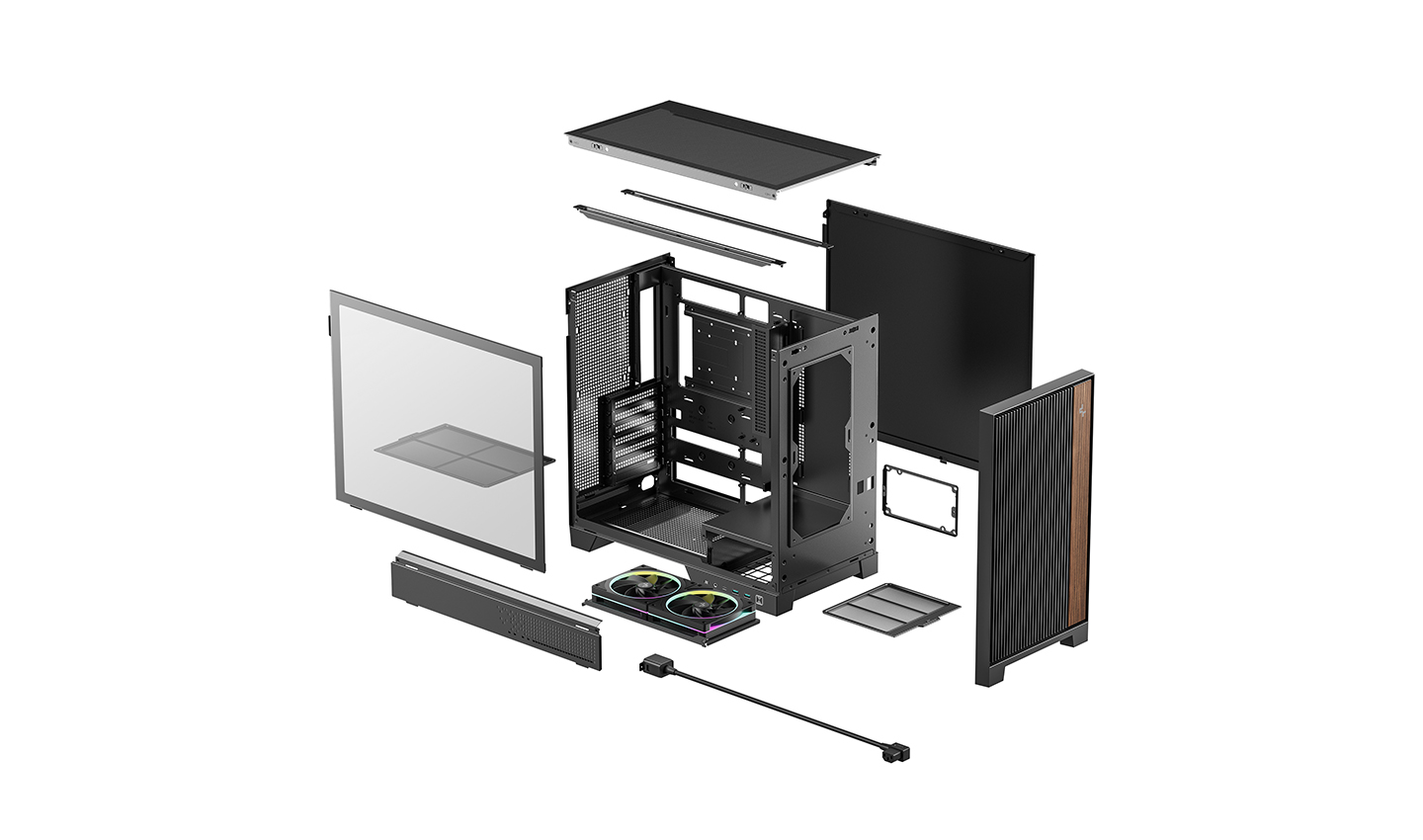

Quick-Release Panels
All panels can be removed without tools for quick, full access anytime.

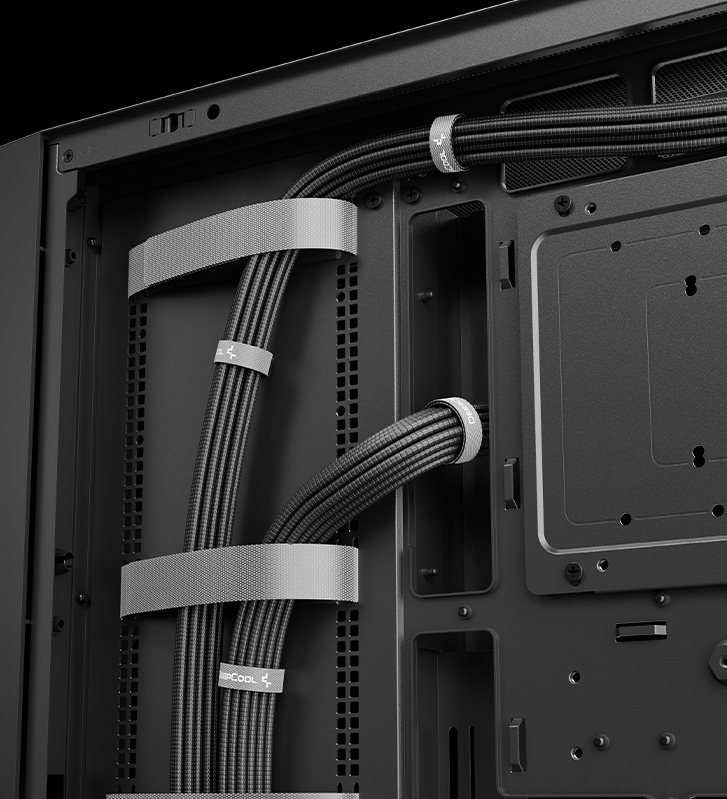

Cable Management Made Easy
35mm of routing space, Velcro straps, and tidy covers make cable routing easy for everyone.

Back-Connect Ready

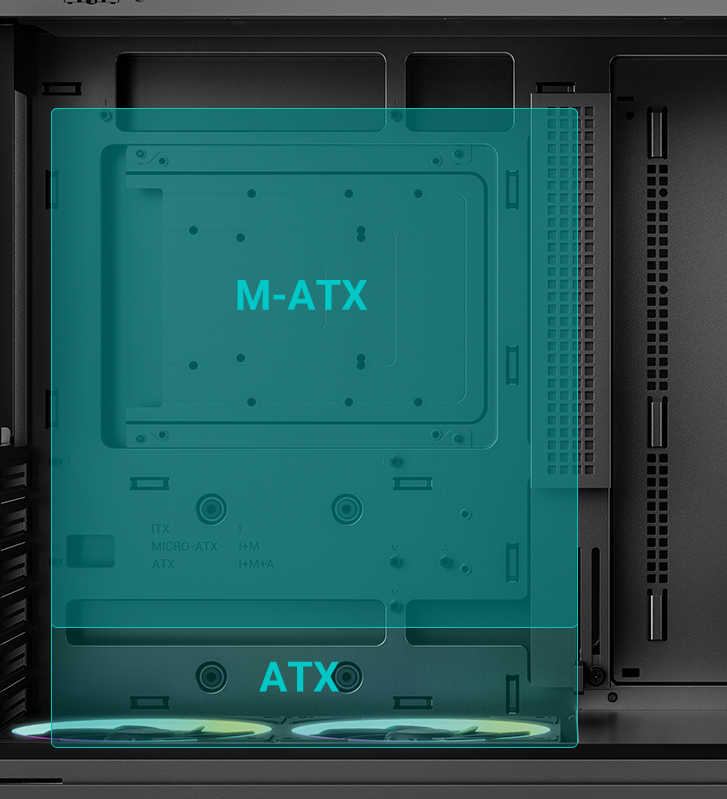

Supports reverse connector ATX and M-ATX motherboards for modern layouts.

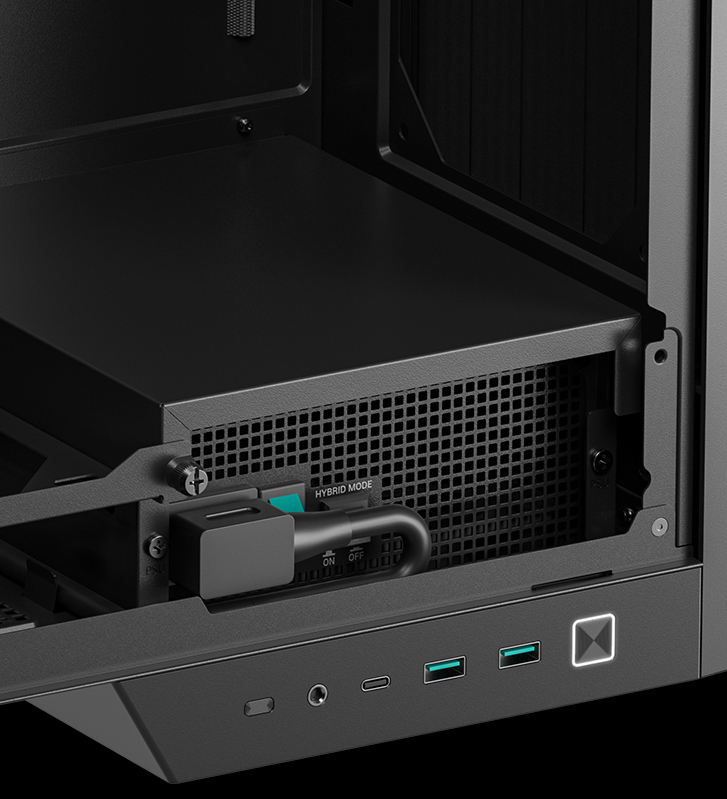

Front-Mounted PSU
The PSU is mounted horizontally at the front, with its connector ports facing outward.

GPU Support Included
Comes with a sturdy bracket to keep your graphics card secure.

CONVENIENCE AT ARM'S REACH

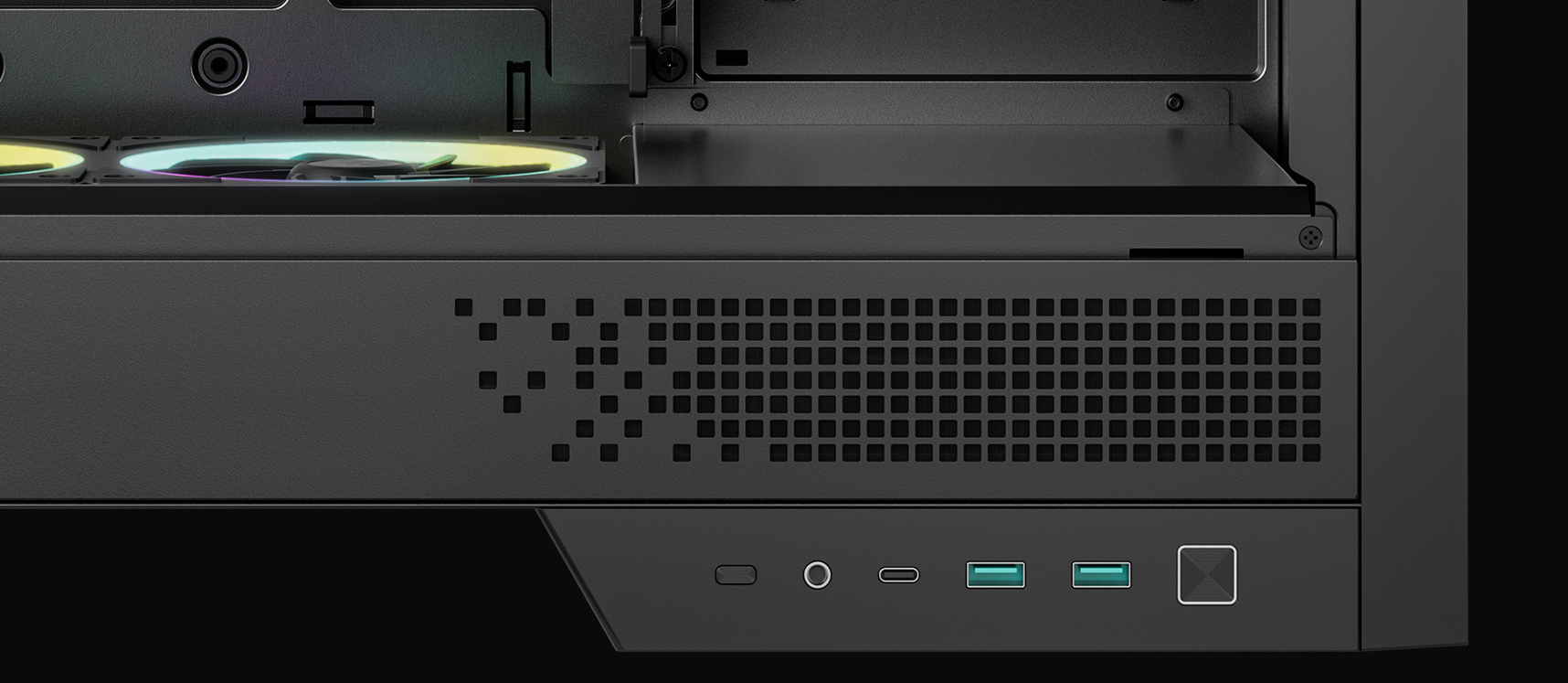

The I/O panel offers easy access with two USB 3.0 ports, a Gen 2 Type-C port, and a combined audio/mic jack.

Technical Spec

Product Dimensions	457.5×235×422.5mm(L×W×H)
Net Weight	7.7Kg
Materials	ABS+SPCC+Tempered Glass
Motherboard Support	Mini-ITX / Micro-ATX / ATX ATX(Rear Connector)/Micro-ATX(Rear Connector)
Front I/O Ports	USB3.0×2、Gen2 Type-C x1、Audio/Mic×1
3.5" Drive Bays	2+1
2.5" Drive Bays	1+1
Expansion Slots	7 Slots
Pre-Installed Fans	Bottom: 2×120mm ARGB（Reverse Blade）
Fan Support	Top:3×120mm/2×140mm Front: 2×140mm Rear:1×140/1×120mm Bottom:2×120mm
Radiator Support	NA
CPU Cooler Height Limit	175mm
GPU Size Limit	413mm/388mm(With Front Fan)
Power Supply Type	ATX PS2（maximum length: 160mm)/SFX/SFX-L
EAN	6933412765622
P/N	R-CL600-BKNNA2-G-1

Download

CL600 Manual.pdf
