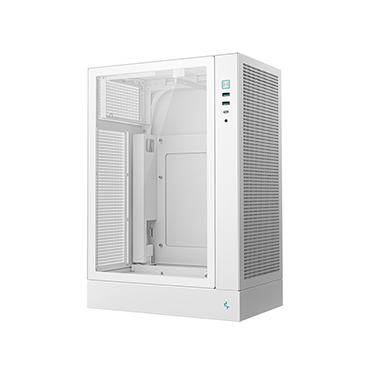

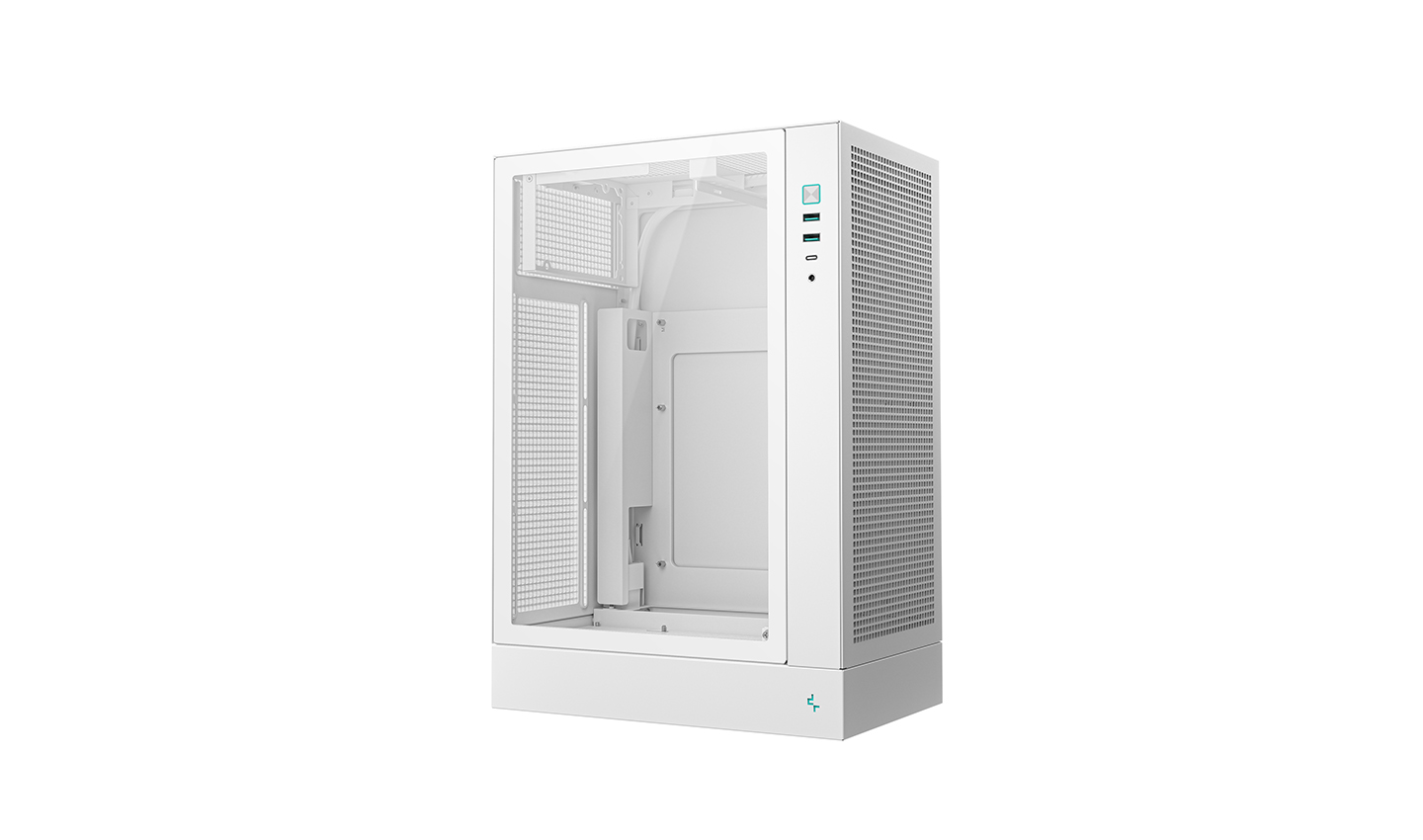

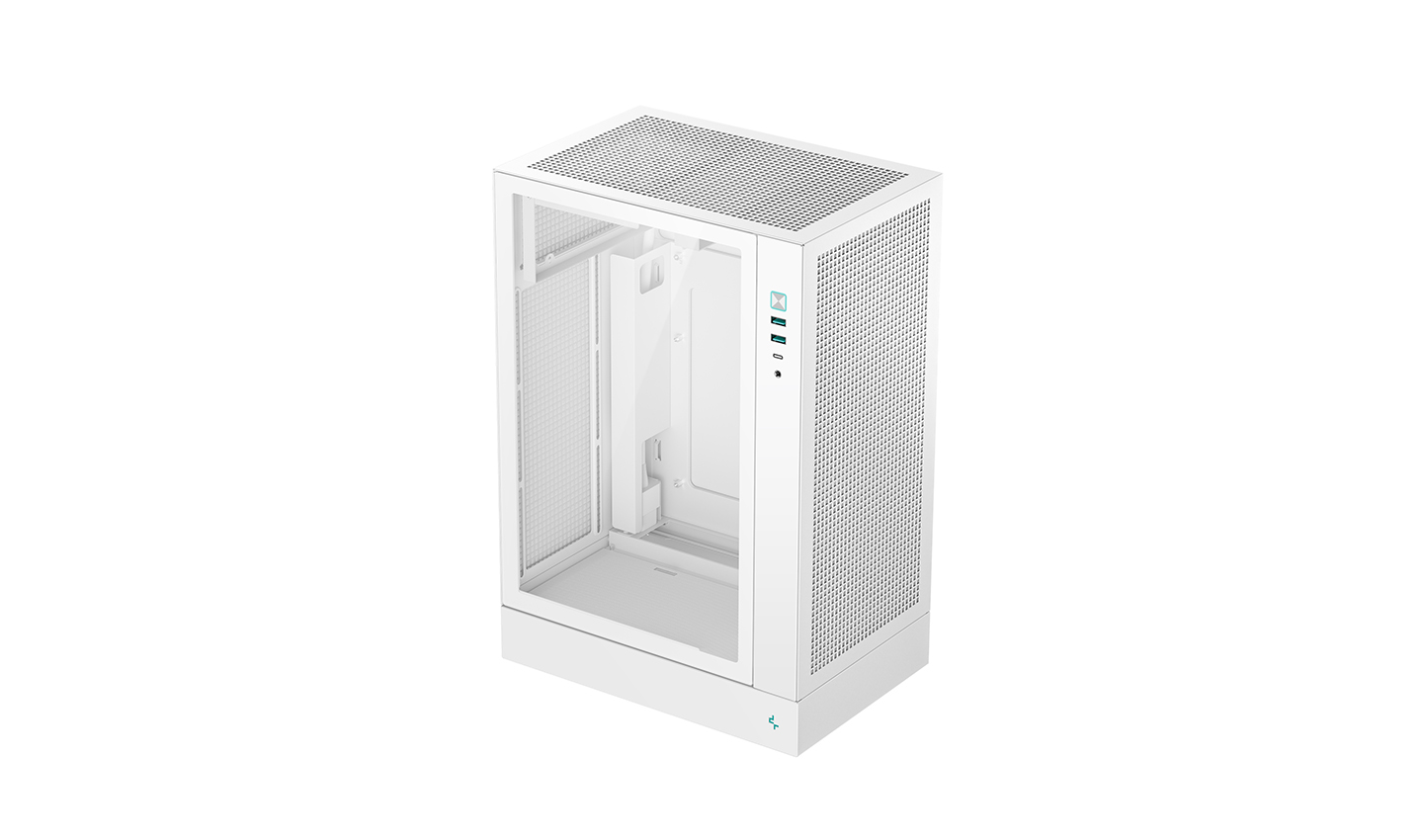

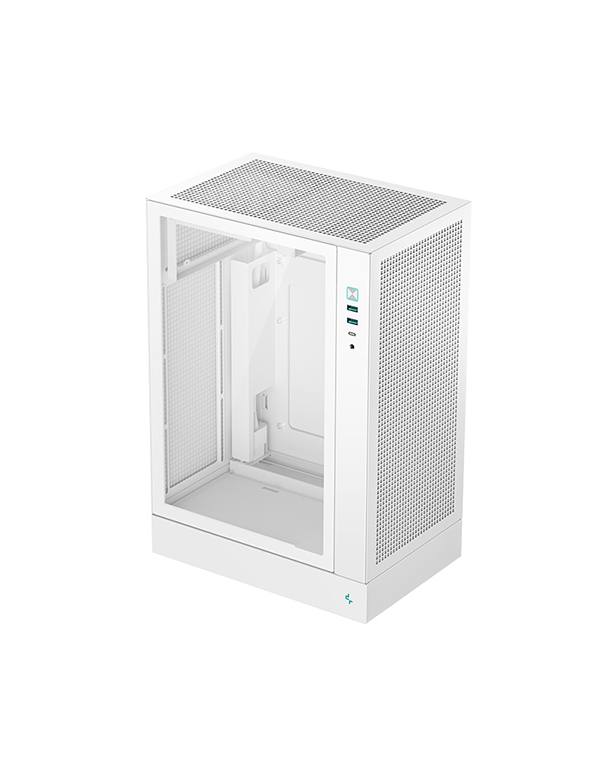

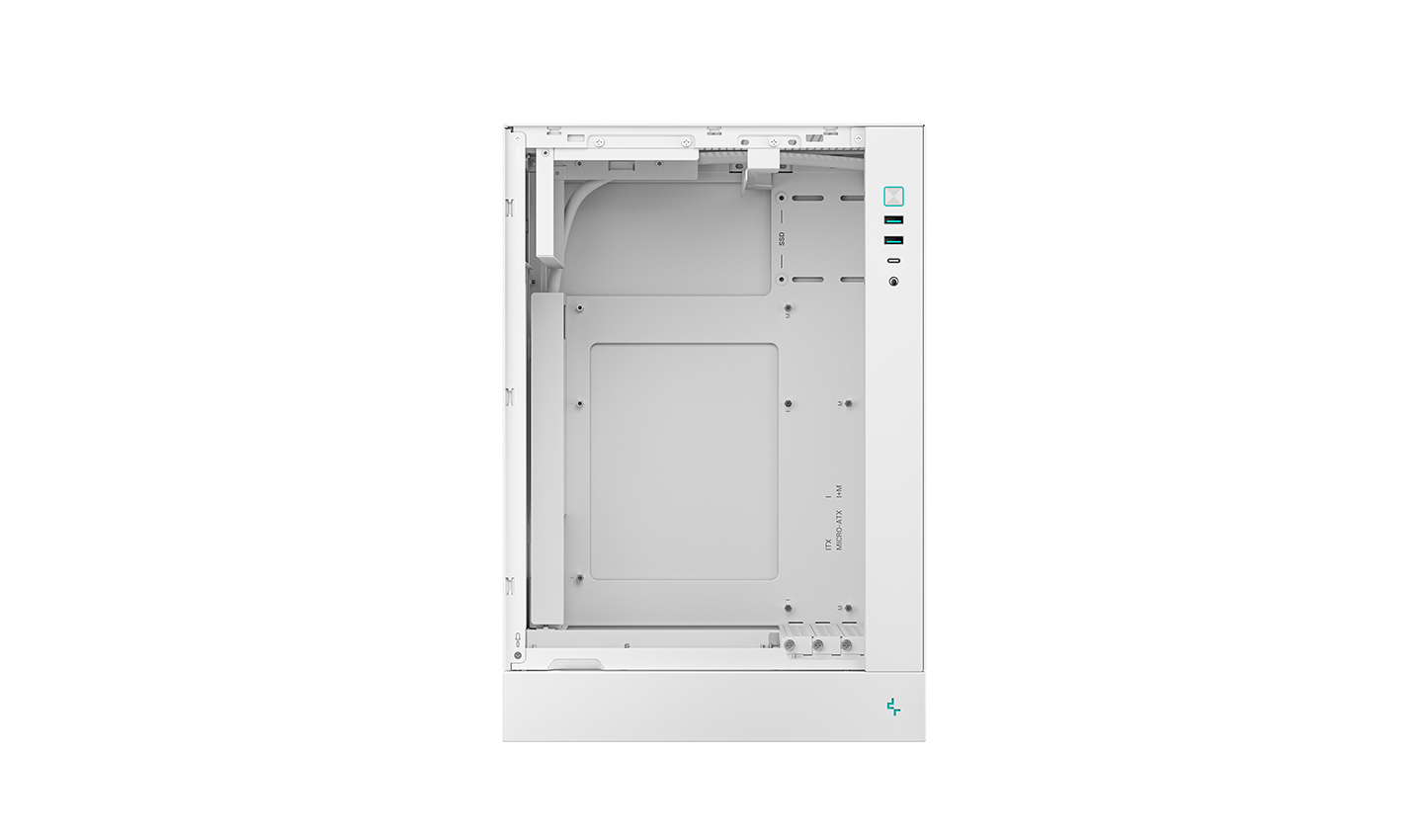

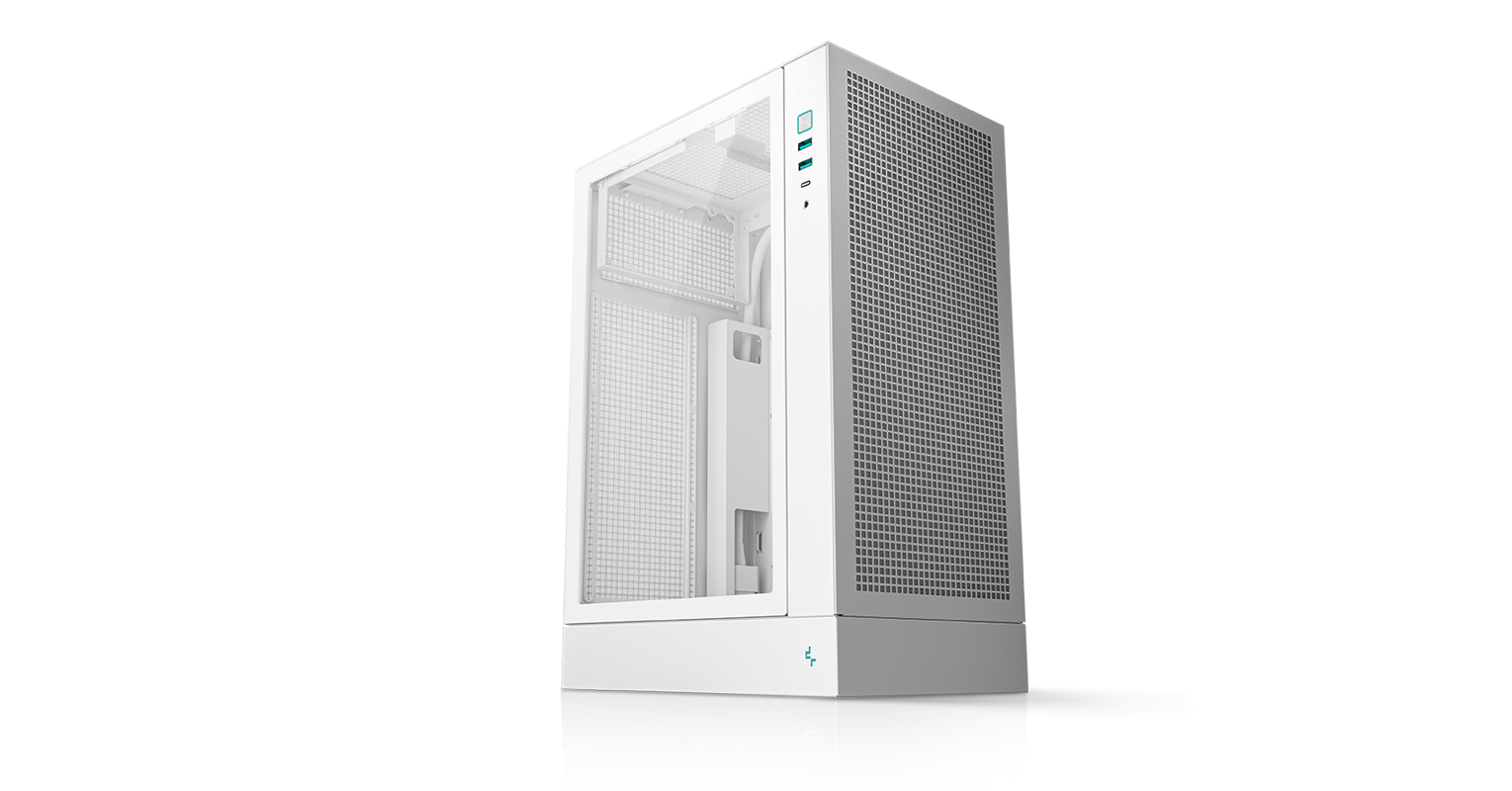

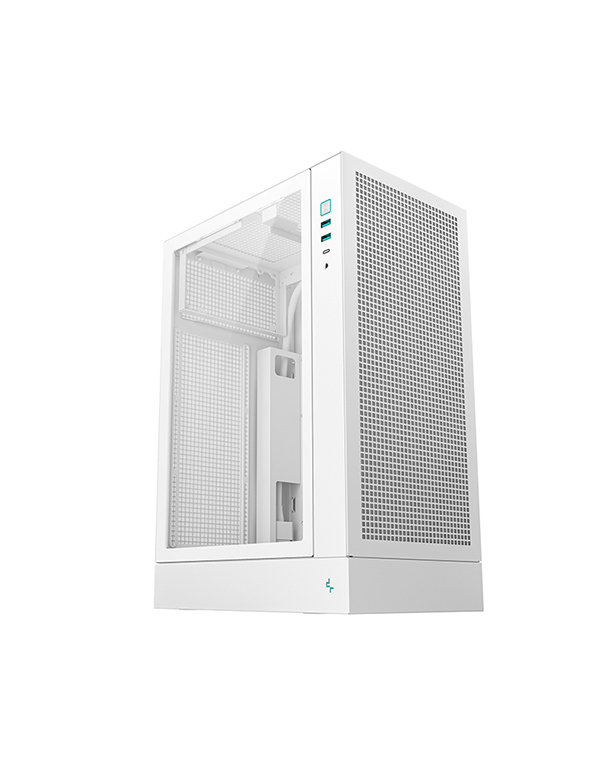

CH170 PLUS WH

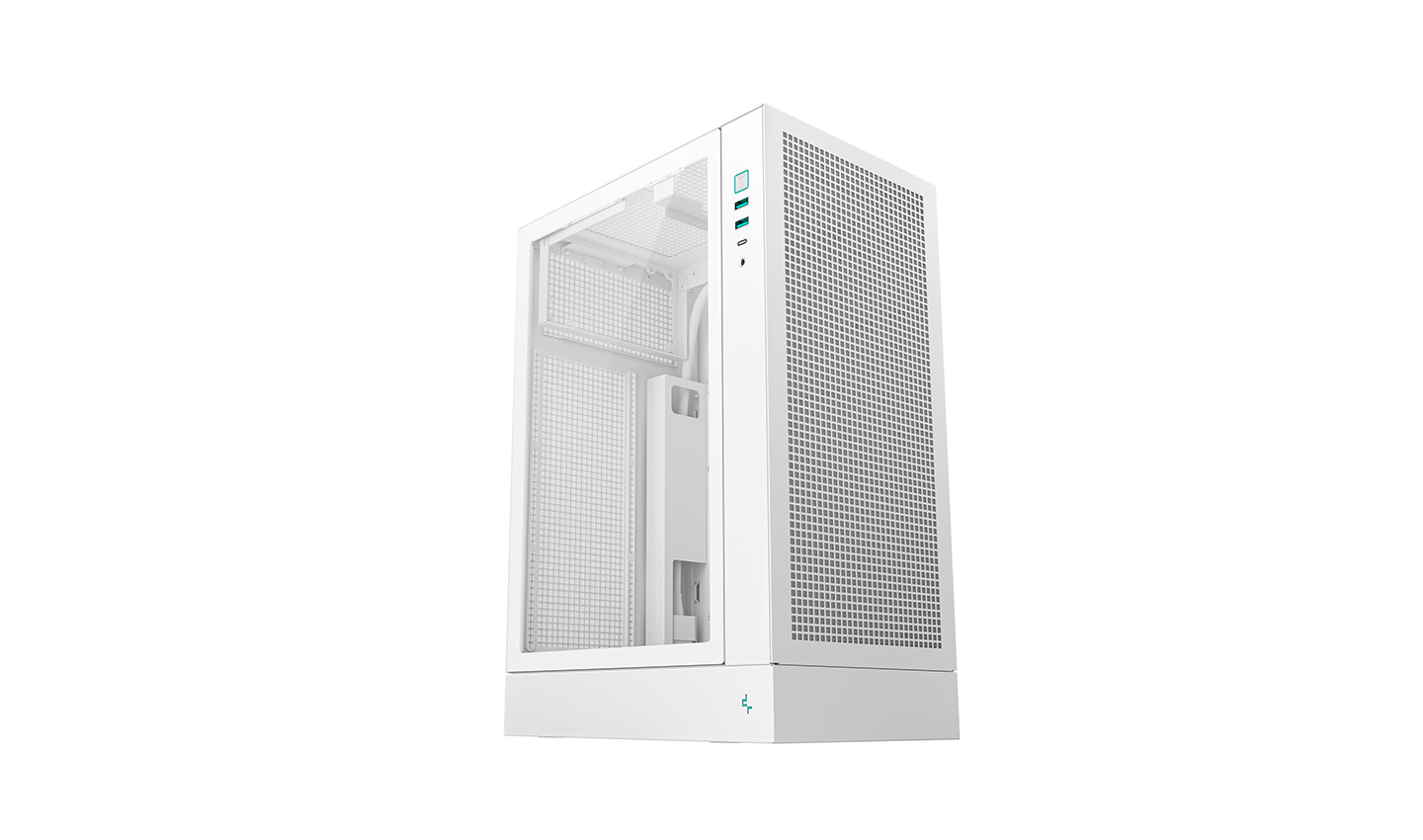

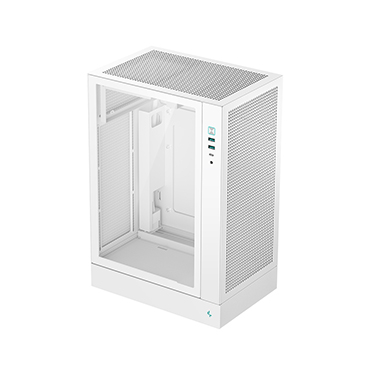

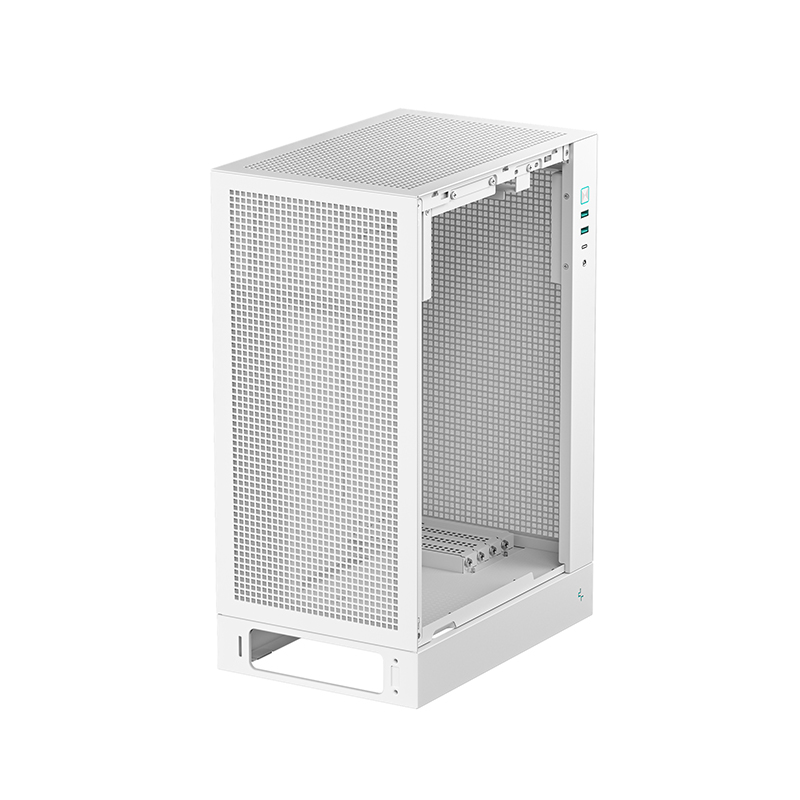

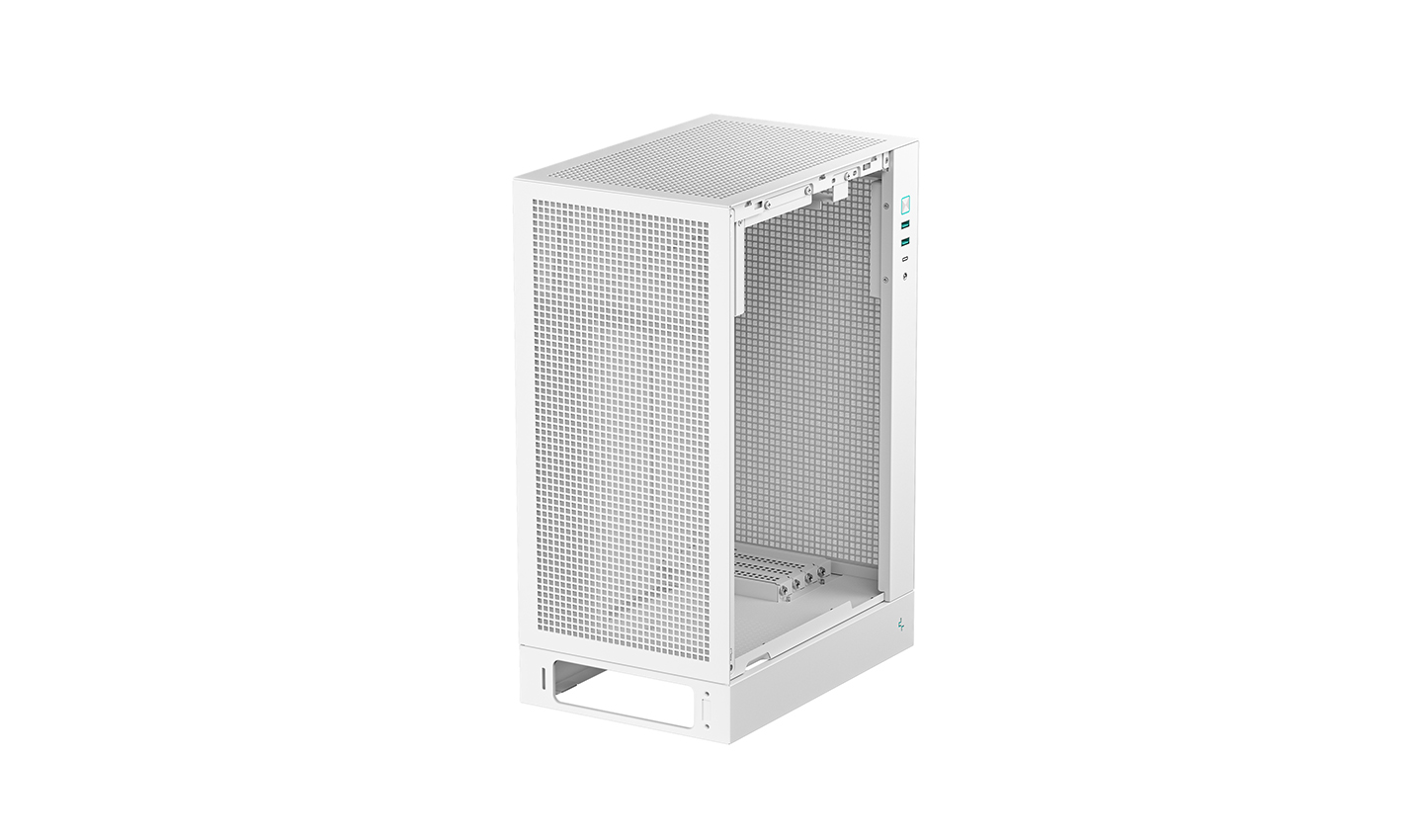

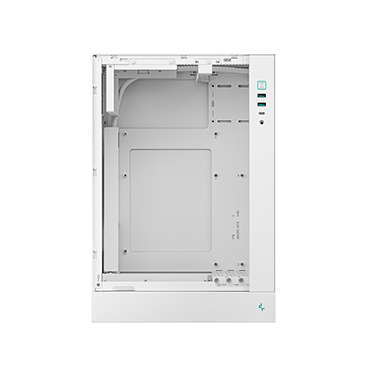

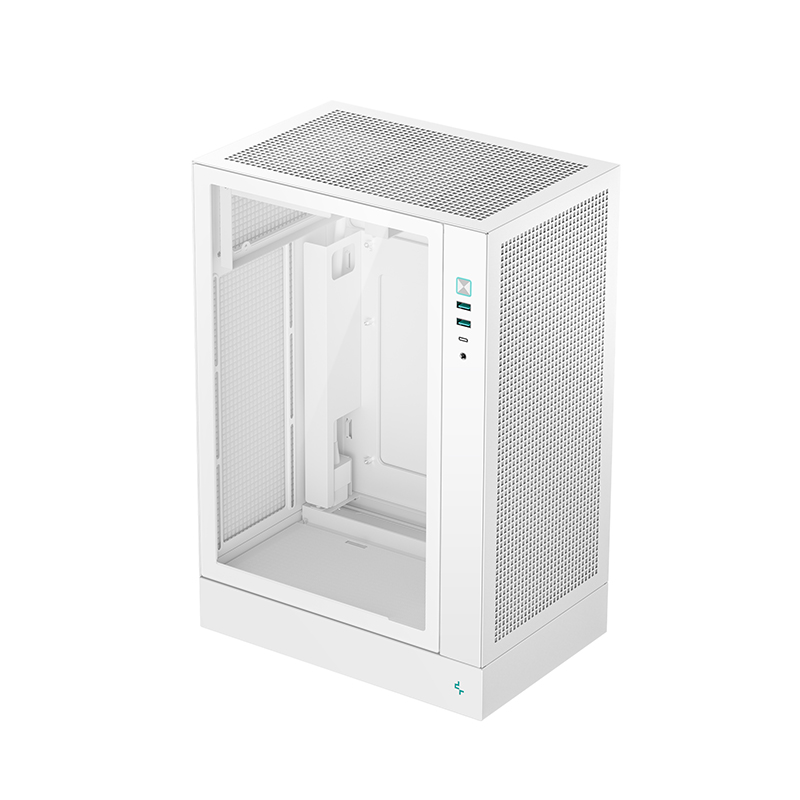

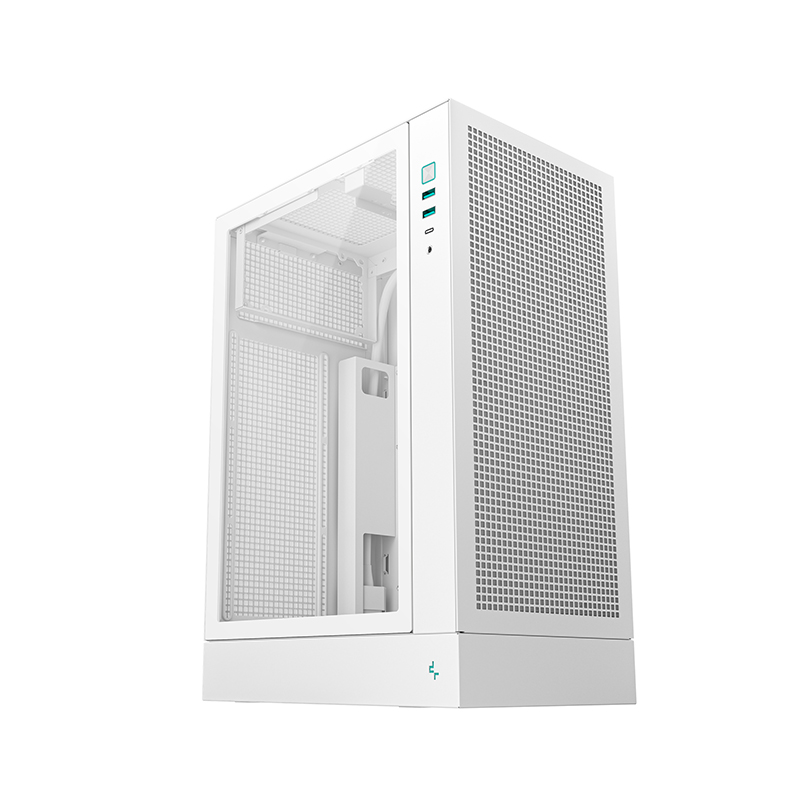

The CH170 PLUS WH is a vertical mid-tower case with all the high-airflow features, offering flexibility for coolers and PSU options in a compact design.
COLOR
white
MODEL
CH170 PLUS WH

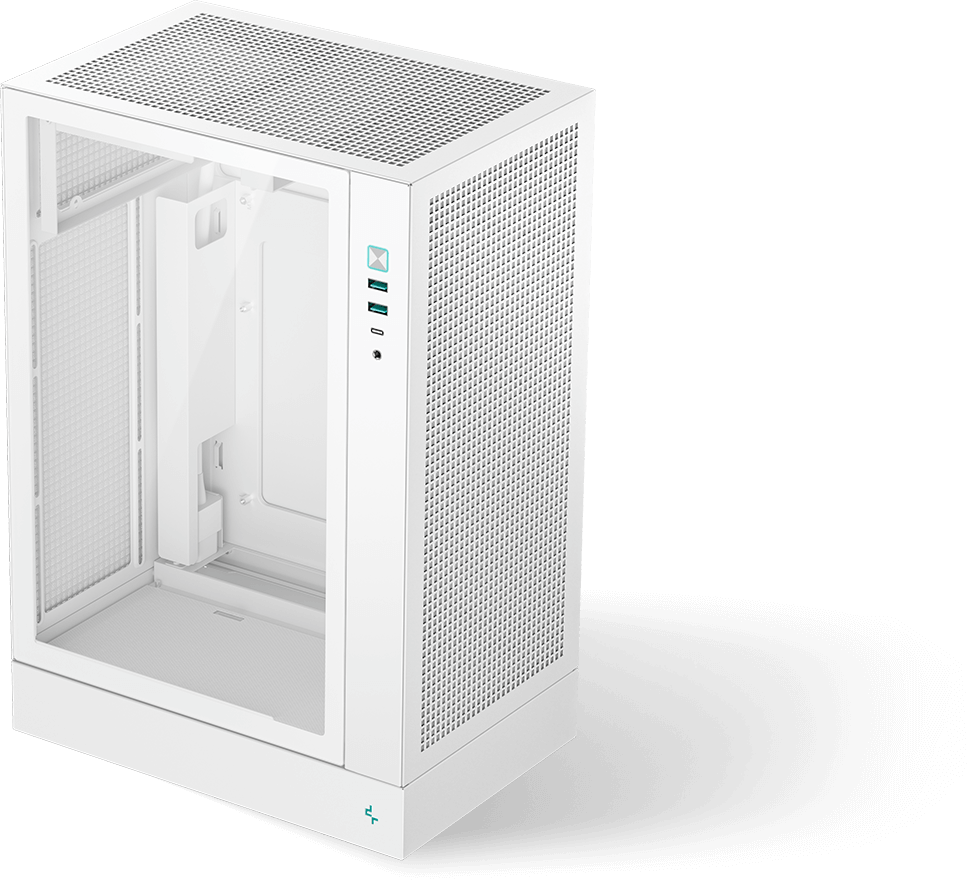

COMPACT EVOLVED

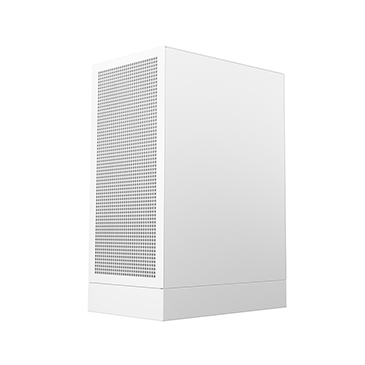

BUILT TO BREATH

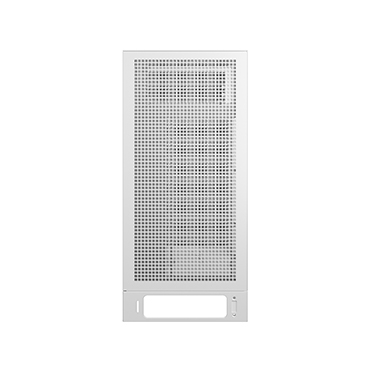

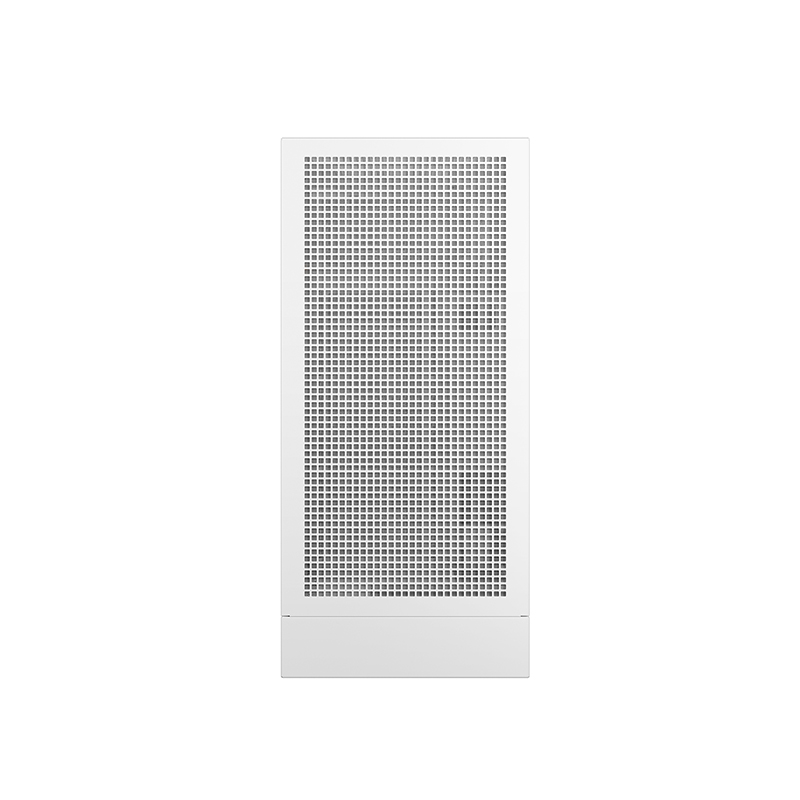

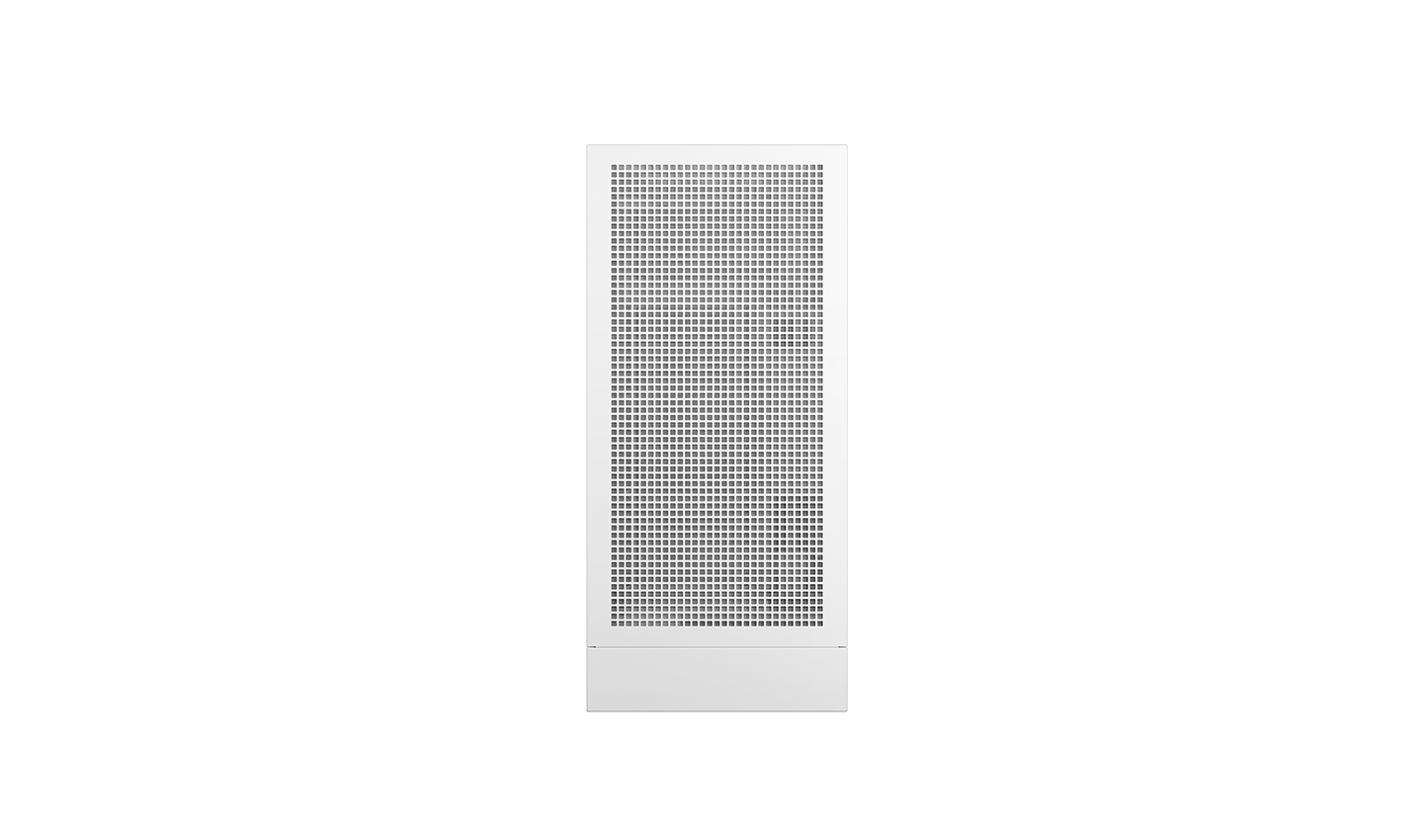

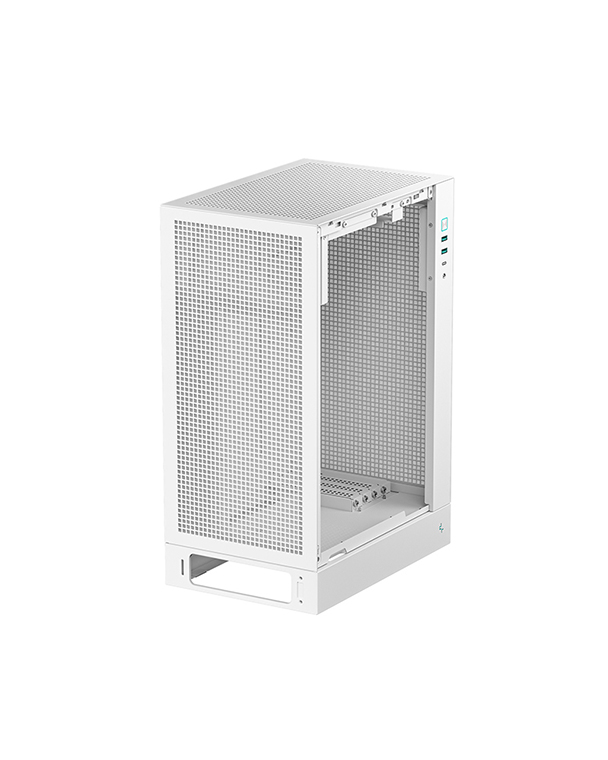

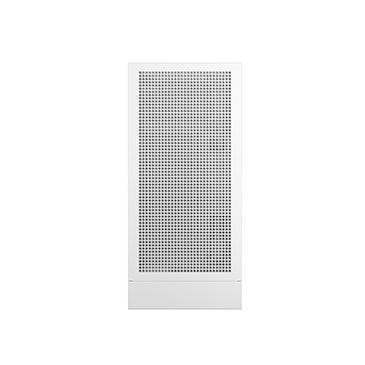

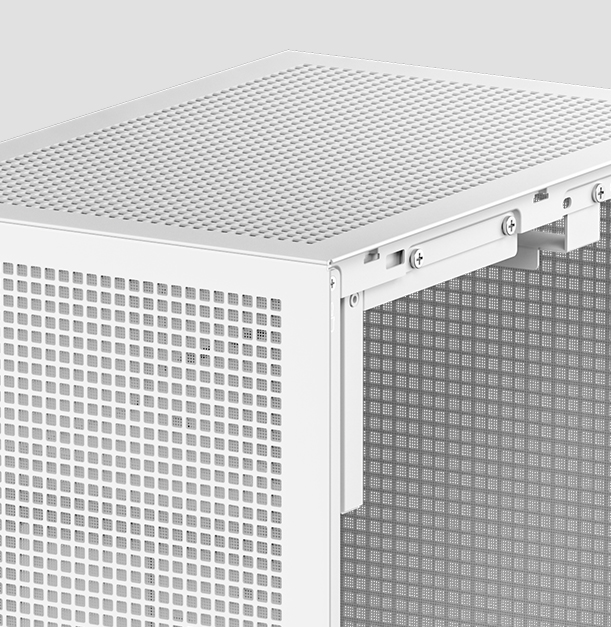

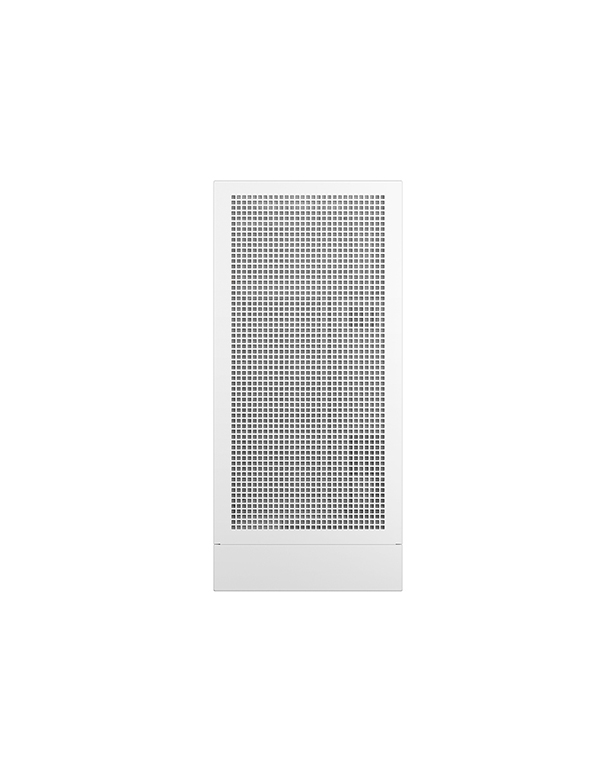

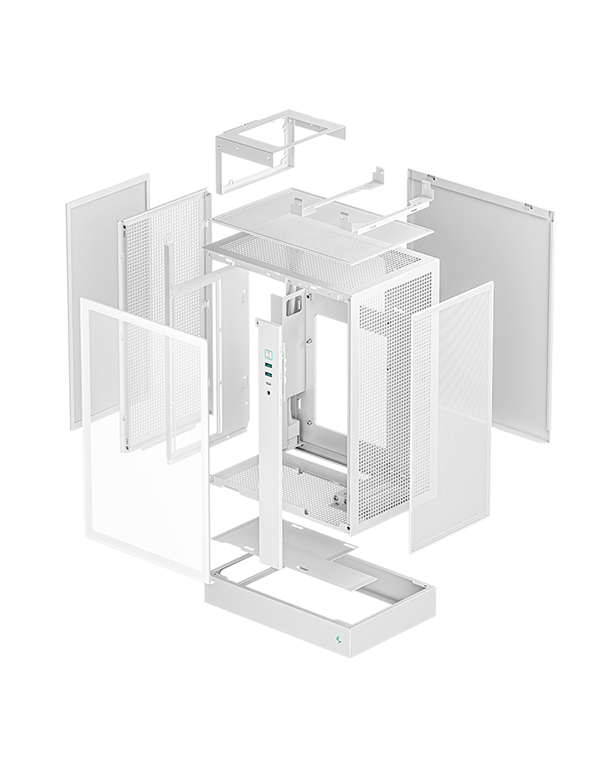

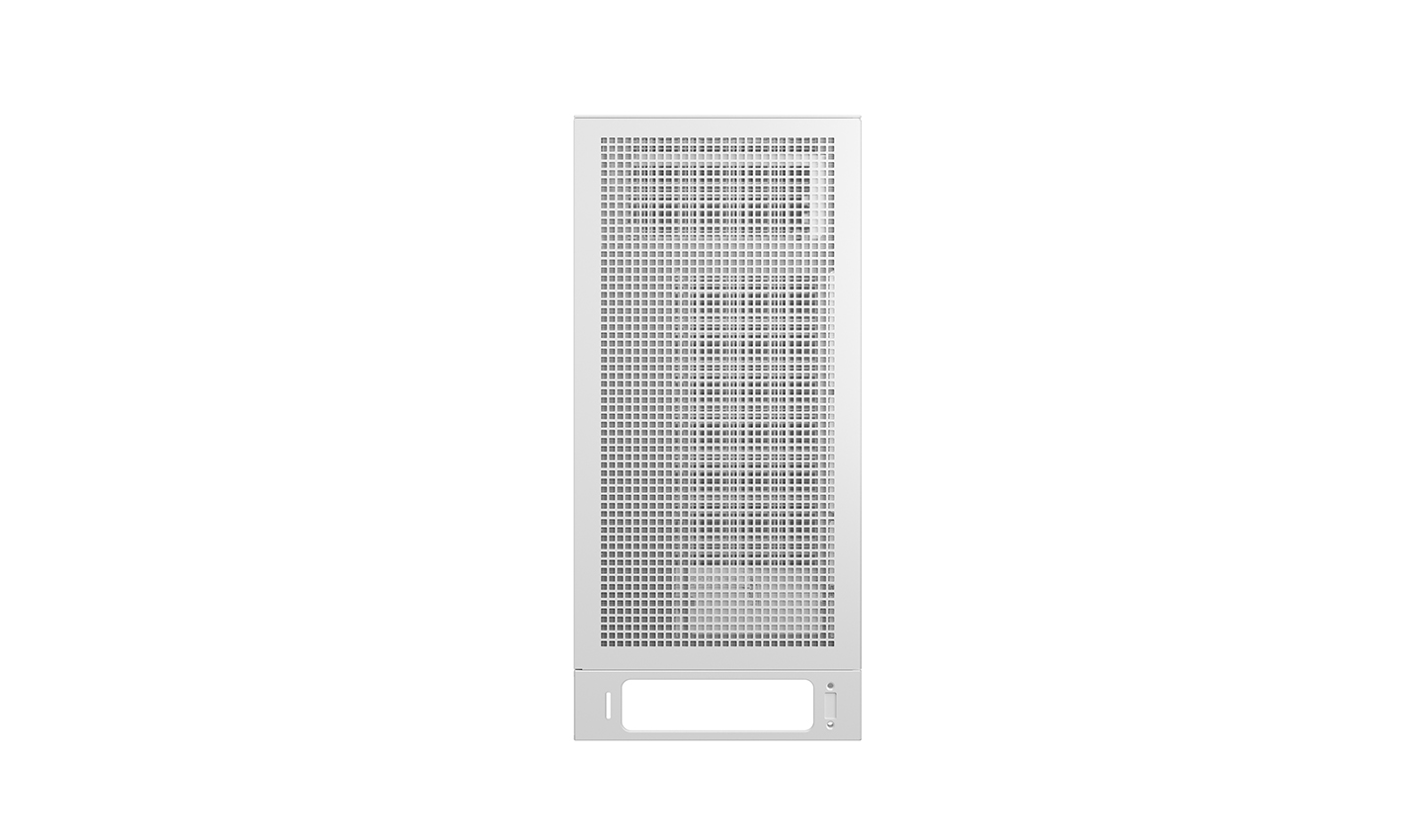

Mesh panels across multiple sides boost airflow to keep your system cool, while a tempered glass panel highlights your components.

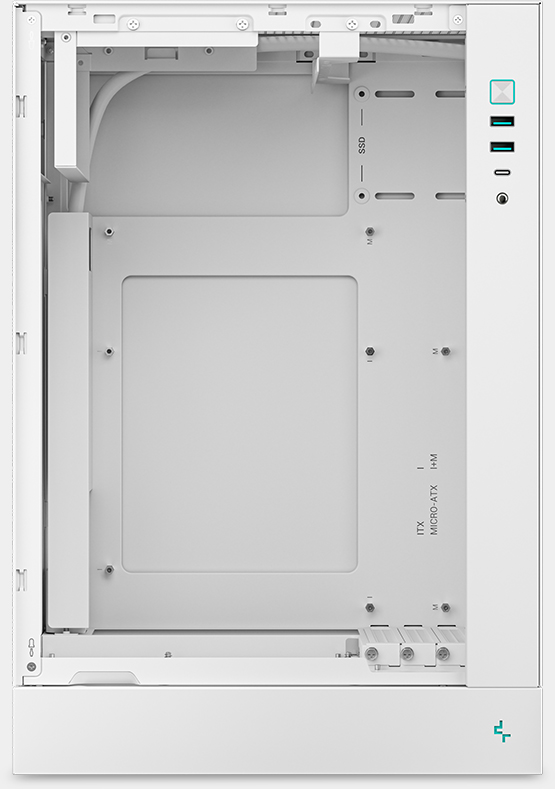

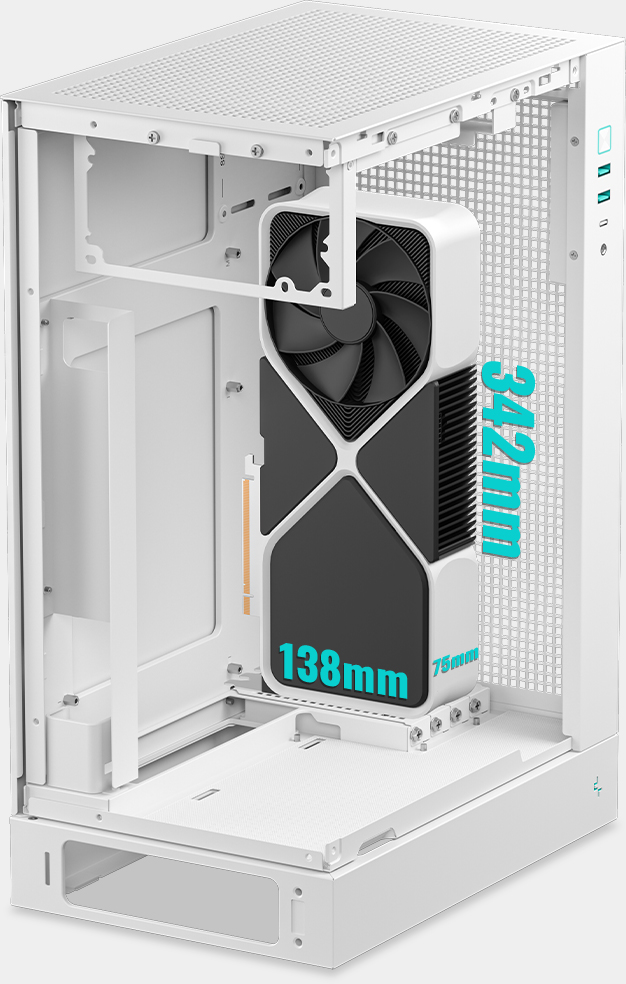

ROOM FOR BIGGER GPU
No matter your PSU choice, the CH170 PLUS WH supports GPUs up to 342mm in length (328mm with top fan installed), with widths up to 138mm and thicknesses up to 75mm. Cards can be directly inserted into the motherboard.

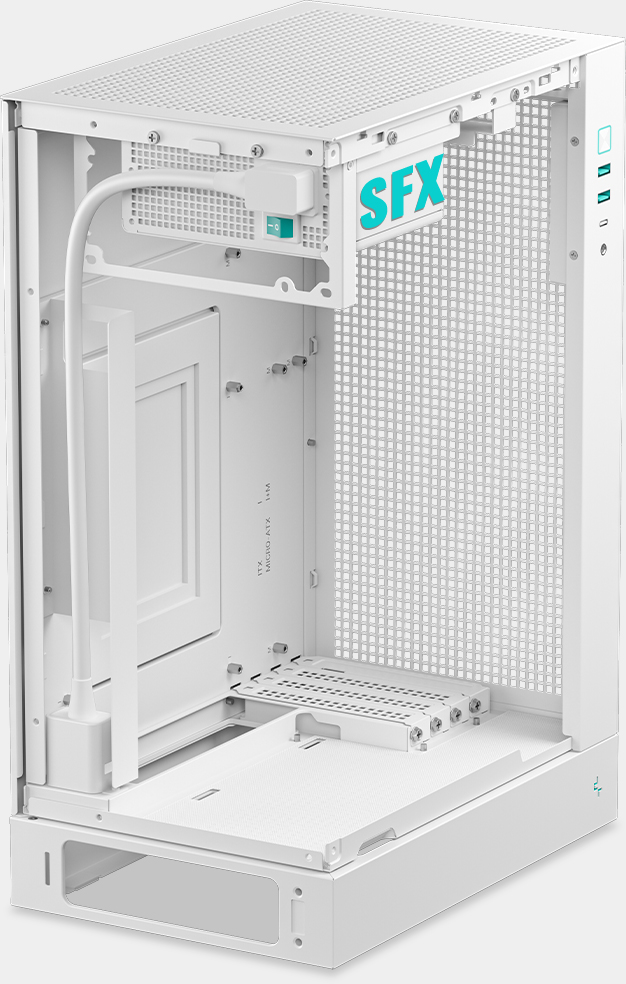

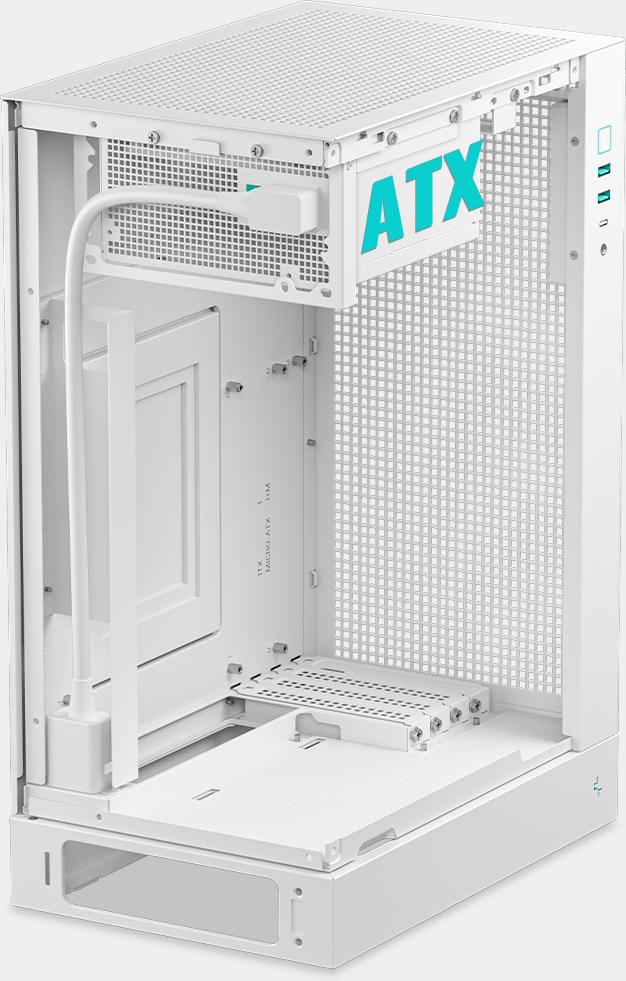

FLEXIBLE POWER OPTIONS
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 PLUS WH can support any of them up to 140mm.
ROOM FOR BIGGER GPU
No matter your PSU choice, the CH170 PLUS WH supports GPUs up to 342mm in length (328mm with top fan installed), with widths up to 138mm and thicknesses up to 75mm. Cards can be directly inserted into the motherboard.
FLEXIBLE POWER OPTIONS
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 PLUS WH can support any of them up to 140mm.
COOLING THAT ADAPTS
From liquid to air, the CH170 PLUS WH supports a 240mm side radiator or up to four 120mm fans, with room for air coolers up to 164mm tall
RADIATORS
120MM
140MM
COOlER
Radiators:
Front: NA
Side: 120/240mm
Bottom: 120mm
Fans:
Top: 1×120mm / 1×140mm (with SFX PSU)
Side: 2×120mm
Bottom: 1×120mm
CPU Cooler:
164mm
CUSTOMIZE WITH PURPOSE

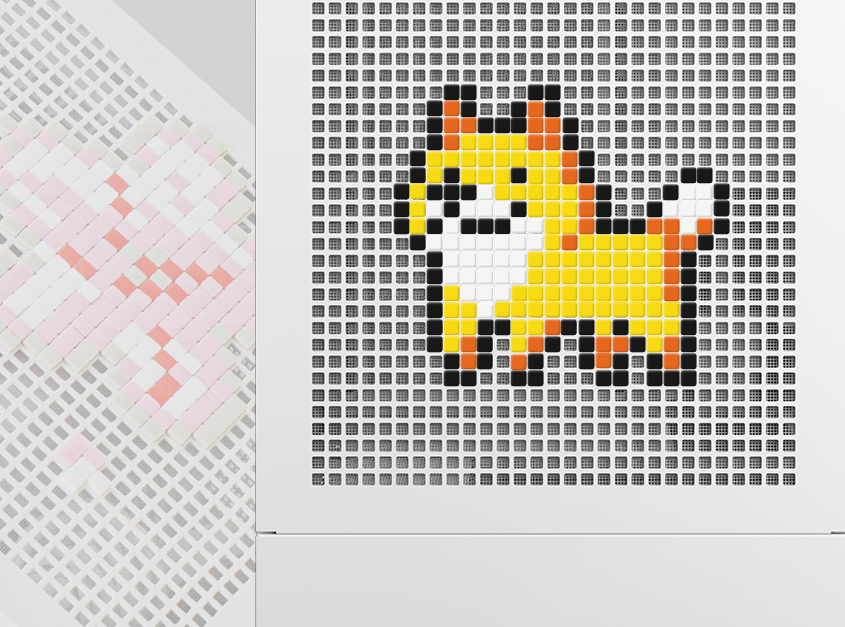

Personalize with DeepCool accessories like the HB-01 headset holder and PIXEL decorative bits to give your build a unique touch.
HB-01 Learn More
PIXEL Series Learn More

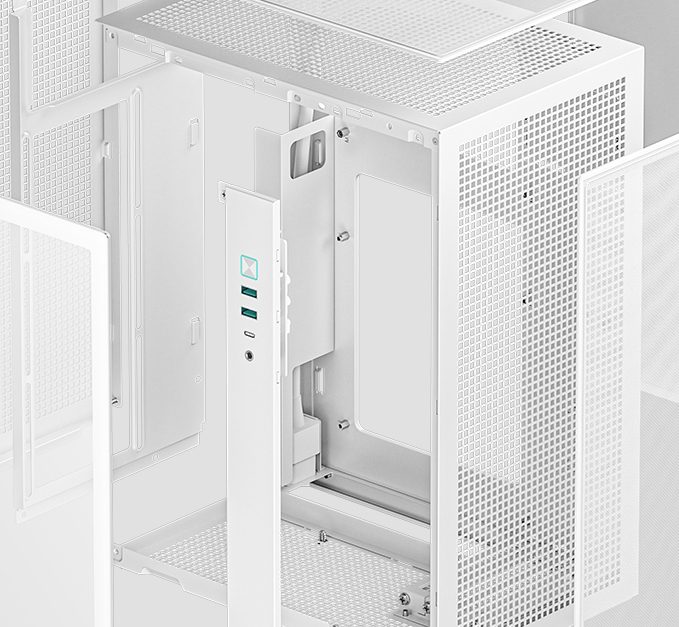

CONVENIENCE IN EVERY DETAIL

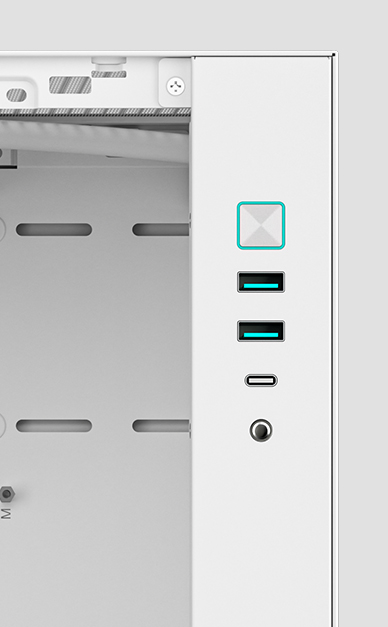

Everyday access is easy with two USB 3.0 ports, a Gen2 Type-C, and a hybrid audio jack all within reach. Dust filters on four sides keep maintenance simple and your build clean.
Technical Spec
Product Dimensions424.5mm*195mm*290mm(L×W×H)
Net Weight4.4Kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportMini-ITX / Micro-ATX
Front I/O PortsUSB3.0×2、Gen2 Type-C x1、Audio/Mic×1
3.5" Drive Bays1
2.5" Drive Bays1+1
Expansion Slots4Slots
Pre-Installed FansNone
Fan SupportTop:1×120mm/1×140mm（with SFX PSU）
Side:2×120mm
Bottom: 1×120mm
Radiator SupportFront: NA
Side:120/240mm
Bottom: 120mm
CPU Cooler Height Limit164mm
GPU Length Limit342mm
Power Supply TypeATX PS2（maximum length: 140mm)/SFX/SFX-L
EAN6933412765370
P/NR-CH170-WHNGM0-G
