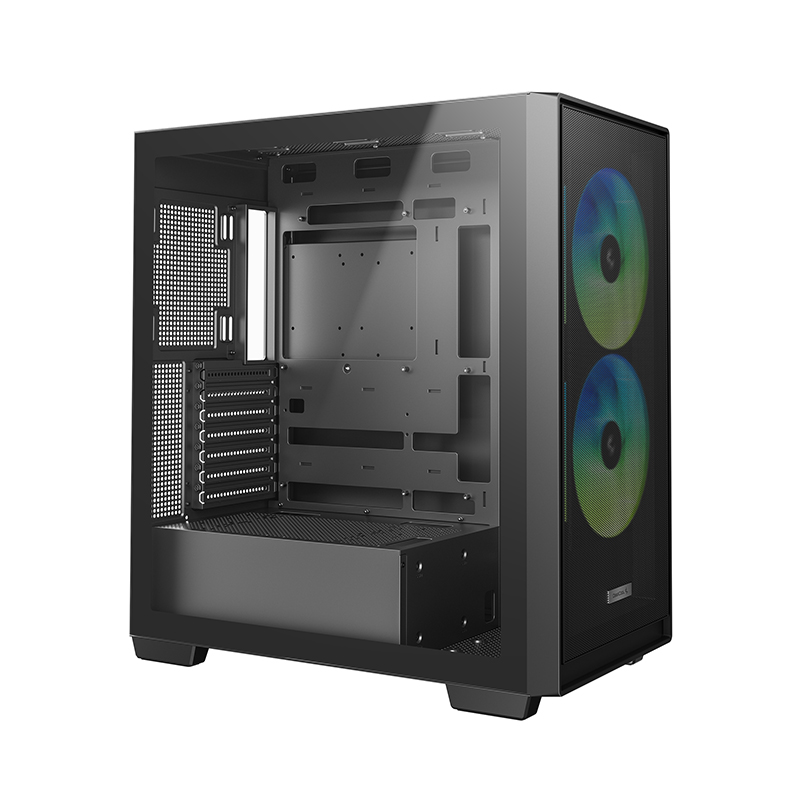

CG580 MESH 2F

High Airflow Dual Chamber ATX Case

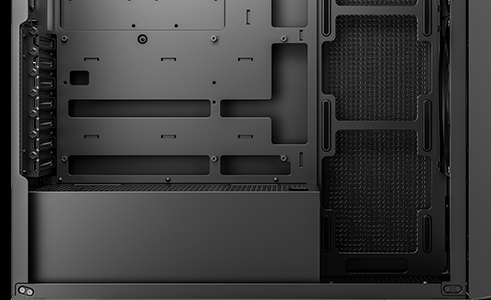

CLEANER DUAL-CHAMBER LAYOUT

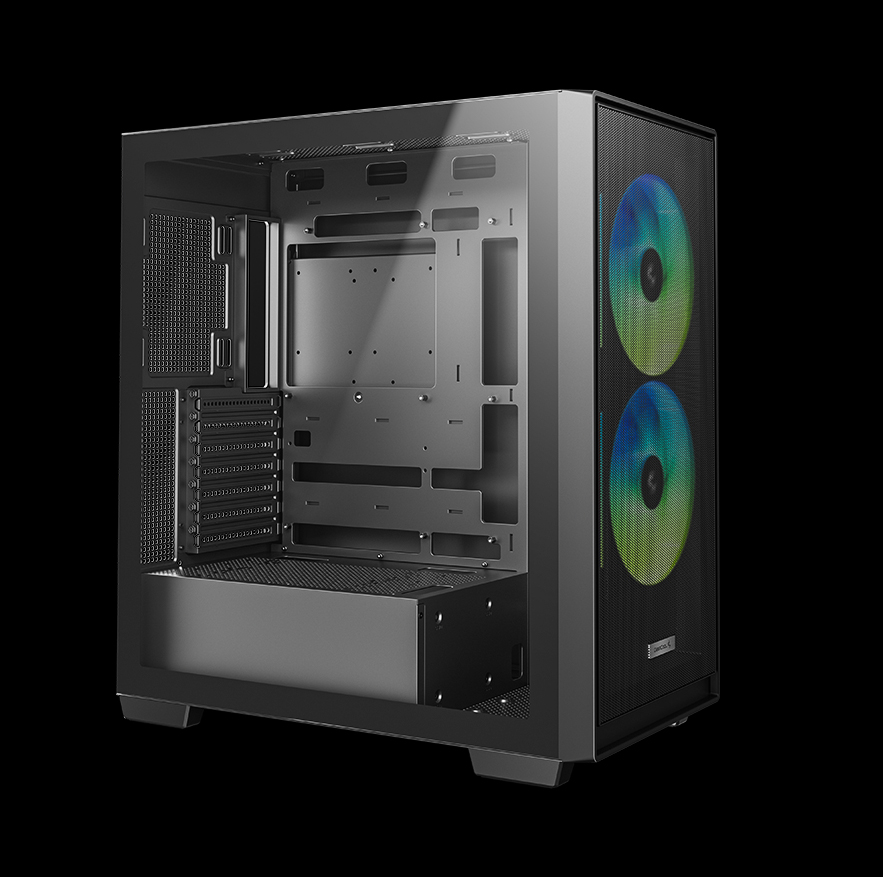

Built with an upper and lower chamber layout, the case separates the PSU cooling path from the main hardware zone, reducing airflow interference and helping the CPU and GPU breathe more freely.

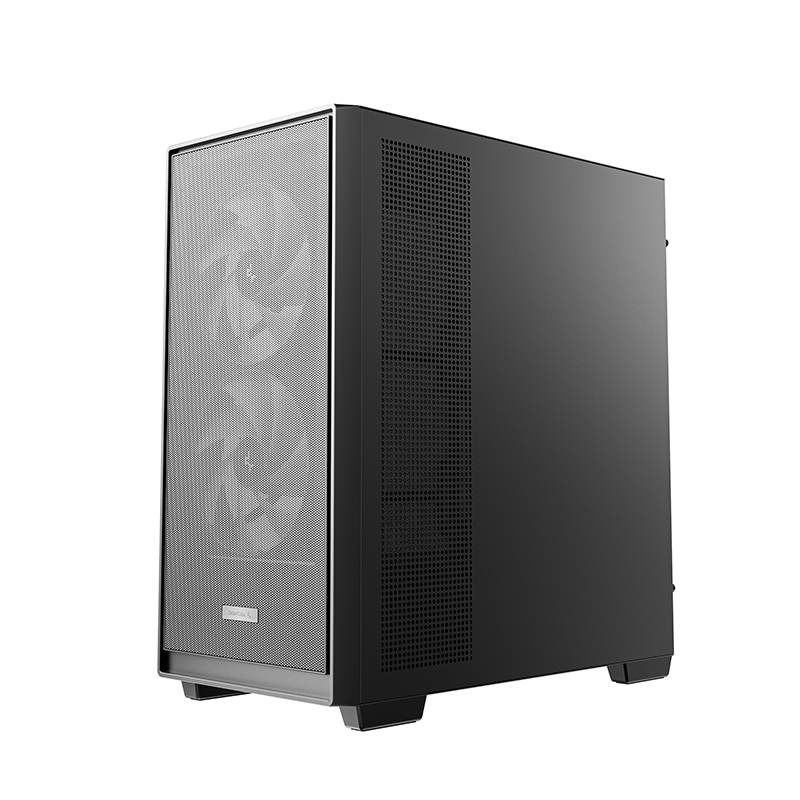

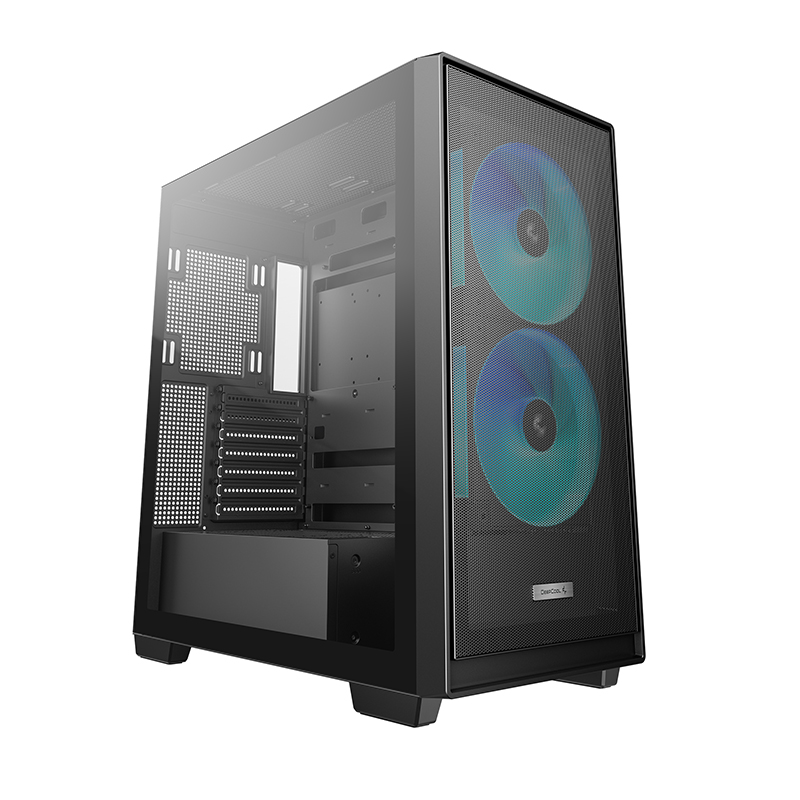

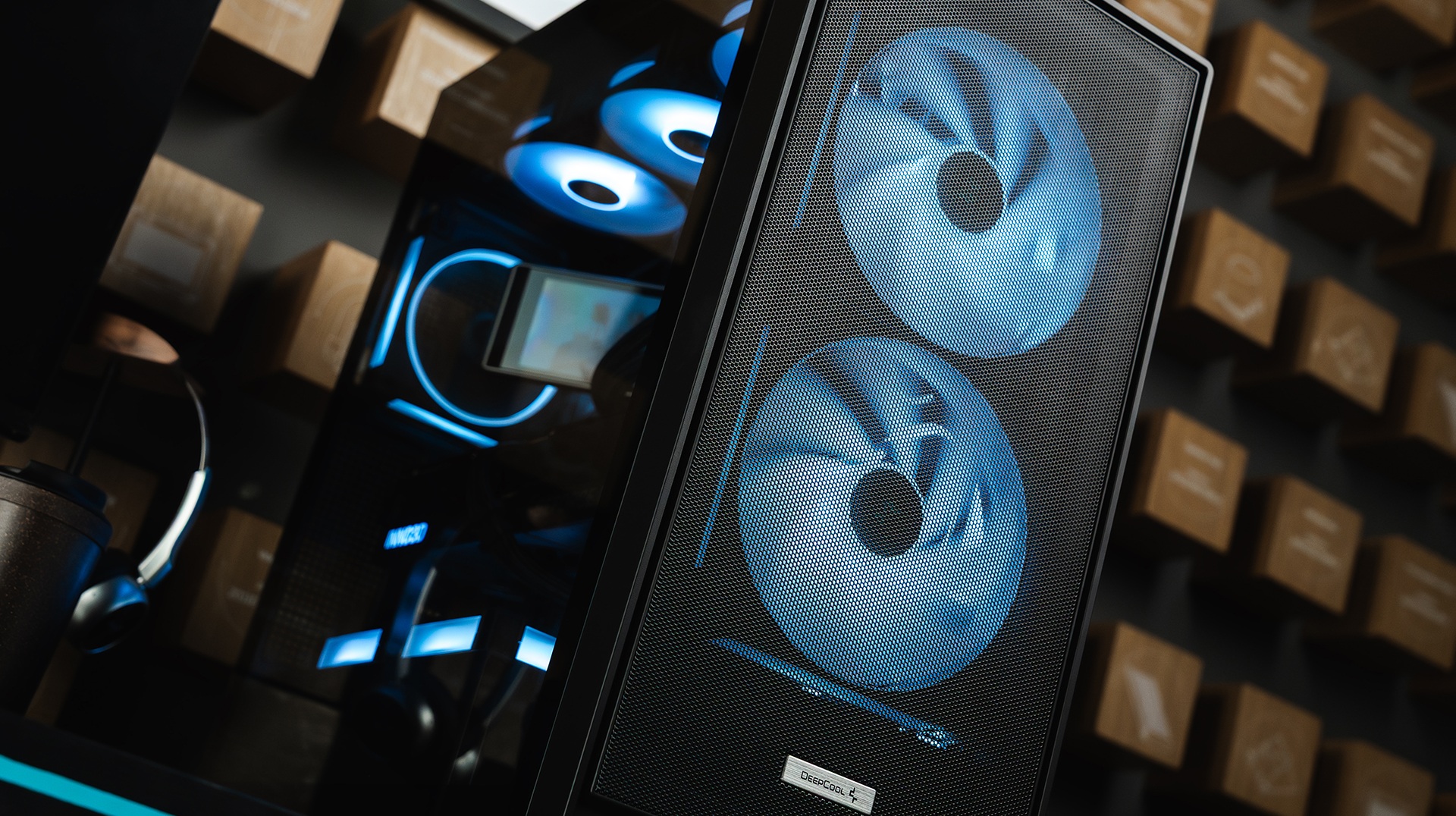

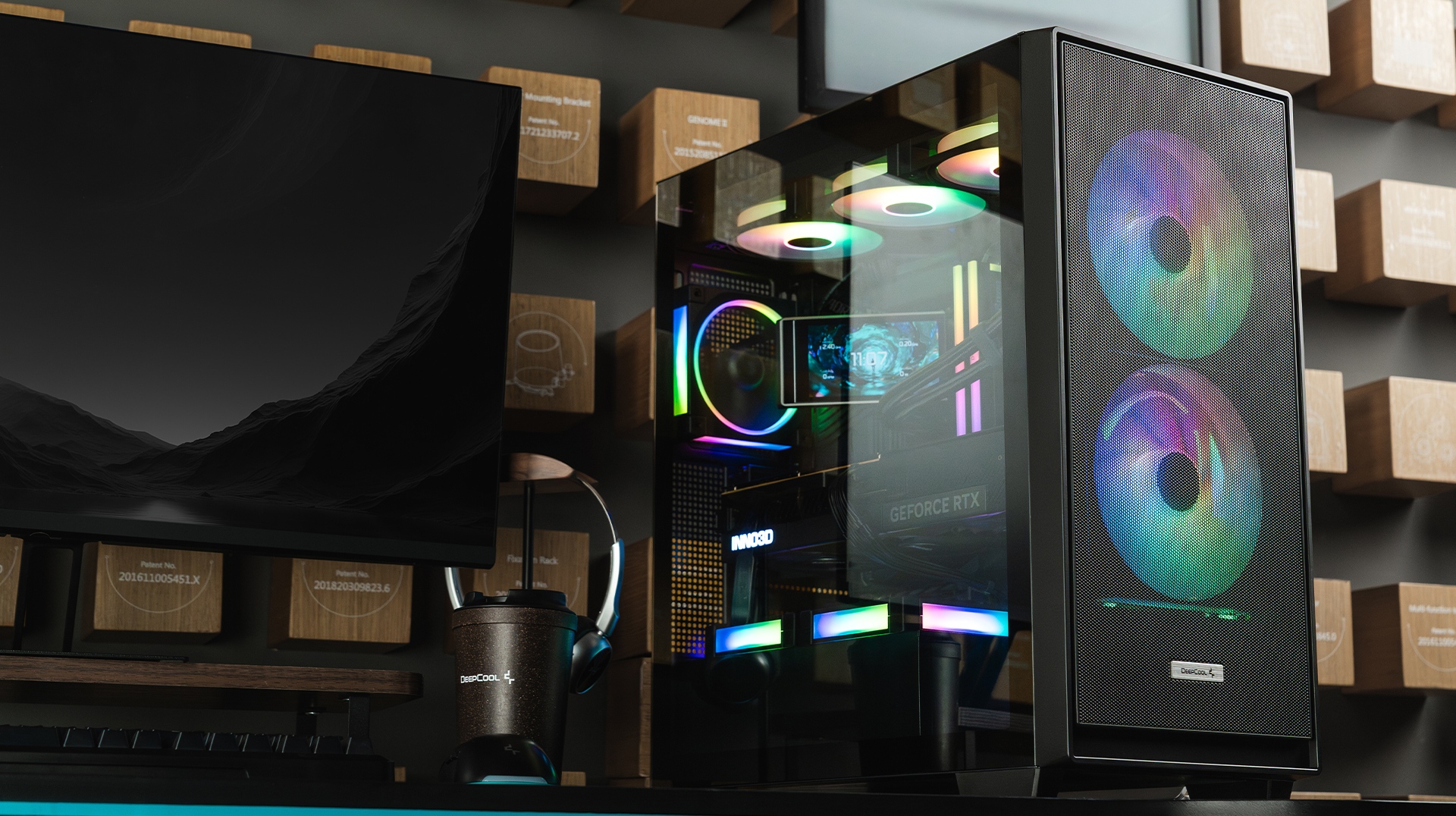

BOLD LOOKS, MASSIVE AIRFLOW

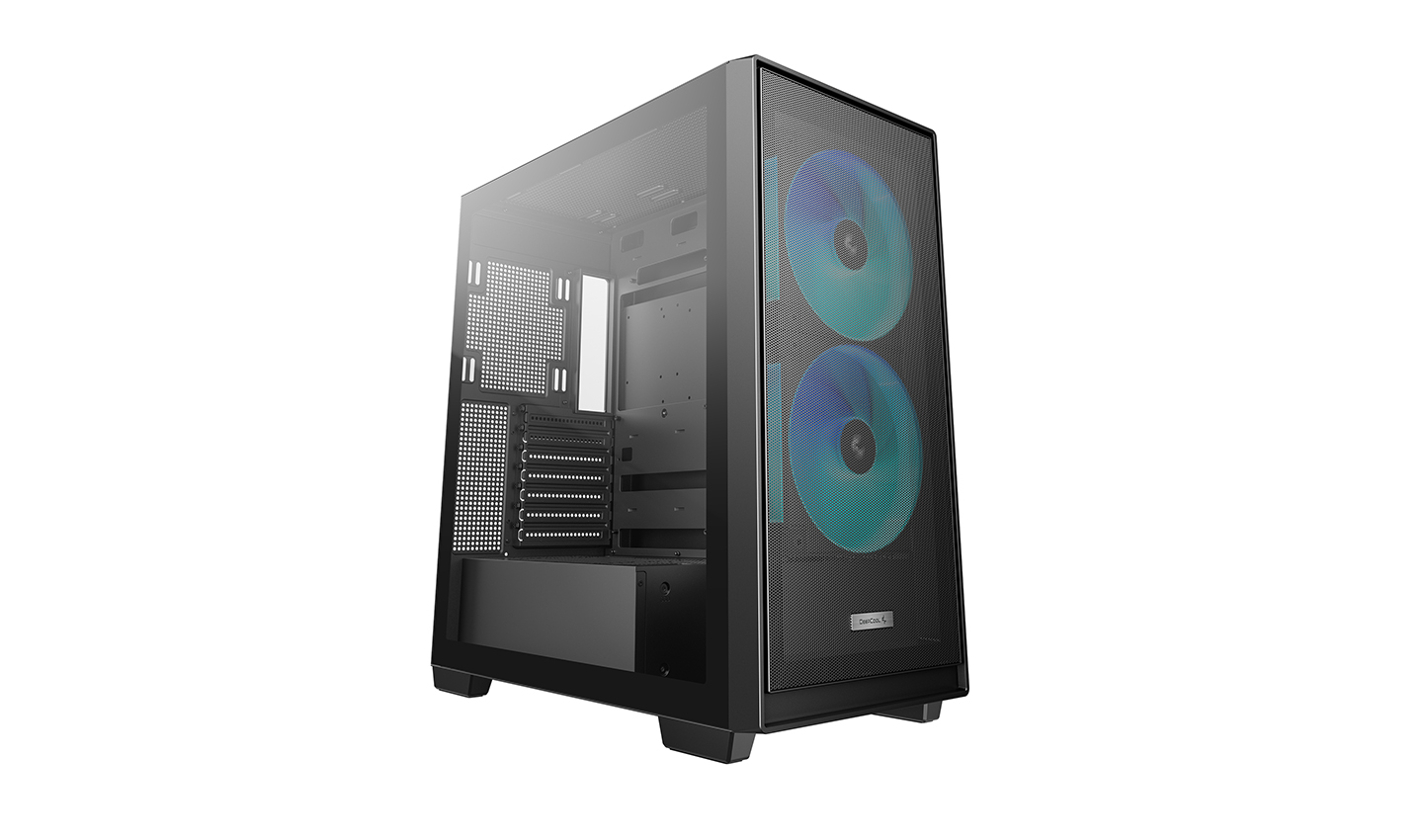

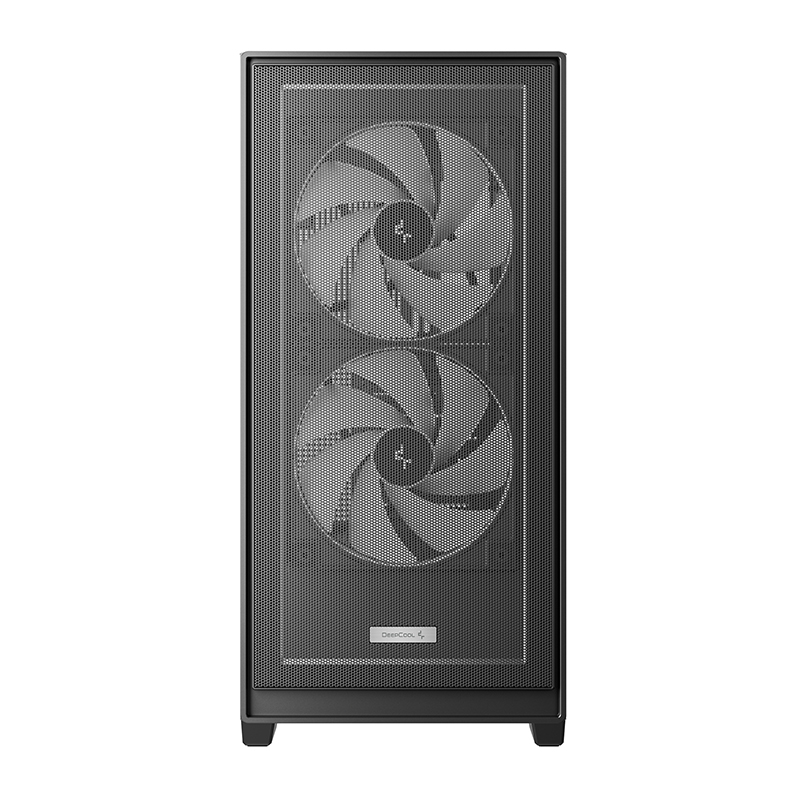

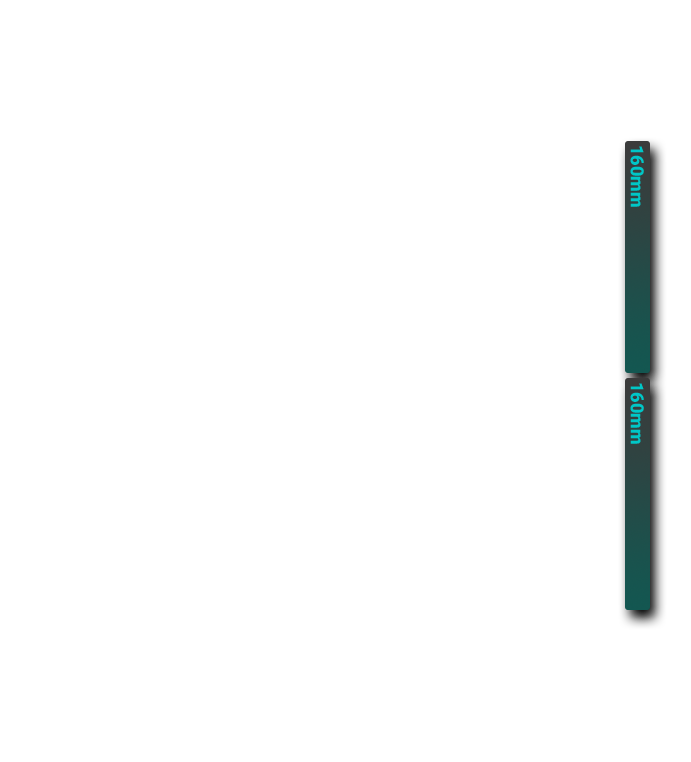

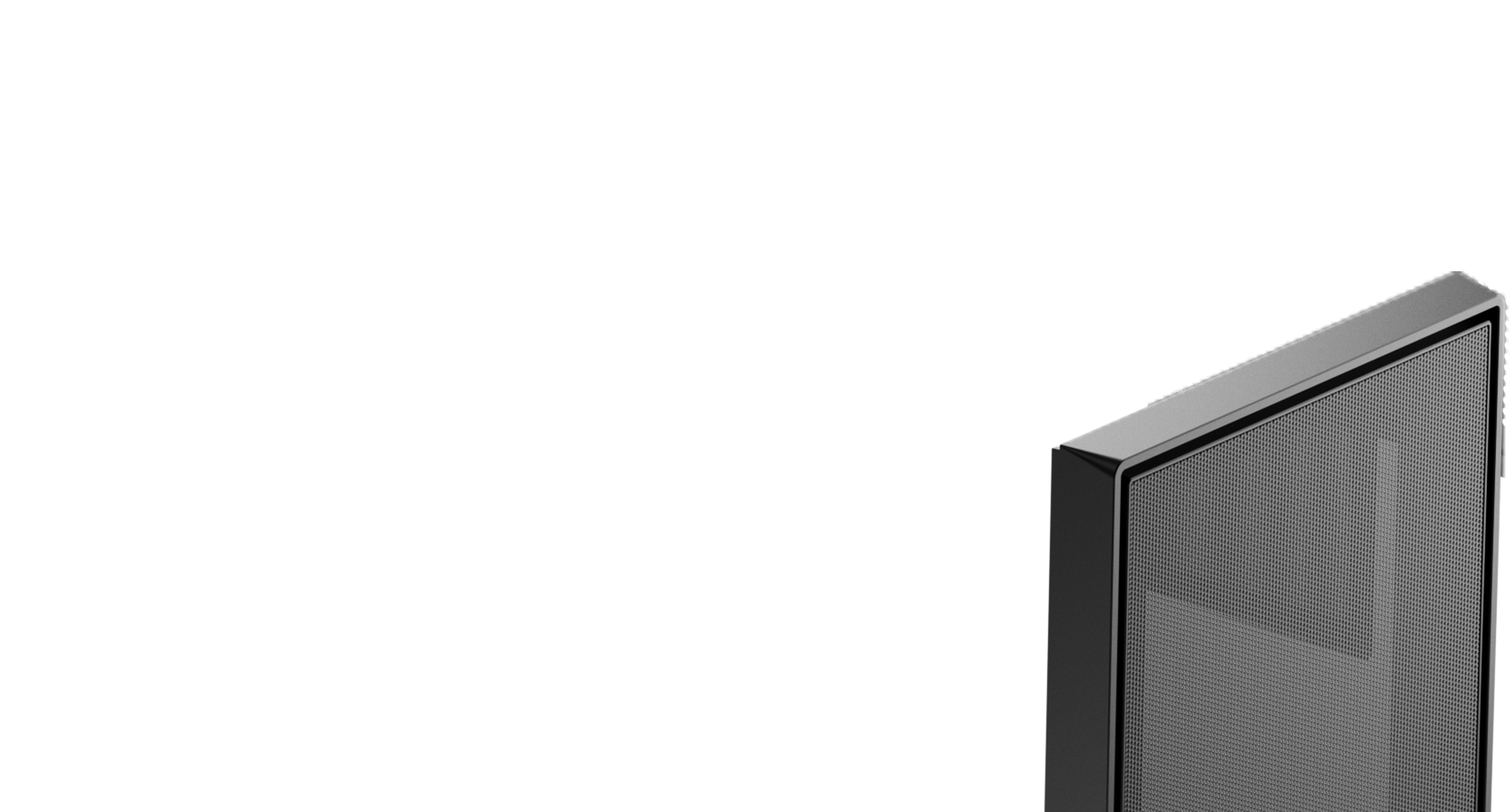

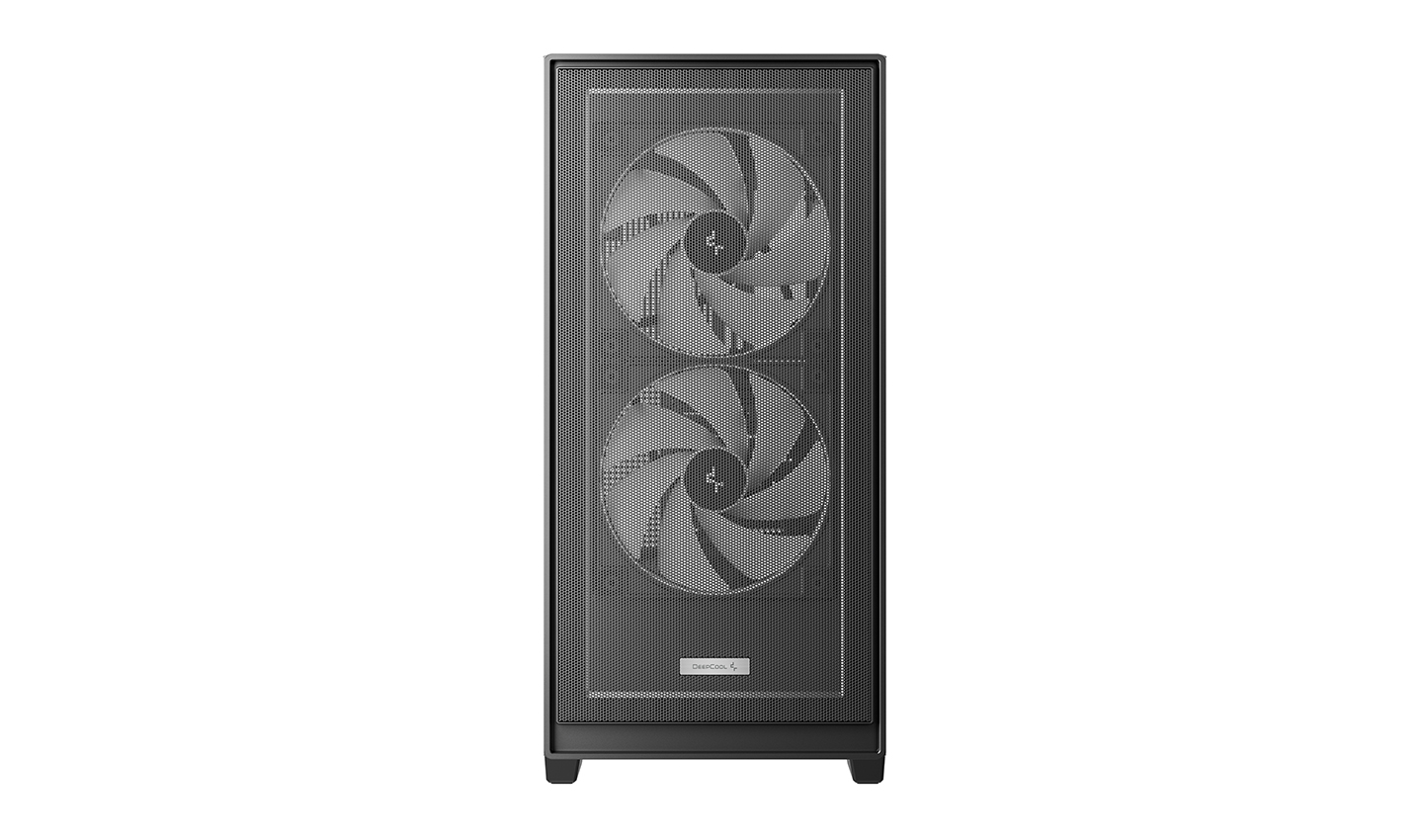

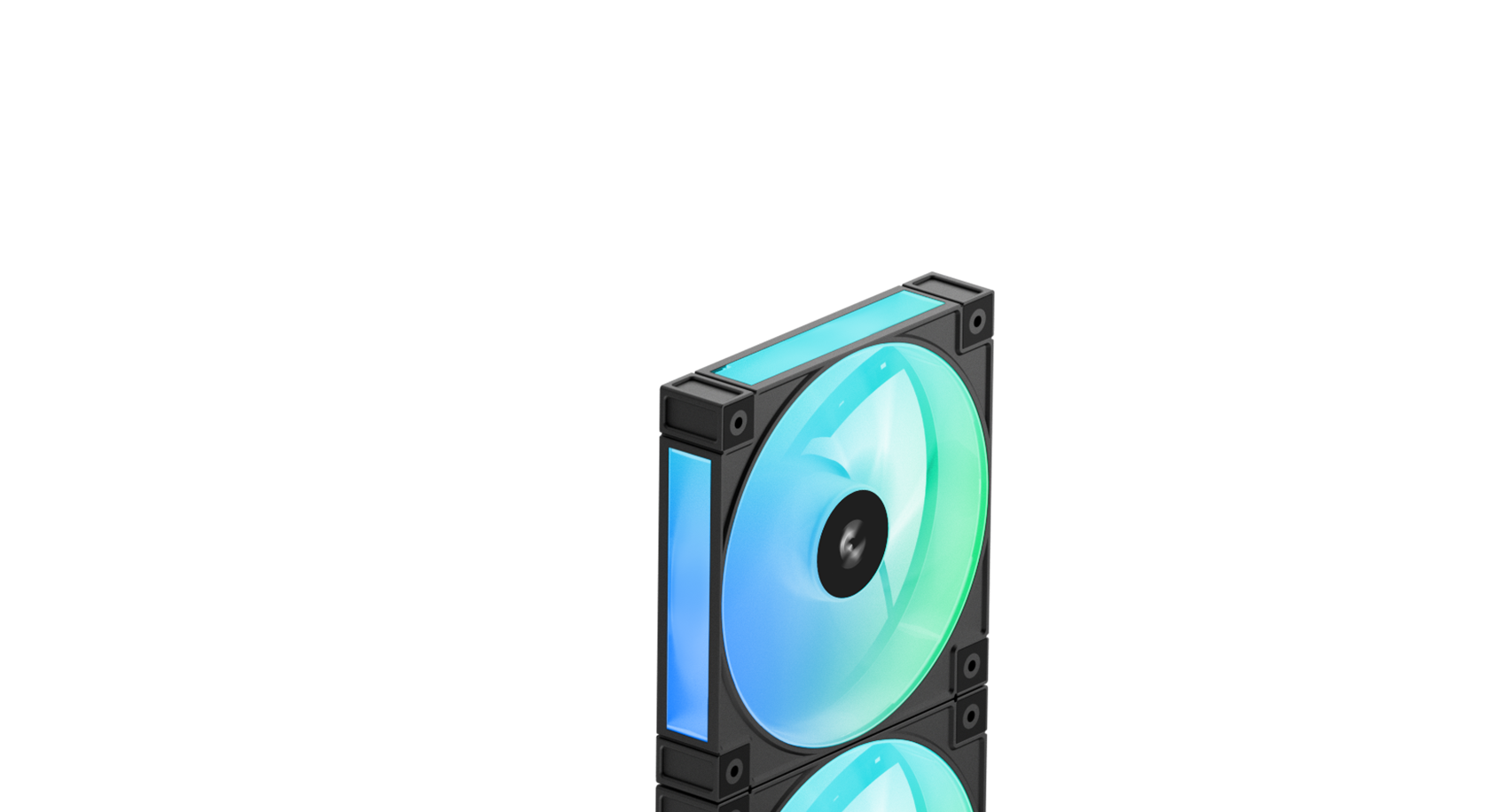

Equipped with two oversized 160mm ARGB front fans featuring a thick 30mm frame, and paired with a high-airflow mesh front panel, the CG580 MESH 2F creates a bold, eye-catching look while providing strong intake cooling from the start.

EXPANDED COOLING CAPABILITY

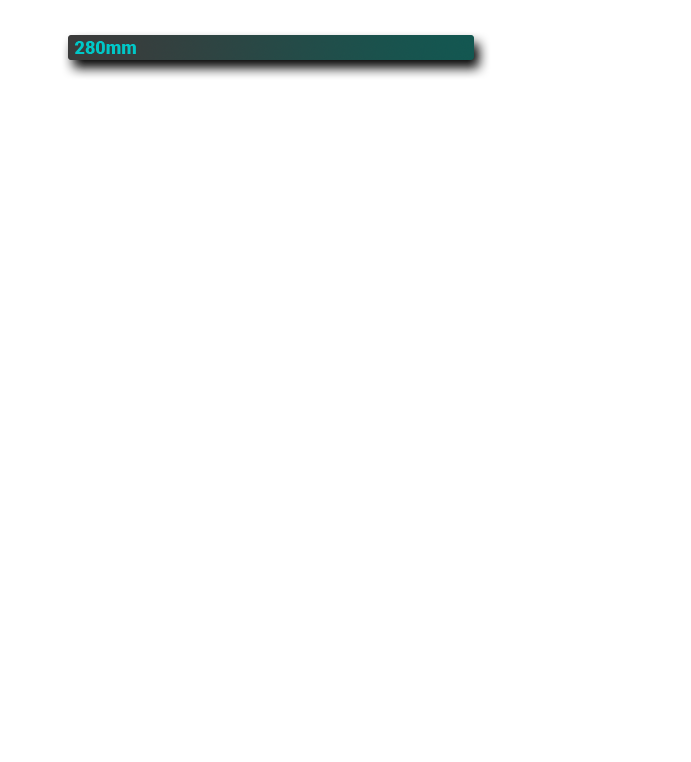

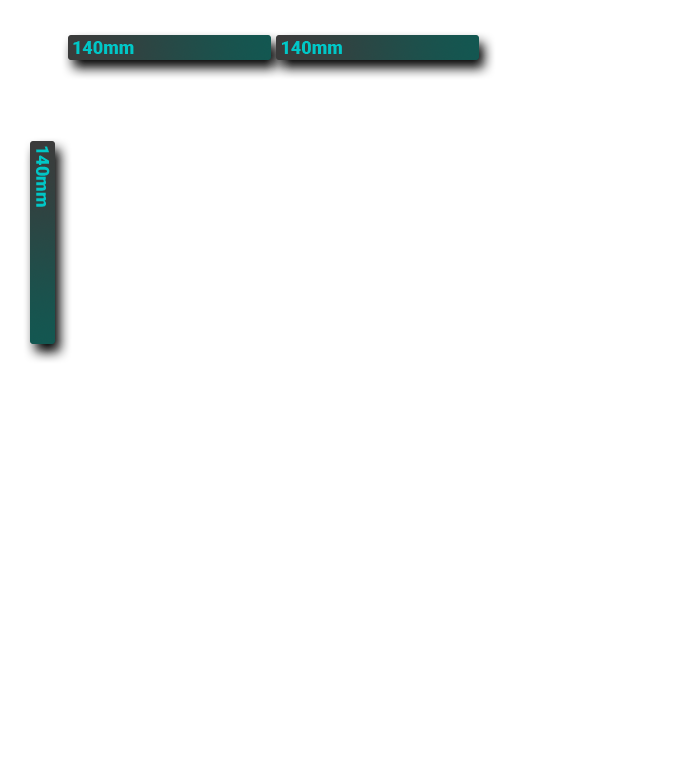

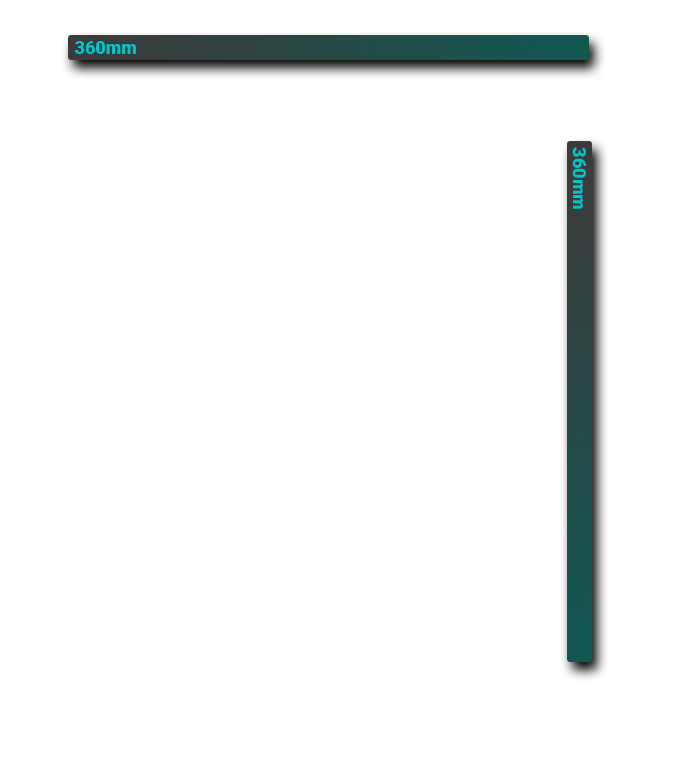

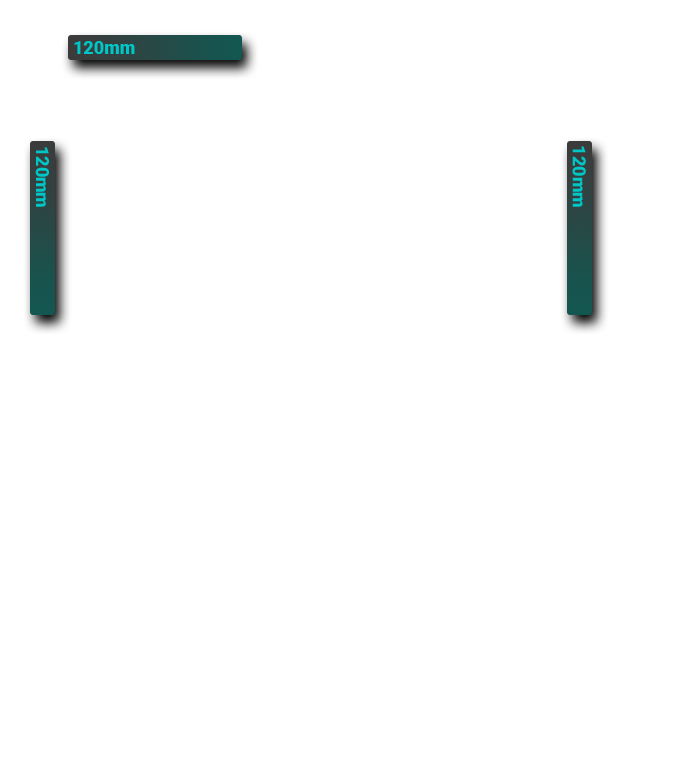

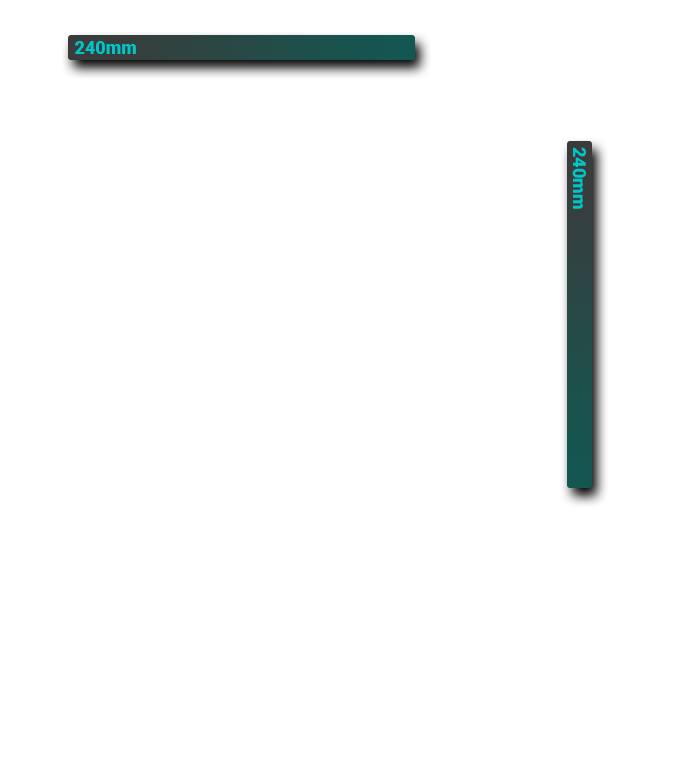

The CG580 MESH 2F offers extensive cooling support, with room for up to 12 fans to drive massive intake and exhaust airflow. It also supports 360mm radiators at either the top or side, giving greater flexibility for high-performance cooling.

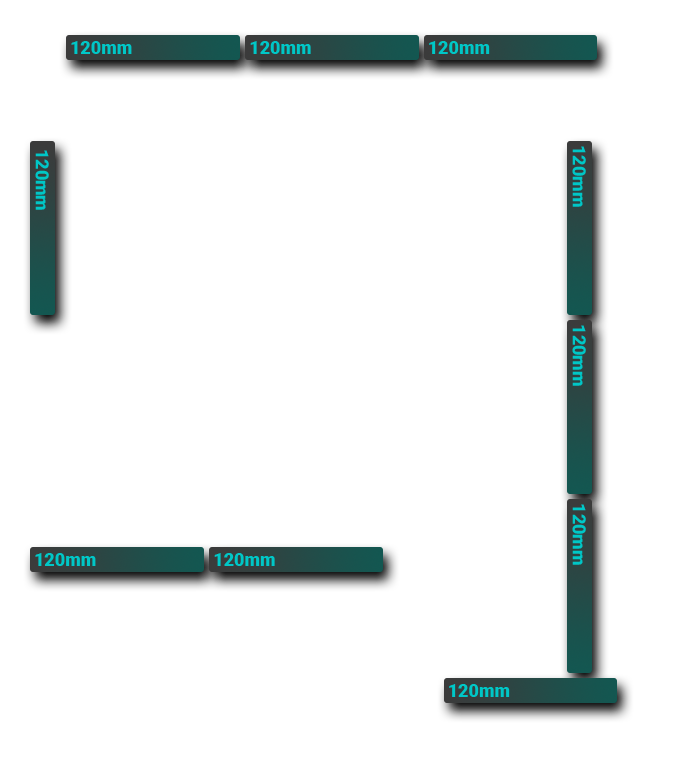

10 120mm

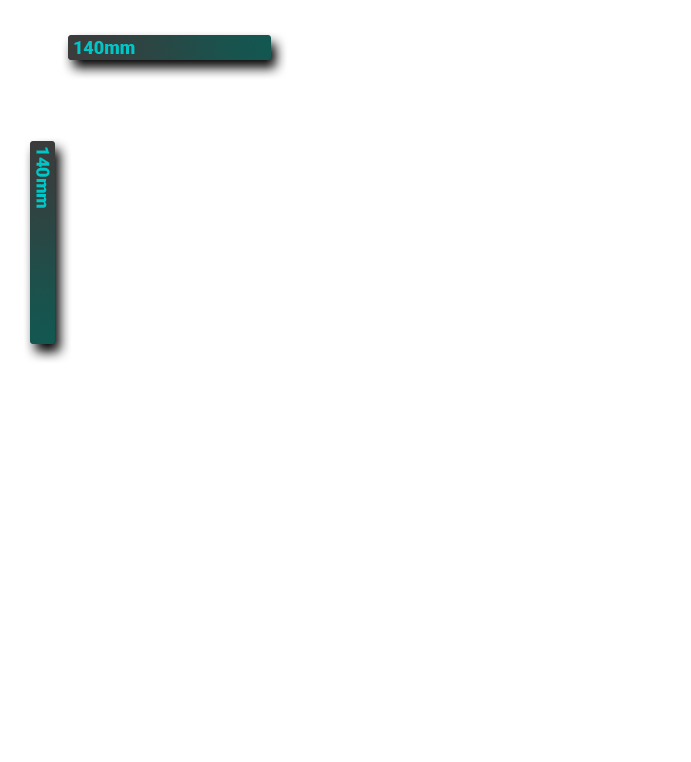

3 140mm

2 160mm

CASE FANS

2 360mm

1 280mm

2 240mm

2 140mm

3 120mm

RADIATOR

ROOM FOR FULL-SIZE HARDWARE

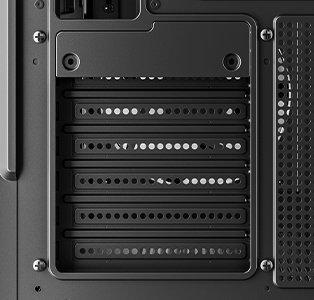

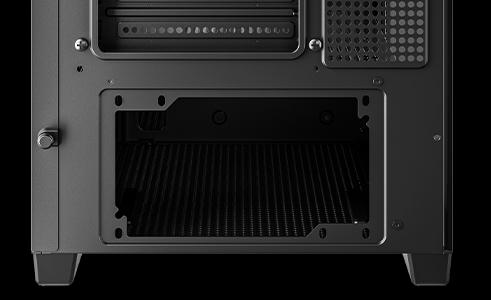

With support for a 7-slot expansion layout, up to 410mm GPUs, 176mm CPU air coolers, and 200mm ATX PS2 PSUs, the case is ready for powerful full-size builds. It also supports 1+1×3.5” drives and 2×2.5” SSDs for flexible storage expansion.

GPU length is limited to 262mm with a side-mounted 360mm radiator.

DETAILS THAT MATTER

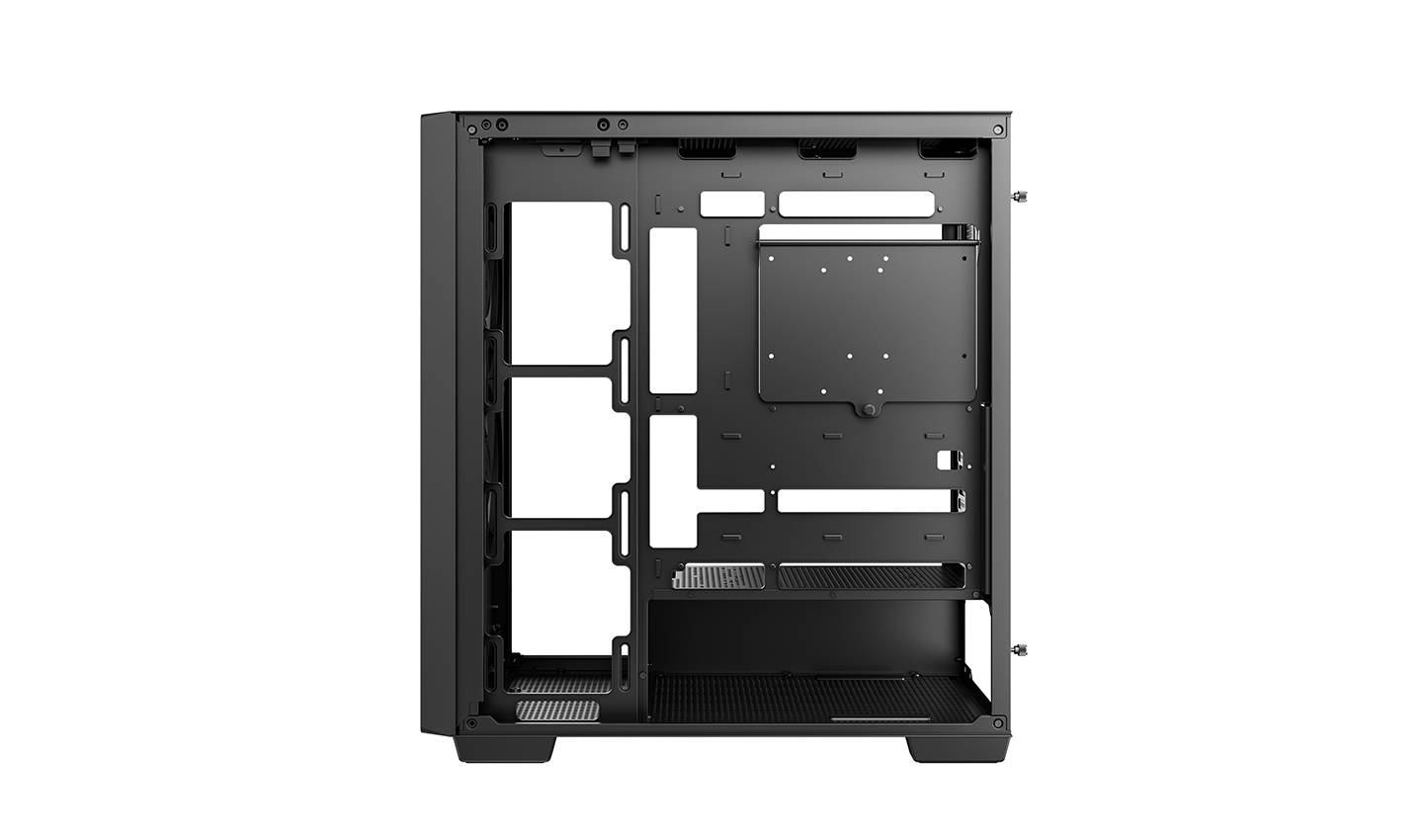

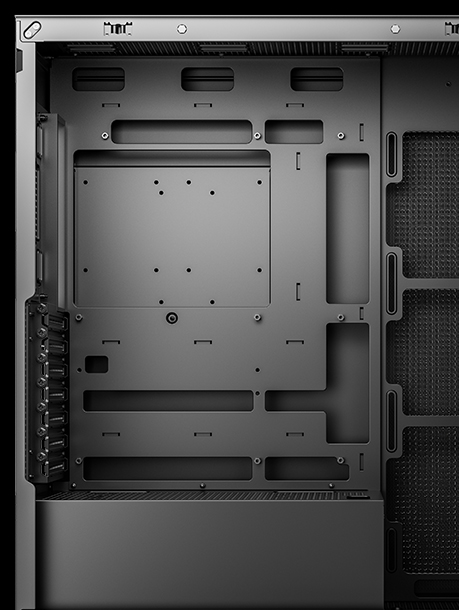

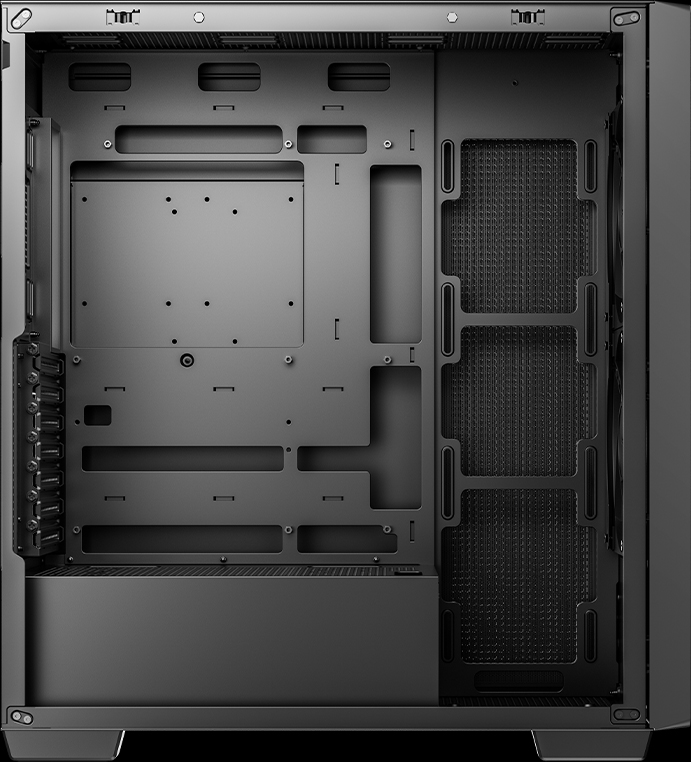

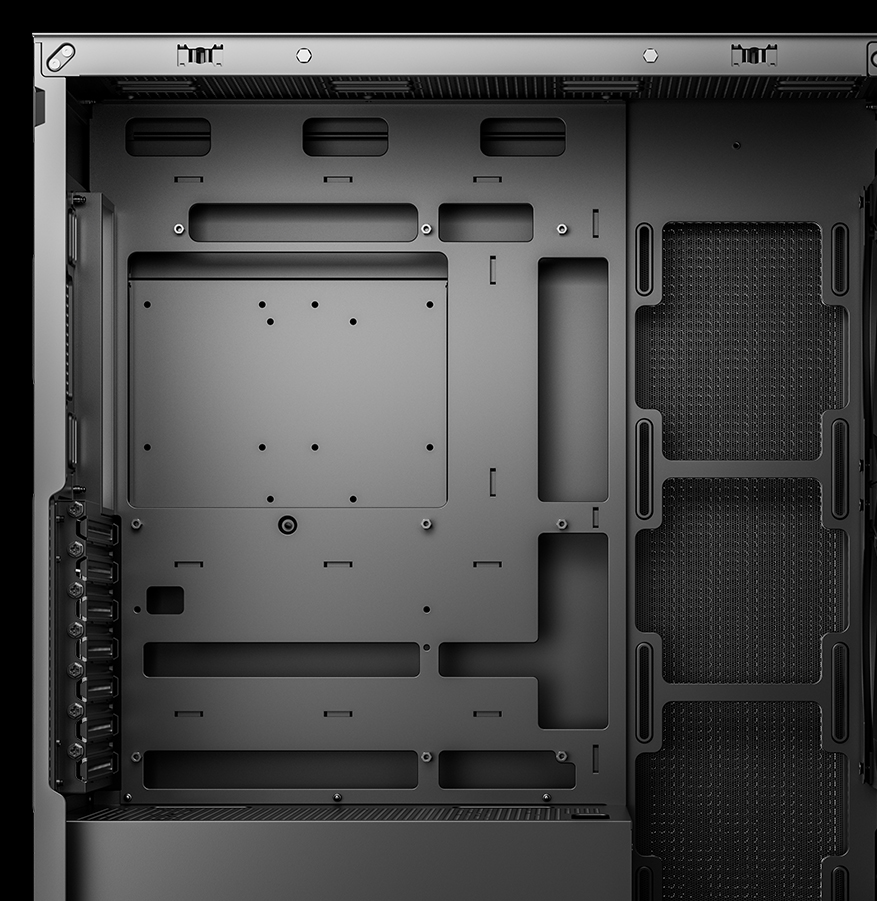

■ Supports ATX and M-ATX back-connect motherboards

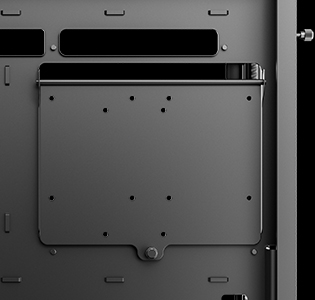

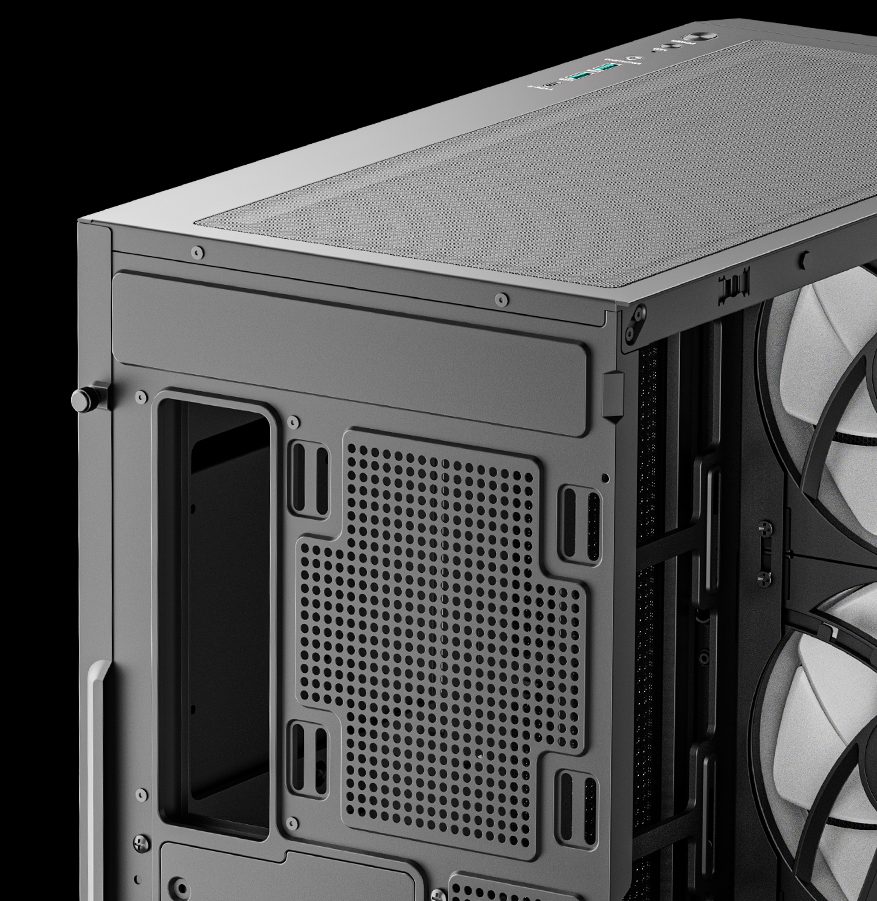

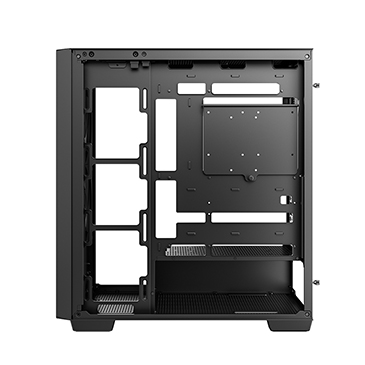

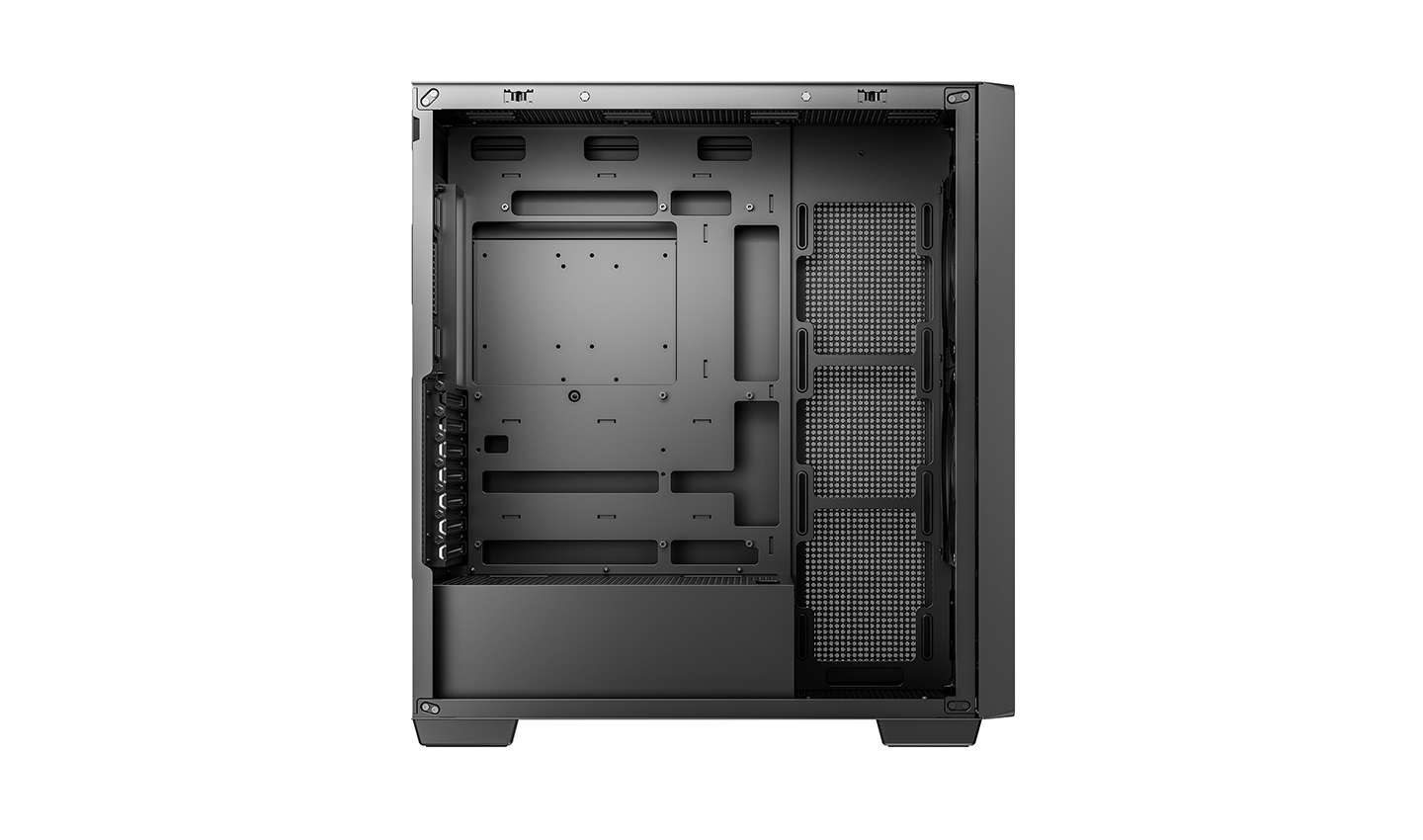

■ 46mm rear cable management space for cleaner routing

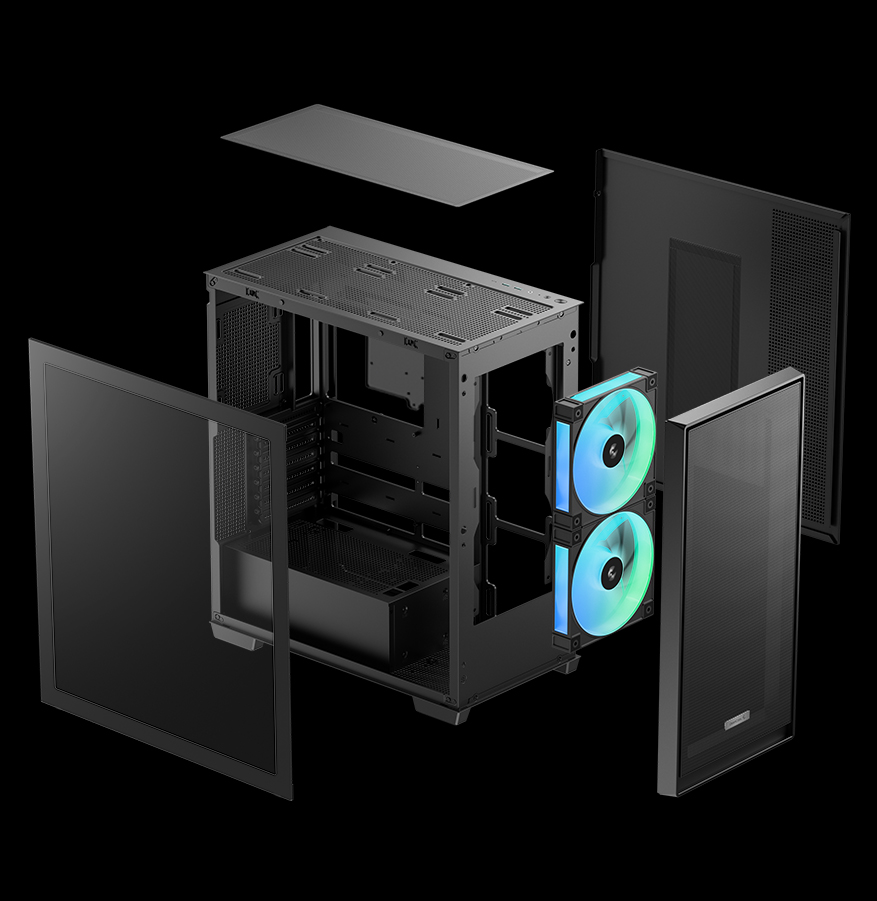

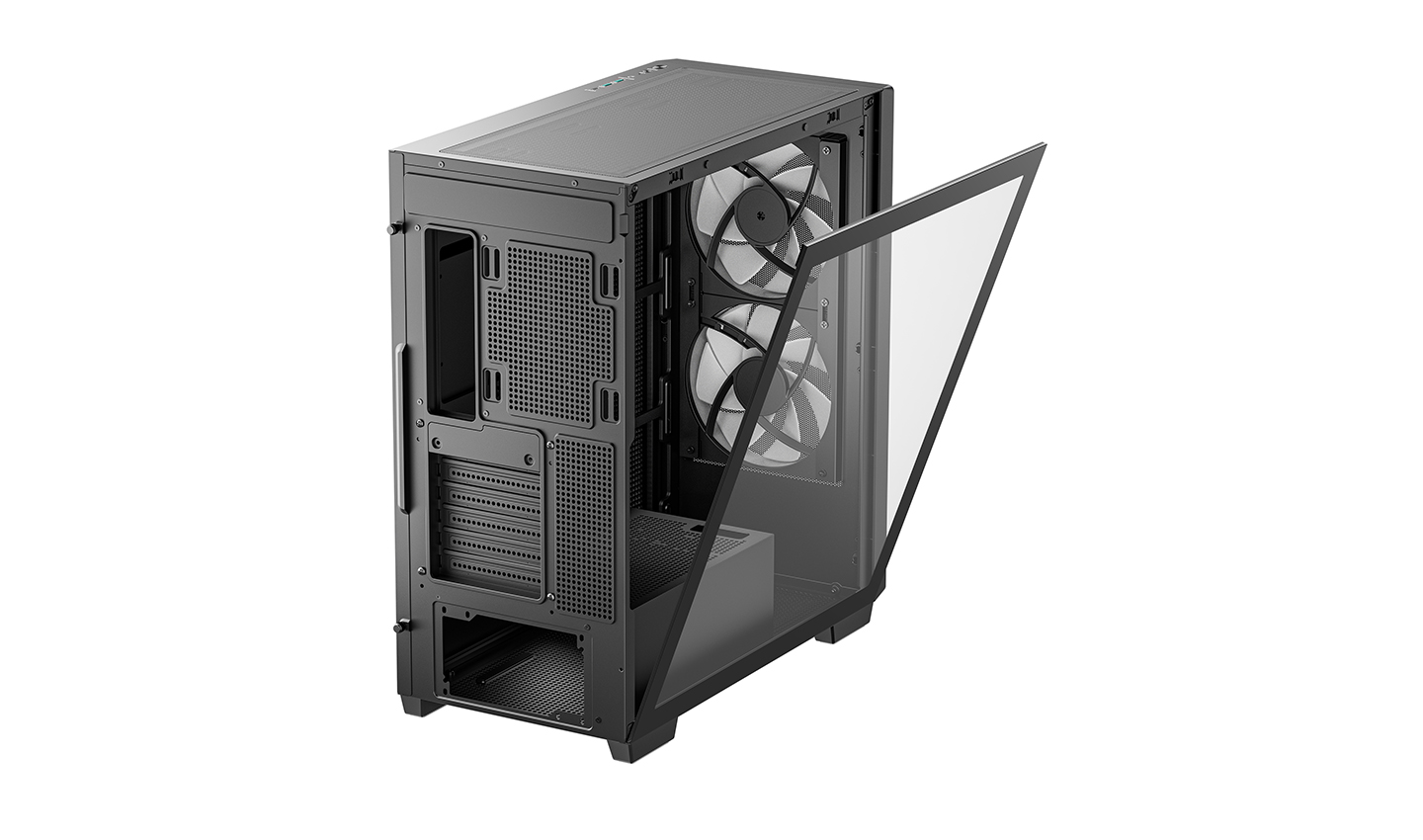

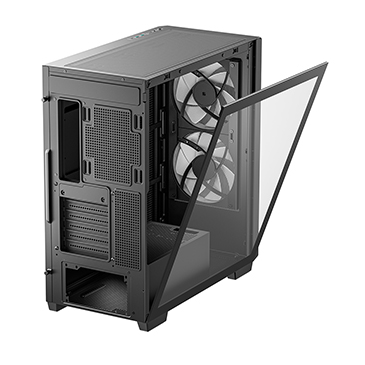

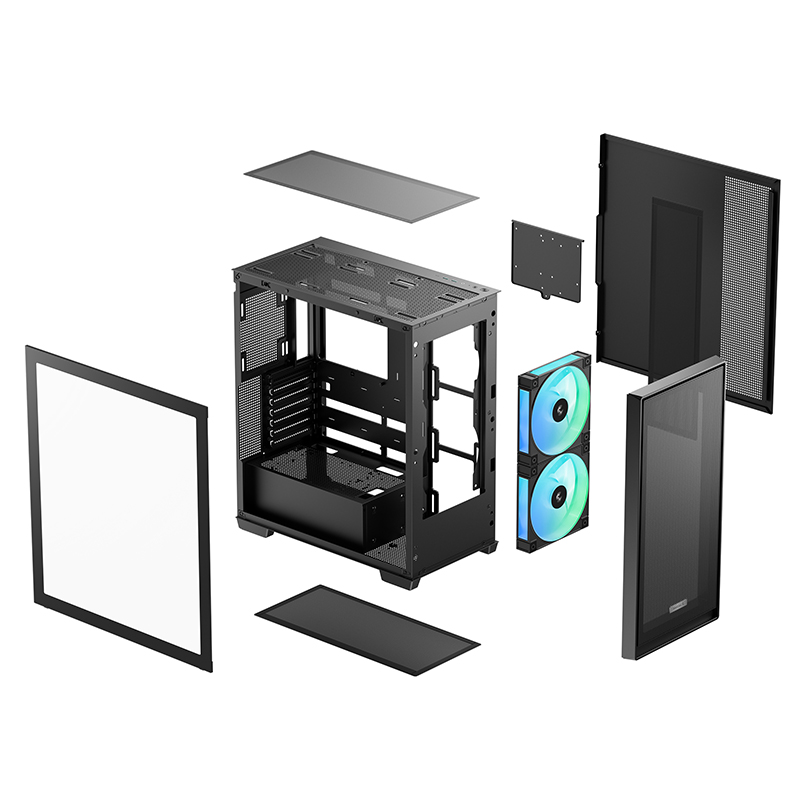

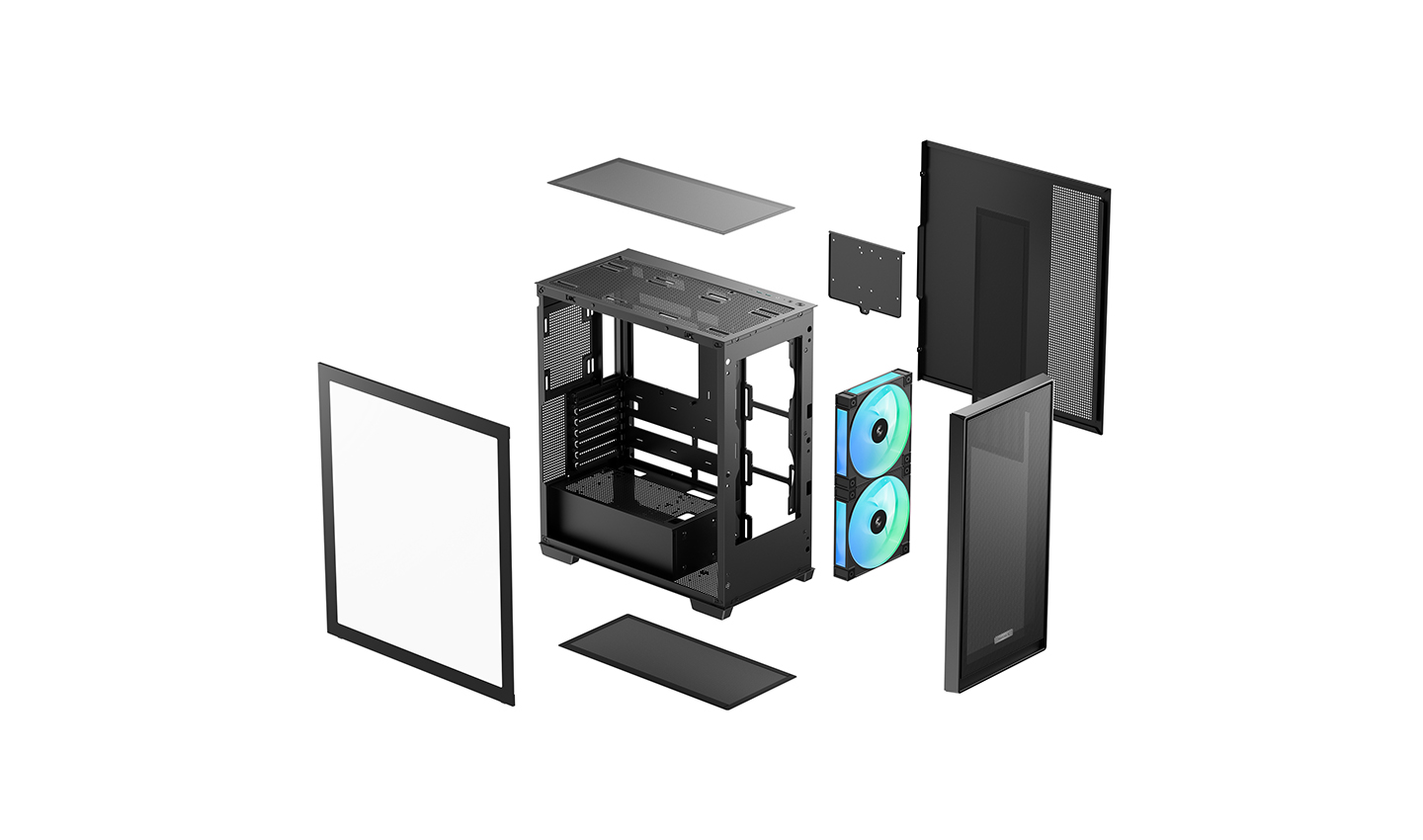

■ Quick-release panels allow easy tool-free access

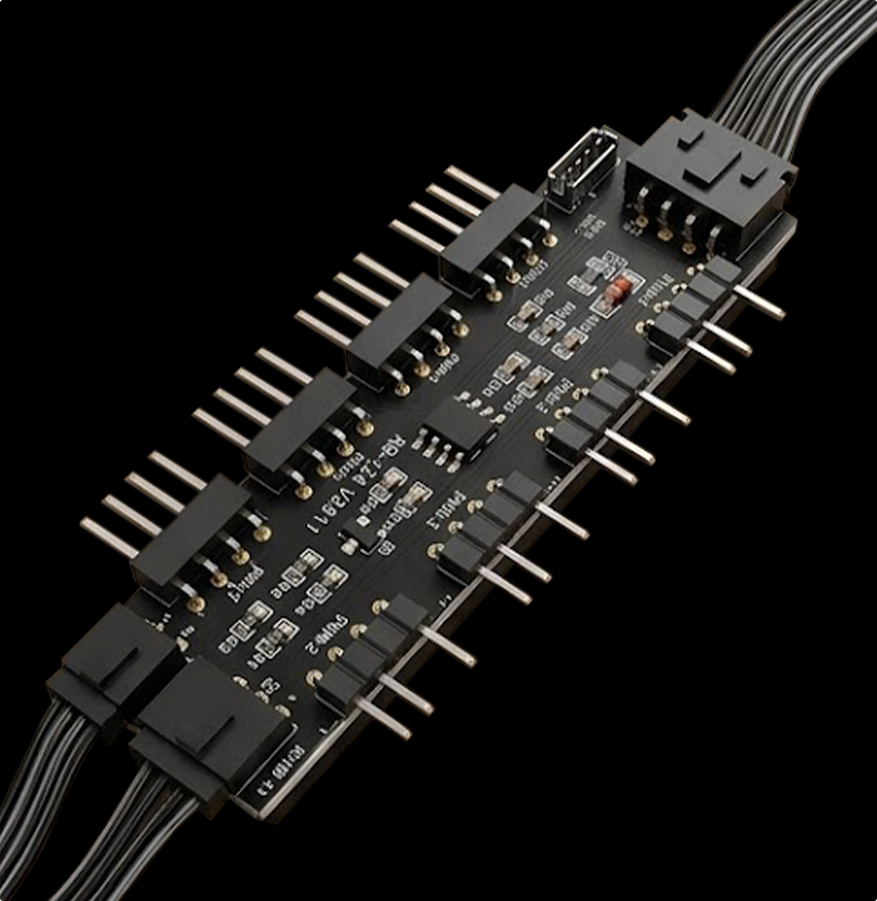

■ Equipped with a 4+4-pin hub for synchronized fan and lighting control

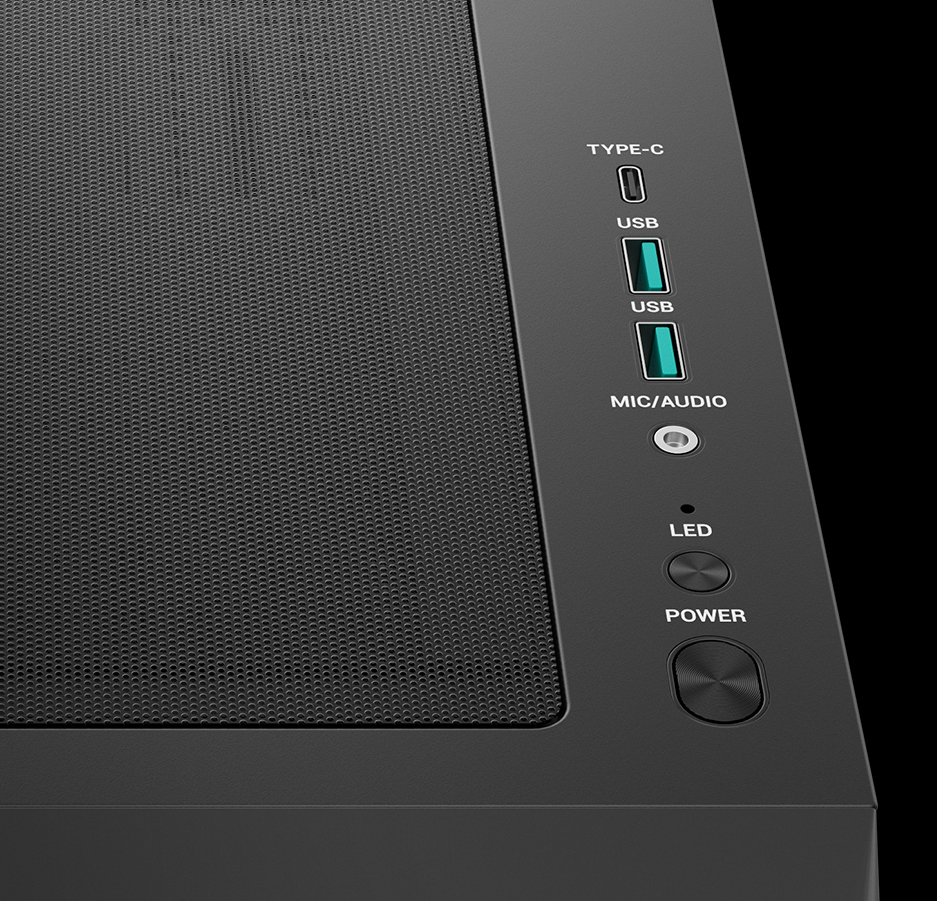

EASY I/O ACCESS

The top I/O panel provides convenient access with two USB 3.0 ports, a Gen2 Type-C port, and a combined audio/mic jack.

Technical Spec

Product Dimensions	467x235x501mm(L×W×H)
Net Weight	8.14Kg
Materials	ABS+SPCC+Tempered Glass
Motherboard Support	ITX/Micro-ATX/ATX ATX(Rear Connector)/Micro-ATX(Rear Connector)
Front I/O Ports	USB3.0×2/Gen2 Type-C×1/Audio&Mic×1
3.5" Drive Bays	1+1
2.5" Drive Bays	2
Expansion Slots	7Slots
Pre-Installed Fans	Front:2x160mm
Fan Support	Top: 3×120mm/2x140mm Front:2x160mm Side: 3x120mm Rear: 1×120mm/1x140mm Bottom: 1×120mm PSU Shrouded: 2×120mm
Radiator Support	Top: 120/140/240/280/360mm Side: 120/240/360mm Rear: 120/140mm
CPU Cooler Height Limit	176mm
GPU Length Limit	410mm (limited to 262mm if a 360mm radiator and fan set are mounted on the side)
Power Supply Type	ATX PS2(maximum length: 210mm)
EAN	6933412765943
P/N	R-CG580MESH-BKAPA2-G

Download

CG580 MESH 2F Manual.pdf
