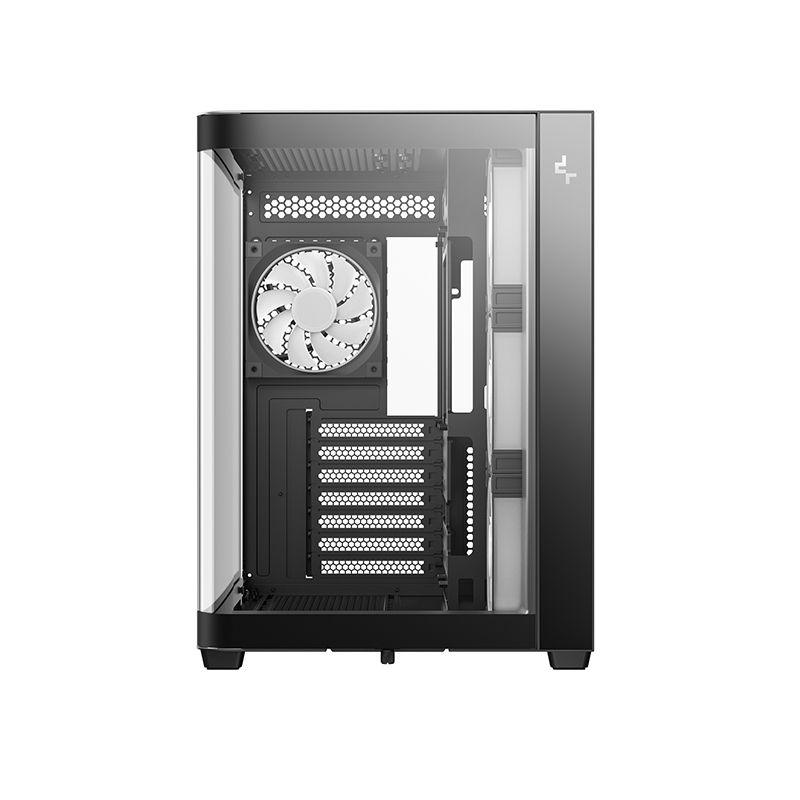

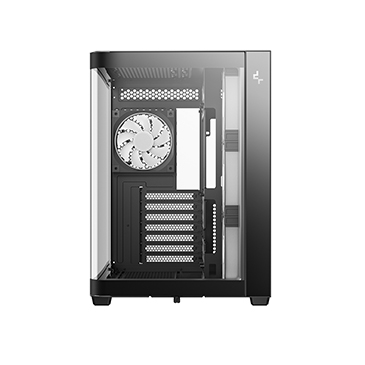

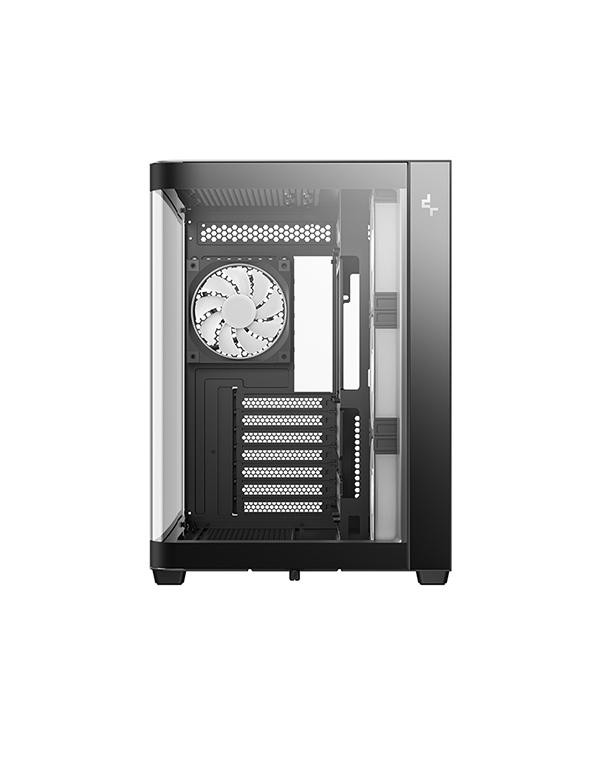

CG530U 4F

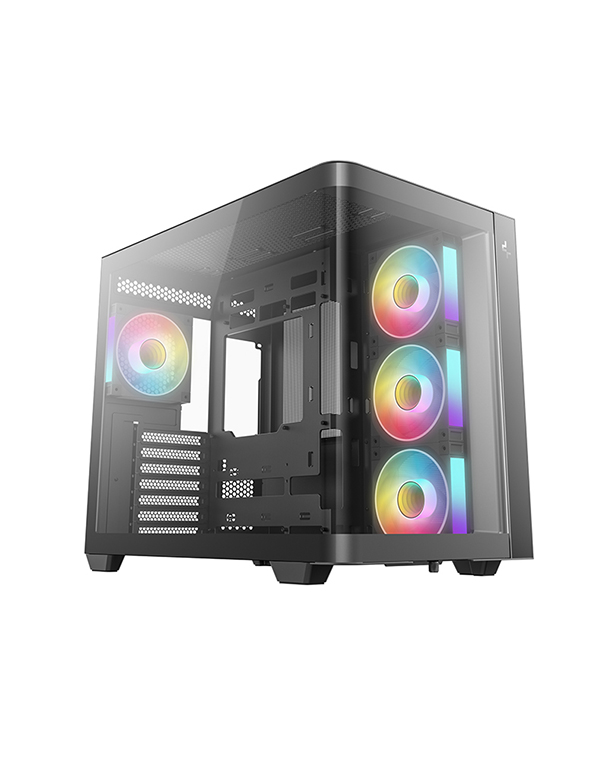

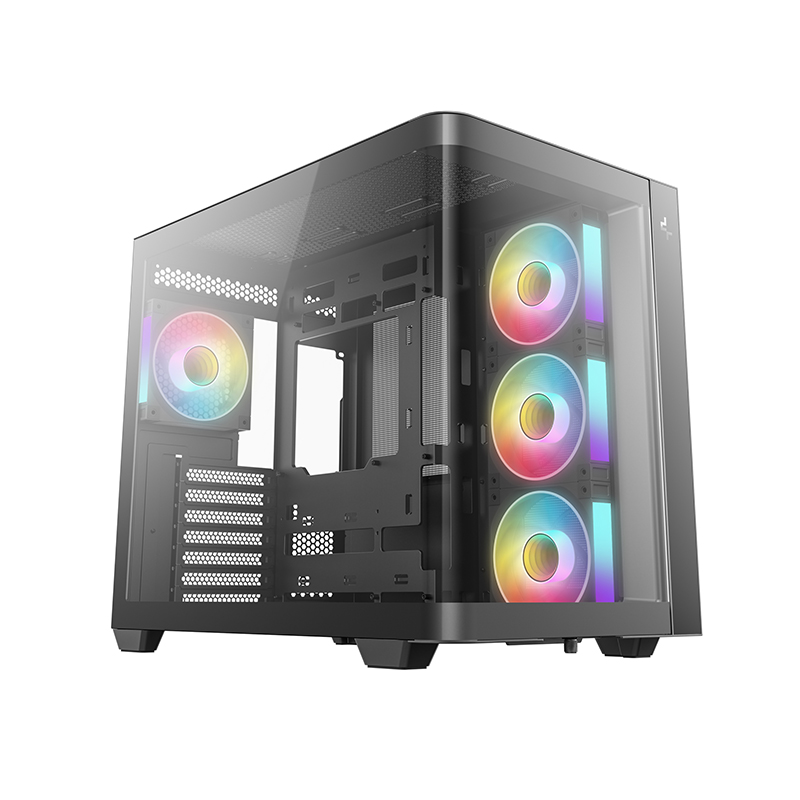

The CG530U 4F is a curved-glass panoramic case built on a dual-chamber design. Pre-installed with four ARGB fans, it comes ready for effective airflow and lighting.
COLOR
black
MODEL
CG530U 4F

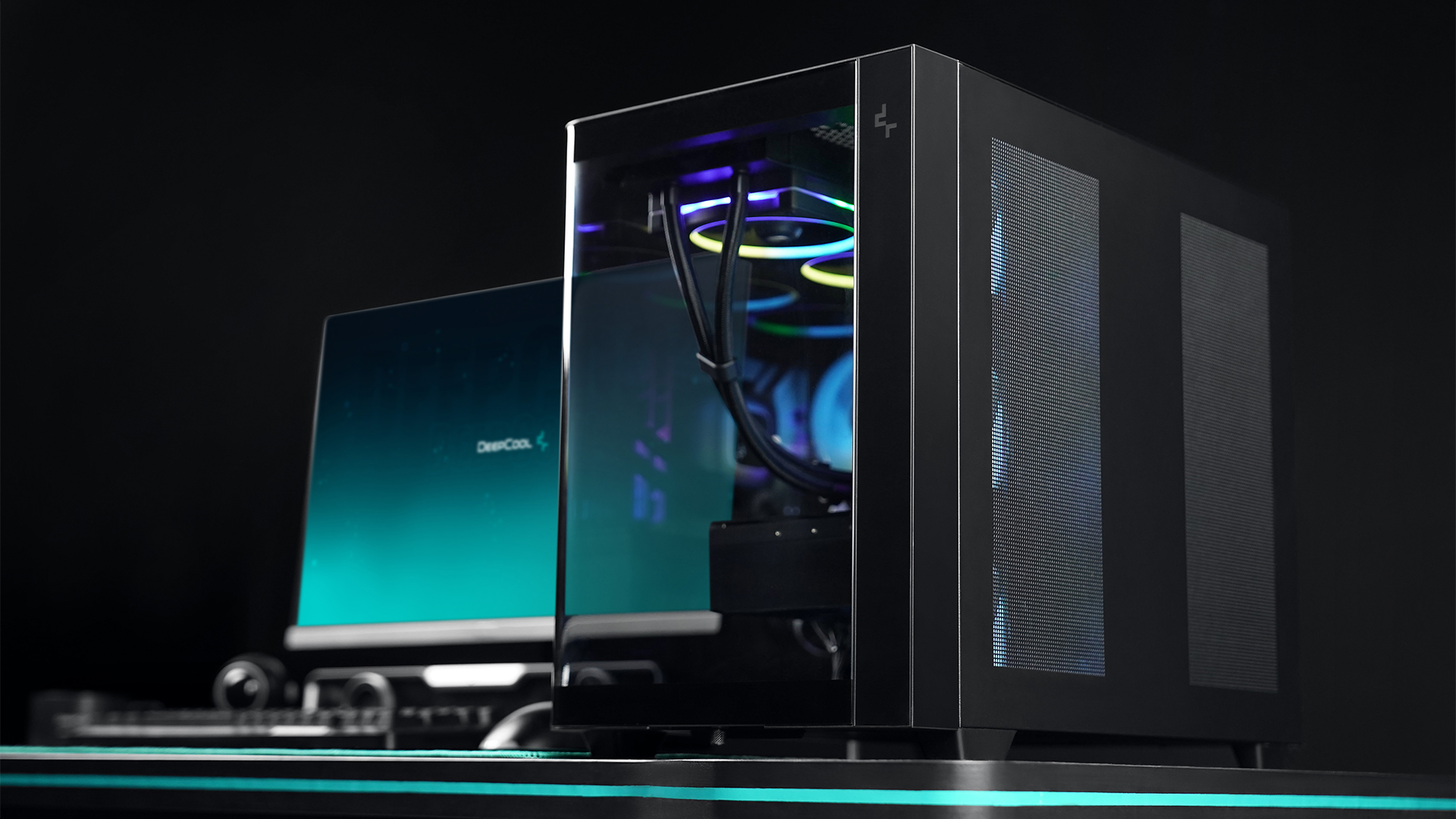

CURVED GLASS SHOWCASE
SEAMLESS PANORAMIC VIEW

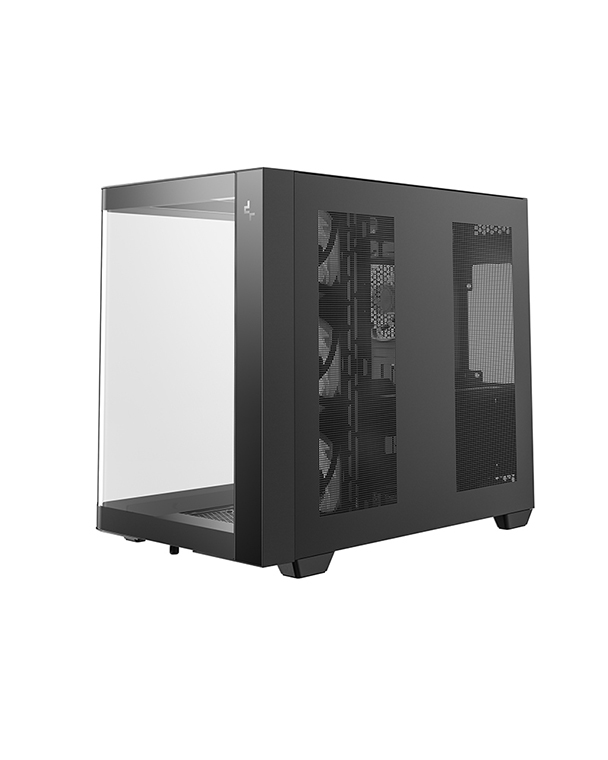

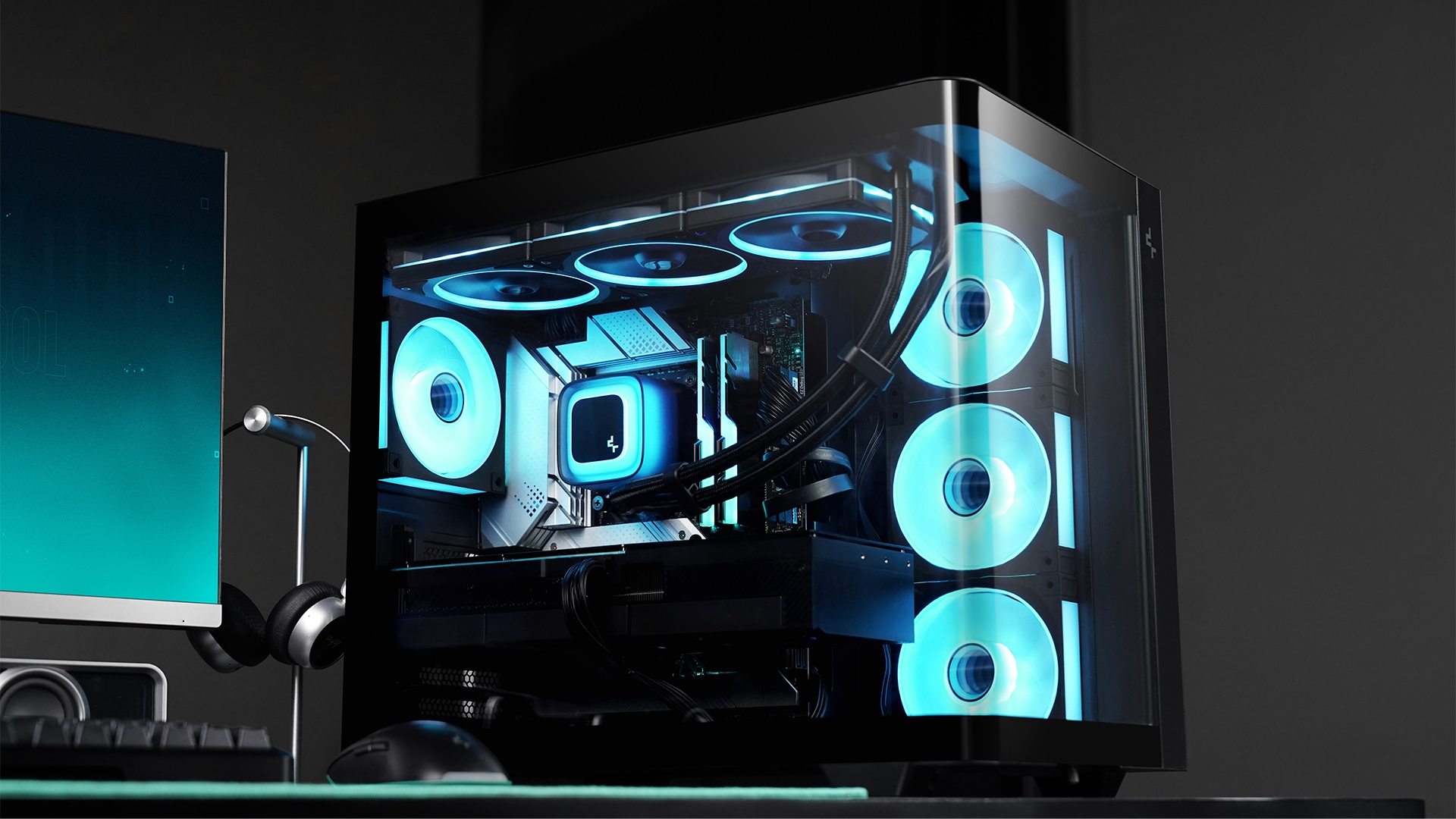

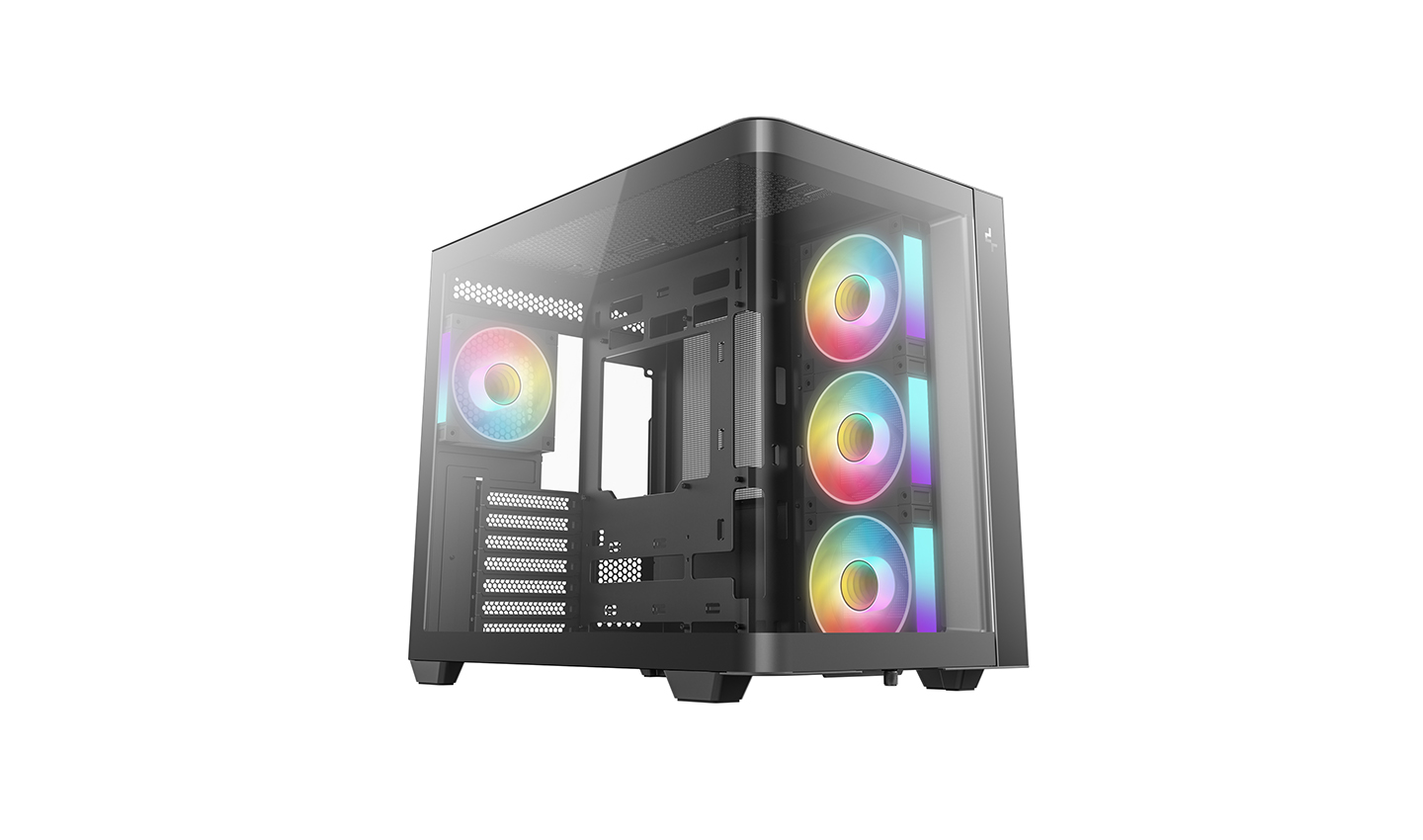

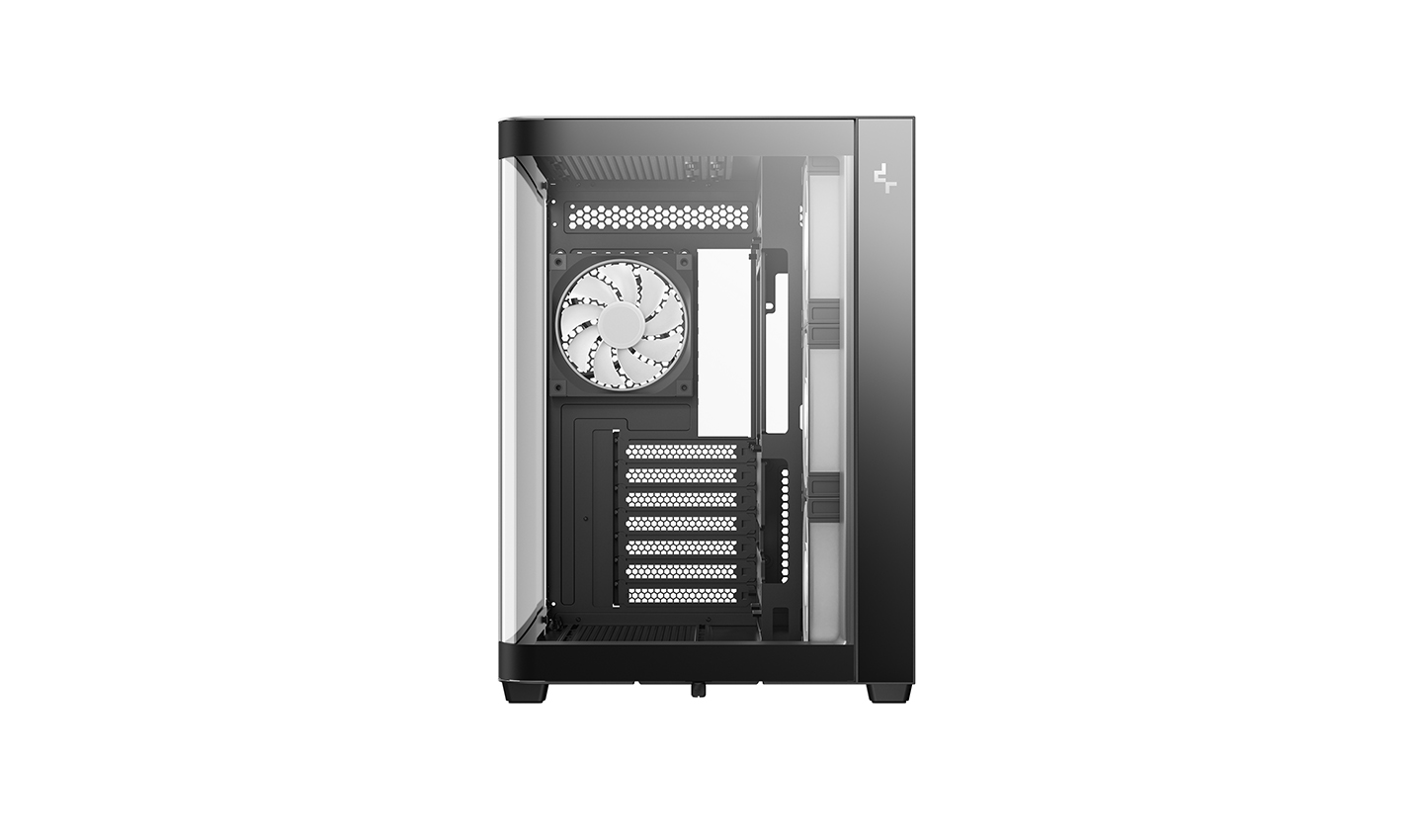

The CG530U 4F features a one-piece curved tempered glass panel that transitions smoothly around the corner. With no seams interrupting the line of sight, it offers an open, continuous view into the build within.
READY TO FLOW

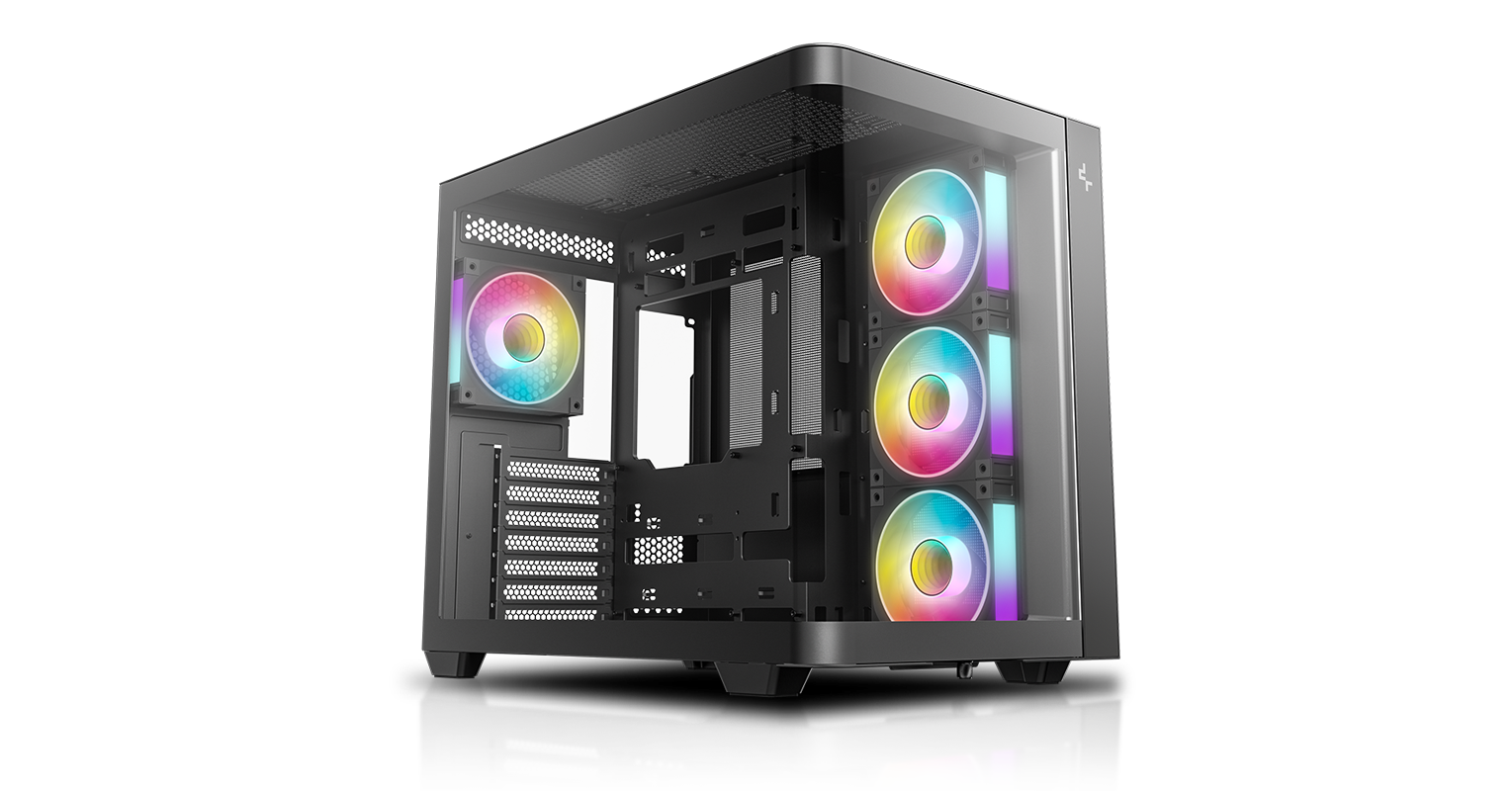

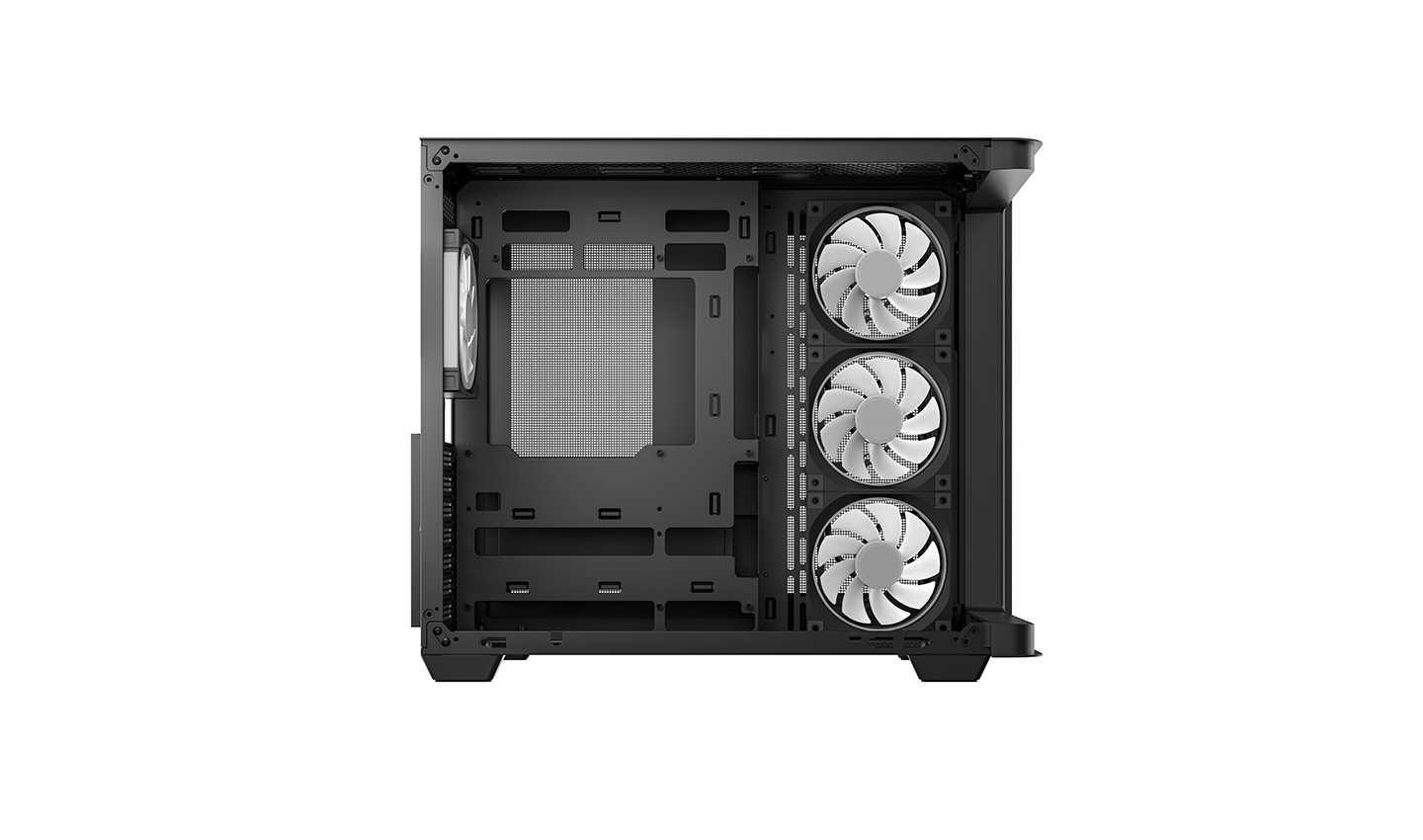

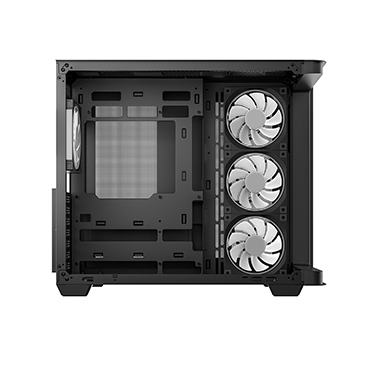

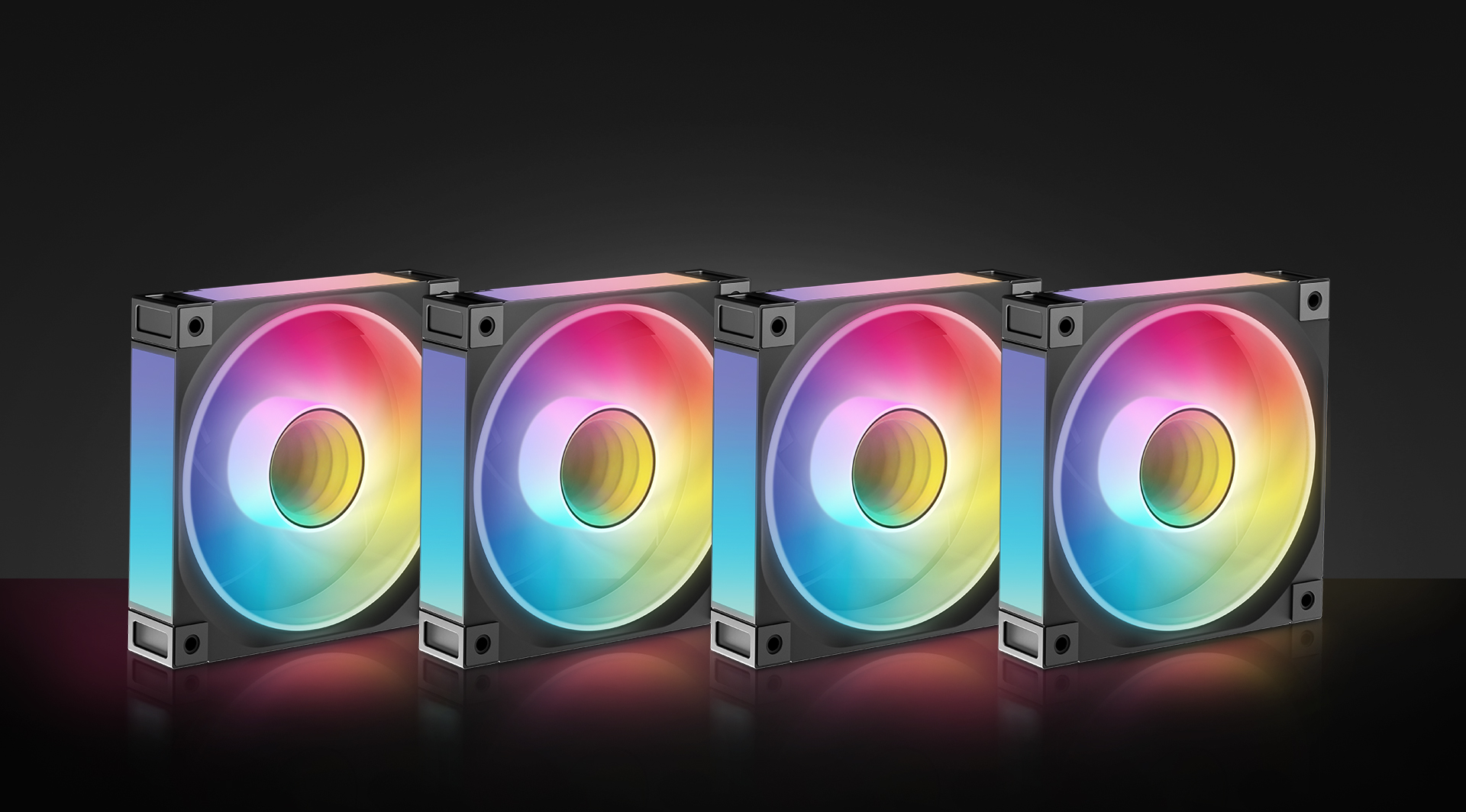

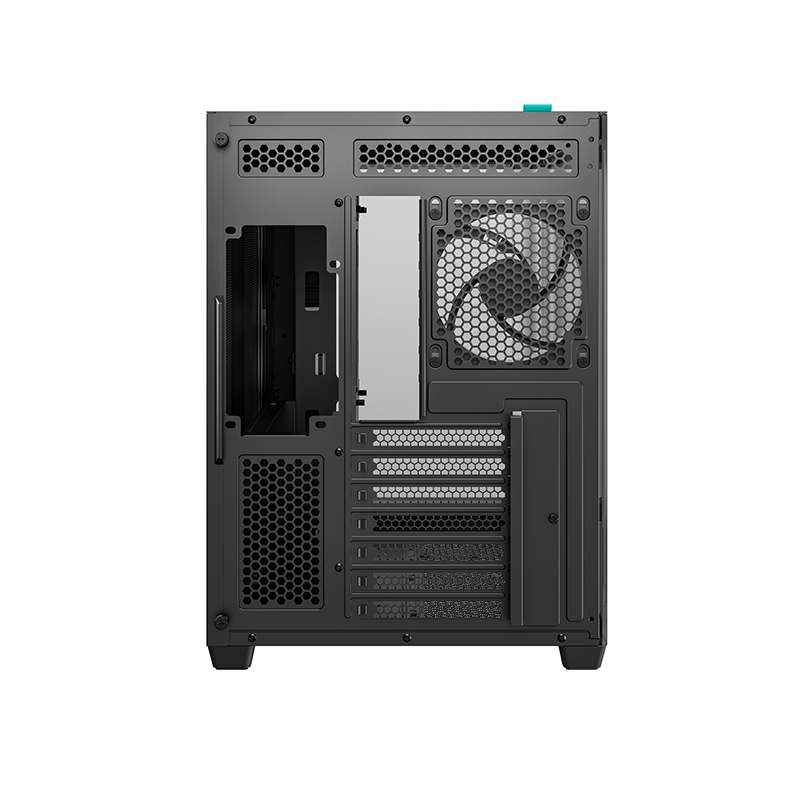

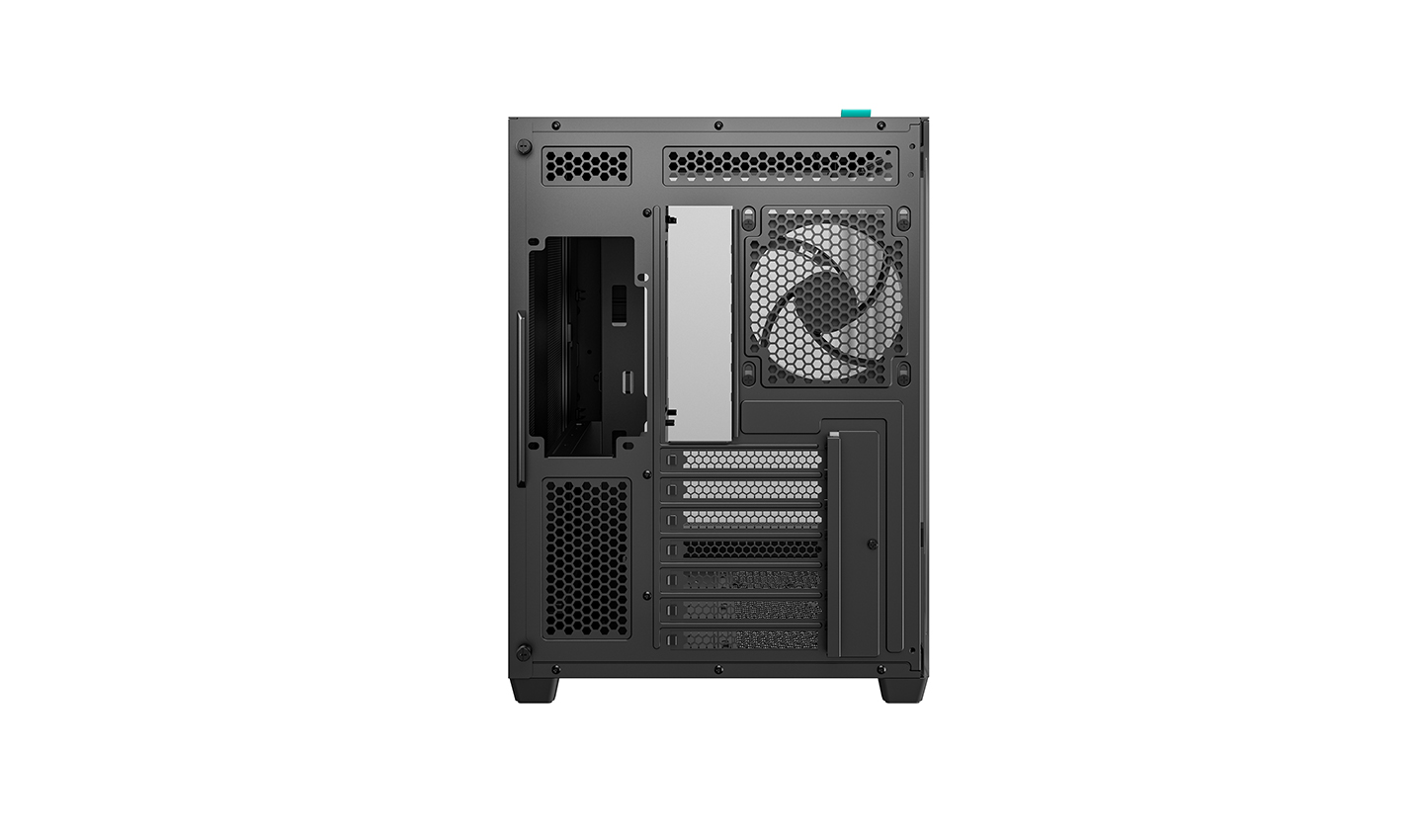

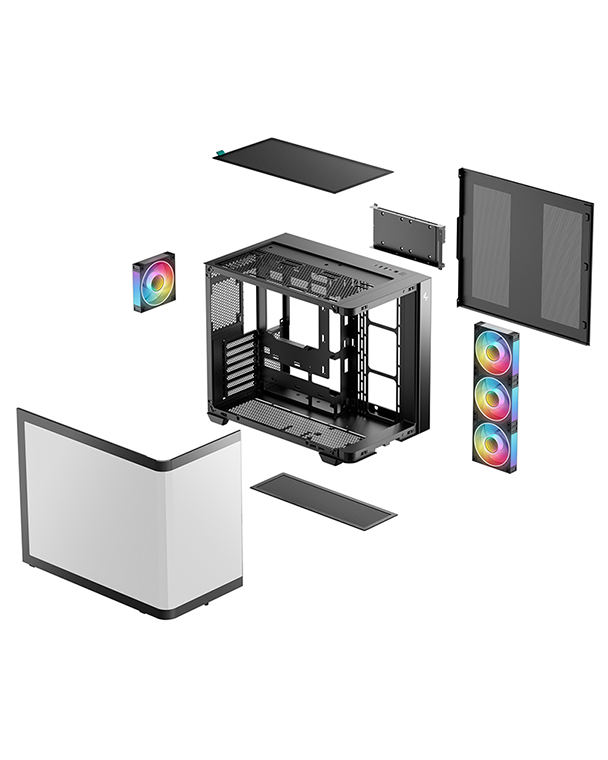

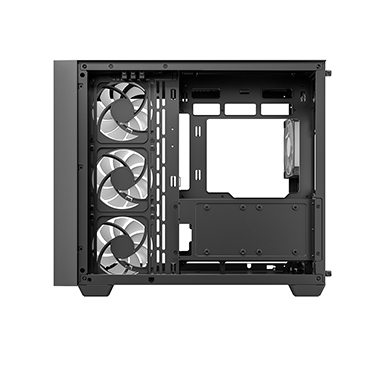

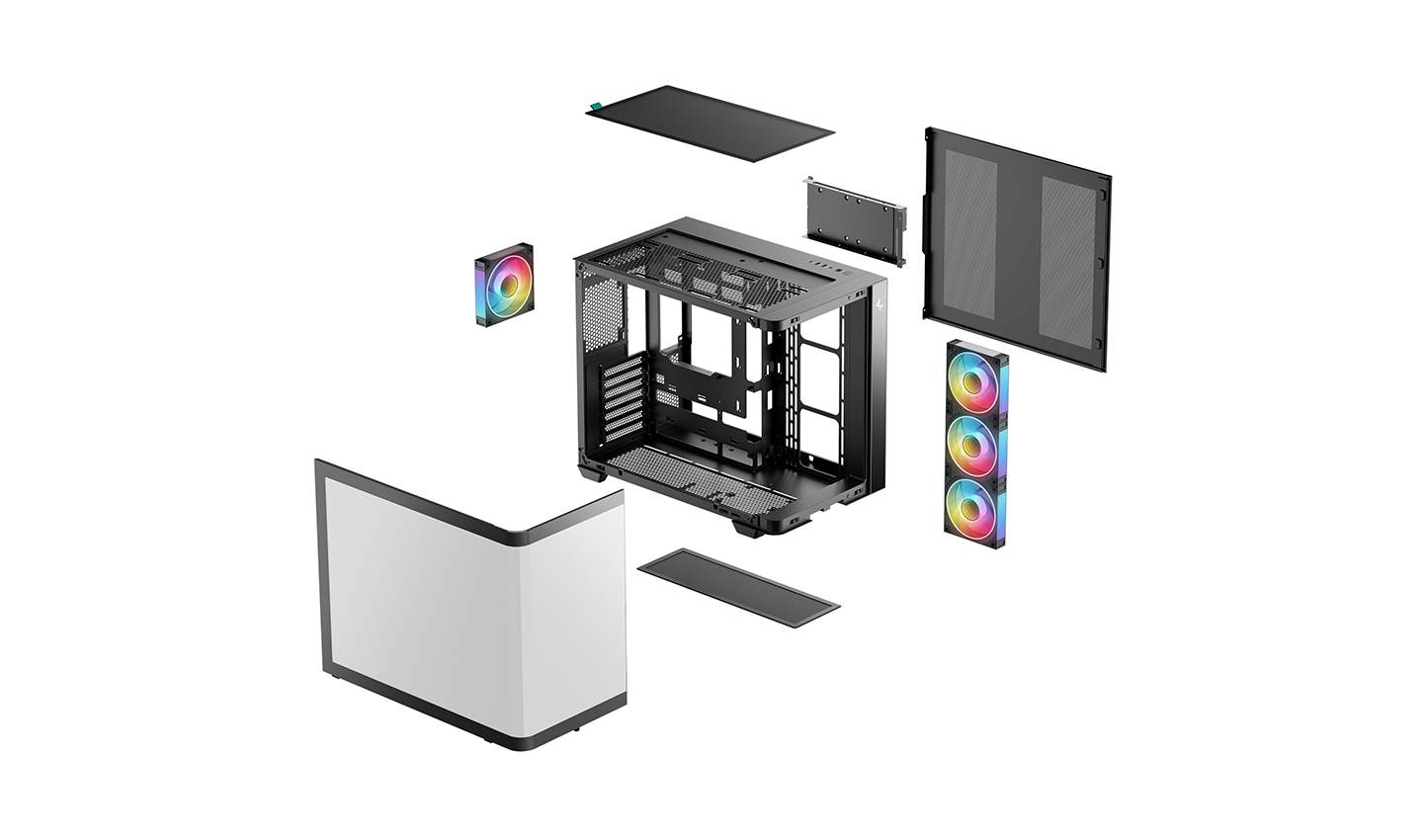

Four ARGB fans come pre-installed with three reverse-blade units on the side and one standard fan at the rear. The balanced intake and exhaust setup provides strong airflow and reliable cooling from the start.
EFFICIENT VENTILATION

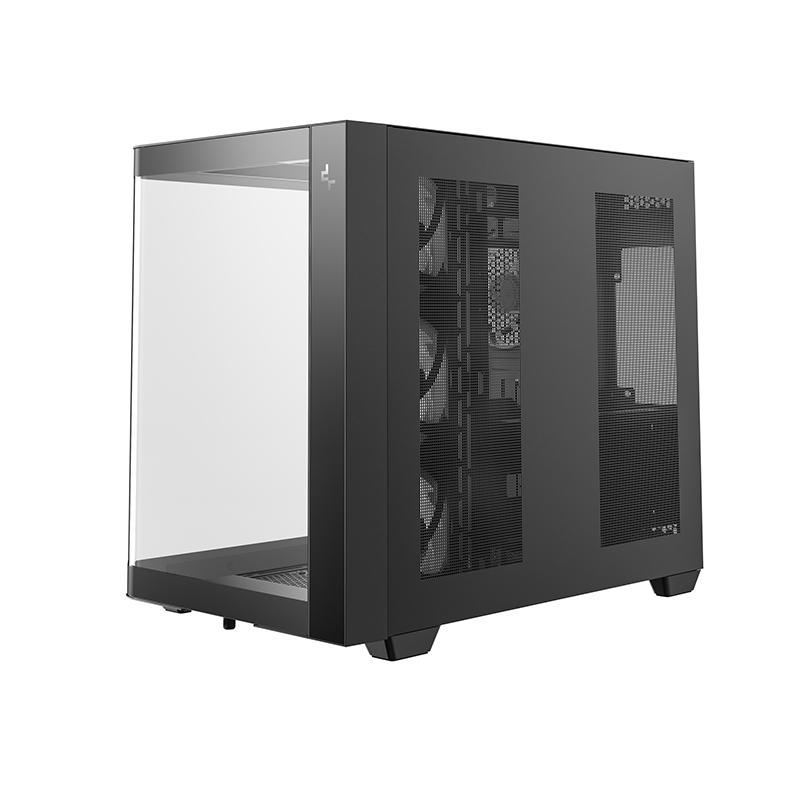

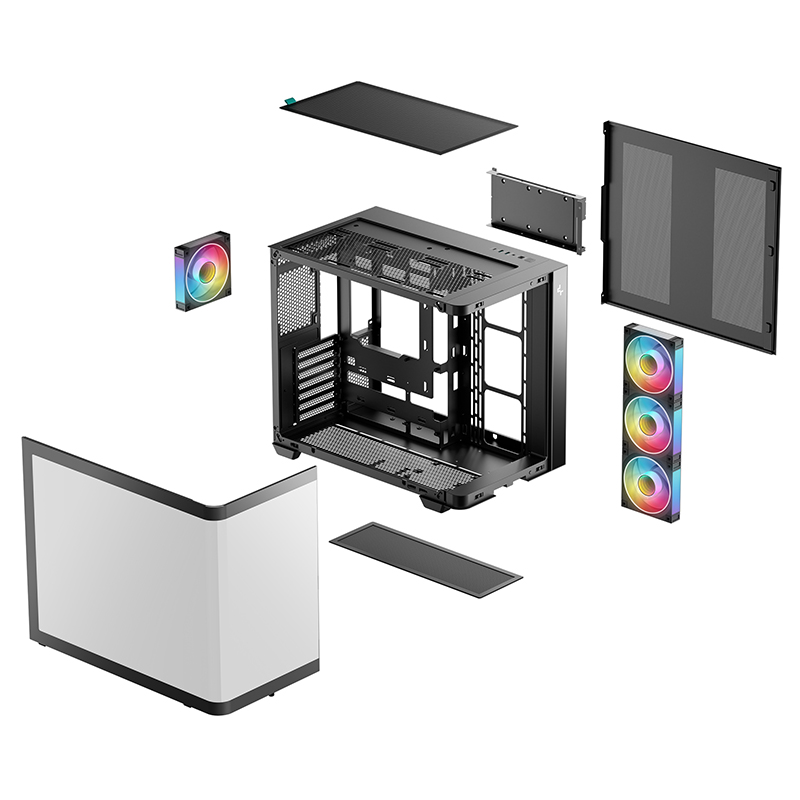

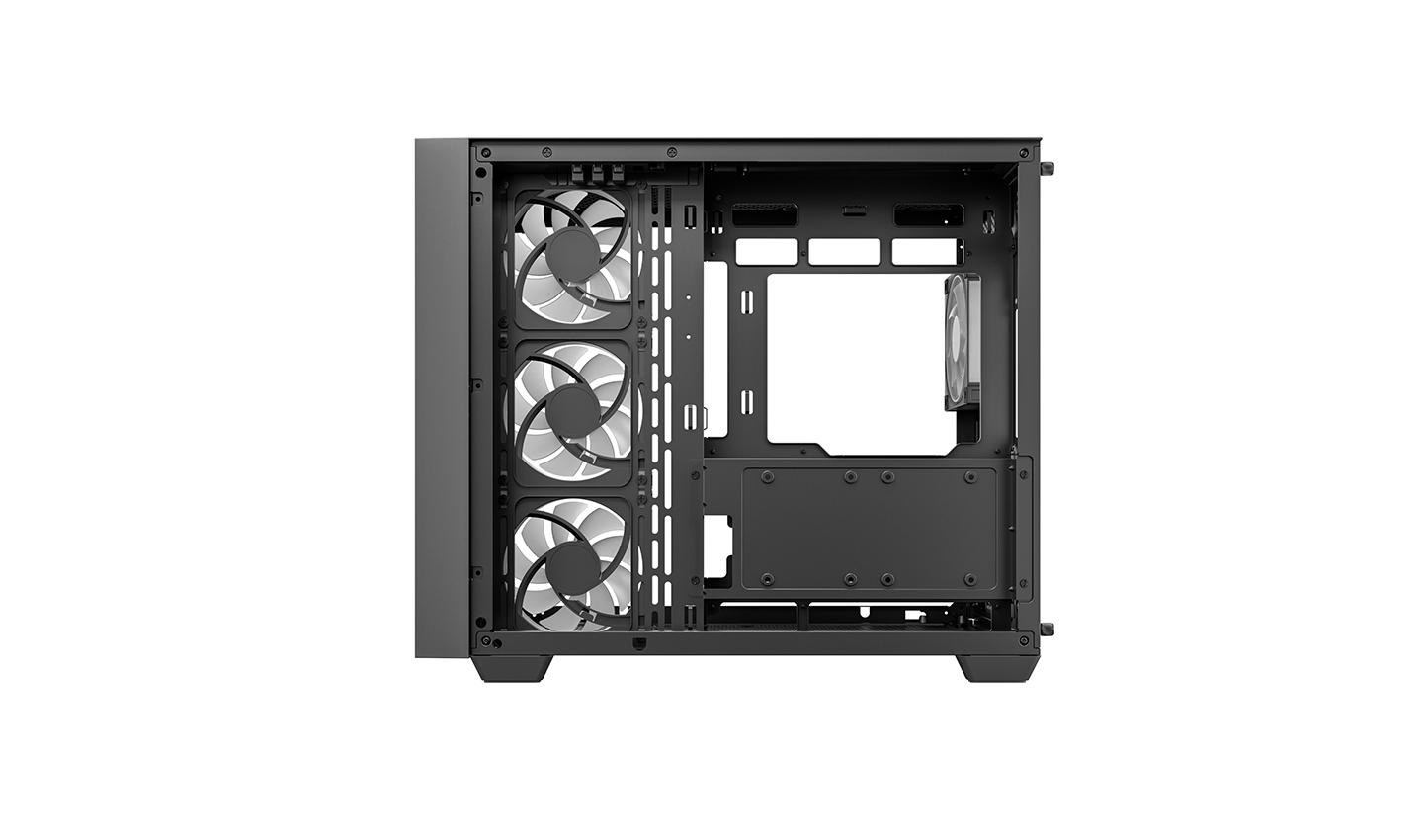

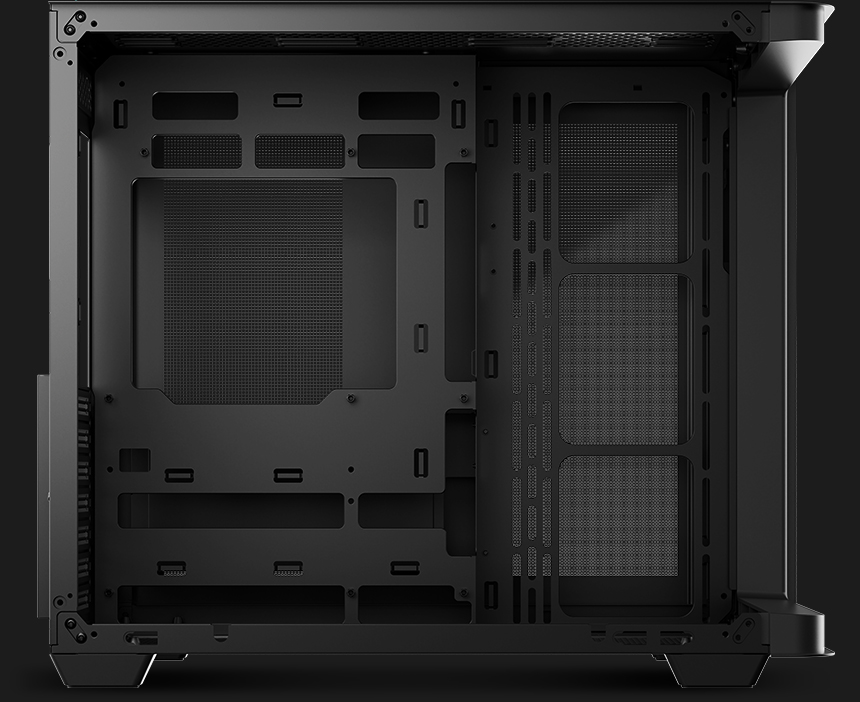

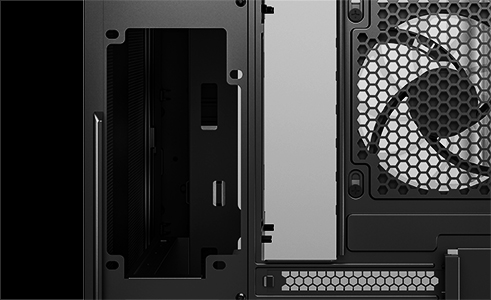

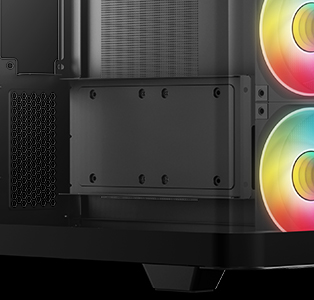

A dual-chamber layout isolates the power supply and storage drives from the main airflow. Large mesh panels maximize ventilation, with side-mounted reverse intake fans drawing in fresh air and the rear fan exhausting heat, creating a direct horizontal airflow path across the case.
MAXIMUM COOLING CAPABILITIES
Never fear the heat with CG530U 4F's exceptional cooling support. Designed to house a variety of cooling components, it offers wide compatibility for radiators and fans to keep your system running cool under any load.
  • Radiators
  • Fans (120)
  • Fans (140)

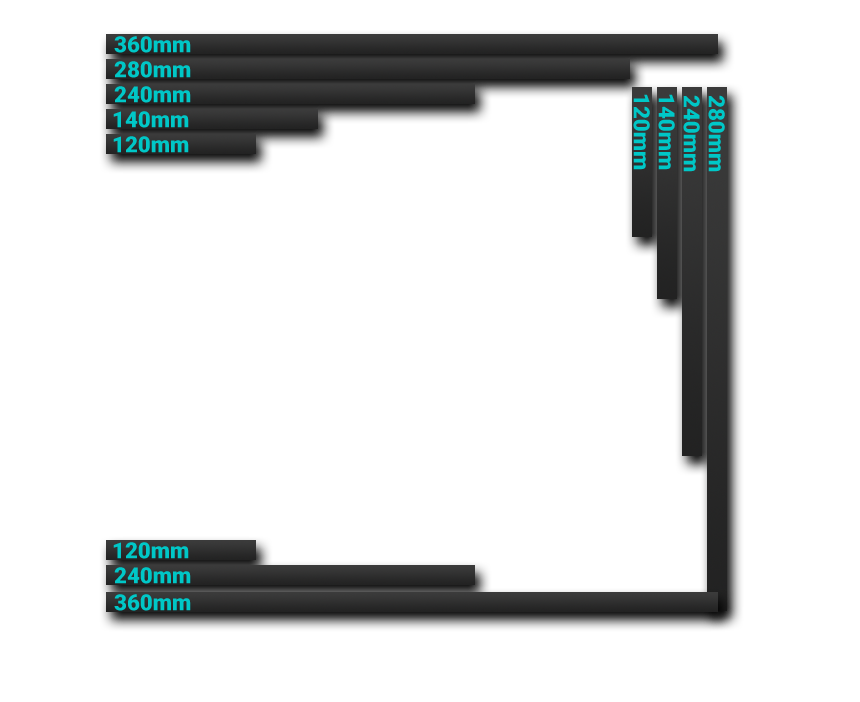

Radiator Support:
Top: 120/140/240/280/360mm
Side: 120/140/240/280mm
Bottom: 120/240/360mm

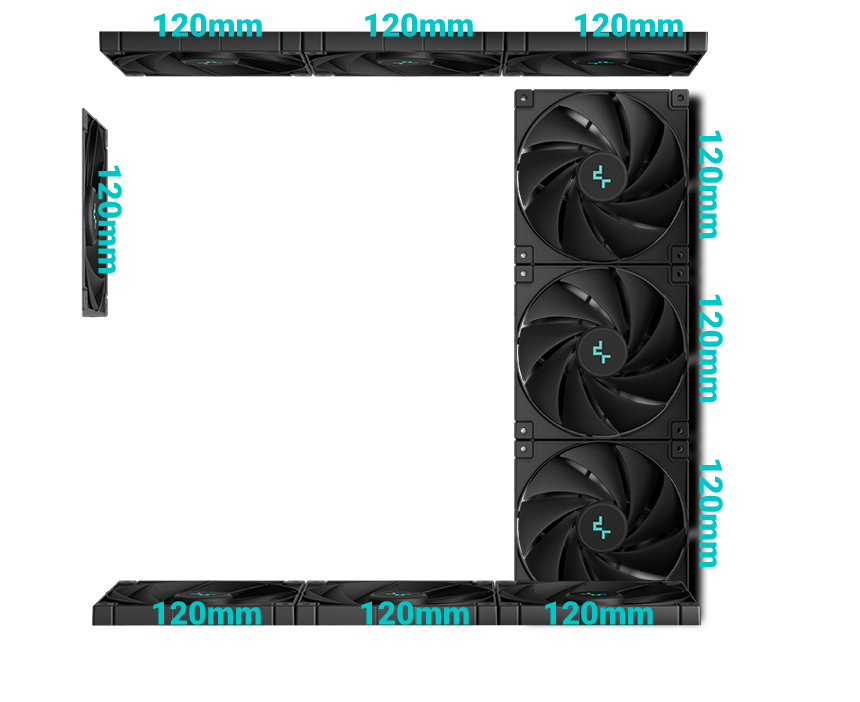

Fan Support:
Top: 3×120mm / 2x140mm
Side: 3×120mm / 2x140mm

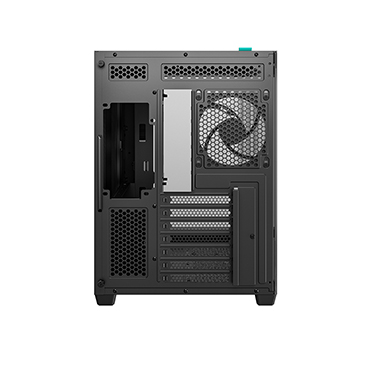

Rear: 1×120mm

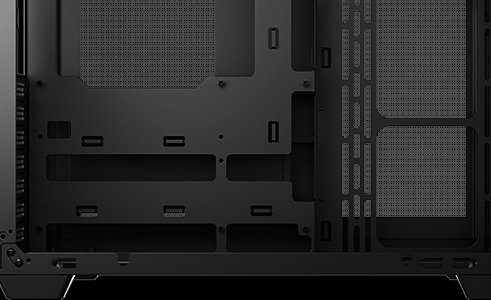

Bottom: 3×120mm / 3.5 HDD+2×120mm / 2.5 SSD+2×120mm
BROAD HARDWARE SUPPORT
Built to handle demanding hardware, the CG530U 4F supports CPU coolers up to 160mm tall, GPUs up to 410mm long, and PSUs up to 210mm, offering broad compatibility for high-performance builds.

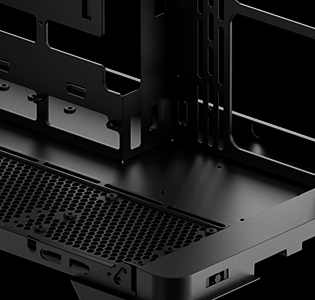

DETAILS THAT MATTER

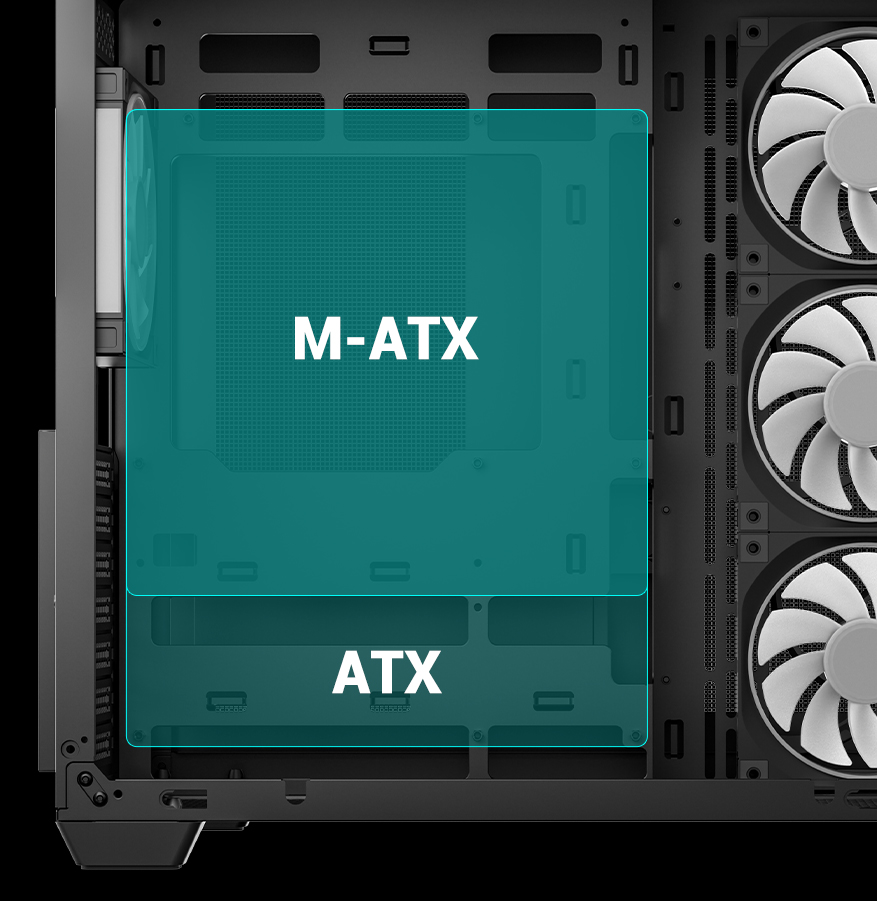

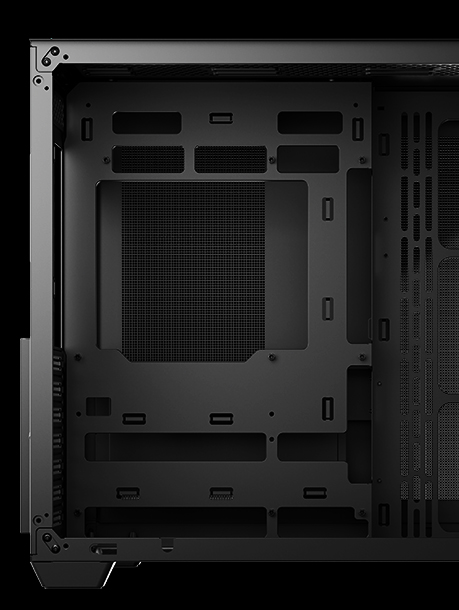

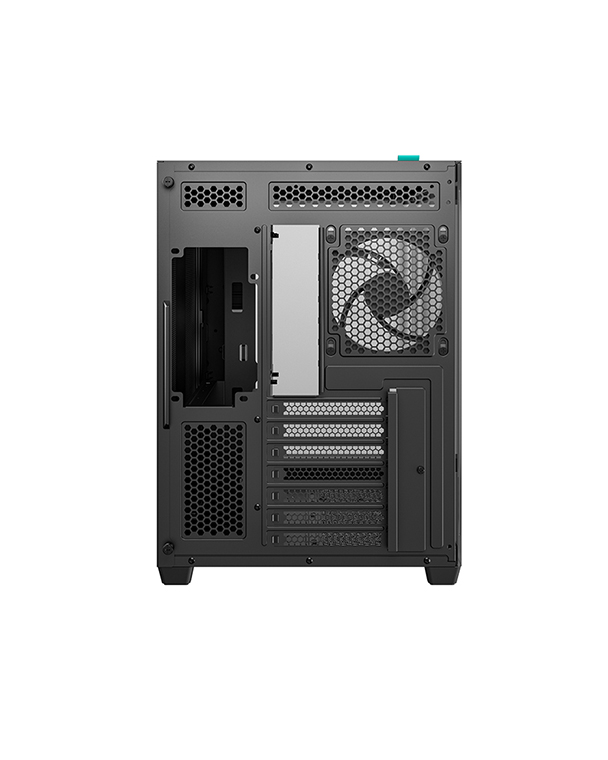

■ Supports M-ATX and ATX reverse connector motherboards

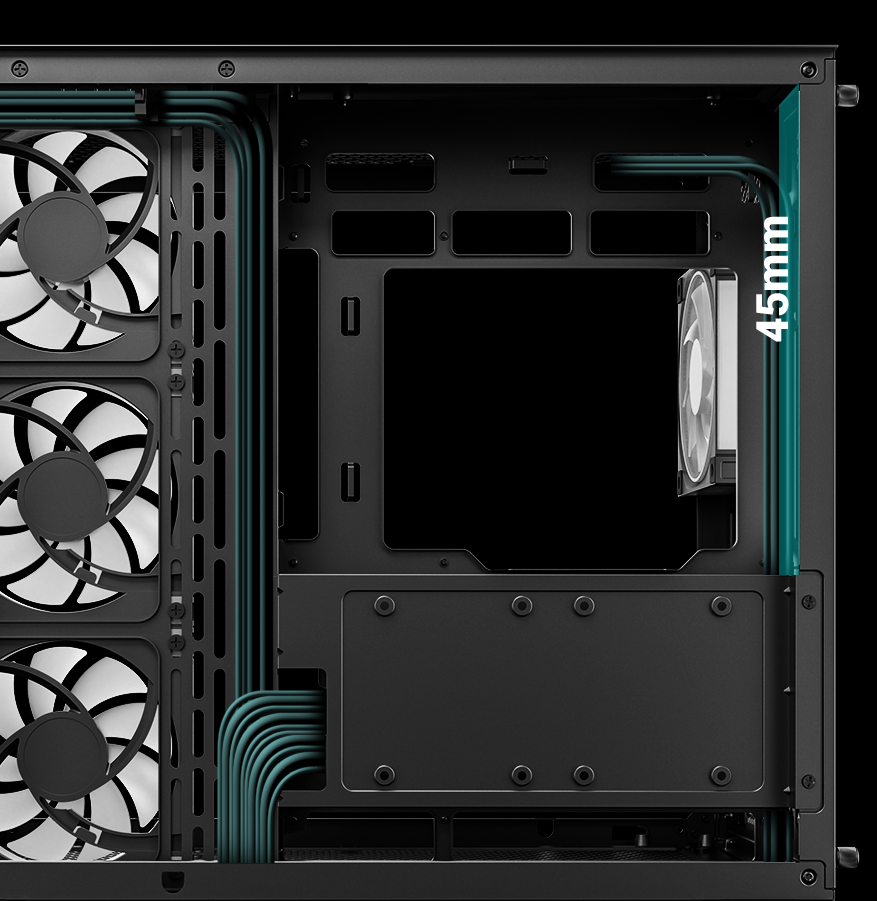

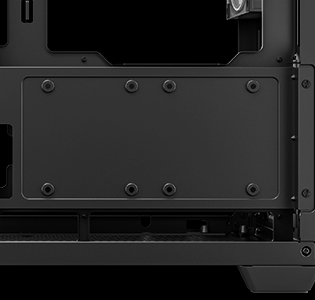

■ 45mm clearance for cable management

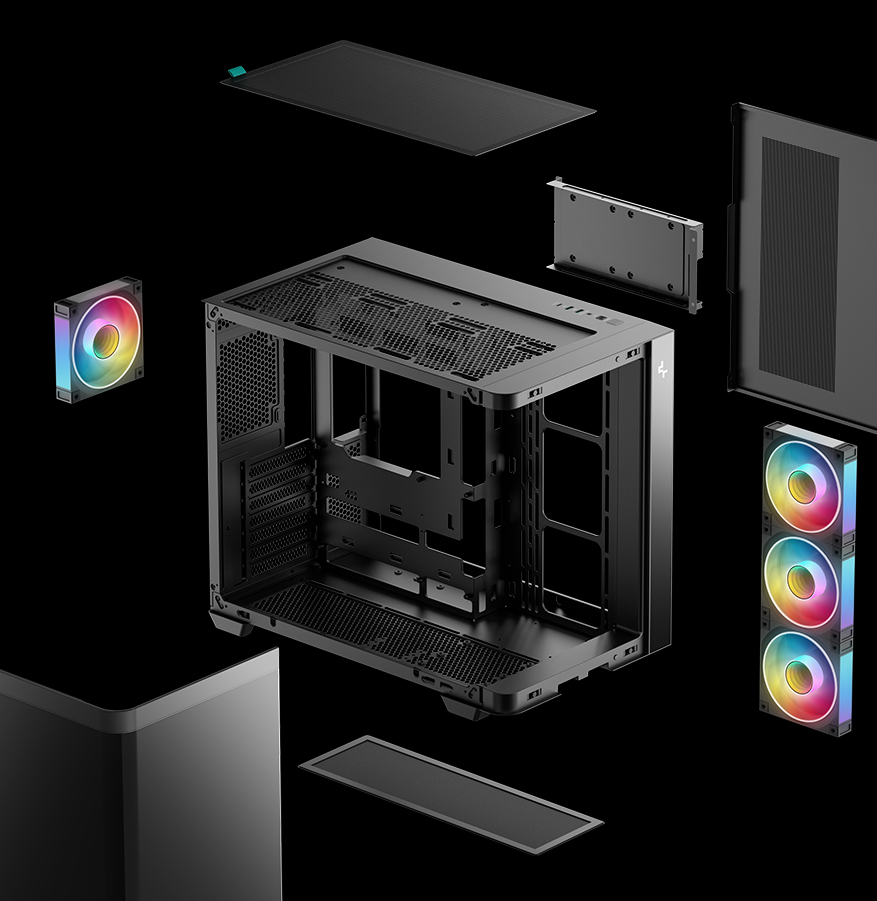

■ Top and bottom dust filters included

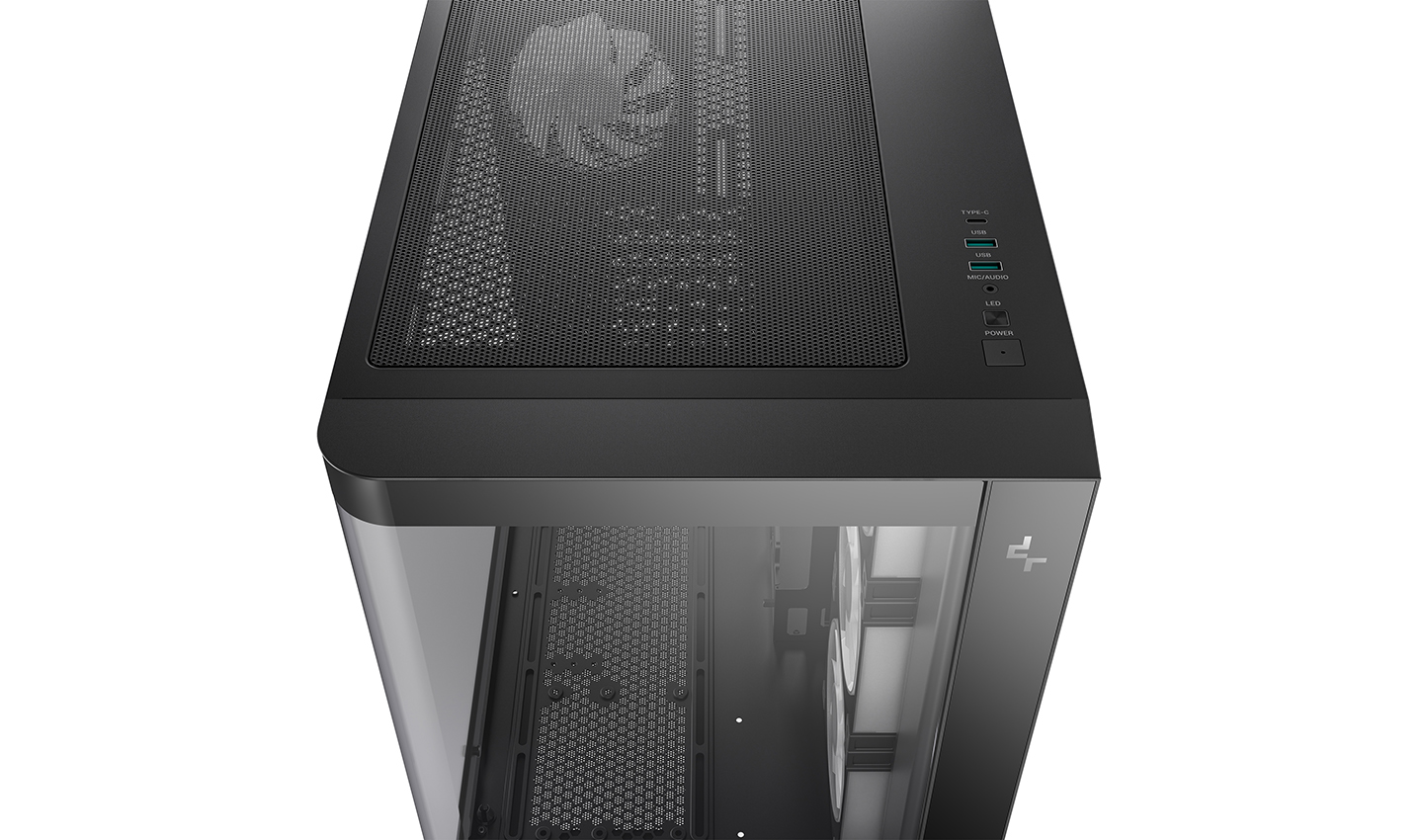

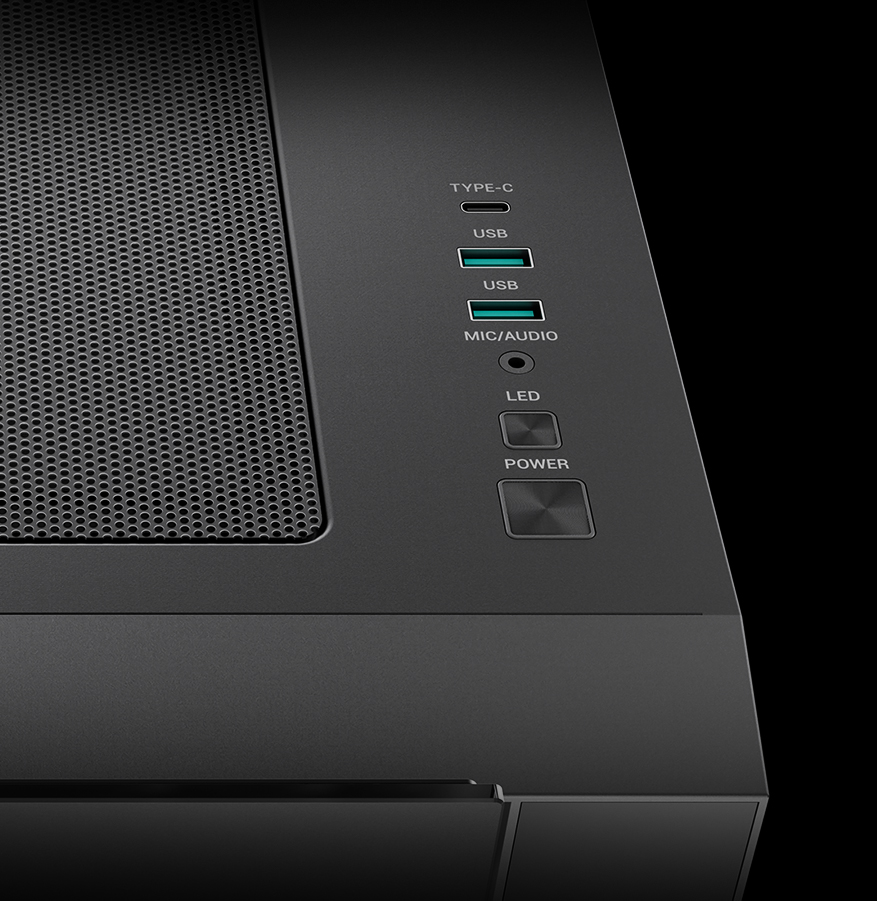

EASY I/O ACCESS

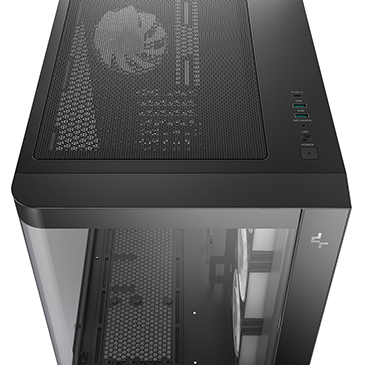

The top I/O panel provides convenient access with two USB 3.0 ports, a Gen2 Type-C port, and a combined audio/mic jack.
Technical Spec
Product Dimensions475×285×380mm(L×W×H)
Net Weight7.3kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportITX/Micro-ATX/ATX
ATX(Rear Connector)/Micro-ATX(Rear Connector)
Front I/O PortsUSB3.0 x2,Gen2 Type-C x1,Audio/Mic x1,LED
3.5" Drive Bays2

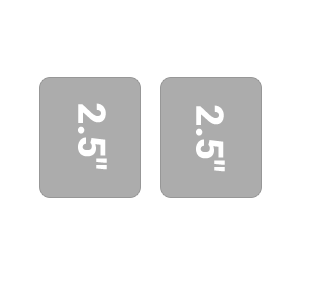

2.5" Drive Bays2+1

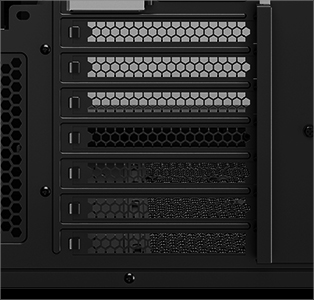

Expansion Slots7 Slots
Pre-Installed FansSide: 3×120mm
Rear: 1×120mm
Fan SupportFront: NA
Top: 3×120mm/2x140mm
Side: 3×120mm/2x140mm
Rear: 1×120mm
Bottom: 3×120mm/3.5 HDD+2x120mm/2.5 SSD+2x120mm
Radiator SupportFront: NA
Top: 120/140/240/280/360mm
Side: 120/140/240/280mm
Bottom: 120/240/360mm
CPU Cooler Height Limit160mm
GPU Size Limit410mm
Power Supply Type210mm
EAN6933412765592
P/NR-CG530U-BKAGA4-G
Download
CG530U 4F Manual.pdf
