CG330 3F

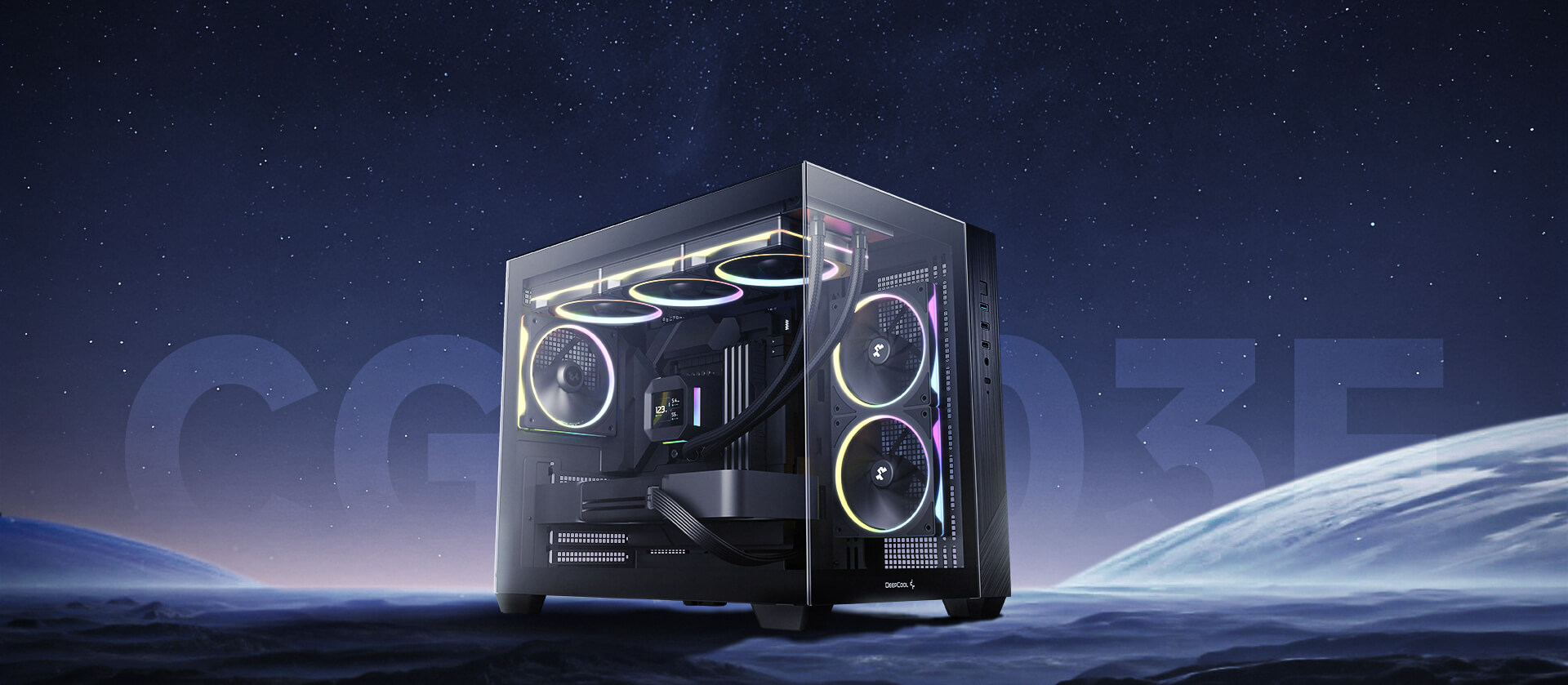

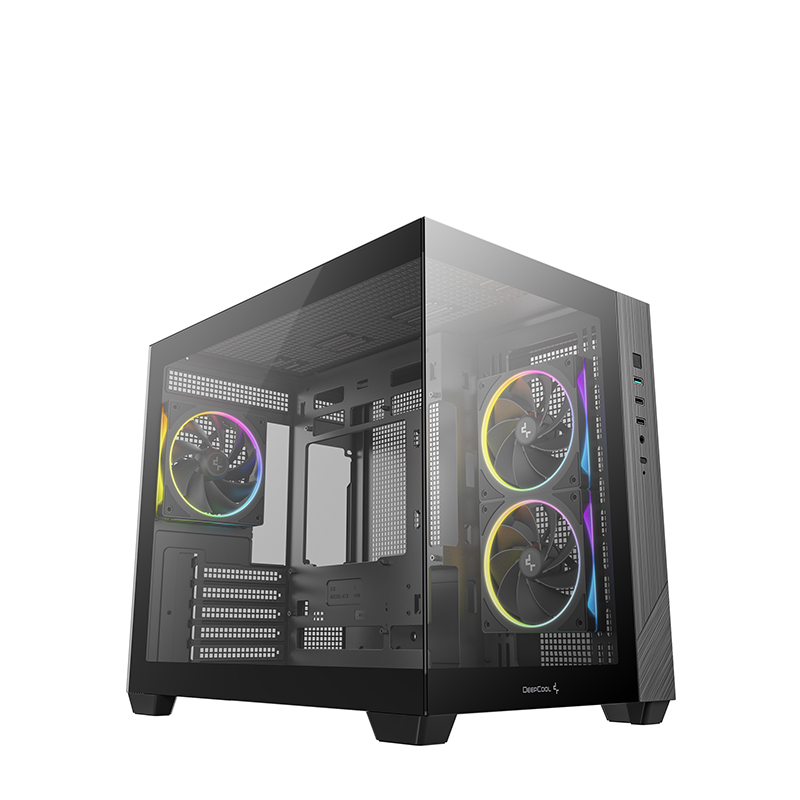

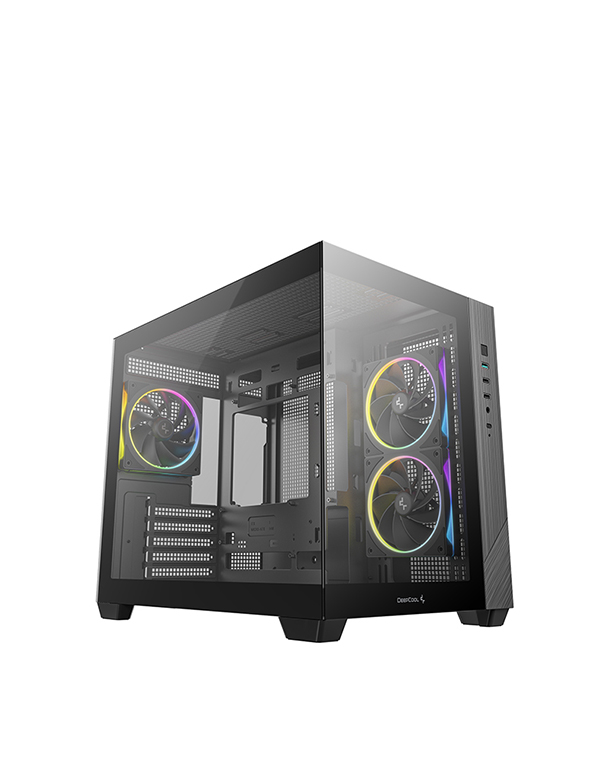

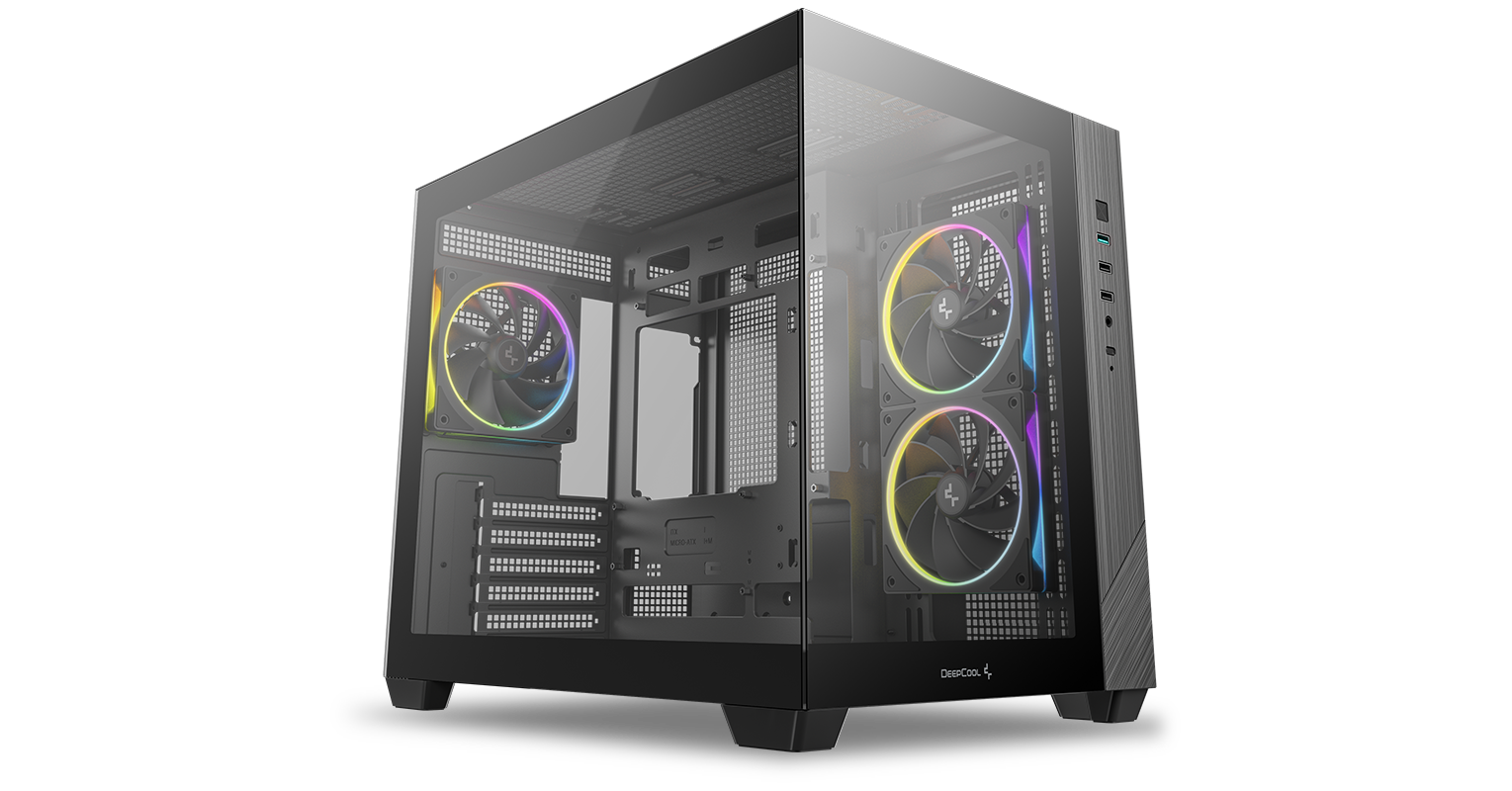

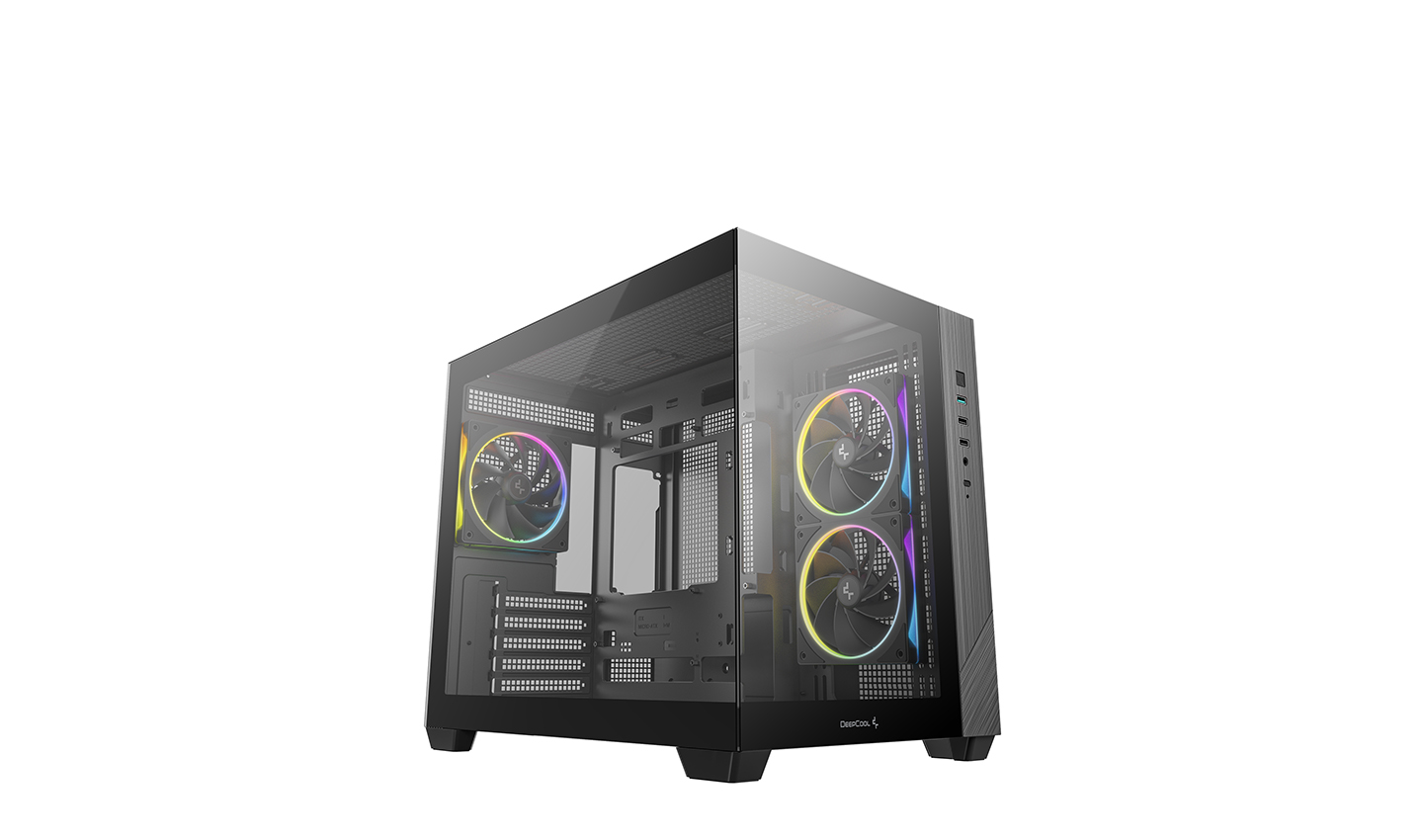

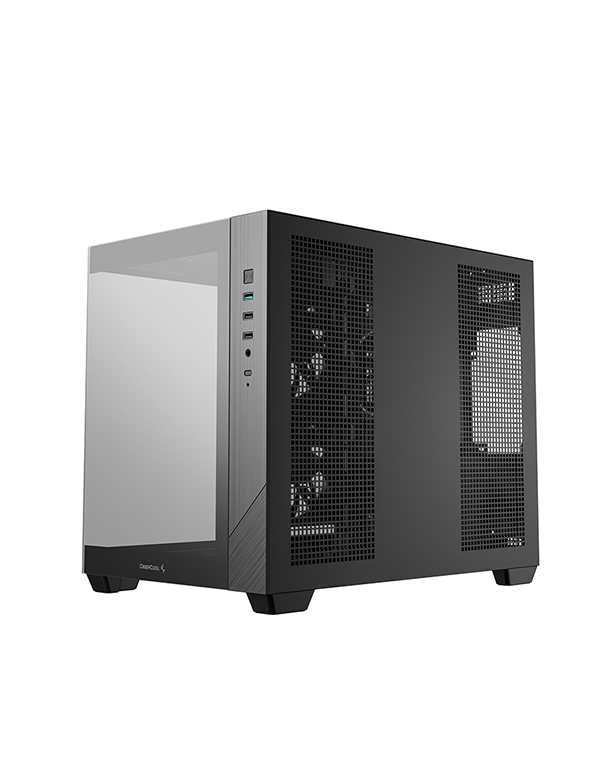

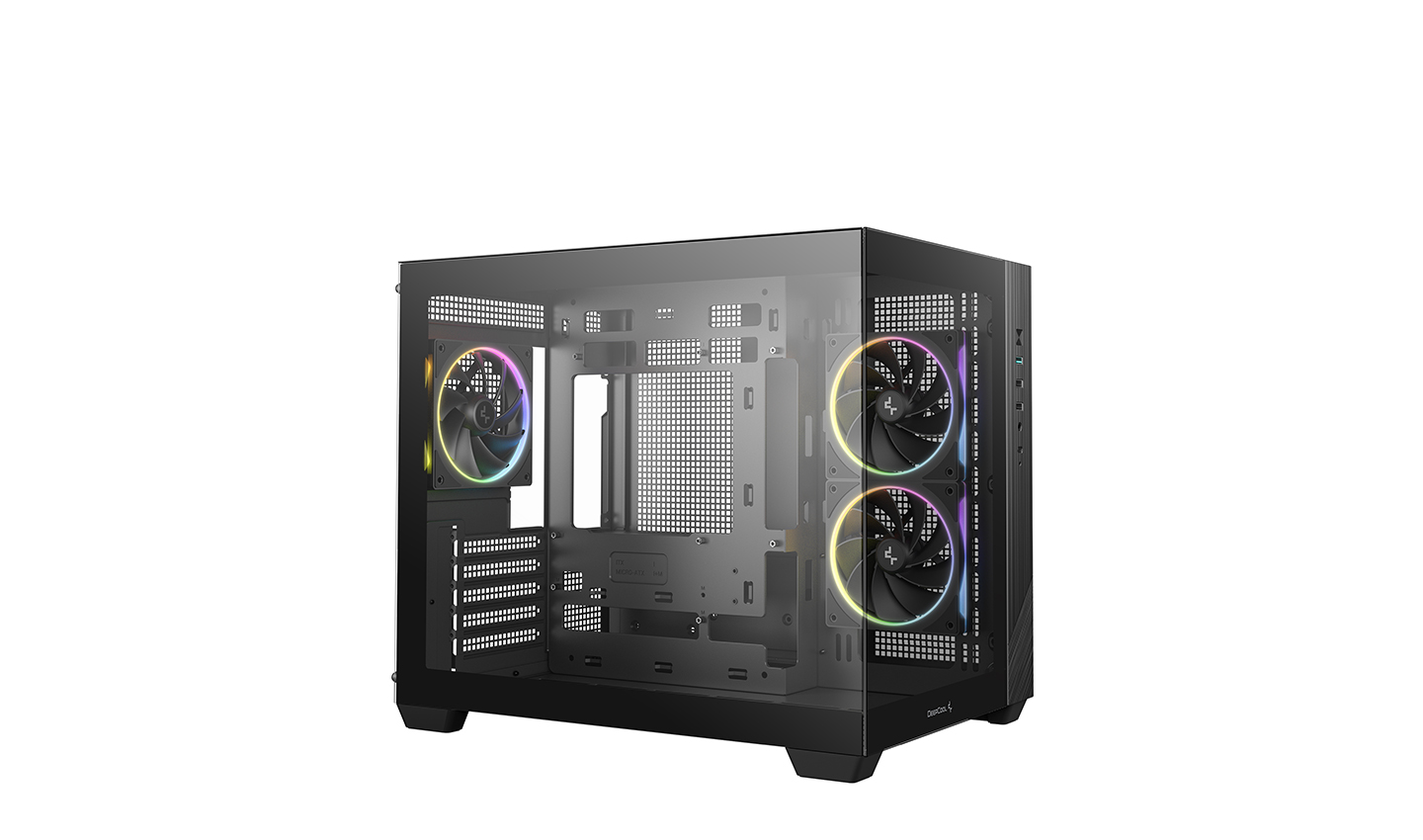

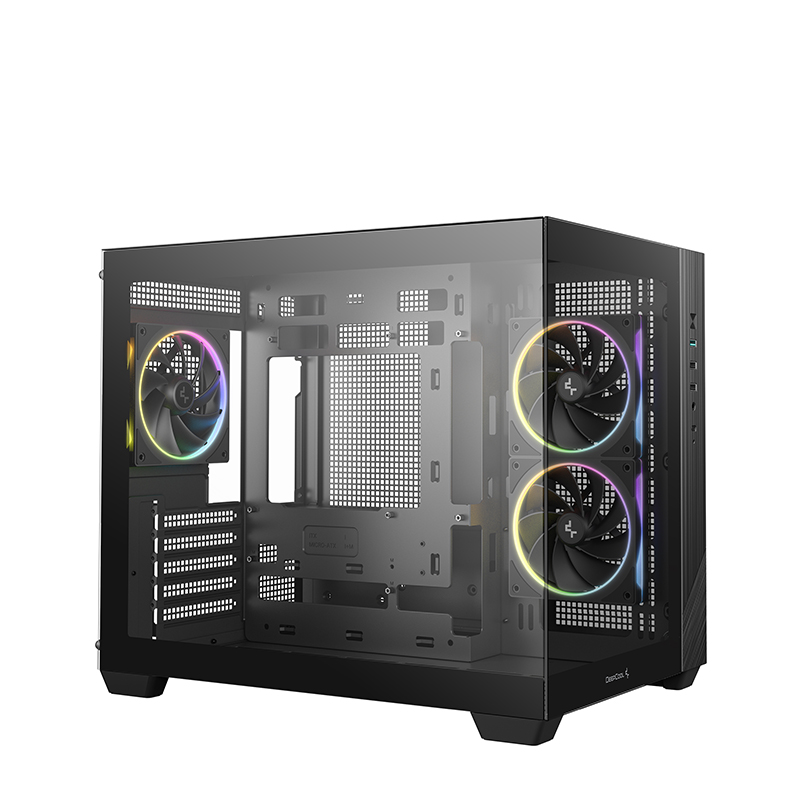

The CG330 3F is a panoramic Micro-ATX case with a dual-chamber structure for better airflow and organization. Pre-installed with three ARGB fans, it creates a vibrant showcase for your hardware.
COLOR
black
MODEL
CG330 3F
ELEVATED MICRO-ATX SHOWCASE
BUILT TO SHOW MORE

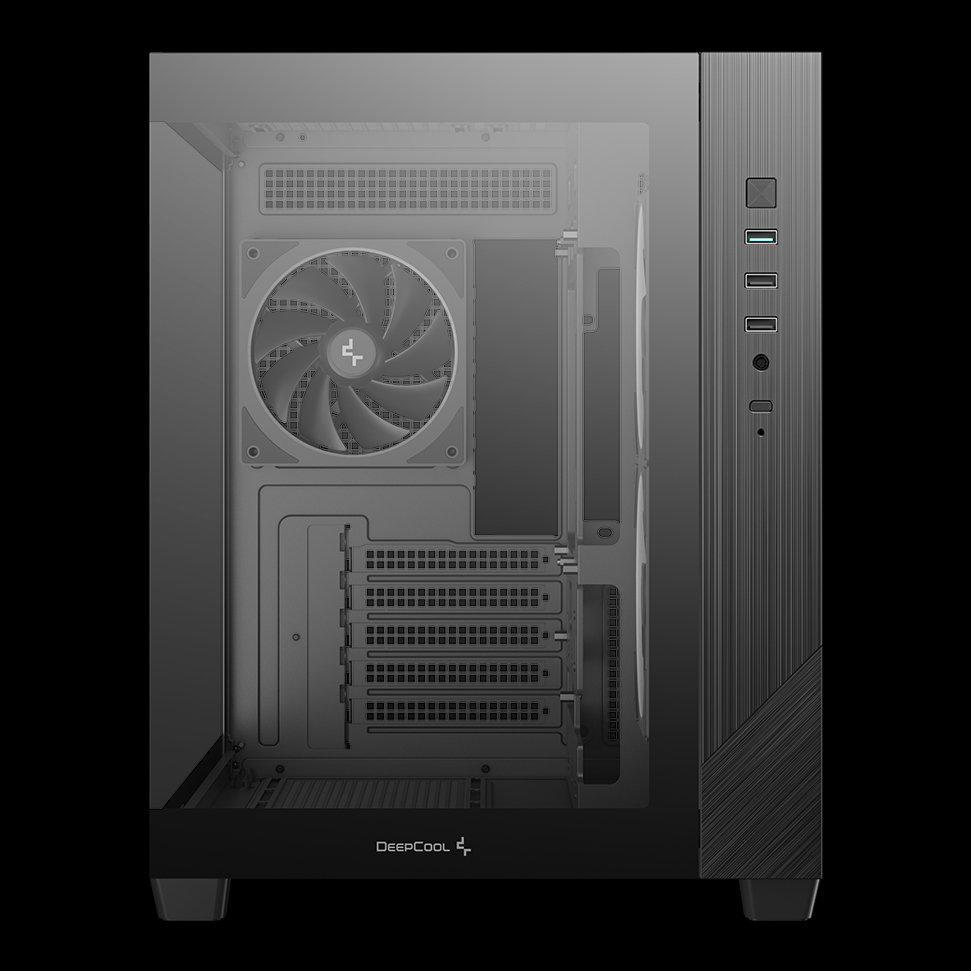

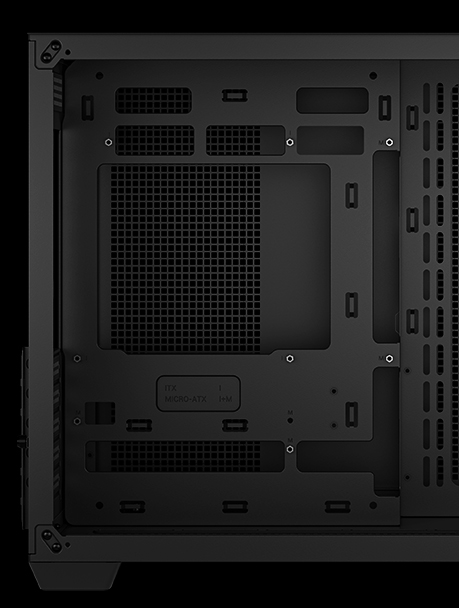

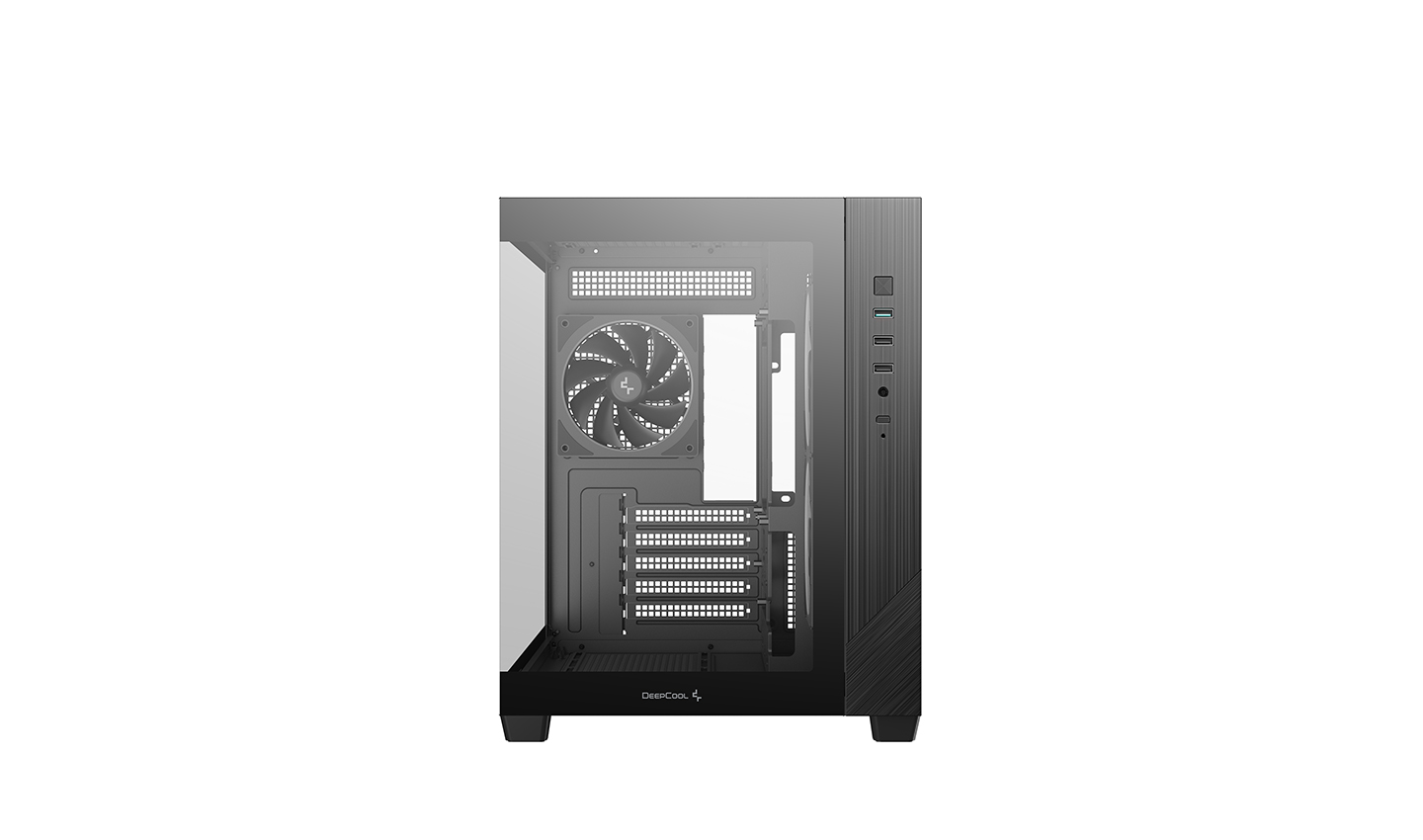

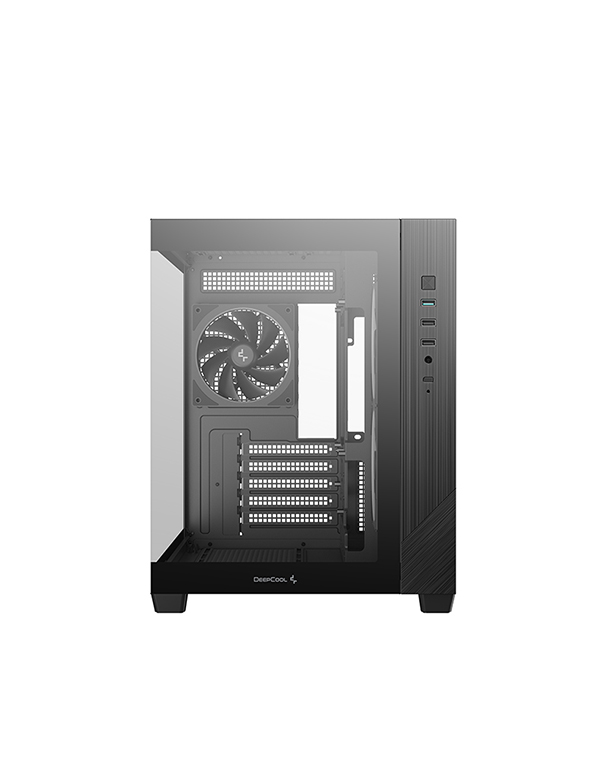

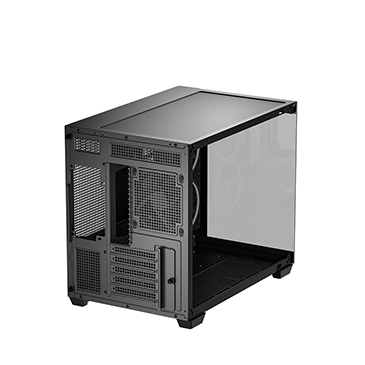

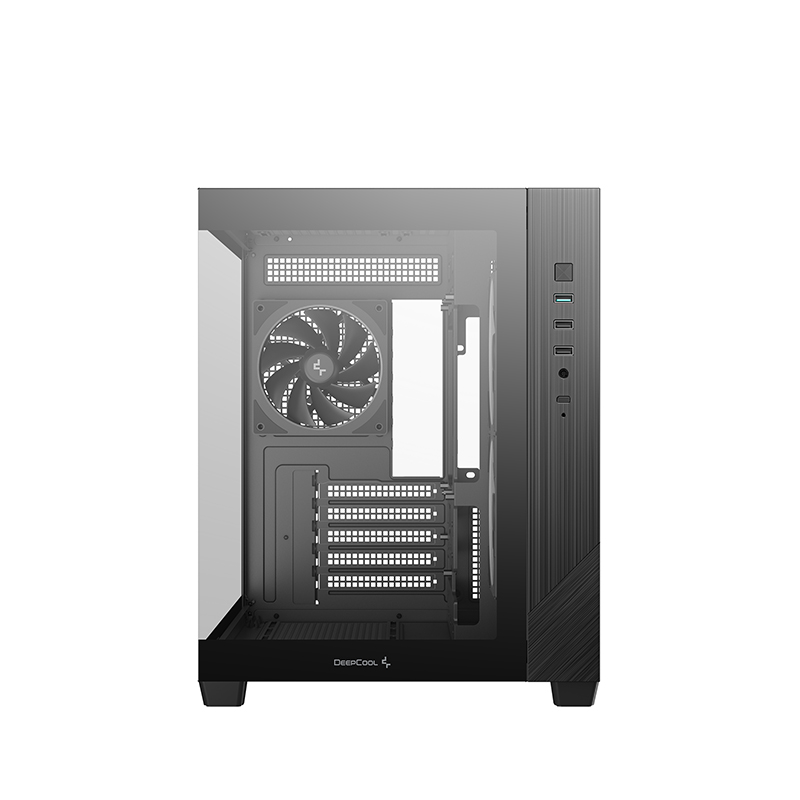

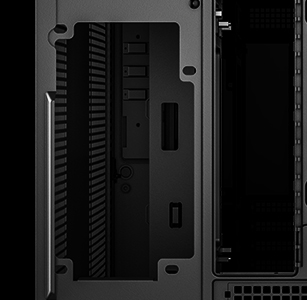

The CG330 3F features a pillarless full-view side panel that delivers an expansive view in a compact footprint. Support for reverse connector motherboards keeps cables out of sight, maintaining a clean, sharp look.
SMART SEPARATION,
CLEAN EXECUTION

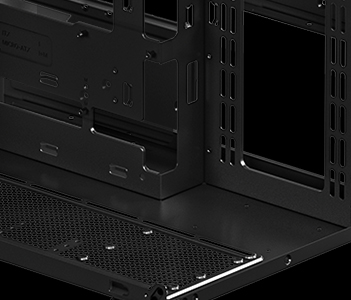

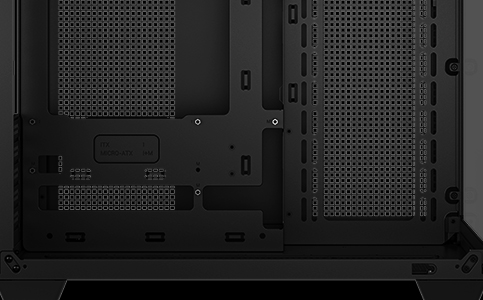

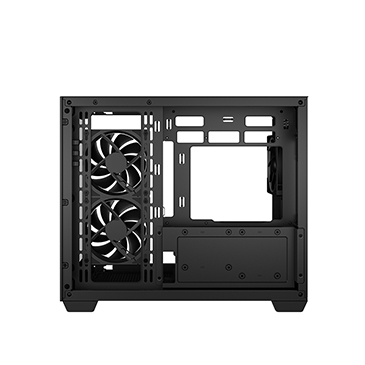

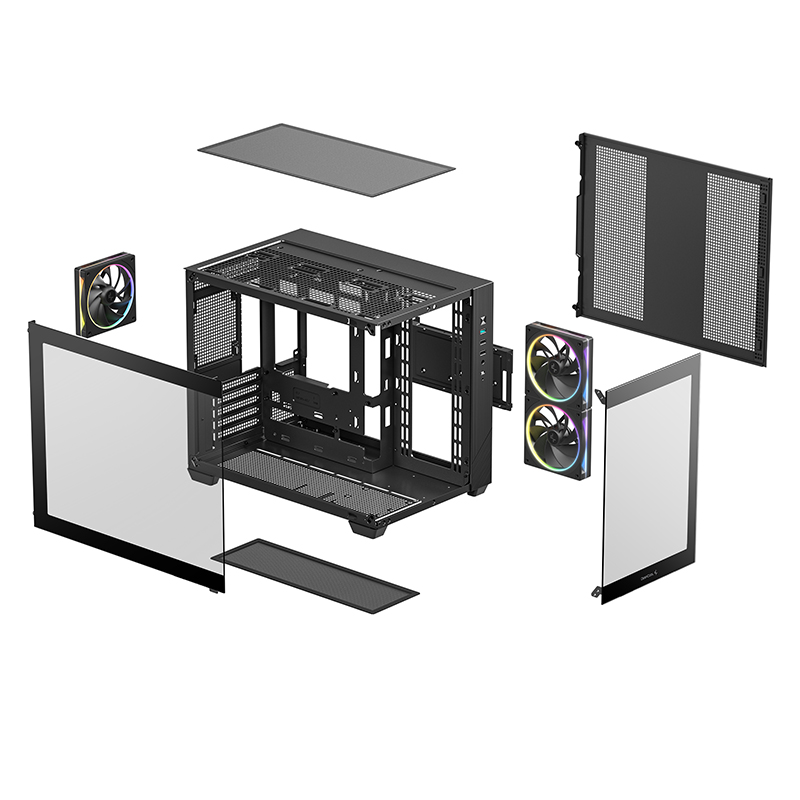

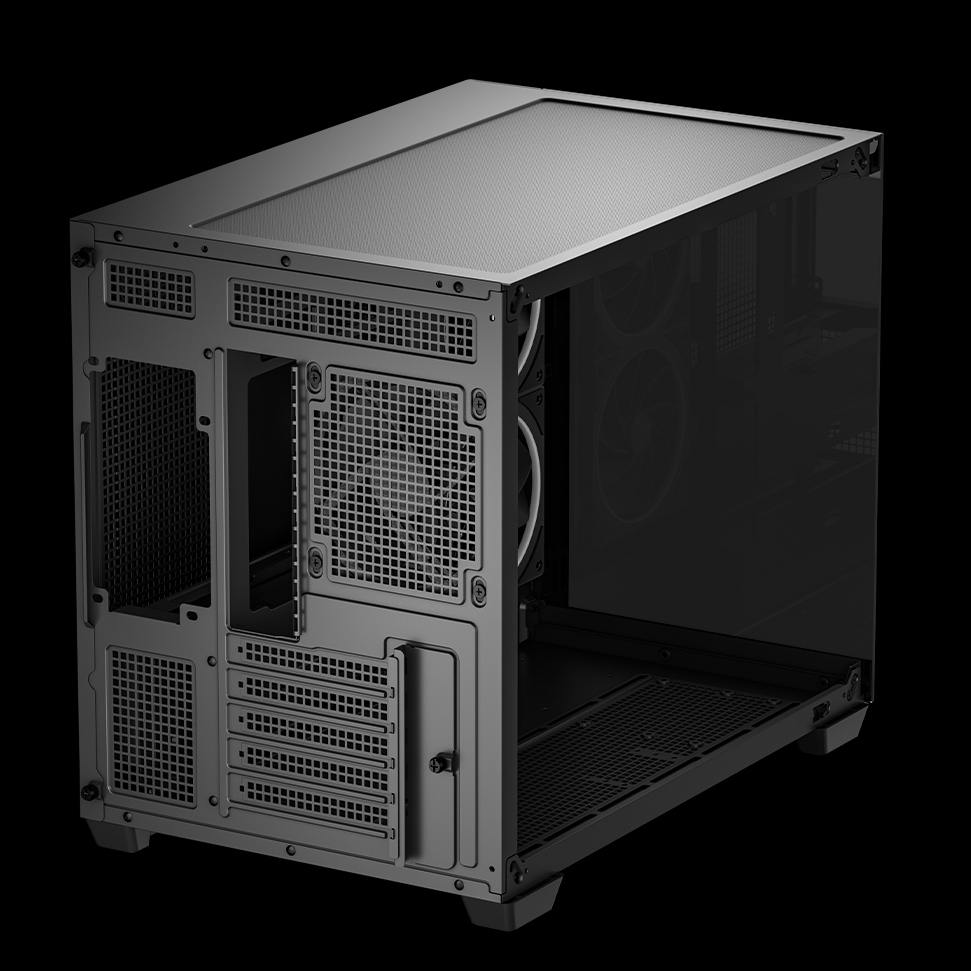

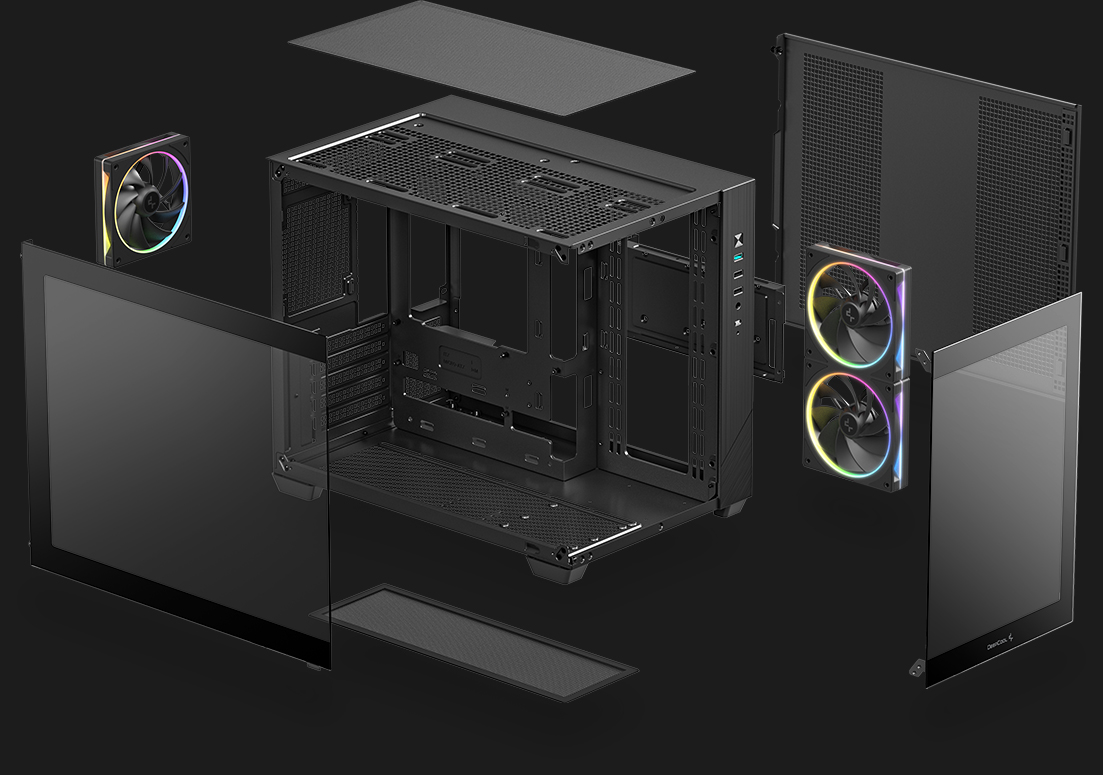

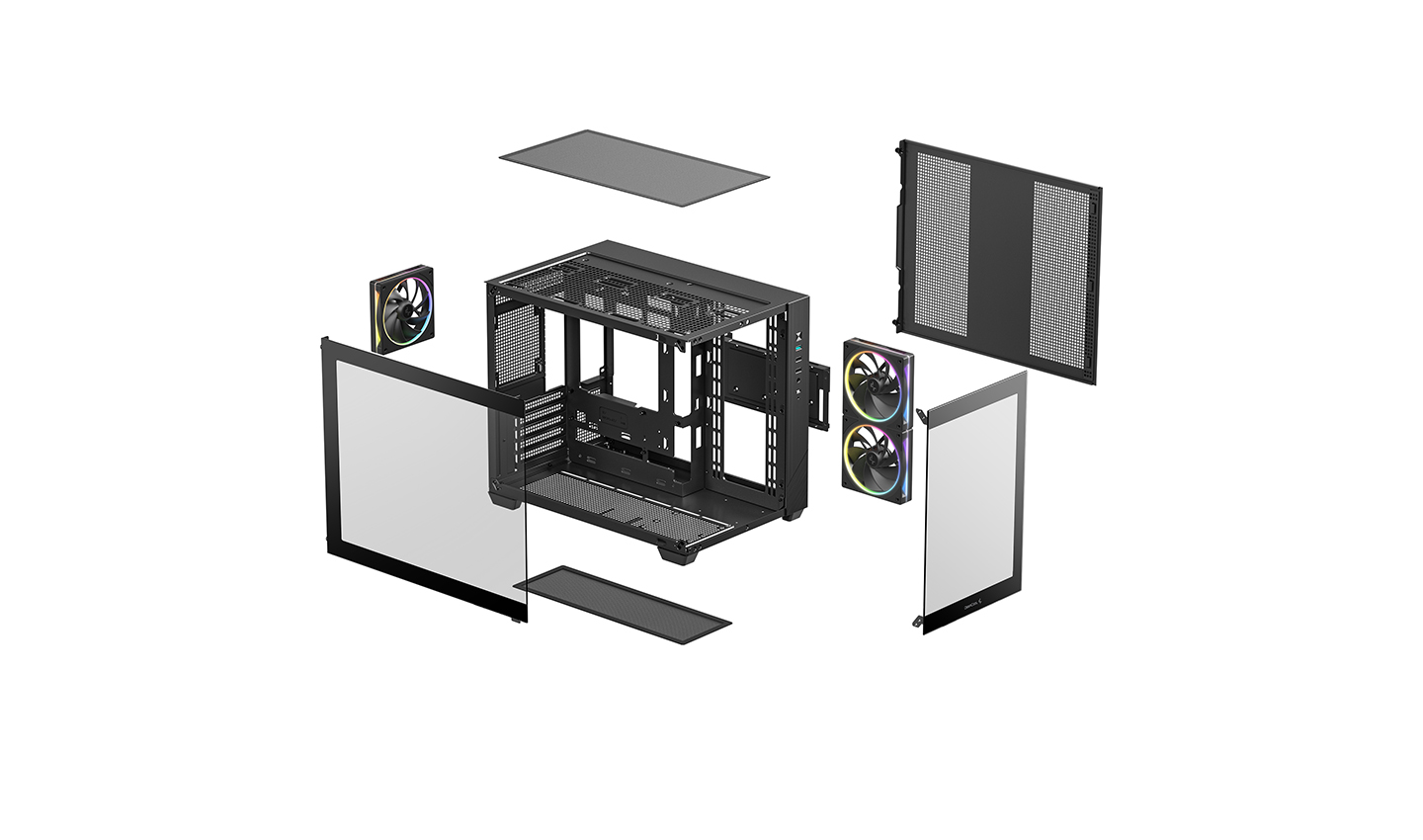

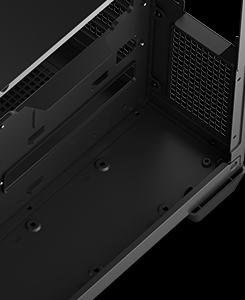

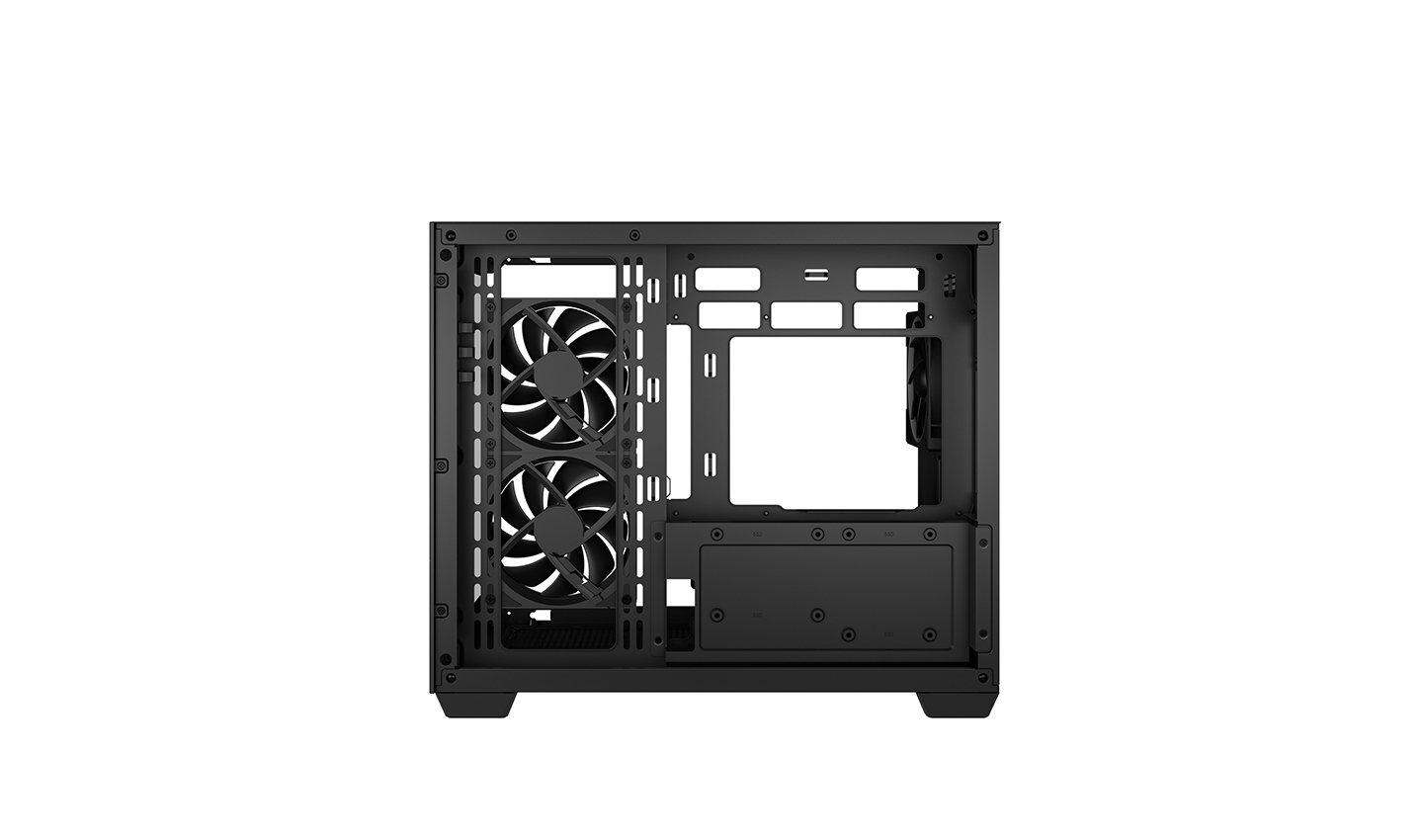

Start a clean build with a dual-chamber layout that isolates power and storage components from the main airflow path. This improves cooling efficiency and makes better use of internal space.
BALANCED AIRFLOW AND AESTHETICS

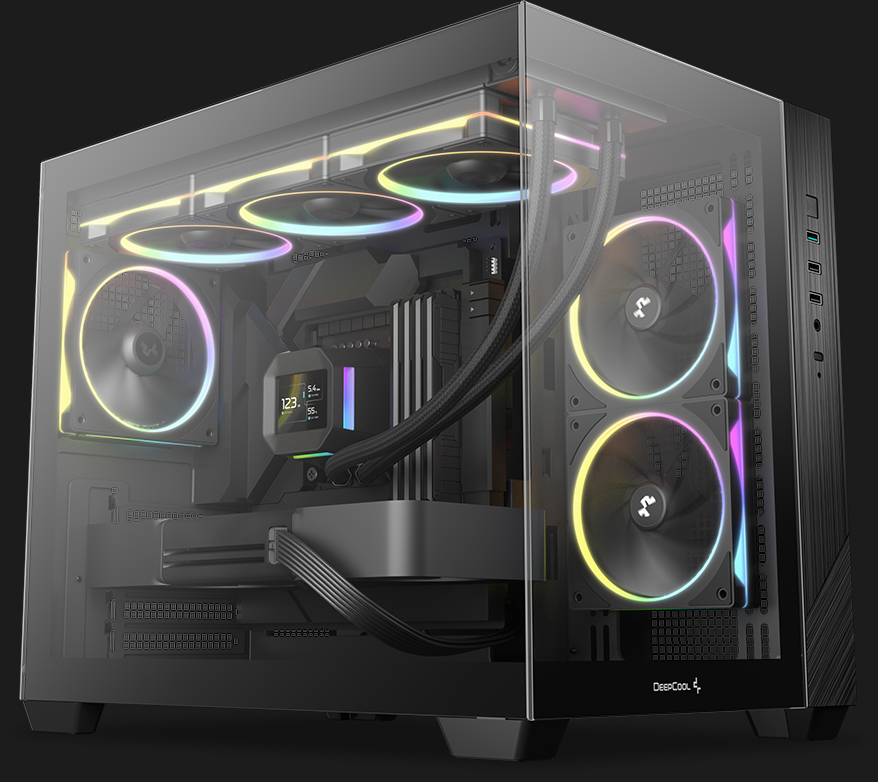

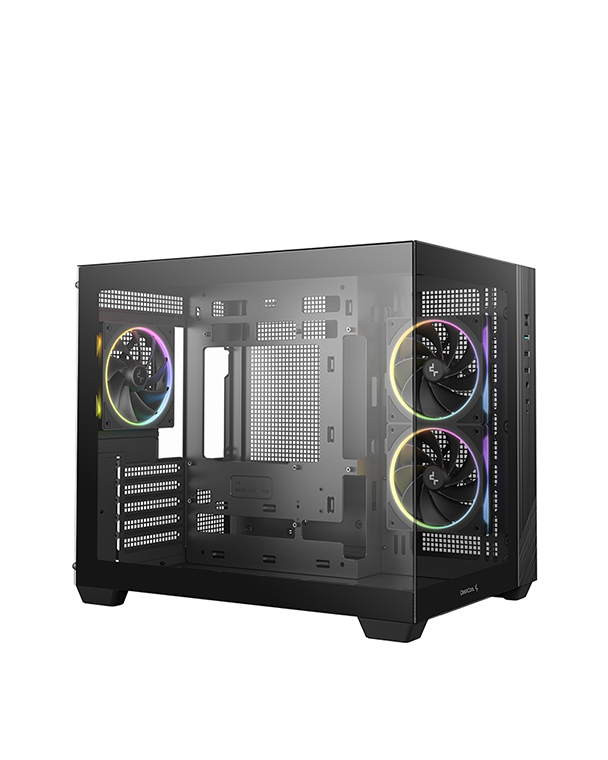

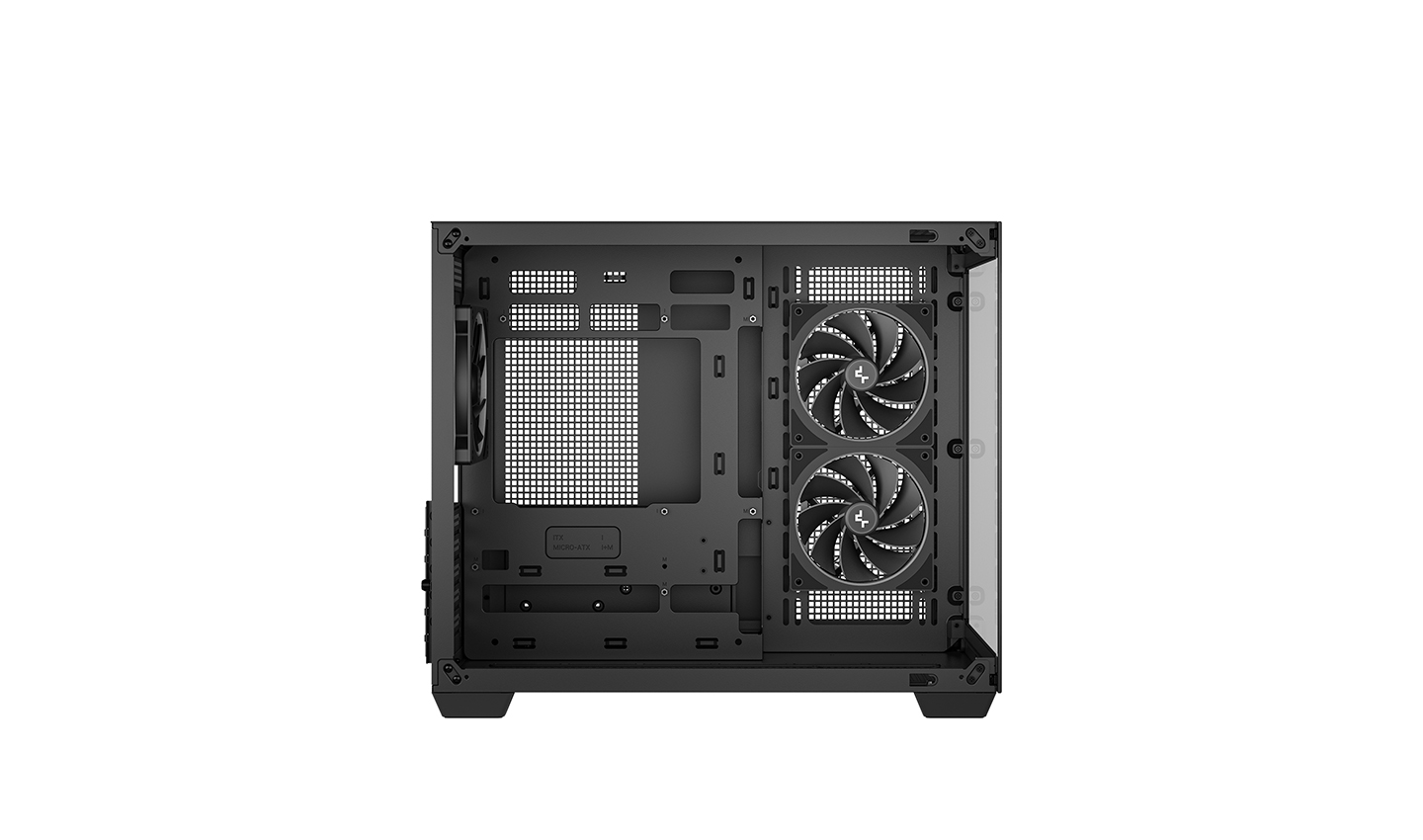

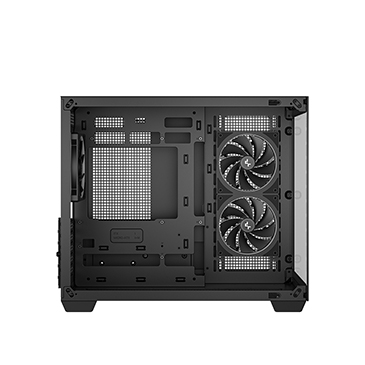

The CG330 3F comes pre-installed with two reverse-blade FL series fans on the side and one standard at the rear, forming a horizontal airflow channel that cools effectively. DeepCool’s unique lighting design delivers a uniform glow to your build.
WIDE HARDWARE SUPPORT

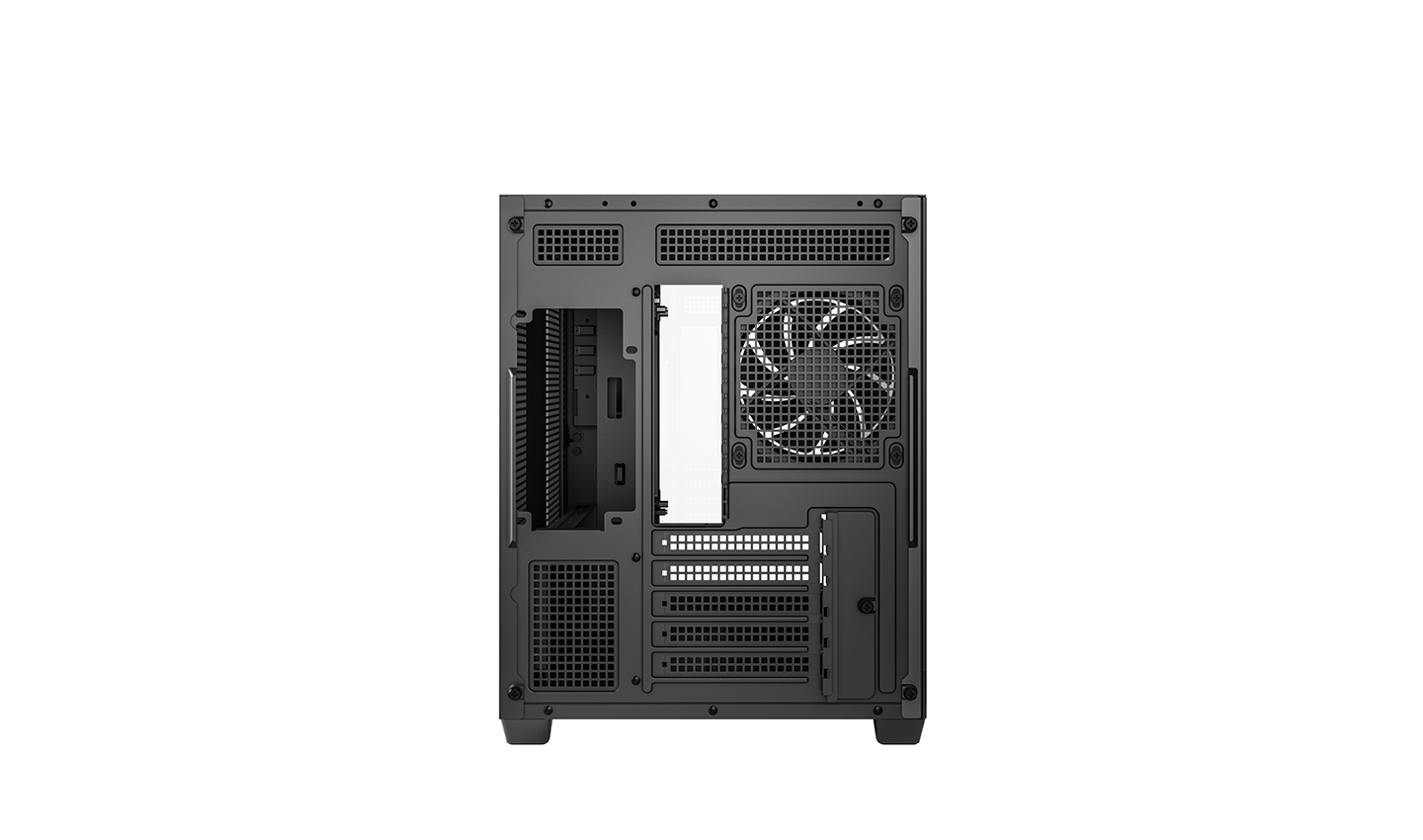

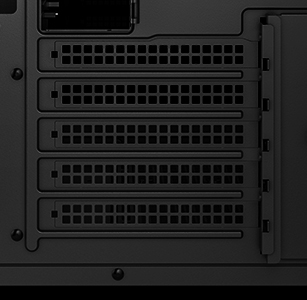

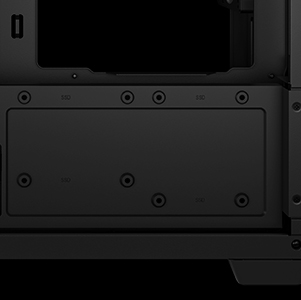

Compact in size yet generous in compatibility, the CG330 3F supports GPUs up to 410mm, ATX PSUs up to 200mm, and CPU coolers up to 164mm. With 5 PCIe slots, it accommodates most modern graphics and expansion cards, while storage options include up to 2× 3.5"" HDDs and 4× 2.5"" SSDs, giving you flexibility to balance capacity and speed.
COOLING FROM ALL SIDES
Never fear the heat with CG330 3F’s exceptional cooling flexibility. Install up to nine 120mm fans throughout the case to maximize airflow, while radiator support includes up to 360mm on the top or bottom, and up to 280mm on the side.

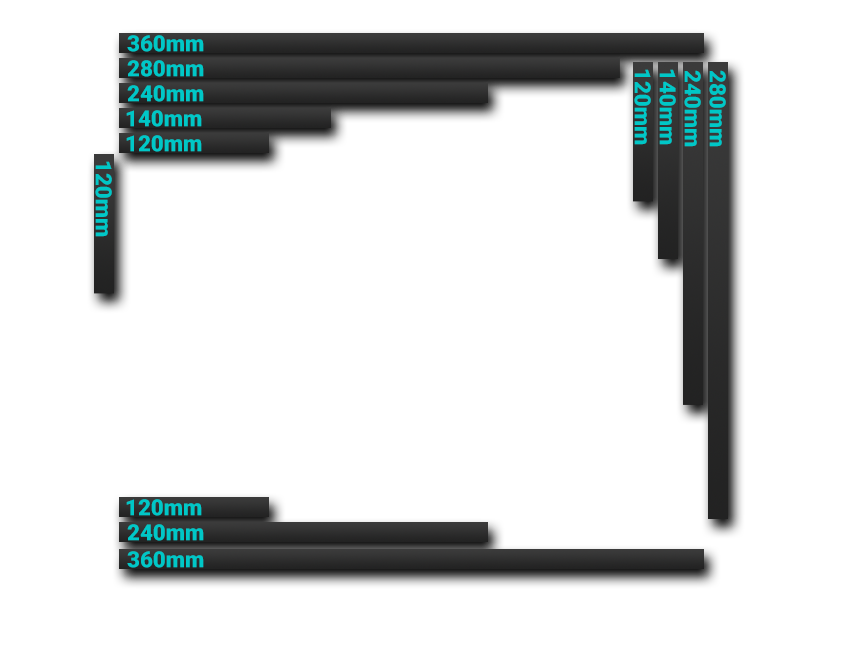

Radiator Support:
Top: 120/140/240/280/360mm
Side: 120/140/240/280mm
Bottom: 120/240/360mm
Rear: 120mm

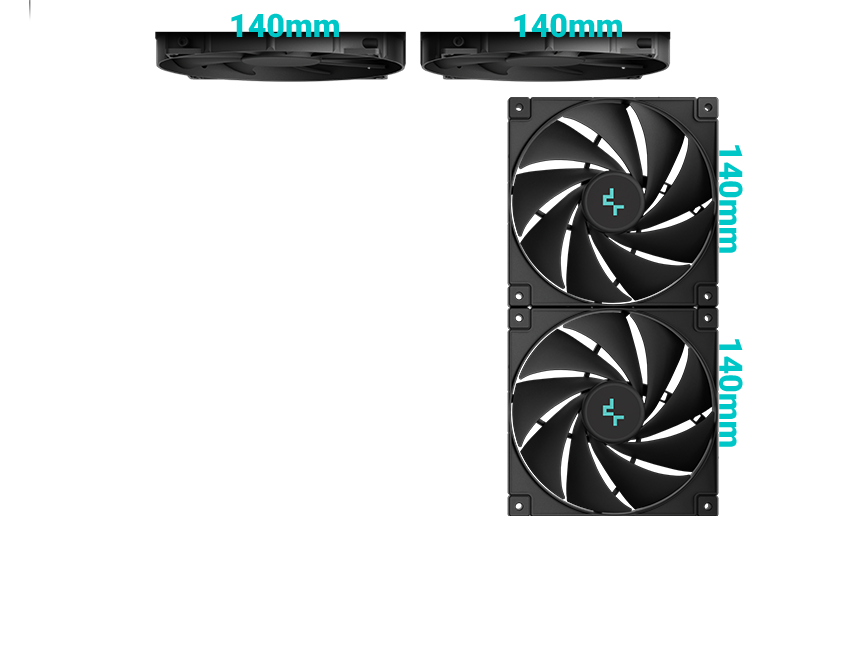

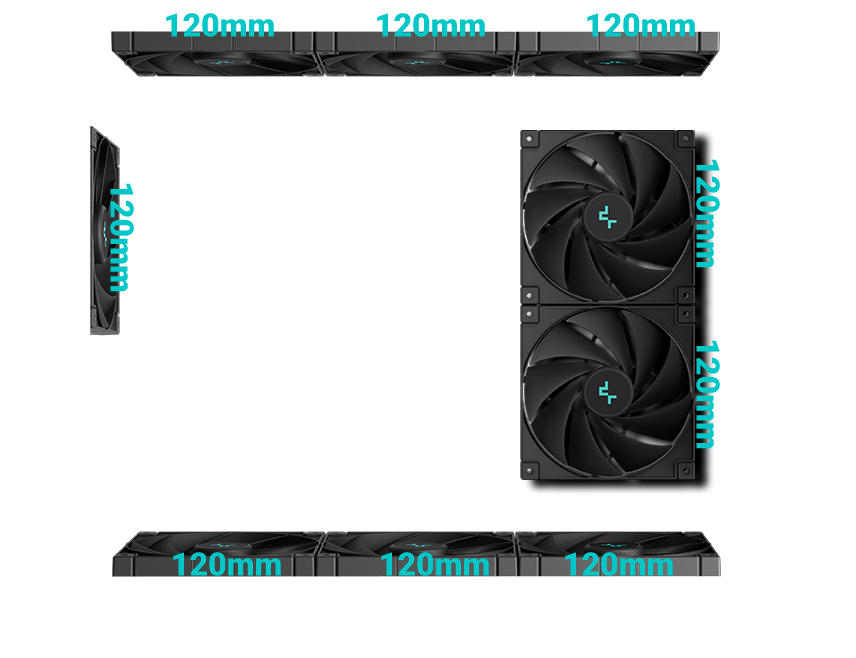

Fan Support:
Top: 3×120 / 2×140mm
Side: 2×120 / 2×140mm
Bottom: 3×120mm
Rear: 1×120mm
DETAILS THAT MATTER

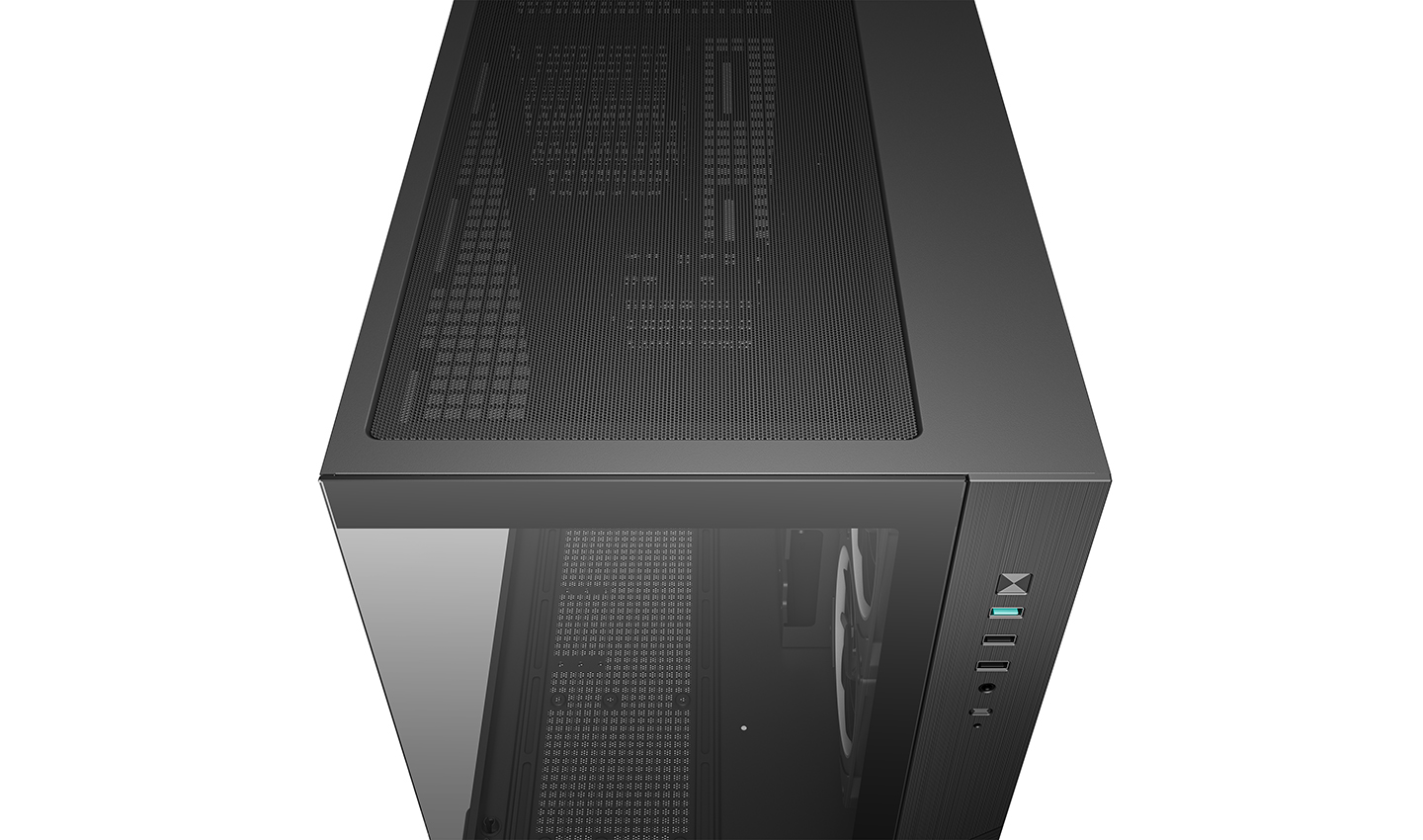

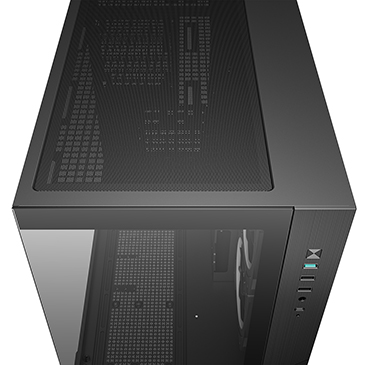

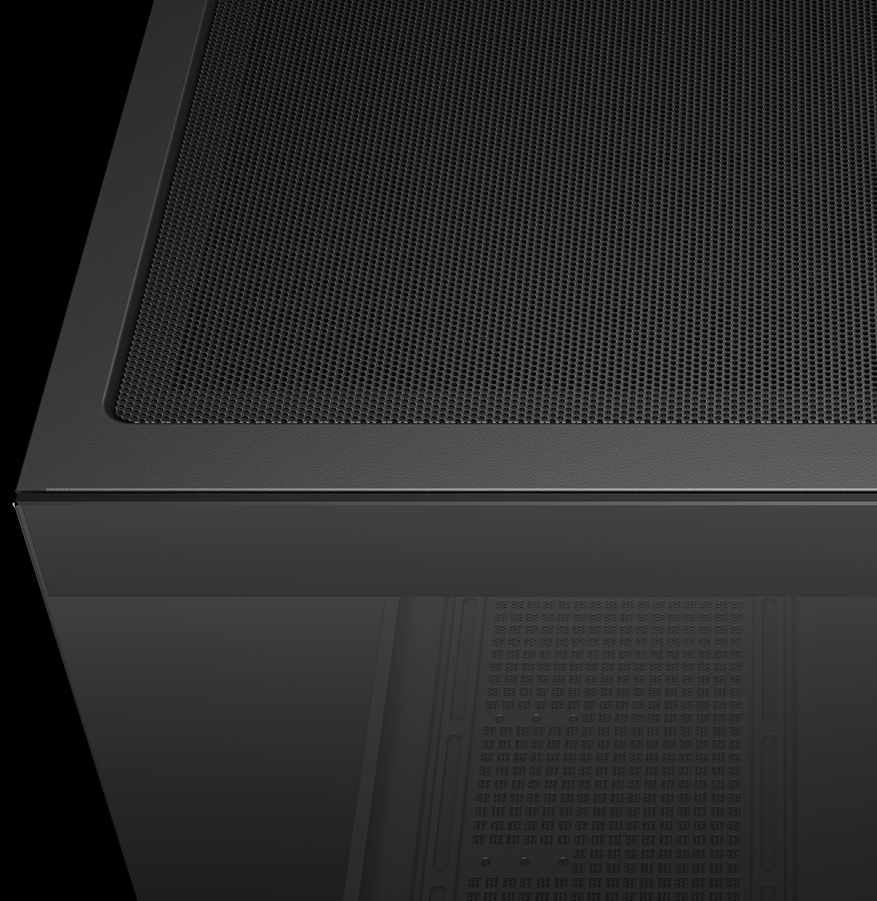

Magnetic dust filters on the top and bottom help reduce buildup and make cleaning easier.

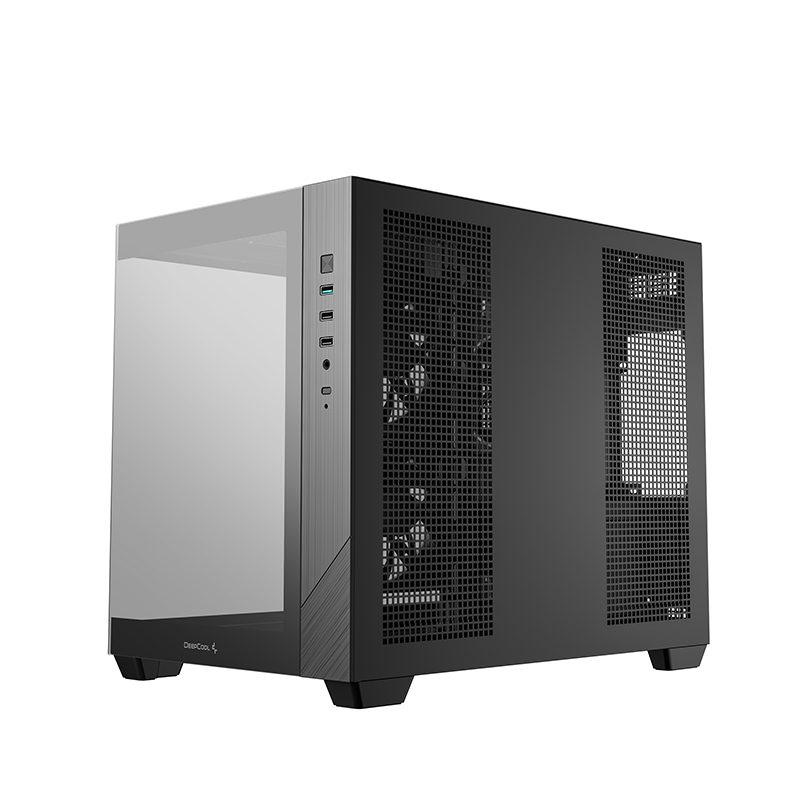

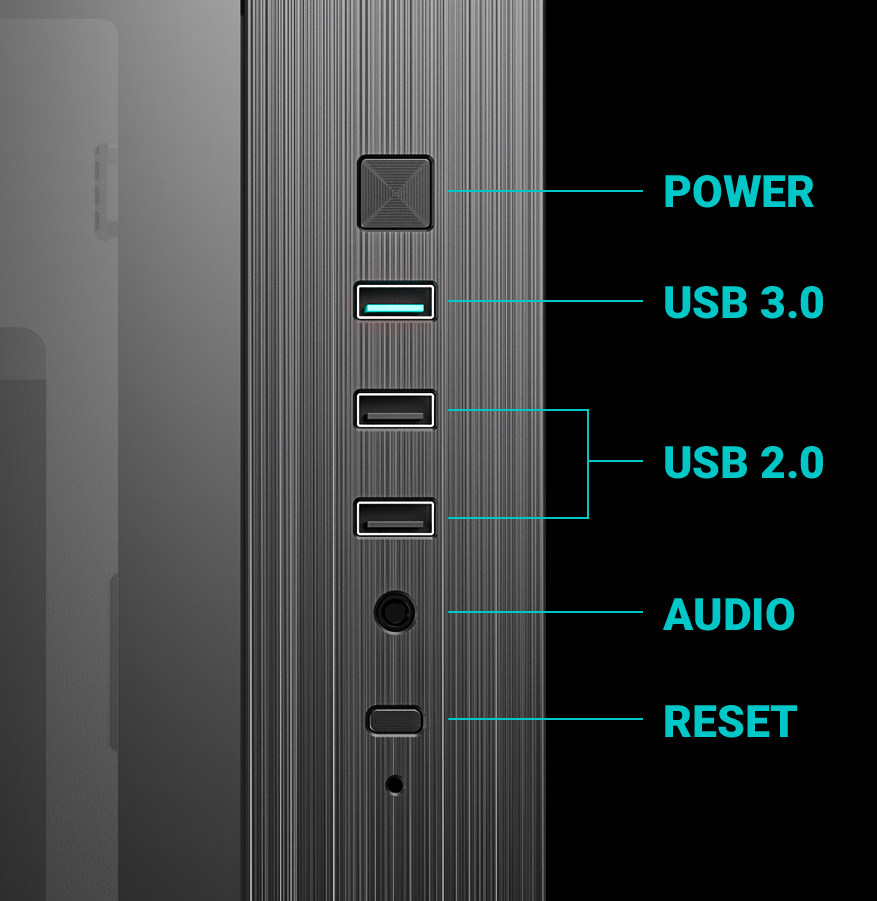

Access ports quickly with a side I/O panel featuring USB 3.0, dual USB 2.0, and an audio jack.

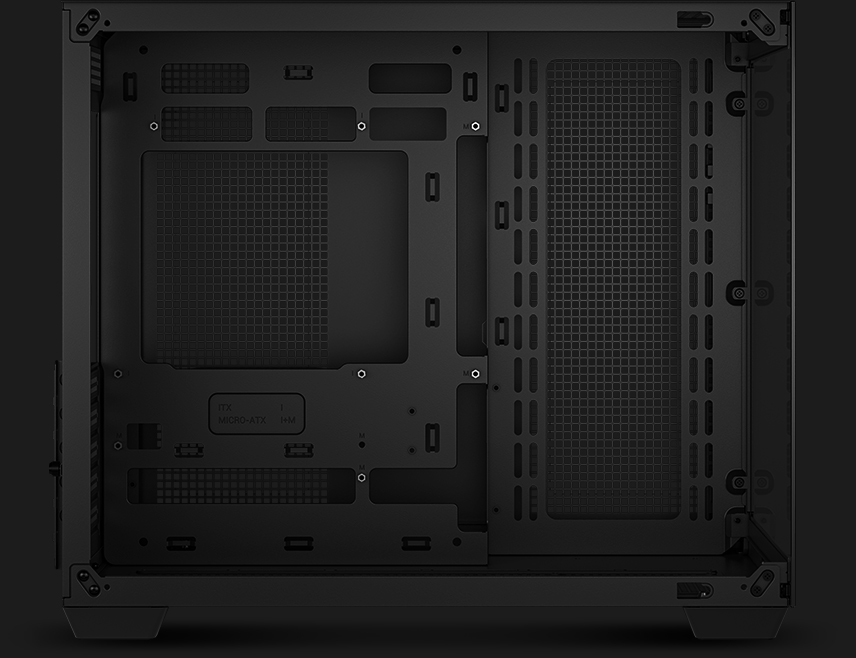

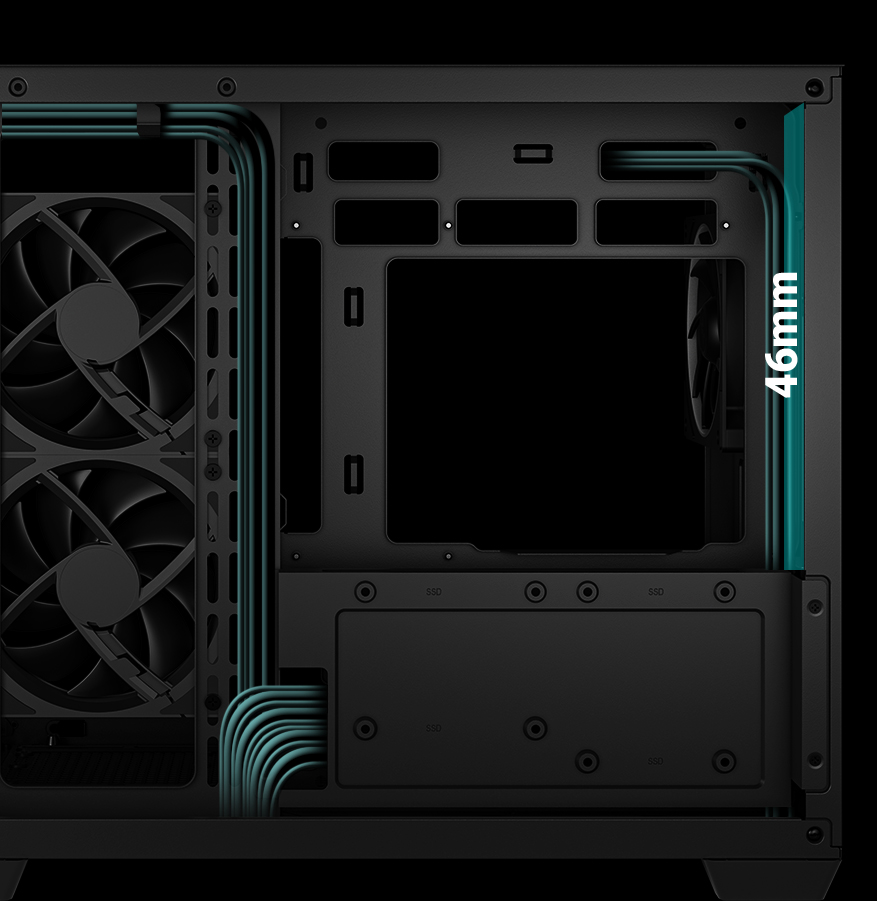

A spacious 46mm cable management area makes it easy to route and organize your cables.
Technical Spec
Product Dimensions420x285x368mm(L×W×H)
Net Weight5.5kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportITX/Micro-ATX
Micro-ATX(Rear Connector)
Front I/O PortsUSB3.0 x1,USB2.0 x2,Audio x1
3.5" Drive Bays1+1
2.5" Drive Bays2+2
Expansion Slots5 Slots
Pre-Installed FansSide: 2×120mm
Rear: 1×120mm
Fan SupportTop:3×120 / 2×140mm
Side:2×120 / 2×140mm
Bottom:3×120 / 2×140mm
Rear: 1×120mm
Radiator SupportTop: 120/140/240/280/360mm
Side:120/140/240/280mm
Bottom:120/240/280/360mm
Rear: 120 mm
CPU Cooler Height Limit163mm
GPU Length Limit410mm
Power Supply Type200mm
EAN6933412765493
P/NR-CG330-BKNGM3-G
Download
CG330 3F Manual.pdf
