RGB Controller

Remote Control

Overview

The DeepCool RGB Controller is designed to remotely control RGB lighting effects simply without having to install any clunky software.

How it works

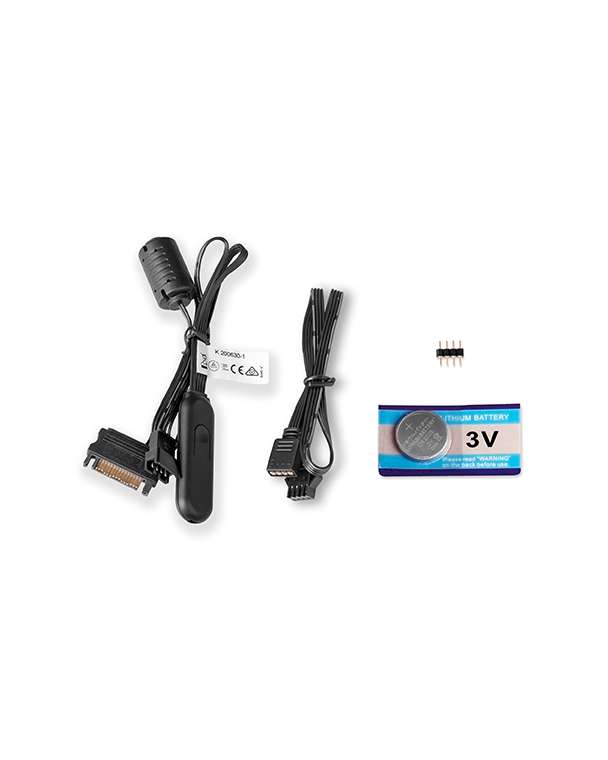

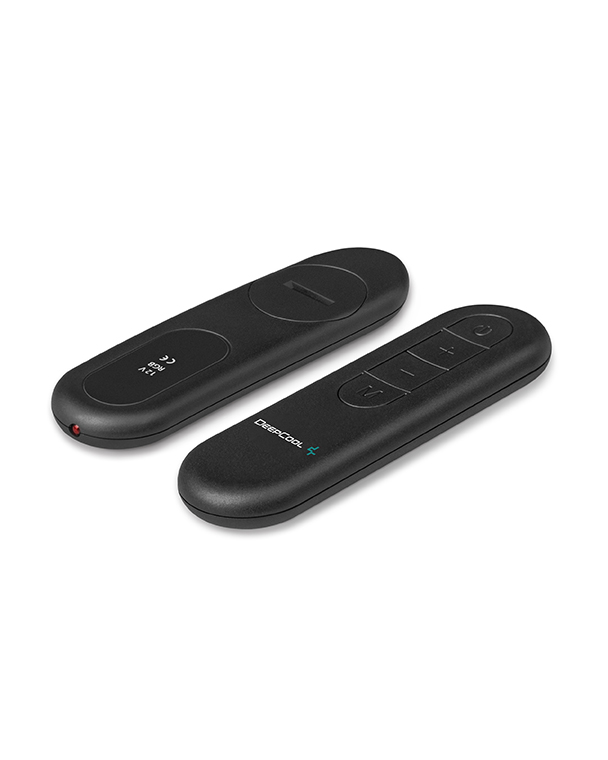

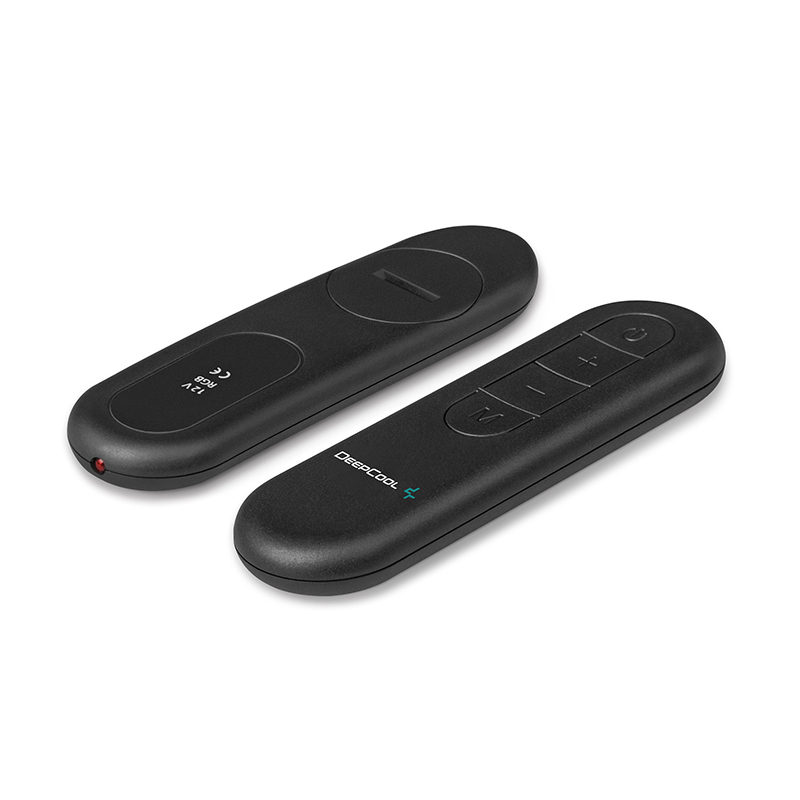

The RGB Controller system includes a receiver unit and a magnetic remote controller to easily attach to any steel case.

Just plug in a 4-pin RGB wire and SATA power cable to the receiver and the remote controller can wirelessly control numerous lighting effect presets.

The remote controller is powered with a 3V button(CR2025) battery (2 included).

How it works

The RGB Controller system includes a receiver unit and a magnetic remote controller to easily attach to any steel case.

Just plug in a 4-pin RGB wire and SATA power cable to the receiver and the remote controller can wirelessly control numerous lighting effect presets.

The remote controller is powered with a 3V button(CR2025) battery (2 included).

The back up plan

Just in case the battery runs out on the remote controller, the receiver unit features a button to manually switch lighting functions or turn on/off.

For added functionality, the receiver unit can also be attached to the front I/O reset button for convenient control outside the case.

Widely Compatible

With the included adaptor, the RGB Controller can also control any non-DeepCool RGB products that have a standard 4-pin 12V RGB connector.

Technical Spec

Product Dimension	Remote Control：90×27×9 mm Receiver：55×17×8 mm
Net Weight	50 g
Port Type	SATA 12V×1 、4-pin(+12V-G-R-B)×1
Extension Port	2-pin
Length of HUB Strip Cable	SATA 12V×1：400 mm 4-pin(+12V-G-R-B)×1：170 mm
Mounting Method	Magnet
EAN	6933412796169
P/N	DP-MG-CTR-RGB-RMT

Download

RGB Controller Manual.pdf
