FH-10

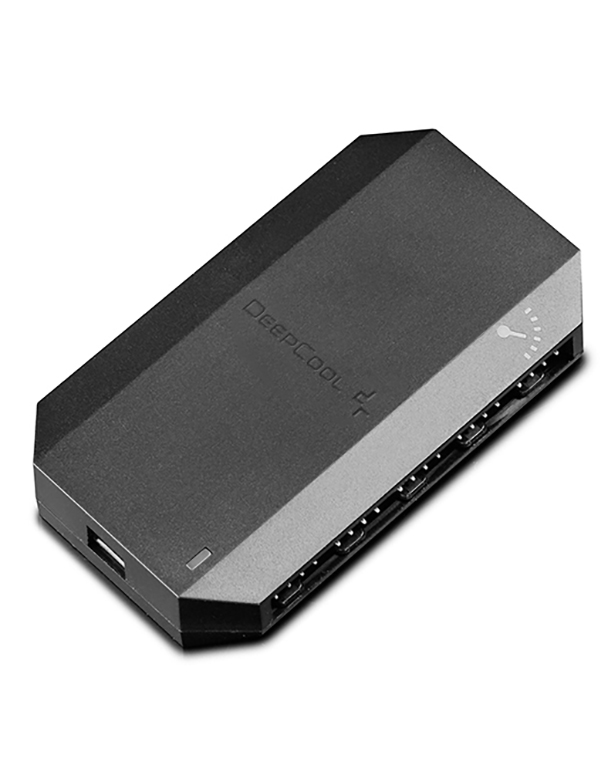

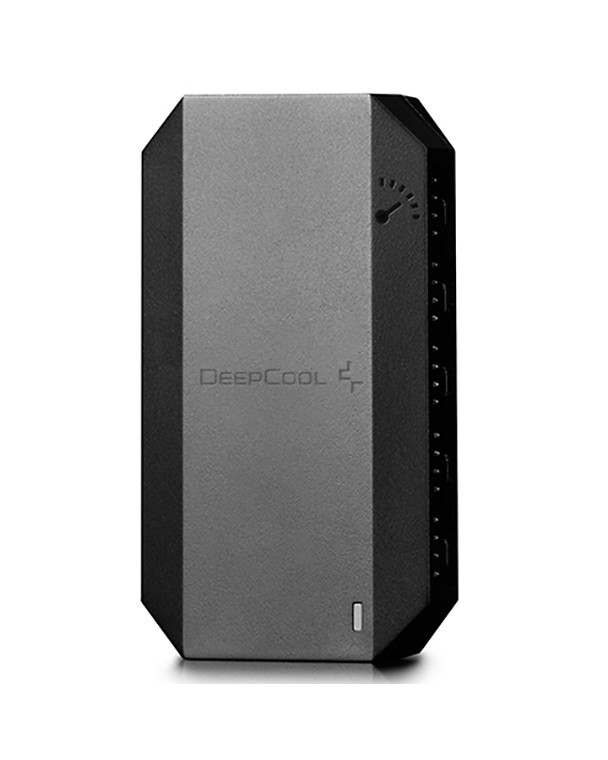

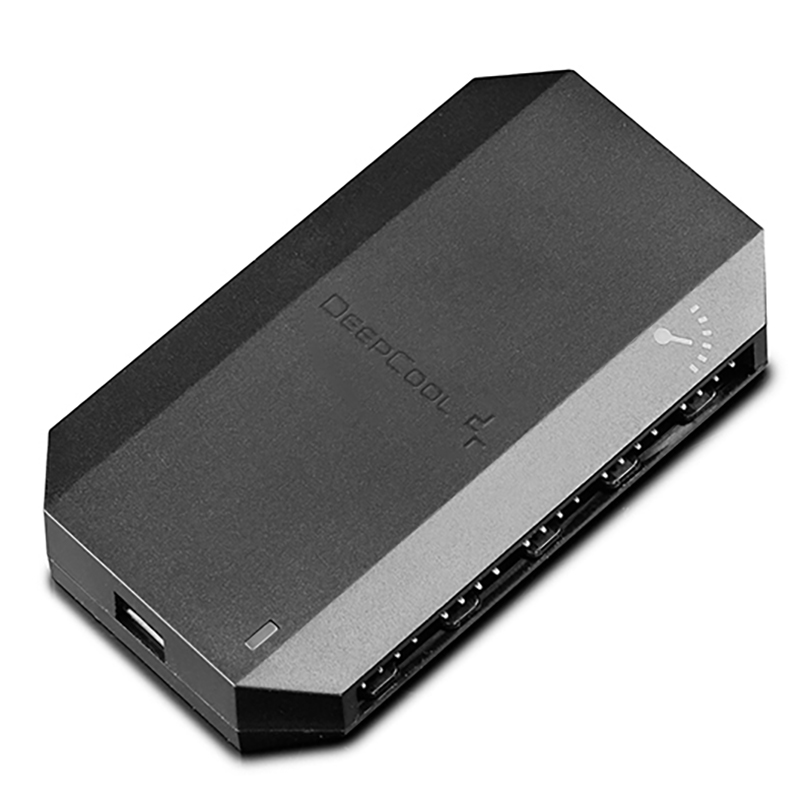

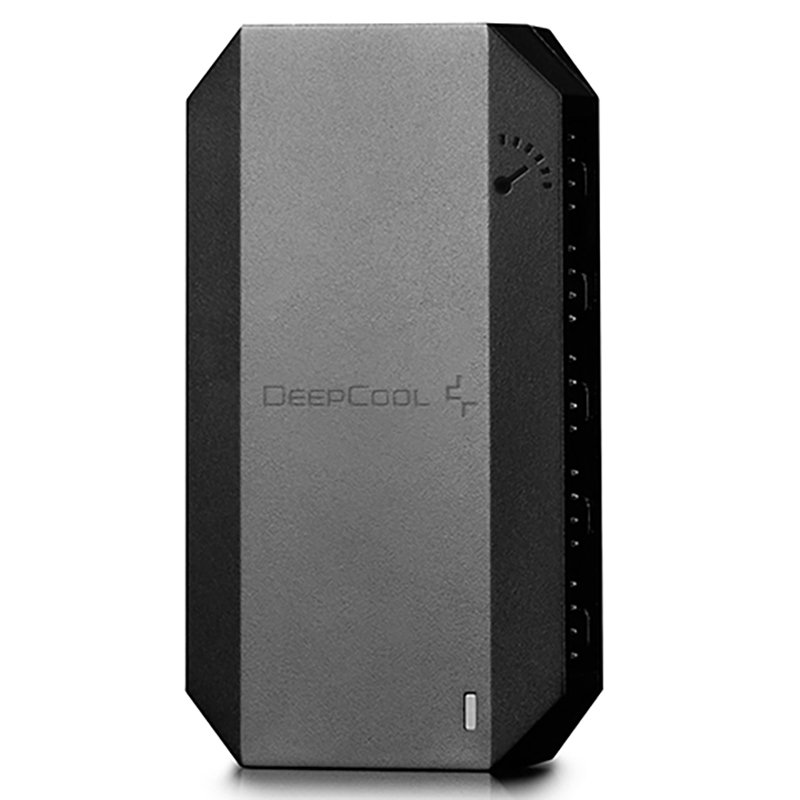

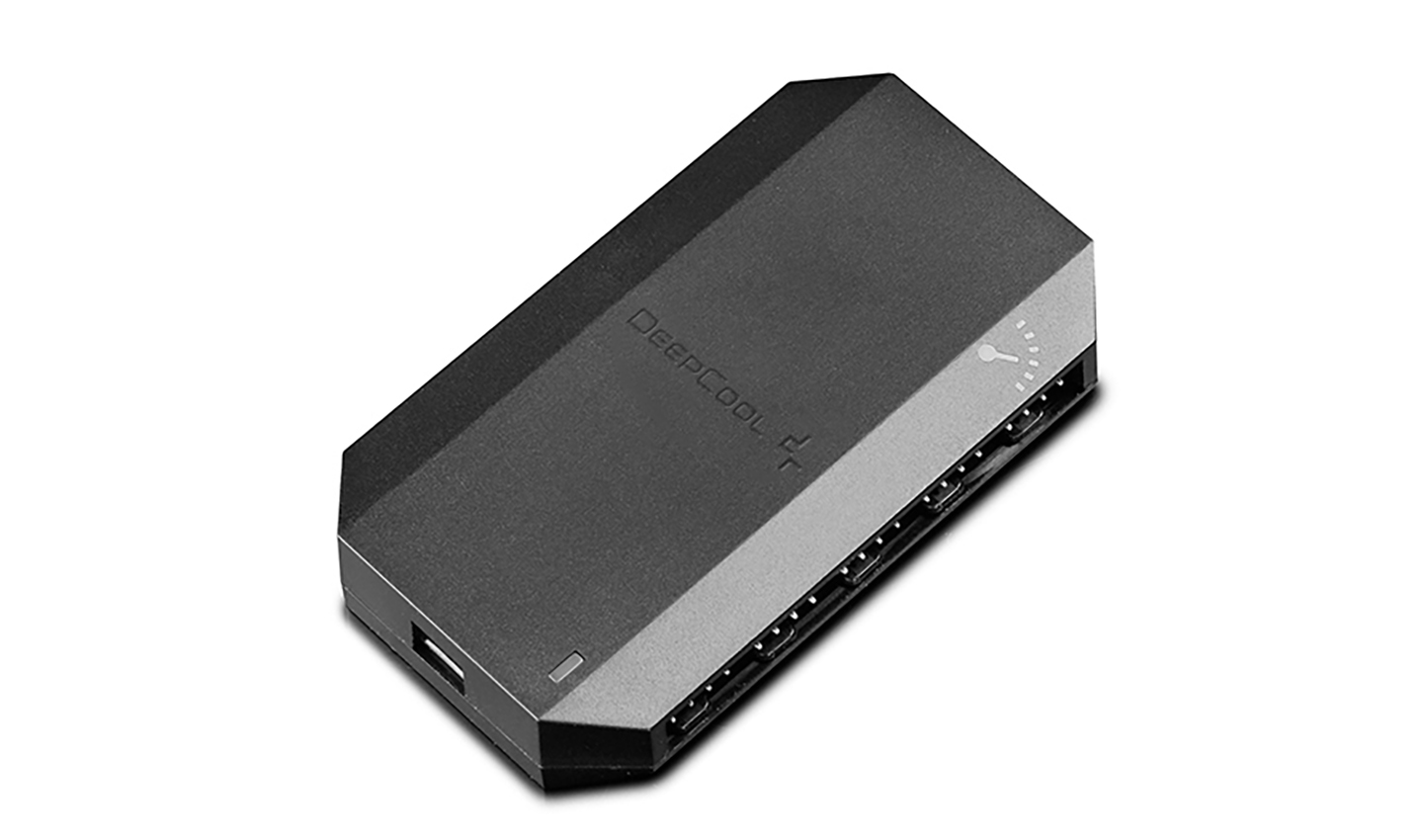

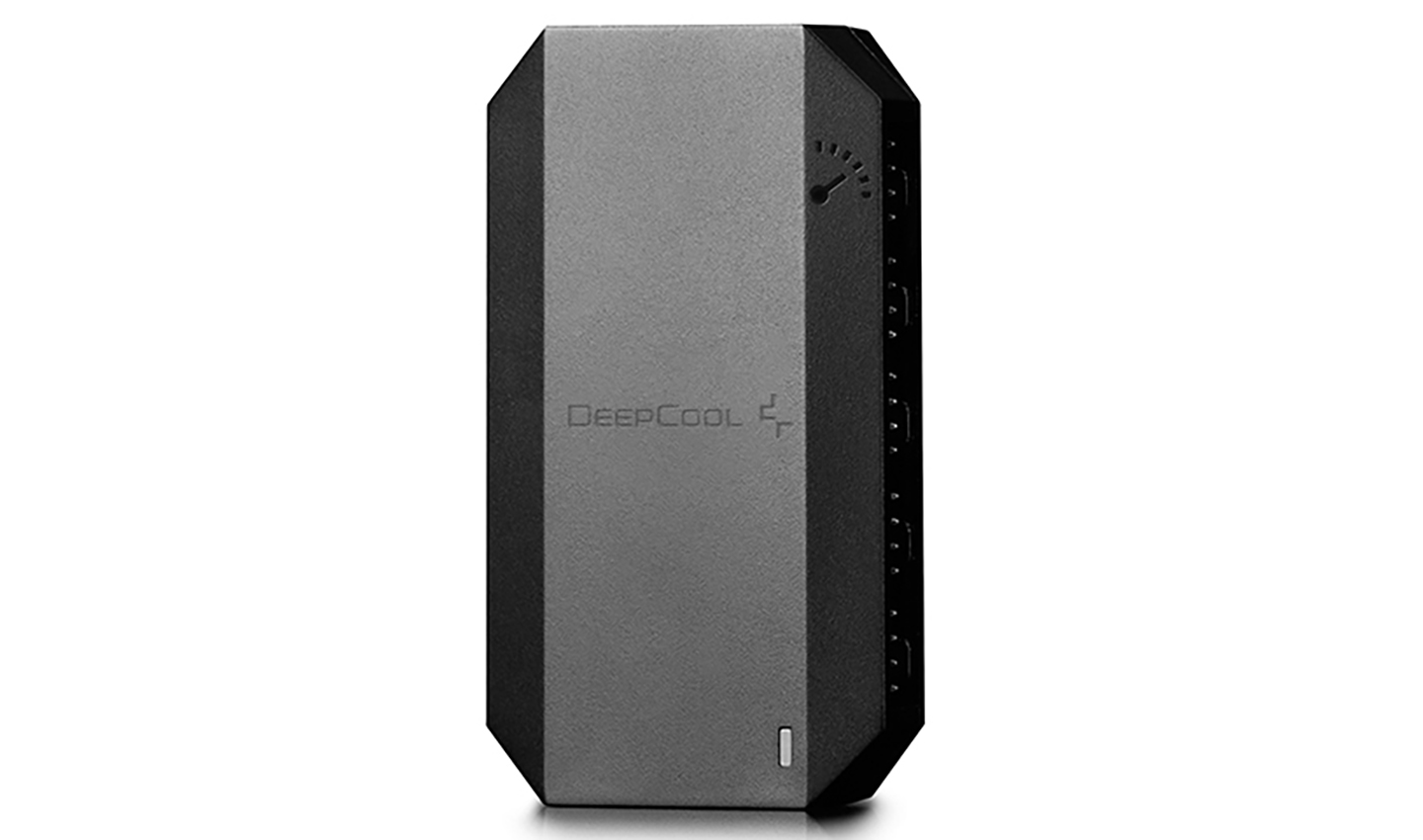

FH-10 is an integrated fan hub capable of powering up to 10 PWM fans (3-pin or 4-pin) while occupying only one motherboard fan header.
COLOR
black
MODEL
FH-10
10-port Fan Hub
Description
FH-10 is a brand new integrated fan hub from DeepCool capable of powering up to 10 fans (3-pin or 4pin) with PWM modulation, while occupying only one 4-pin motherboard header per Fan Hub. The FH-10 fan hub allows users to fully populate the case with fans while maintaining clean and efficient cable management. At the same time the blue LED indicator light makes it an attractive choice for cooling performance enthusiasts as well as users seeking no-fuss installation.
FH-10
10 Port Fan Hub

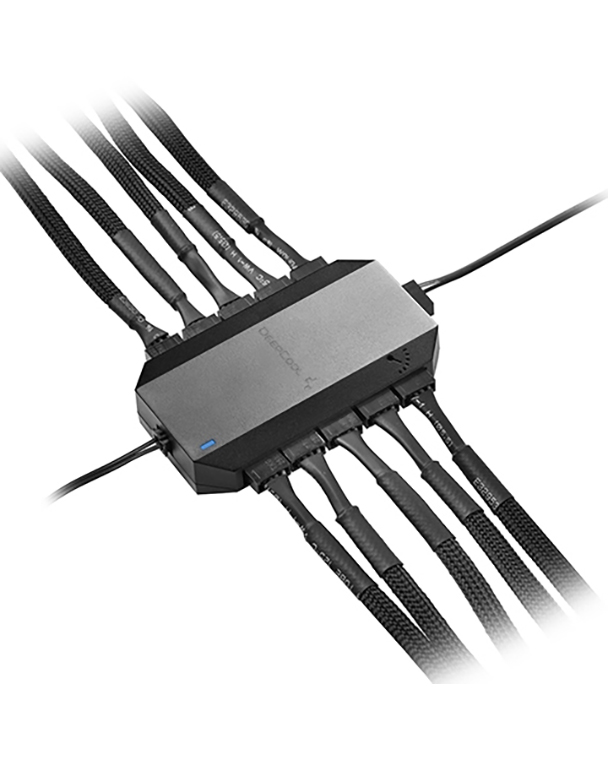

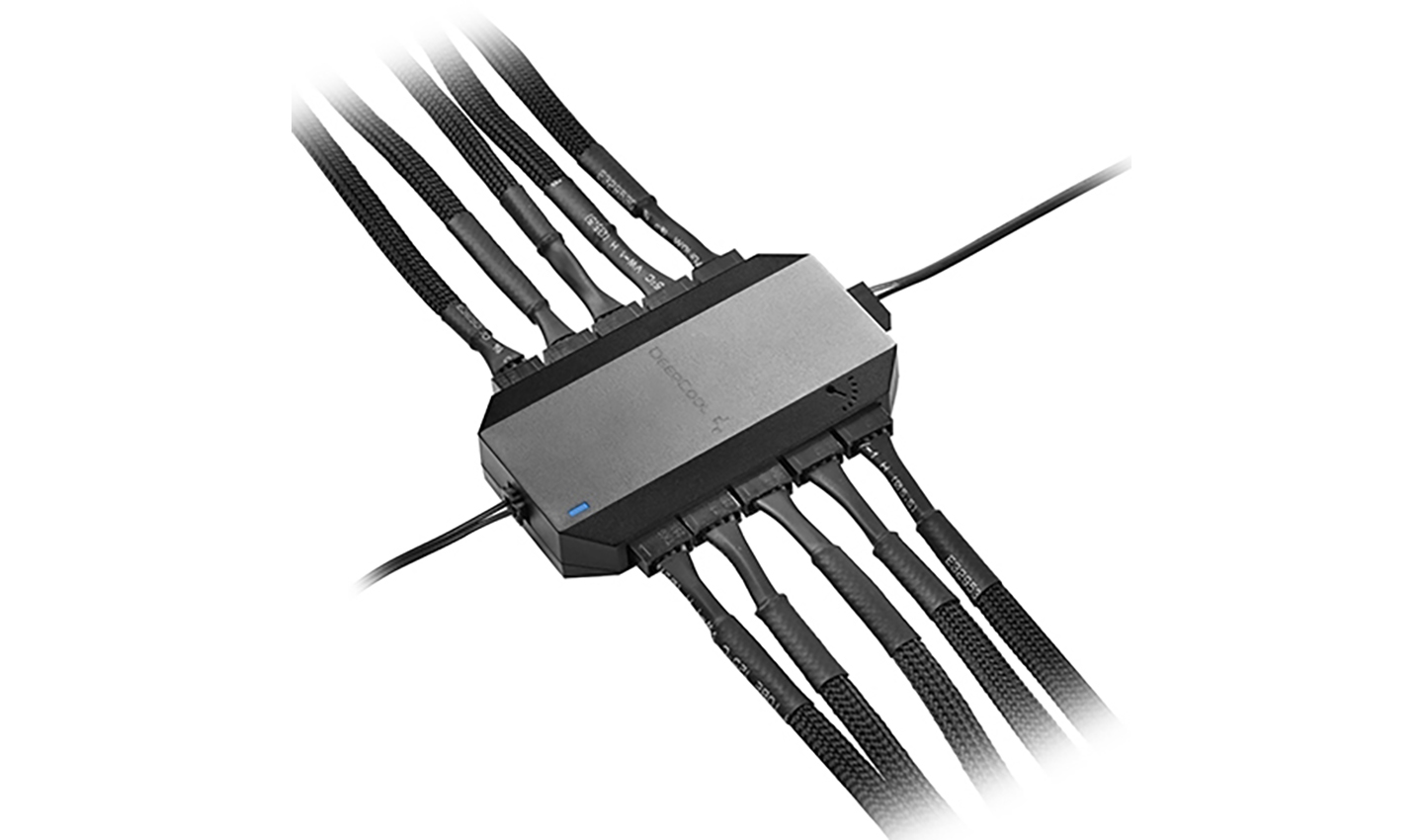

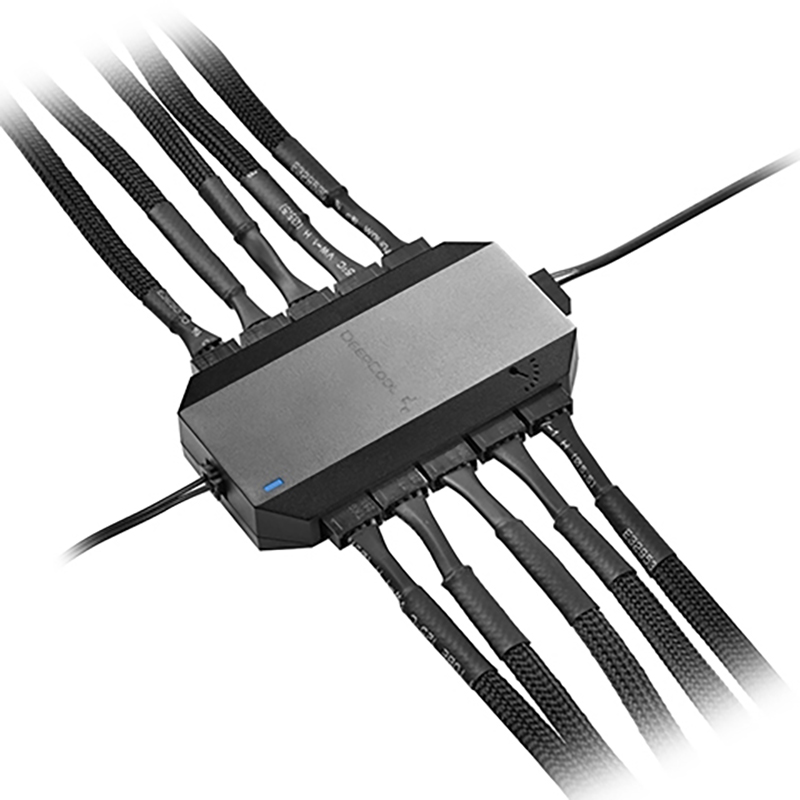

Supports up to 10 Independent Fans
The ability to deploy up to 10 fans enables users to greatly expand cooling capability within the chassis and enjoy enhanced system performance.

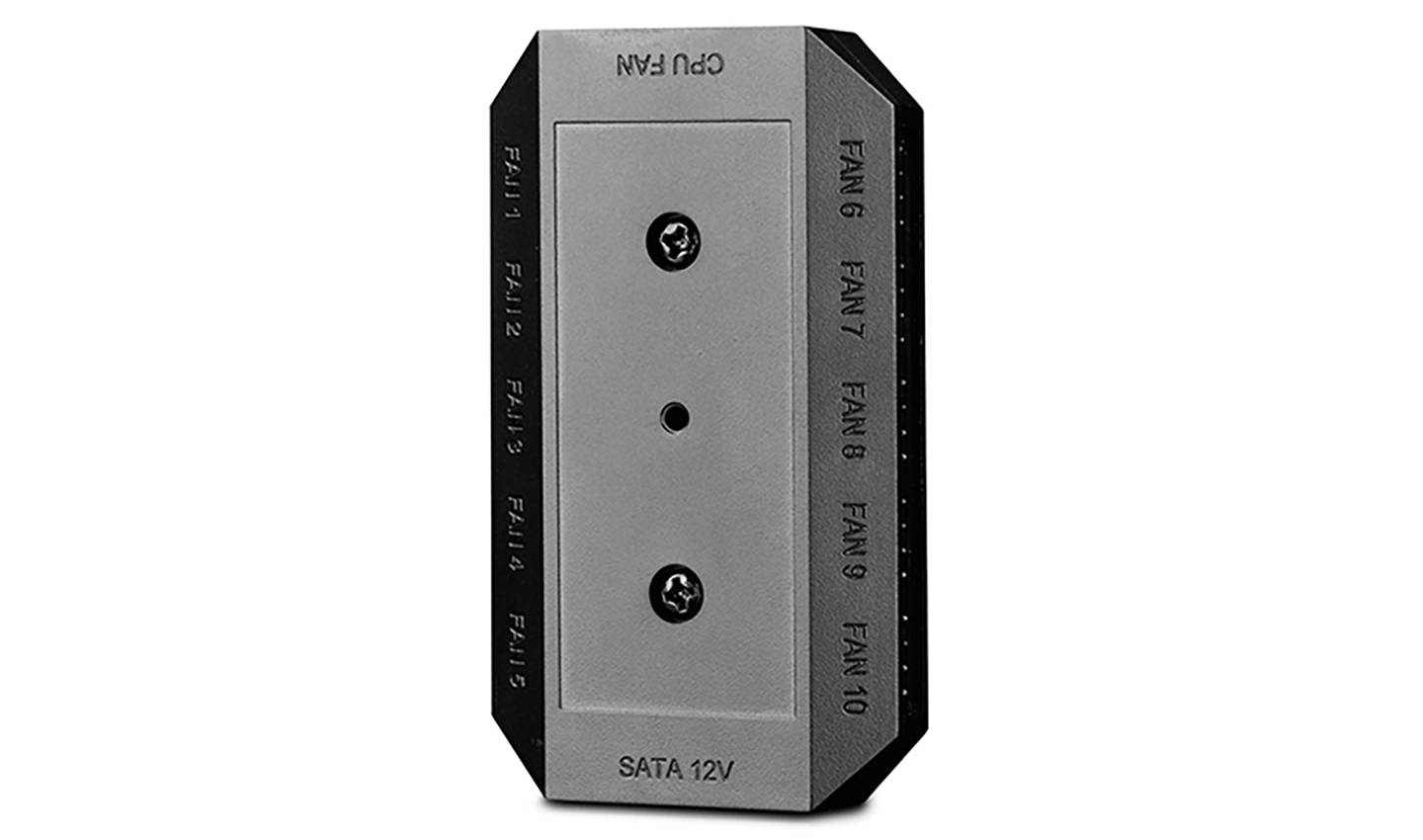

Stable SATA Power Input
Powered by a stable SATA connection to the system PSU, the FH-10 delivers safe and reliable power for up to 10 fans.
PWM Function Design

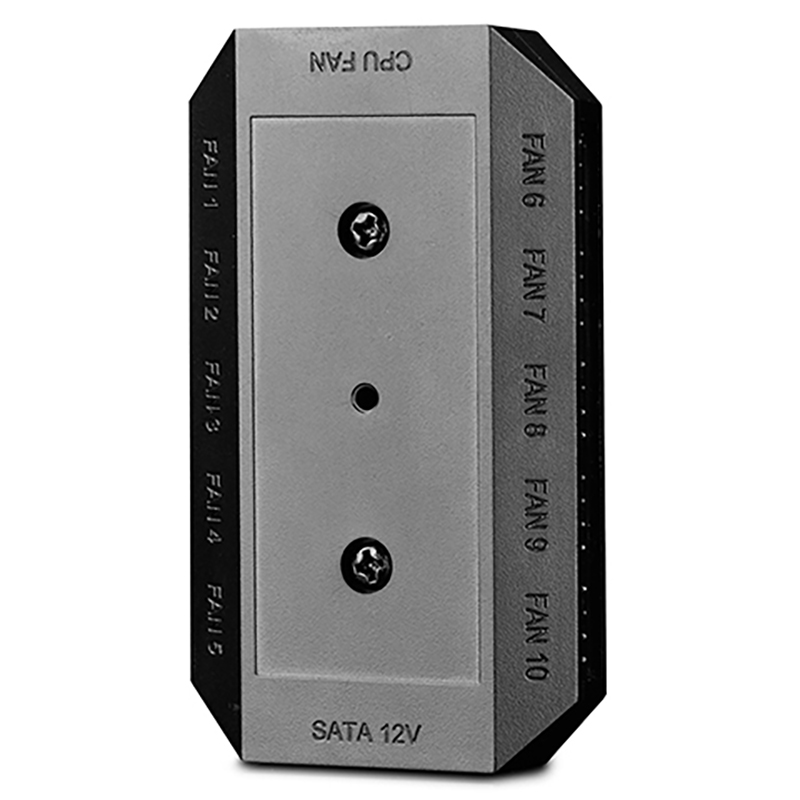

Each port has its own PWM function and the fan speed can be adjusted at the same time, but only the speed of Fan 1 can be identified by the system.

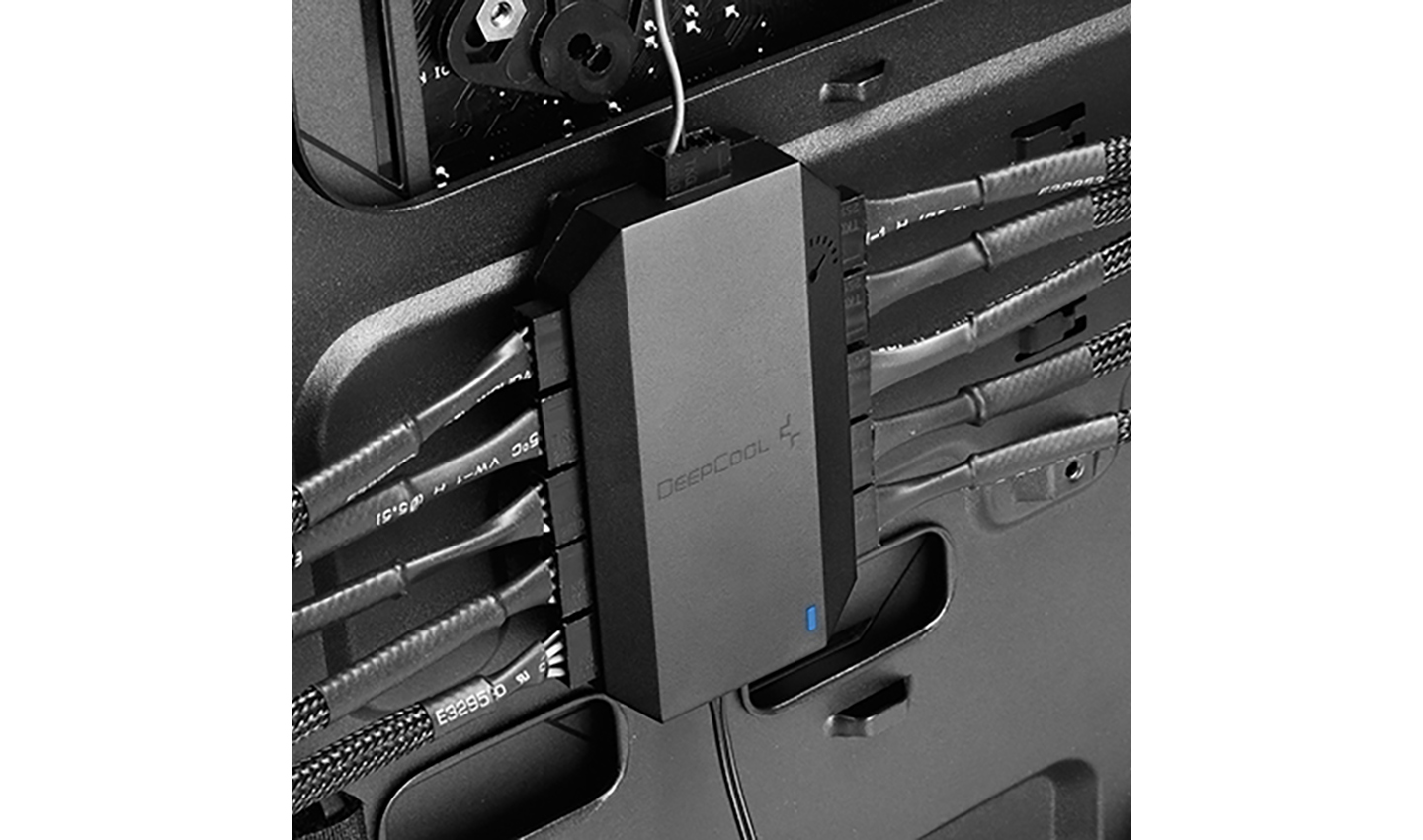

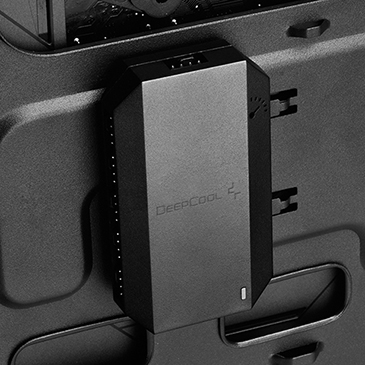

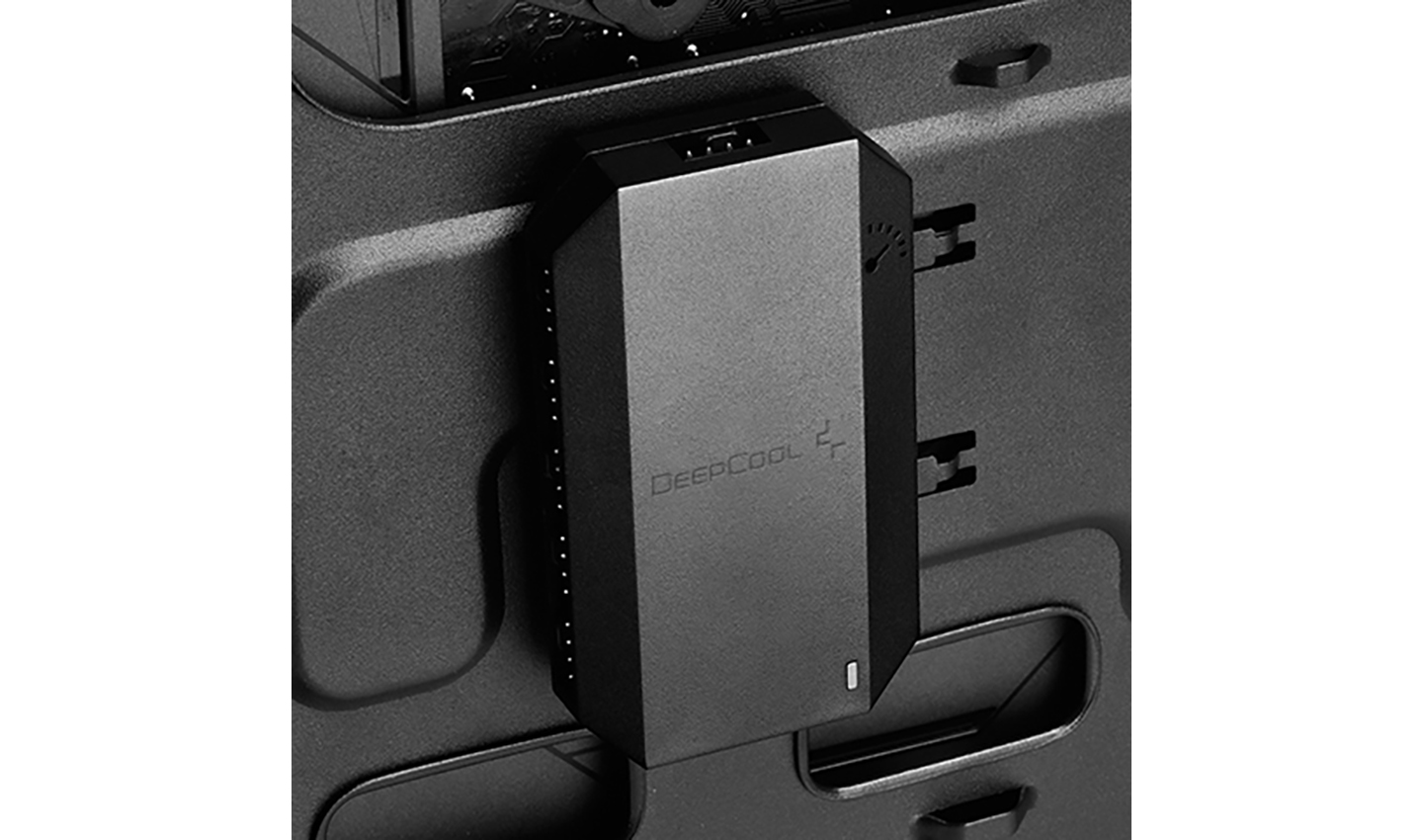

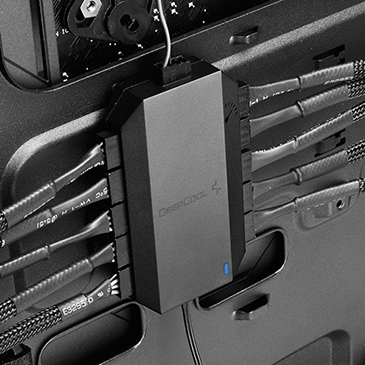

Optimized Cable Management

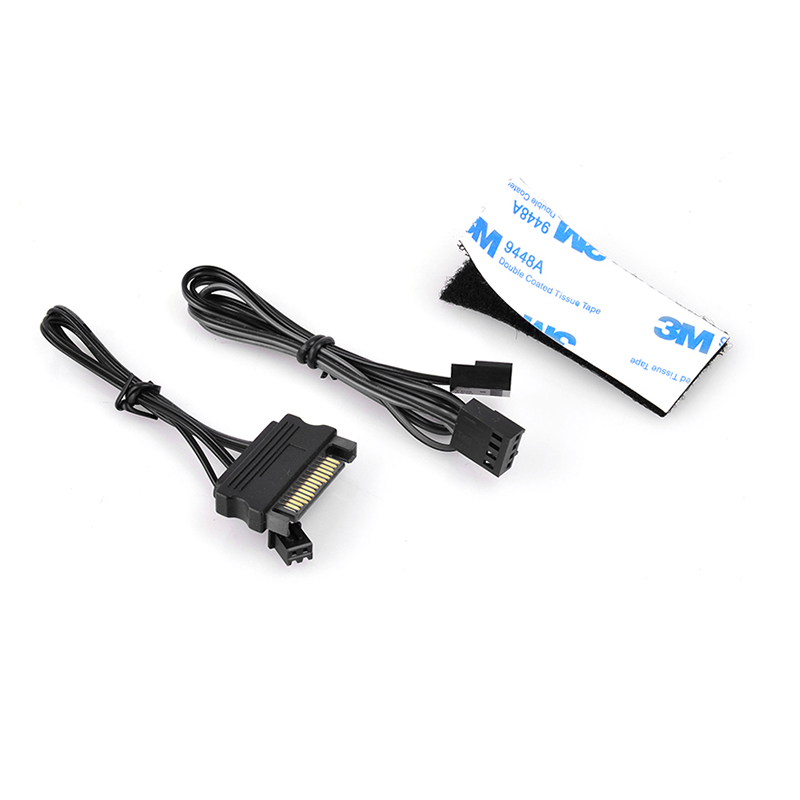

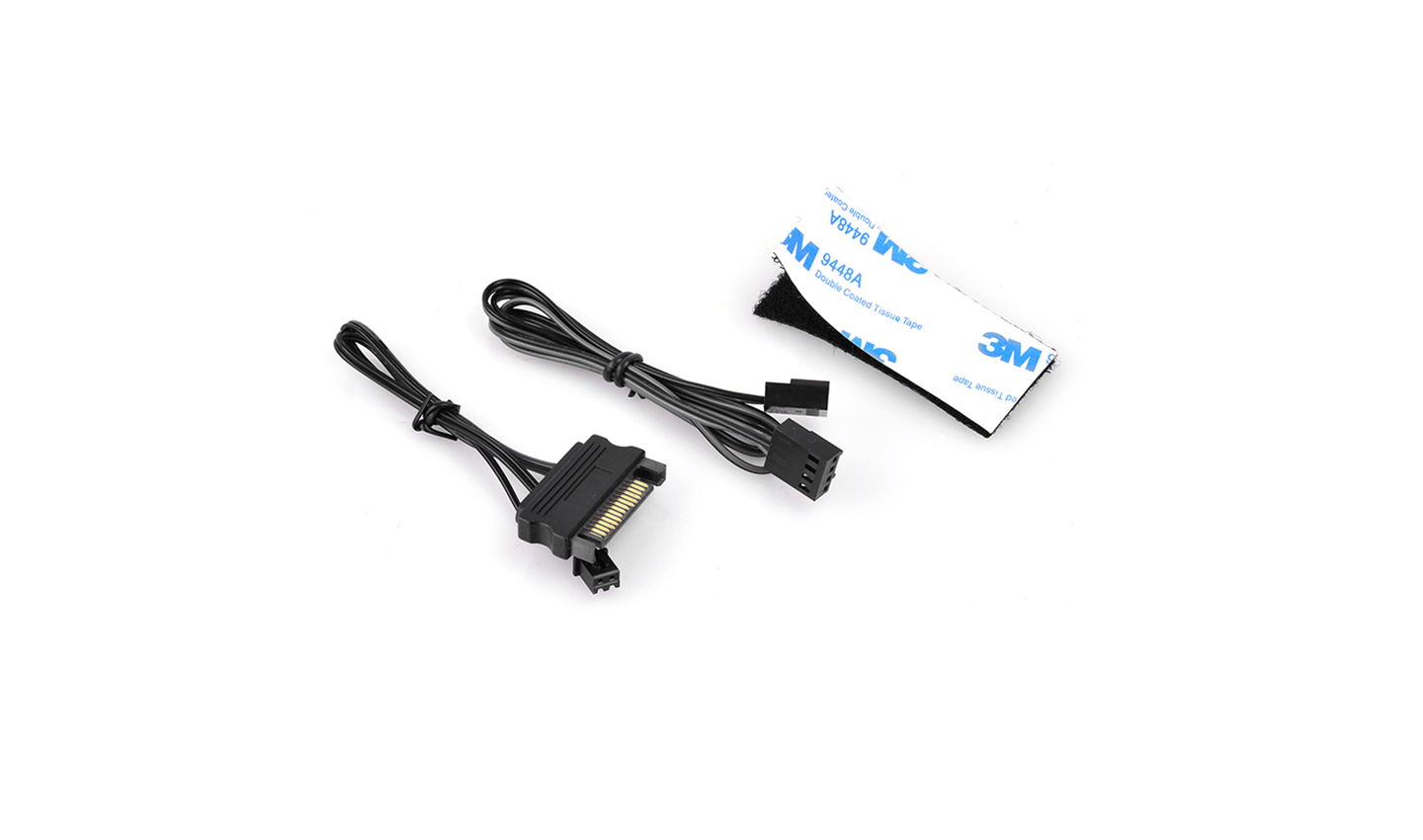

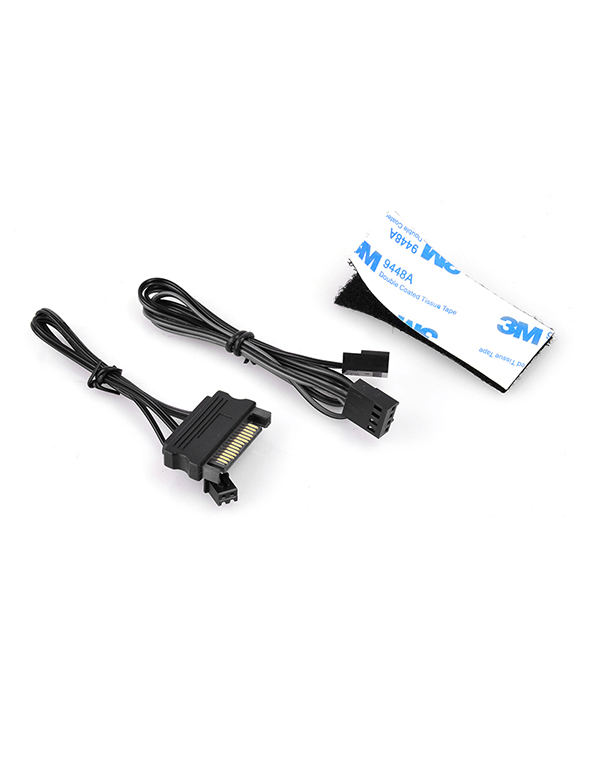

The fan hub is easily fixed by the screw and Velcro included, keeping the cables neat and tidy and holding the fan hub firmly in place.


Technical Spec
Overall Dimension 80X46X15mm
Net Weight 40g
Rated Voltage 12VDC

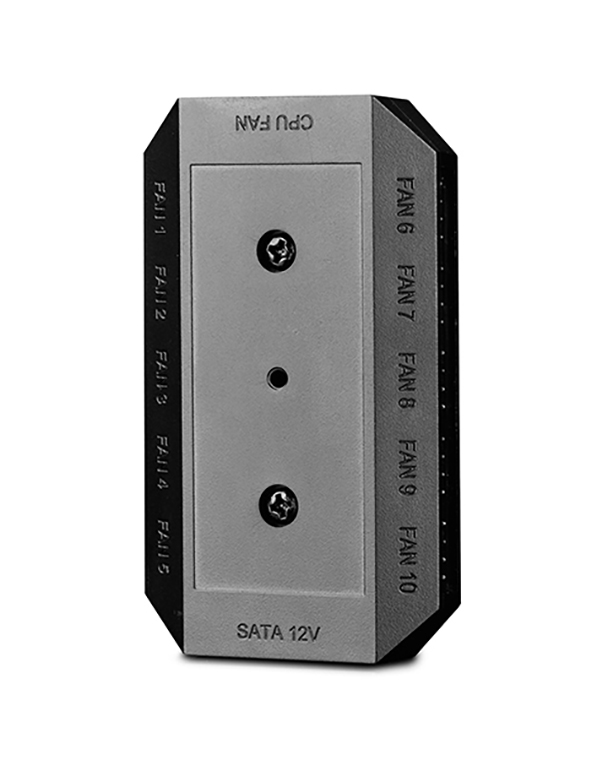

Fan port 4PINX10
Power port SATAX1
EAN 6933412710301
P/N DP-F10PWM-HUB
Download
FH-10 Manual.pdf
